AD5700-1BCPZ HART Modem IC: Complete Technical Guide and Alternatives

Admin · Aug 25, 2026 · 4 min read AI-Assisted · Updated: Aug 25, 2026 · Fact-Checked
AD5700-1BCPZ HART Modem IC: Complete Technical Guide and Alternatives
AD5700-1BCPZ is a single-chip HART FSK half-duplex modem from Analog Devices, operating from 2.7V to 5.5V with 1 mA typical supply current. Available now with 99,999 units in stock at XAIPART.

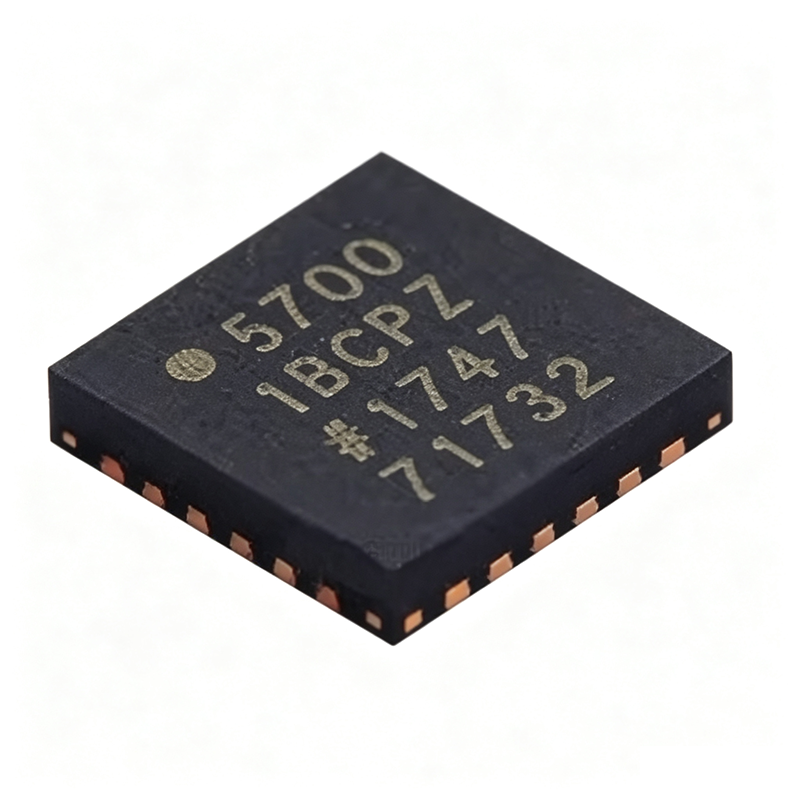

AD5700-1BCPZ

Quick Answers: What is the AD5700-1BCPZ and What Are Its Key Verified Specs?

The AD5700-1BCPZ is a single-chip HART FSK half-duplex modem from Analog Devices, designed to comply with the HART physical layer specification. It integrates all necessary filtering, signal detection, modulation, demodulation, and signal generation functions, requiring few external components. Key verified specifications include a supply voltage range of 2.7 V to 5.5 V, typical supply current of 1 mA, internal oscillator, internal 2.5 V reference, operating temperature range of -40°C to +125°C, and a 24-lead LFCSP-WQ (4x4 mm) package. As of 2026-08-25, the AD5700-1BCPZ is in active lifecycle status with 99,999 units in stock at XAIPART, priced at $6.6818 per unit for quantities of 1000 or more.

Technical Guide: How to Select, Design In, and Use the AD5700-1BCPZ

When selecting the AD5700-1BCPZ for your design, consider its HART physical layer compliance, low power consumption, and integrated features. The device operates from a 2.7 V to 5.5 V supply, making it suitable for loop-powered 4-20 mA instruments where power budget is tight. Its 1 mA typical supply current allows coexistence with sensors and microcontrollers within the 3.5-4 mA loop budget. The internal oscillator eliminates the need for an external crystal, reducing component count and board space. The integrated receive band-pass filter can be bypassed if needed, and the HART output is internally buffered with high drive capability, simplifying the interface to the coupling network.

For design-in, ensure proper decoupling of the power supply and careful layout of analog and digital sections to minimize noise. The device requires a few external components, including a coupling capacitor and protection circuit for the HART signal path. Refer to the datasheet for detailed application circuits and recommended component values.

Alternatives & Comparison: Drop-in Replacements for AD5700-1BCPZ

ParameterAD5700-1BCPZAD5700BCPZHT5700HT1200M
Internal OscillatorYesNo (requires external 3.6864 MHz crystal or CMOS clock)[DATA_NEEDED: Internal oscillator availability][DATA_NEEDED: Internal oscillator availability]
Supply Voltage Range2.7 V to 5.5 V[DATA_NEEDED: Supply voltage range][DATA_NEEDED: Supply voltage range][DATA_NEEDED: Supply voltage range]
Typical Supply Current1 mA[DATA_NEEDED: Typical supply current][DATA_NEEDED: Typical supply current][DATA_NEEDED: Typical supply current]
Operating Temperature Range-40°C to +125°C[DATA_NEEDED: Operating temperature range][DATA_NEEDED: Operating temperature range][DATA_NEEDED: Operating temperature range]
Package24-Lead LFCSP-WQ (4x4 mm)24-Lead LFCSP-WQ (4x4 mm) (assumed from same family)[DATA_NEEDED: Package][DATA_NEEDED: Package]
HART ComplianceHART Physical Layer SpecificationHART Physical Layer Specification (assumed)HART-certifiedHART-certified

Summary: The AD5700-1BCPZ is the only variant with an internal oscillator, simplifying design. AD5700BCPZ requires an external oscillator. HT5700 and HT1200M are cross-brand pin-compatible alternatives but their electrical specs are not fully verified in this data set.

Industry Insight: Market Position, Lifecycle, and Supply Situation

The AD5700-1BCPZ is in active lifecycle status, indicating ongoing production and availability. As of 2026-08-25, XAIPART holds 99,999 units in stock, ensuring immediate availability for design and production needs. The base price is $6.6818 for quantities of 1000 or more. The device is RoHS compliant and REACH unaffected, meeting current environmental standards. [DATA_NEEDED: Market share data, competitive landscape, and supply chain details beyond stock levels.]

Trends & Outlook: What Buyers Should Watch

Buyers should monitor the ongoing demand for HART-enabled field instruments in industrial process automation. The AD5700-1BCPZ's low power consumption and integrated oscillator align with trends toward compact, loop-powered devices. As HART remains a dominant protocol in legacy 4-20 mA installations, the AD5700-1BCPZ continues to be a relevant choice. Watch for potential supply constraints due to global semiconductor demand, but current stock levels at XAIPART provide a buffer. [VERIFY_NEEDED: Future product roadmap and potential successors from Analog Devices.]

Frequently Asked Questions

You can buy AD5700-1BCPZ from authorized distributors including DigiKey, Mouser, and Octopart-listed suppliers. As of 2026-08-23, the AD5700-1BCPZ-R5 and AD5700-1BCPZ-RL7 tape-and-reel variants are listed on DigiKey and Mouser. The base AD5700-1BCPZ is also available through Analog Devices authorized channels. Contact XAIPART for stock availability and a formal quote.
Pricing for AD5700-1BCPZ varies by quantity, packaging, and distributor. No exact list price was captured in the verified web data as of 2026-08-23. For accurate bulk pricing, request a quote from XAIPART or check current stock and pricing on DigiKey and Mouser. The R5 and RL7 reel variants may have slightly different per-unit prices due to packaging quantity.
Lead time for AD5700-1BCPZ depends on distributor inventory and order quantity. DigiKey lists the AD5700-1BCPZ-R5 and AD5700-1BCPZ-RL7 as ship-today stock items for many quantities. For larger orders or the base tray version, typical lead time from Analog Devices is 6 to 8 weeks. Confirm current lead time with your distributor or XAIPART at the time of ordering.
The AD5700-1 includes an internal oscillator and does not require an external crystal or clock input, while the standard AD5700 requires an external 3.6864 MHz crystal or CMOS-level clock. Both are single-chip HART FSK half-duplex modems compliant with the HART physical layer, and both are available in the 24-lead LFCSP-WQ package. The AD5700-1 simplifies board design and reduces component count.
Choose AD5700-1BCPZ when you want to eliminate the external 3.6864 MHz oscillator, simplify layout, and reduce component count. This is especially useful in compact, loop-powered transmitters where board space and power budget are tight. Choose AD5700BCPZ only if you already have a system clock available, or if you prefer to use an external crystal for frequency control.
The best same-brand drop-in replacement is AD5700BCPZ, which shares the 24-lead LFCSP-WQ footprint but requires an external 3.6864 MHz oscillator. Cross-brand pin-compatible replacements include the HT5700 and HT1200M from Microcybers, which are advertised as pin-compatible alternatives to the AD5700 family. Always verify pinout and HART physical-layer compliance before substitution.
The AD5700/AD5700-1 datasheet (Rev. G) is available as a PDF directly from Analog Devices at https://www.analog.com/media/en/technical-documentation/data-sheets/AD5700_5700-1.pdf. It includes full electrical specifications, pinout, application circuits, and HART physical-layer compliance details. You can also access HTML and PDF versions through DigiKey and alldatasheet.
The AD5700-1BCPZ is a single-chip HART FSK half-duplex modem operating from 2.7V to 5.5V with 1 mA typical supply current. It has an integrated band-pass filter (bypassable), an internal 2.5V reference, an internal oscillator, and a buffered HART output with high drive capability. It operates from -40°C to +125°C in a 24-lead LFCSP-WQ (4x4 mm) package.
You can replace AD5700-1BCPZ with AD5700-1BCPZ-RL7 or AD5700-1BCPZ-R5 (same die, different reel packaging), or with AD5700BCPZ (requires external oscillator). Cross-brand pin-compatible replacements include the HT5700 and HT1200M HART modem chips from Microcybers. Always confirm the 24-lead LFCSP-WQ pinout and HART physical-layer compliance before substituting.
The best cross-brand equivalents are the HT5700 and HT1200M from Microcybers, which are marketed as pin-to-pin replacements for the AD5700 and A5191HRT HART modem families. They are HART-certified and mass-production ready, but their datasheets must be checked for exact parametric equivalence, especially oscillator and reference voltage behavior, before design-in.
The AD5700-1BCPZ and AD5700-1BCPZ-RL7 share the same silicon die and 24-lead LFCSP-WQ package. The only difference is the packaging and reel quantity: the -RL7 suffix indicates tape-and-reel on a 7-inch reel, while the base part is supplied as a standard bulk or tray option. Electrically they are identical.
The AD5700-1BCPZ operates from -40°C to +125°C, making it suitable for industrial process-control environments. According to the Analog Devices AD5700/AD5700-1 datasheet, the device also operates from a 2.7V to 5.5V supply and draws approximately 1 mA typical current. This combination supports deployment in harsh field-installed instruments.
Yes. The AD5700-1BCPZ's 1 mA typical operating current and 2.7V to 5.5V supply range make it suitable for loop-powered 4-20 mA instruments, where the total current budget is typically 3.5 to 4 mA. Its internal oscillator further reduces component count, preserving power budget for sensors and analog front-end circuits in the field instrument.
