AD7177-2BRUZ-RL7 32-Bit Sigma-Delta ADC: The Ultimate Guide for Precision Measurement

What is the AD7177-2BRUZ-RL7 and Why Does It Matter?

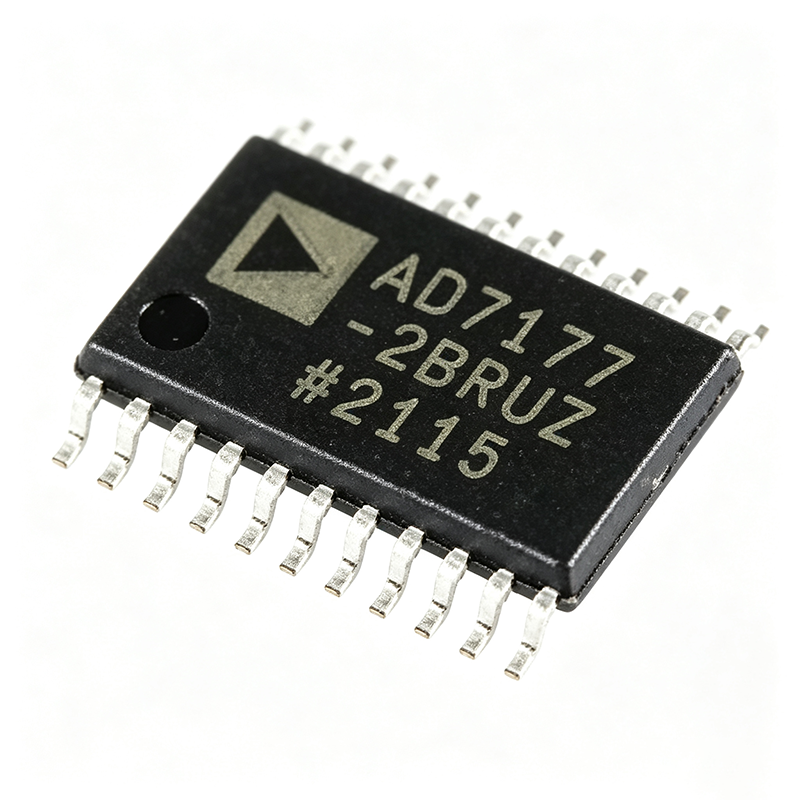

The AD7177-2BRUZ-RL7 is a 32-bit, low noise, fast settling, multiplexed sigma-delta analog-to-digital converter (ADC) from Analog Devices. It delivers a maximum channel scan rate of 10 kSPS (100 µs fully settled), output data rates from 5 SPS to 10 kSPS, and 85 dB filter rejection at 50 Hz and 60 Hz. As of 2026-08-23, the device is active and in stock at XAIPART with 99,999 units available, priced at $38.1818 per unit at 1,000+ quantity. This guide covers selection, design-in, alternatives, market insight, and trends.

Technical Guide: How to Select and Design In the AD7177-2BRUZ-RL7

Key Specifications You Must Know

Before designing with the AD7177-2BRUZ-RL7, verify these verified specifications:

• Resolution: 32 Bit
• Input Channels: 2 or 4 (fully/pseudo differential)
• Data Interface: SPI
• Max Sampling Rate: 10 kSPS
• Settling Time: 100 µs (fully settled)
• Filter Rejection: 85 dB at 50/60 Hz (50 ms settling)
• Reference Type: External, Differential
• Operating Temperature: -40°C to +105°C
• Package: 24-TSSOP

Selecting the Right ADC for Your Application

Choose the AD7177-2BRUZ-RL7 when you need 32-bit resolution, fast settling for multiplexed channels, and robust 50/60 Hz rejection. It suits precision measurement systems, weigh scales, and industrial automation. For lower resolution needs, consider the AD7176-2BRUZ (24-bit) as a pin-compatible alternative.

Design-In Best Practices

Follow these guidelines for optimal performance:

• Power Supply: Provide clean, low-noise supplies to AVDD and DVDD. Decouple with 0.1 µF and 10 µF capacitors close to the pins. [DATA_NEEDED: Analog supply voltage range] [DATA_NEEDED: Digital supply voltage range]
• Reference: Use a low-noise, low-drift external reference like ADR445, ADR444, or ADR441 (as recommended in the datasheet). Drive REF+ and REF− with a low-impedance source.
• Analog Inputs: The integrated true rail-to-rail buffers simplify driving. For best noise performance, keep source impedance low.
• SPI Interface: Keep SPI traces short and properly terminated to avoid signal integrity issues.
• Layout: Separate analog and digital grounds, use a solid ground plane, and minimize loop areas.

Pinout Essentials

Key pins for design (full pinout on product page):

Alternatives & Comparison: Drop-In Replacements

Based on verified data, the AD7177-2BRUZ (tube packaging) is a drop-in replacement for the -RL7 (tape and reel). The AD7176-2BRUZ is pin-compatible but offers 24-bit resolution. [DATA_NEEDED: Additional alternatives not provided]

Summary: The AD7177-2BRUZ is electrically identical to the -RL7; choose based on assembly needs. The AD7176-2BRUZ offers lower resolution but pin compatibility.

Industry Insight: Market Position and Supply

The AD7177-2BRUZ-RL7 is an active lifecycle component from Analog Devices, indicating ongoing production and support. As of 2026-08-23, XAIPART holds 99,999 units in stock, with a base price of $38.1818 at 1,000+ quantity. Pricing tiers: 1+ $65.4545, 10+ $47.2727, 100+ $41.8182, 500+ $40.00, 1000+ $38.1818. [DATA_NEEDED: Market share, lead times, competitive landscape]

Trends & Outlook: What Buyers Should Watch

Demand for high-resolution, fast-settling ADCs continues in industrial and medical applications. The AD7177-2BRUZ-RL7's 32-bit resolution and 10 kSPS scan rate position it well for next-gen precision systems. Watch for continued availability and potential price fluctuations. [VERIFY_NEEDED: Future product roadmap]
