AD7606BSTZ-6RL: 16-Bit 6-Channel Simultaneous Sampling ADC – Complete Guide
AD7606BSTZ-6RL is a 16-bit, 6-channel simultaneous sampling ADC from Analog Devices. It offers 200 kSPS throughput, ±10 V bipolar inputs, and is active with 99,999 units in stock. Ideal for power monitoring and motor control.

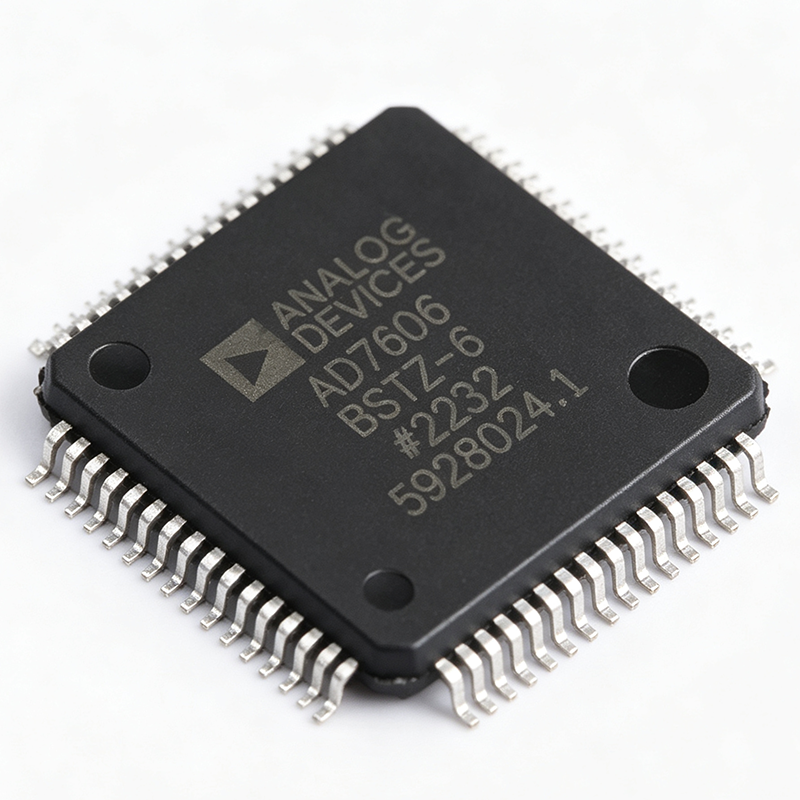

AD7606BSTZ-6RL

Quick Answers: What Is the AD7606BSTZ-6RL and Is It Available?

The AD7606BSTZ-6RL is a 16-bit, 6-channel simultaneous sampling analog-to-digital data acquisition system (DAS) from Analog Devices. It integrates input clamp protection, a second-order antialiasing filter, track-and-hold amplifiers, a 16-bit SAR ADC, a flexible digital filter, a 2.5 V reference, and high-speed serial and parallel interfaces. Key verified specs include 200 kSPS throughput per channel, bipolar input ranges of ±10 V, ±5 V, and ±2.5 V, and operation from a single 5 V supply. As of 2026-08-23, the part is active with 99,999 units in stock at XAIPART, priced at $41.3636 for quantities of 1000+. This guide covers selection, design-in, alternatives, market position, and trends.

Technical Guide: How to Select and Design In the AD7606BSTZ-6RL

Understanding the Core Specifications

The AD7606BSTZ-6RL delivers 16-bit resolution with no missing codes, 6 simultaneous sampling channels, and a 200 kSPS throughput per channel. It accepts bipolar inputs of ±10 V, ±5 V, and ±2.5 V, selectable via the RANGE pin. The integrated second-order antialiasing filter provides -80 dB attenuation at the Nyquist frequency, simplifying external filtering. Input clamp protection handles overvoltage up to ±16.5 V, enhancing robustness in industrial environments.

Power Supply and Decoupling

The device operates from a single 5 V supply for both AVCC and DVCC. Place 10 µF and 0.1 µF decoupling capacitors close to each power pin. The VDRIVE pin sets the digital interface voltage, allowing connection to 2.3 V to 5 V logic. Ensure AGND and DGND are connected to a solid ground plane to minimize noise.

Reference Voltage Configuration

The internal 2.5 V reference is available on REFIN/REFOUT. For higher accuracy, you can overdrive this pin with an external reference. The REFCAP pin requires a 1 µF low-ESR capacitor to ground for stability. If using an external reference, ensure it can drive the REFIN/REFOUT pin's input impedance.

Analog Input Scaling

The AD7606BSTZ-6RL accepts bipolar inputs directly, eliminating the need for level shifting. For ±10 V range, connect voltage transformer outputs directly. For current sensors, use a burden resistor to convert current to voltage within the selected range. The high input impedance minimizes loading on the signal source.

Digital Interface Selection

Set the PAR/SER pin to choose parallel or serial mode. In parallel mode, use the 16-bit DB[15:0] bus with CS and RD signals. In serial mode, use SCLK and DOUT (via DB0) for SPI, QSPI, MICROWIRE, or DSP-compatible interfaces. The BUSY pin indicates conversion completion. For simultaneous sampling, assert CONVST A and CONVST B together to capture all channels at the same instant.

Digital Filter and Oversampling

The flexible digital filter can be configured via OS[2:0] pins to reduce noise and increase resolution. Oversampling ratios from 2x to 64x are available, trading throughput for improved SNR. For 50/60 Hz power monitoring, an oversampling ratio of 4x or higher can help reject line noise.

Layout Best Practices

Keep analog and digital grounds separate and connect them at a single point. Route analog inputs away from digital traces to avoid coupling. Place the reference capacitor close to REFCAP. Use a ground plane under the LQFP package to reduce parasitic inductance. Follow the layout guidelines in the datasheet for optimal performance.

Alternatives & Comparison: Drop-In Replacements and Variants

When selecting a replacement, consider the AD7606BSTZ-6 (same die, tray packaging) and AD7606BSTZ-4RL (4-channel version). The AD7606B is a newer generation with improved specs but may require firmware changes. The table below compares key specs from verified data.

ParameterAD7606BSTZ-6RLAD7606BSTZ-6AD7606BSTZ-4RLAD7606B
Resolution16 bit16 bit16 bit[DATA_NEEDED: Resolution]
Channels664[DATA_NEEDED: Channels]
Sampling Rate200 kSPS200 kSPS200 kSPS[DATA_NEEDED: Sampling Rate]
Input Voltage Range±10 V, ±5 V, ±2.5 V±10 V, ±5 V, ±2.5 V±10 V, ±5 V, ±2.5 V[DATA_NEEDED: Input Voltage Range]
InterfaceParallel, Serial, SPI, QSPI, MICROWIRE, DSPParallel, Serial, SPI, QSPI, MICROWIRE, DSPParallel, Serial, SPI, QSPI, MICROWIRE, DSP[DATA_NEEDED: Interface]
Supply Voltage5 V5 V5 V[DATA_NEEDED: Supply Voltage]
Reference Voltage2.5 V internal2.5 V internal2.5 V internal[DATA_NEEDED: Reference Voltage]
Antialiasing FilterSecond-order, -80 dB at NyquistSecond-order, -80 dB at NyquistSecond-order, -80 dB at Nyquist[DATA_NEEDED: Antialiasing Filter]
Input Clamp Protection±16.5 V±16.5 V±16.5 V[DATA_NEEDED: Input Clamp Protection]
Operating Temperature-40°C to +85°C-40°C to +85°C-40°C to +85°C[DATA_NEEDED: Operating Temperature]
Package64-LQFP (10x10 mm)64-LQFP (10x10 mm)64-LQFP (10x10 mm)[DATA_NEEDED: Package]
PackagingTape & ReelTrayTape & Reel[DATA_NEEDED: Packaging]

Summary: The AD7606BSTZ-6 is a direct drop-in replacement with identical specs, differing only in packaging. The AD7606BSTZ-4RL offers fewer channels but is pin-compatible. The AD7606B is a newer generation but requires [VERIFY_NEEDED: firmware changes and pin compatibility].

Industry Insight: Market Position, Lifecycle, and Supply

The AD7606BSTZ-6RL is in an active lifecycle status, indicating ongoing production and manufacturer support. As of 2026-08-23, XAIPART holds 99,999 units in stock, ensuring immediate availability for most order quantities. The part is widely used in industrial applications, and its long lifecycle makes it a stable choice for designs requiring longevity. [DATA_NEEDED: Market share data] [DATA_NEEDED: Lead time from manufacturer]

Trends & Outlook: What Buyers Should Watch

With the push toward smarter grids and Industry 4.0, demand for simultaneous sampling ADCs like the AD7606BSTZ-6RL is expected to grow. The 6-channel configuration addresses three-phase power monitoring and multi-axis control needs. The 200 kSPS throughput and 16-bit resolution remain competitive for many industrial applications. Buyers should monitor the transition to newer generations like the AD7606B, which may offer improved performance but require design changes. The active lifecycle and ample stock suggest continued availability, but supply chain dynamics could affect lead times. [VERIFY_NEEDED: Future product roadmap]

Frequently Asked Questions

The AD7606BSTZ-6RL is a 16-bit, simultaneous sampling, analog-to-digital data acquisition system (DAS) with six channels from Analog Devices. It integrates analog input clamp protection, a second-order antialiasing filter, track-and-hold amplifiers, a 16-bit SAR ADC, a flexible digital filter, a 2.5 V reference, and high-speed serial and parallel interfaces. It operates from a single 5 V supply and accepts bipolar inputs of ±10 V, ±5 V, and ±2.5 V. According to the AD7606 datasheet, it achieves 200 kSPS throughput per channel.
As of 2026-08-23, the AD7606BSTZ-6RL is priced at $70.9091 for 1 unit, $51.2121 for 10+, $45.303 for 100+, $43.3333 for 500+, and $41.3636 for 1000+ at XAIPART. Distributor pricing may vary; check current quotes.
The AD7606BSTZ-6RL is available at XAIPART with 99,999 units in stock. It is also available from major distributors like DigiKey, Mouser, and Arrow. Check XAIPART for competitive pricing and availability.
At XAIPART, the part is in stock with 99,999 units, so lead time is immediate for most orders. For larger quantities, lead time may vary; contact XAIPART for specific lead times.
Yes, as of 2026-08-23, XAIPART has 99,999 units in stock. The lifecycle status is active, indicating ongoing production.
The AD7606BSTZ-6RL and AD7606BSTZ-6 are functionally identical; the 'RL' suffix indicates tape-and-reel packaging, while the non-RL version is supplied in a tray. Both are 6-channel, 16-bit simultaneous sampling ADCs with the same specifications and 64-LQFP package. The choice depends on assembly process: tape-and-reel for automated SMT, tray for manual or low-volume.
Choose the AD7606BSTZ-6RL when you need six simultaneous sampling channels, such as for three-phase power monitoring with neutral current sensing or six-axis vibration analysis. The AD7606BSTZ-4RL offers only four channels and is suitable for single-phase power monitoring or motor control with fewer phases. Both share the same 16-bit resolution and 200 kSPS throughput.
The best drop-in replacement is the AD7606BSTZ-6 (same die, same package, tray packaging) or the AD7606BSTZ (8-channel version, pin-compatible but with two extra channels). For a cross-brand alternative, consider the AD7606B from Analog Devices, which is newer but may require firmware changes. Always verify pin compatibility and software configuration.
Yes, the AD7606BSTZ-6 is a direct drop-in replacement. Both are 6-channel, 16-bit simultaneous sampling ADCs in the same 64-LQFP package with identical pinout and electrical specifications. The only difference is packaging: -6 is tray, -6RL is tape-and-reel. No circuit changes are required.
The datasheet is available at https://www.analog.com/media/en/technical-documentation/data-sheets/ad7606.pdf. It is also available on distributor sites like DigiKey and Mouser.
The pinout is detailed in the official datasheet from Analog Devices, available at https://www.analog.com/media/en/technical-documentation/data-sheets/ad7606.pdf. The 64-lead LQFP package pin assignments are shown in the datasheet.
The AD7606BSTZ-6RL can be replaced by the AD7606BSTZ-6 (same part, tray packaging) or the AD7606BSTZ (8-channel version, pin-compatible). For a cross-brand alternative, consider the AD7606B from Analog Devices, which offers improved performance but may require firmware updates. Always verify pin compatibility and software configuration.
No, the AD7606BSTZ-6RL is a 6-channel version, while the AD7606BSTZ is the 8-channel version. Both share the same 64-LQFP package and pinout, but the 8-channel version has two additional analog input channels. The 6-channel version is pin-compatible, but the extra channels are not bonded out.
The AD7606BSTZ-6RL is a 16-bit, 6-channel simultaneous sampling ADC with 200 kSPS throughput per channel. It accepts bipolar inputs of ±10 V, ±5 V, and ±2.5 V, and operates from a single 5 V supply. It includes a second-order antialiasing filter with -80 dB attenuation at Nyquist, input clamp protection up to ±16.5 V, and an internal 2.5 V reference. It supports parallel, serial, SPI, QSPI, MICROWIRE, and DSP interfaces, and operates over -40°C to +85°C. Package is 64-lead LQFP (10x10 mm).
The best Analog Devices equivalent is the AD7606BSTZ-6, which is the same die and package but supplied in a tray instead of tape-and-reel. For a newer generation, consider the AD7606B, which offers improved specifications but may require firmware changes. Both are pin-compatible with the AD7606BSTZ-6RL.
