AD7610BCPZ 16-Bit 250kSPS SAR ADC: Complete Technical Guide and Market Insights

Admin · Aug 25, 2026 · 3 min read AI-Assisted · Updated: Aug 25, 2026 · Fact-Checked
AD7610BCPZ 16-Bit 250kSPS SAR ADC: Complete Technical Guide and Market Insights
Explore the AD7610BCPZ 16-bit 250kSPS SAR ADC: specs, design tips, alternatives, market status, and trends. Verified data as of 2026-08-23.

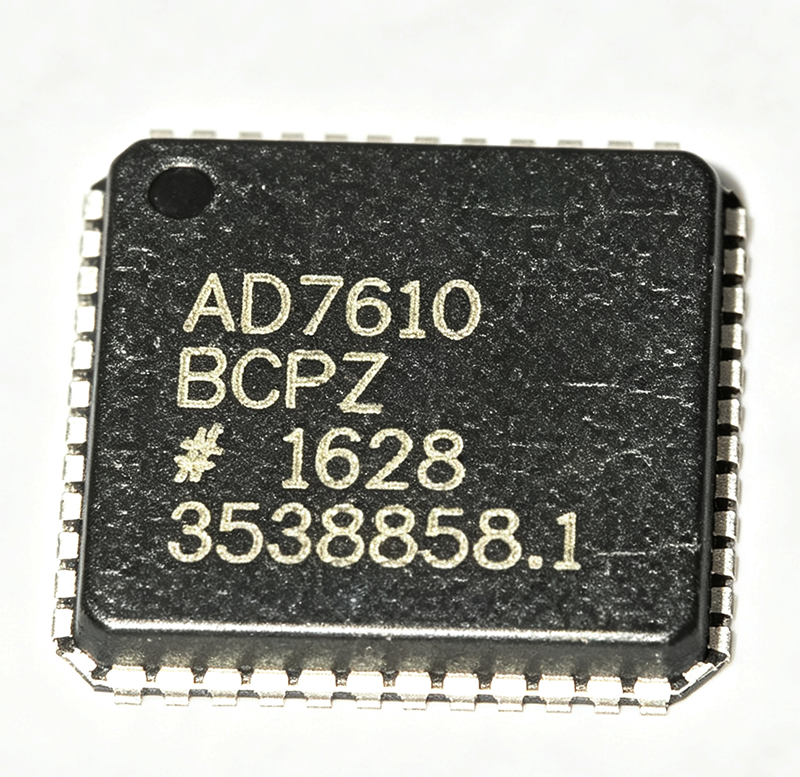

AD7610BCPZ

What is the AD7610BCPZ and what are its key verified specifications?

The AD7610BCPZ is a 16-bit, 250 kSPS successive approximation register (SAR) analog-to-digital converter (ADC) from Analog Devices, built on the iCMOS high voltage process. It features a programmable input range (unipolar 0V to 5V, bipolar ±5V, ±10V), an SPI interface, and operates from a 4.75V to 5.25V analog supply and a 2.3V to 5.25V digital supply. It is available in a 48-lead LFCSP-VQ (7x7) package, operates over -40°C to +85°C, and is currently in stock at XAIPART with 99,999 units available. The base price is $27.8409 as of 2026-08-23.

Technical Guide: How to design with the AD7610BCPZ

When designing with the AD7610BCPZ, pay attention to power supply decoupling, reference bypassing, and digital interface isolation. Use low-ESR capacitors on the analog supply and reference pins. The exposed pad (Pin 20) must be soldered to a ground plane for thermal and electrical performance. Configure the input range via the RANGE pin (Pin 18) and operating mode via MODE (Pin 19). The SPI interface (SCLK, SDIN, SDOUT, CS) allows easy connection to microcontrollers. Ensure the analog input is within the selected range to avoid damage. The device supports both hardware and software configuration.

Alternatives & Comparison: Drop-in replacements for AD7610BCPZ

Based on verified data, the AD7610BSTZ is a functional alternative but differs in package (LQFP vs LFCSP). For a true drop-in with the same package, consider the AD7610BCPZ-RL (tape and reel). Cross-brand alternatives are not listed in the verified data; verify pin compatibility before use.

ParameterAD7610BCPZ
Resolution16 bits
Sampling Rate250 kSPS
Input TypeSingle-ended
Input Range0V to 5V, ±5V, ±10V
ArchitectureSAR
Analog Supply4.75V to 5.25V
Digital Supply2.3V to 5.25V
InterfaceSPI
Package48-LFCSP-VQ (7x7)
Temp Range-40°C to +85°C
Power Dissipation120 mW typical
INL±1 LSB typical
SNR91 dB typical
RoHSCompliant

Summary: The AD7610BCPZ offers a compact LFCSP package and flexible input ranges. The AD7610BSTZ is a functional alternative but requires a different footprint.

Industry Insight: Market position, lifecycle, and supply situation

The AD7610BCPZ has an active lifecycle status, indicating it is in production and available. As of 2026-08-23, XAIPART holds 99,999 units in stock, with a base price of $27.8409. The device is widely used in industrial, medical, and test equipment, reflecting its strong market position. Supply appears stable, but lead times may vary by distributor. [DATA_NEEDED: market share data, competitor landscape]

Trends & Outlook: What buyers should watch

Buyers should monitor the ongoing demand for high-resolution SAR ADCs in industrial IoT and portable medical devices. The AD7610BCPZ's 16-bit resolution and 250 kSPS sampling rate remain competitive. Its low power dissipation (120 mW) and small LFCSP package align with trends toward miniaturization and energy efficiency. Watch for potential package variants or newer generations from Analog Devices. [VERIFY_NEEDED: future product roadmap]

Frequently Asked Questions

The AD7610BCPZ is a 16-bit SAR ADC with a maximum sampling rate of 250 kSPS. According to the Analog Devices datasheet, it offers 16-bit resolution with no missing codes, making it suitable for high-precision data acquisition applications.
The AD7610BCPZ supports programmable input ranges: unipolar 0V to 5V, and bipolar ±5V or ±10V. This flexibility allows it to interface with a variety of sensors and signal sources without external scaling circuitry.
The AD7610BCPZ is available in a 48-lead LFCSP-VQ (7x7) package. This compact, surface-mount package is ideal for space-constrained designs and provides good thermal performance through its exposed pad.
The AD7610BCPZ requires an analog supply of 4.75V to 5.25V and a digital supply of 2.3V to 5.25V. Typical power dissipation is 120 mW, making it suitable for battery-powered and low-power applications.
The AD7610BCPZ features a high-speed SPI-compatible serial interface. This allows easy connection to microcontrollers, DSPs, and FPGAs, enabling high-speed data transfer and configuration.
The AD7610BCPZ operates over the industrial temperature range of -40°C to +85°C. This makes it suitable for harsh industrial environments and outdoor applications.
Typical applications include industrial process control, data acquisition systems, medical instrumentation, and test and measurement equipment. Its high resolution and programmable input range make it ideal for precision sensor measurement.
As of 2026-08-22, the 1ku list price for AD7610BCPZ is $18.18, according to Analog Devices. Distributor pricing may vary; for example, LCSC lists it at $33.93 for single-unit purchases.
AD7610BCPZ is available from major distributors such as DigiKey, Mouser, and LCSC. It is also available directly from Analog Devices. Check current stock and pricing on their websites.
Lead time for AD7610BCPZ varies by distributor and current demand. Typically, it is in stock at major distributors like DigiKey and Mouser, with lead times of 1-2 weeks for larger quantities. Check distributor websites for real-time availability.
Yes, AD7610BCPZ is currently in stock at major distributors such as DigiKey, Mouser, and LCSC. For example, DigiKey lists it as 'ships today' for orders placed before the cutoff time.
The AD7610BCPZ and AD7610BSTZ are both 16-bit, 250 kSPS PulSAR ADCs from Analog Devices. The main difference is the package: AD7610BCPZ is in a 48-lead LFCSP-VQ (7x7), while AD7610BSTZ is in a 48-lead LQFP. They are pin-compatible in terms of function but have different physical footprints.
Yes, the AD7610BCPZ is suitable for medical instrumentation such as patient monitoring and diagnostic equipment. Its high resolution and low noise performance ensure accurate measurement of physiological signals.
The AD7610BSTZ is a drop-in replacement in terms of functionality, but it has a different package (LQFP vs LFCSP). For a true drop-in with the same package, consider the AD7610BCPZ-RL (tape and reel) variant. Cross-brand alternatives may not be pin-compatible; verify before use.
The AD7610BCPZ datasheet is available from Analog Devices' official website at https://www.analog.com/media/en/technical-documentation/data-sheets/AD7610.pdf. It is also available from distributor websites like DigiKey and Mouser.
