ADM2483BRWZ Isolated RS-485 Transceiver: Specs, Design Guide, and Alternatives

Quick Answers: What is the ADM2483BRWZ and Why Does It Matter?

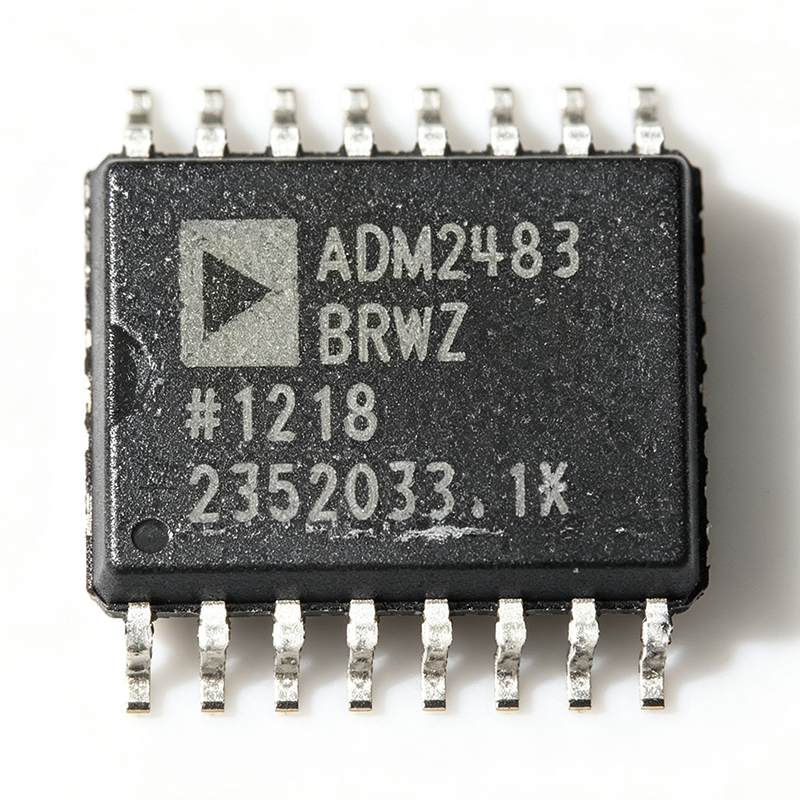

The ADM2483BRWZ from Analog Devices is an isolated RS-485/RS-422 transceiver that integrates a 3-channel digital isolator, a three-state differential line driver, and a differential input receiver into a single 16-pin SOIC package. It delivers 2500 Vrms isolation, a 500 kbps data rate, and 25 kV/µs common-mode transient immunity (CMTI), operating over -40°C to +85°C. As of 2026-08-27, the device is active, in stock with 99,999 units available, and priced at $3.8182 per unit at 1k quantities (MOQ 1). This part is ideal for industrial fieldbus, building automation, and motor control applications where galvanic isolation and noise immunity are critical.

Technical Guide: How to Select, Design In, and Use the ADM2483BRWZ

Understanding the ADM2483BRWZ Architecture

The ADM2483BRWZ combines a 3-channel digital isolator (one driver channel and two receiver channels) with an RS-485 transceiver. It uses Analog Devices' iCoupler technology, which employs chip-scale transformers for isolation, offering advantages over optocouplers in speed, reliability, and power efficiency. The device supports half-duplex communication, with a slew-limited driver to minimize EMI and reflections in long cable runs.

Key Specifications and Their Design Implications

• Isolation Voltage (2500 Vrms): Provides galvanic isolation between logic and bus sides, protecting sensitive controllers from ground loops and high voltages. Ensure PCB creepage and clearance distances meet the required isolation ratings.
• Data Rate (500 kbps): Suitable for most industrial protocols like Modbus and PROFIBUS DP (at lower speeds). For higher data rates, consider alternatives like ISO35DW (1 Mbps).
• CMTI (25 kV/µs): Ensures reliable operation in noisy environments with fast transients, such as motor drives. This is critical for maintaining signal integrity during switching events.
• Supply Voltages: Logic side accepts 3 V or 5 V, while the bus side requires 5 V. This flexibility allows interfacing with both 3.3 V and 5 V microcontrollers. Use proper decoupling capacitors on both supplies.
• Operating Temperature (-40°C to +85°C): Suitable for industrial environments. Verify thermal performance in your specific enclosure.

Design-In Checklist

1. Power Supply Decoupling: Place 0.1 µF ceramic capacitors close to VDD1 (pins 1 and 16) and VDD2 (pin 9), and a 10 µF bulk capacitor on each supply if needed.
2. Bus Termination: Terminate the RS-485 bus with 120 Ω resistors at both ends to minimize reflections. The slew-limited driver reduces EMI but proper termination is still essential.
3. Enable/Disable Control: Use RE (pin 4, active low) and DE (pin 5, active high) to control the receiver and driver. For half-duplex operation, tie RE and DE together and control with a single GPIO.
4. Isolation Barrier: Maintain proper creepage and clearance distances between the logic and bus sides on the PCB to meet isolation requirements.
5. ESD Protection: Although the device has built-in protection, consider adding external TVS diodes on the A and B lines for harsh environments.

Pinout and Functional Description

The ADM2483BRWZ comes in a 16-pin SOIC package. Key pins include VDD1 (logic supply), GND1 (logic ground), RO (receiver output), RE (receiver enable), DE (driver enable), DI (driver input), VDD2 (bus supply), GND2 (bus ground), and A/B (bus lines). For a complete pinout, refer to the datasheet.

Alternatives & Comparison: Drop-In Replacements for ADM2483BRWZ

When selecting a replacement, consider pin compatibility, electrical specifications, and packaging. The following table compares the ADM2483BRWZ with its verified alternatives.

Summary: The ADM2483BRWZ-REEL is a direct drop-in with identical specs. The ADM2483BRW and ADM2483BRW-REEL are non-RoHS versions. The ISO3082DW and ISO35DW are cross-brand alternatives; ISO35DW offers a higher data rate (1 Mbps) but verify pinout compatibility.

Industry Insight: Market Position, Lifecycle, and Supply

The ADM2483BRWZ is an active product from Analog Devices, indicating ongoing production and availability. As of 2026-08-27, XAIPART lists 99,999 units in stock, with a base price of $3.8182 at 1k quantities. The device is RoHS compliant and REACH unaffected, meeting environmental standards. Its wide adoption in industrial and building automation suggests a stable market position. [DATA_NEEDED: Market share and competitive landscape data]

Trends & Outlook: What Buyers Should Watch

As industrial automation and renewable energy systems grow, demand for isolated RS-485 transceivers like the ADM2483BRWZ is expected to remain strong. The trend toward higher data rates and lower power consumption may drive interest in alternatives like ISO35DW (1 Mbps). Buyers should monitor supply chain stability and consider long-term availability. The ADM2483BRWZ's active lifecycle and ample stock suggest a reliable choice for current designs. [VERIFY_NEEDED: Future product roadmap and potential obsolescence]
