DRV8353SRTAR: Complete Guide to TI's 102V 3-Phase Smart Gate Driver for BLDC Motor Control

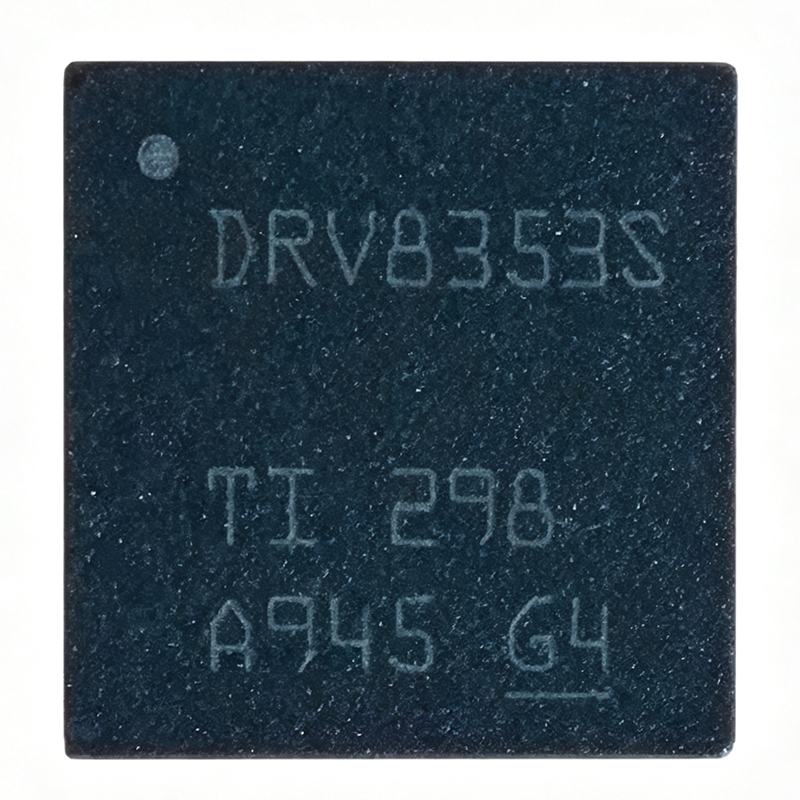

The Texas Instruments DRV8353SRTAR is a highly integrated 102V three-phase smart gate driver for brushless DC (BLDC) motor applications. It operates from a 9V to 100V supply (102V absolute maximum), integrates three half-bridge gate drivers with three optional current shunt amplifiers and an optional buck regulator, and is configurable via an SPI interface. It comes in a 40-pin WQFN (RTA) package measuring 6x6 mm, operates from -40°C to 125°C, and is RoHS compliant. The part is in active lifecycle status and is available on XAIPART with 99,999 units in stock, a minimum order quantity of 1, and pricing starting at $5.4545 for single units down to $3.1818 at 1,000 units as of 2026-08-30. This guide covers how to select, design in, and source the DRV8353SRTAR, compares it with verified alternatives, and outlines what buyers should watch going forward.

What Are the Quick Answers About the DRV8353SRTAR?

The DRV8353SRTAR is a smart gate driver: an IC that translates low-voltage logic signals from a microcontroller into high-current gate drive signals for the external power MOSFETs in a three-phase motor inverter. The "smart" gate drive architecture monitors gate-to-source voltage (VGS) to ensure proper MOSFET turn-on and turn-off, reducing shoot-through risk and improving system reliability.

Key verified specifications:

Availability on XAIPART: 99,999 units in stock, MOQ 1, tiered pricing of $5.4545 (1+), $3.9394 (10+), $3.4848 (100+), $3.3333 (500+), and $3.1818 (1,000+) as of 2026-08-30. Lifecycle status is active. [VERIFY_NEEDED: distributor stock levels at other suppliers, since only XAIPART stock data is verified here.]

How Do You Select and Design In the DRV8353SRTAR?

Step 1: Confirm voltage headroom. The device operates from 9V to 100V with a 102V absolute maximum. This comfortably covers 12V, 24V, and 48V systems, as well as 4S to 12S LiPo battery packs used in drones. Verify your application's worst-case bus voltage, including transients and regenerative braking pump-up, stays below 100V continuous and 102V absolute maximum.

Step 2: Choose the configuration interface. The "S" variant uses SPI for configuration and diagnostics, enabling real-time monitoring, adjustable parameters, and fault reporting. If your design only needs hardware-pin configuration, the pin-compatible DRV8350 (verified in the alternatives data) is a simpler option. Choose the DRV8353SRTAR when you need SPI-based flexibility for advanced motor control algorithms.

Step 3: Use the integrated analog features. The three optional current shunt amplifiers enable precise low-side current sensing without external op-amps, reducing BOM cost and board space; gain is programmable via SPI. The optional integrated buck regulator can generate a lower voltage rail for logic circuits, further reducing component count.

Step 4: Optimize gate drive for your MOSFETs. The smart gate drive with adjustable slew rate control lets you trade switching speed against EMI, which is critical in noise-sensitive designs such as drones with GPS modules or industrial environments with sensitive electronics. VGS handshake and dead-time management reduce shoot-through risk. Select gate drive settings based on the external MOSFETs' gate charge to optimize switching performance.

Step 5: Leverage protection features. The device integrates undervoltage lockout (UVLO), overcurrent protection, and thermal shutdown. The nFAULT output (pin 20, active low) reports fault conditions to your MCU.

Step 6: Follow layout best practices. Ensure proper PCB layout with adequate copper pour for thermal dissipation through the exposed thermal pad of the WQFN package, and place decoupling capacitors close to the power pins.

Key pins (verified from the database pinout table): VIN is pin 1 (power supply input), GND is pin 2, the three-phase gate drive signals occupy pins 3-14 (GH_A/SH_A/GL_A/SL_A on pins 3-6, GH_B/SH_B/GL_B/SL_B on pins 7-10, GH_C/SH_C/GL_C/SL_C on pins 11-14), the SPI interface uses pins 15-18 (SPI_CLK, SPI_CS, SPI_SDI, SPI_SDO), EN is pin 19, and nFAULT is pin 20. The full pin table is available on the DRV8353SRTAR product page.

What Are the Verified Alternatives and How Do They Compare?

All alternatives below come from the verified XAIPART database. Detailed specifications for each alternative part should be confirmed on their respective product pages before substituting.

Selection guidance: Choose DRV8350SRTAR for cost-optimized designs that don't need SPI diagnostics. Choose DRV8353SRTARQ1 for automotive programs requiring AEC-Q100 qualification. Choose DRV8353SRTAT for tape-and-reel volume production of the same die. No exact cross-brand drop-in replacement exists; the DRV8353 family from TI offers the closest functional match. [VERIFY_NEEDED: pricing and stock for each alternative, as that data was not provided in this dataset.]

Where Does the DRV8353SRTAR Stand in the Market and Supply Chain?

The DRV8353SRTAR holds an active lifecycle status per the verified database, meaning Texas Instruments continues to manufacture and support it. On XAIPART, 99,999 units are in stock as of 2026-08-30 with an MOQ of 1, indicating healthy short-term supply for prototyping through mid-volume production. [DATA_NEEDED: manufacturer forecast, end-of-life risk assessment, and multi-distributor supply data.] The DRV835x family sits within TI's motor driver portfolio under the broader power management IC category, a segment with sustained demand driven by electrification of industrial equipment, power tools, robotics, and automotive auxiliary systems such as electric power steering, cooling fans, and oil pumps. The existence of an AEC-Q100 qualified variant (DRV8353SRTARQ1) confirms TI's commitment to the automotive market for this product line.

What Trends and Developments Should Buyers Watch for This Component?

48V architecture adoption: The verified 9V to 100V input range positions the DRV8353SRTAR squarely for 48V systems expanding across robotics, drones (4S to 12S LiPo), and automotive auxiliary domains. Demand for parts covering this range should remain strong.

Integration consolidation: The trend toward integrating current shunt amplifiers (3x optional here), buck regulator (optional), and protection (UVLO, overcurrent, thermal shutdown) into one 6x6 mm package continues to reduce BOM cost and board space. Buyers evaluating this part benefit from fewer external components compared to discrete gate driver designs.

SPI-based diagnostics and functional monitoring: The SPI interface enables real-time motor current and fault monitoring, sensorless control support, and calibration, aligning with growing requirements for predictive maintenance in industrial drives and diagnostics in automotive systems. Expect SPI-configurable smart gate drivers to increasingly displace hardware-pin-configured parts in new designs, while the pin-compatible DRV8350 remains relevant for cost-driven, fixed-configuration designs.

EMI compliance pressure: Adjustable slew rate control allows designers to tune switching behavior for EMI performance, which matters as EMC requirements tighten in automotive and drone applications where GPS and communication modules are sensitive to switching noise.

Sourcing recommendations: With 99,999 units in stock on XAIPART and tiered pricing from $5.4545 down to $3.1818 at 1,000 units as of 2026-08-30, buyers should consolidate volume orders to capture the 1,000-unit price tier and consider the DRV8353SRTAT tape-and-reel variant for production assembly lines. For automotive programs, qualify the DRV8353SRTARQ1 early since AEC-Q100 qualification is required.

Which Applications Use the DRV8353SRTAR Most Effectively?

Verified application scenarios from the database include industrial motor drives (conveyor belts, pumps, fans), robotics (joint actuators, wheel drives), power tools (drills, saws with 18V to 36V battery packs), automotive systems (electric power steering, cooling fans, oil pumps on 12V or 48V systems), drones and UAVs (4S to 12S LiPo), and home appliances (washing machines, refrigerators, air conditioners). In each case, the combination of wide input range, integrated current sensing, SPI diagnostics, and the compact 40-pin WQFN package delivers measurable design value.
