STM32F411CEU6 How-To: Design a 100 MHz Cortex-M4F Embedded System

The STM32F411CEU6 is a 100 MHz ARM Cortex-M4F microcontroller from STMicroelectronics with 512 KB flash memory, 128 KB SRAM, and a 48-pin UFQFPN (7x7 mm) package. It delivers up to 125 DMIPS at 1.25 DMIPS/MHz and operates from a 1.7V to 3.6V supply. To design with this MCU, verify the pinout, plan power decoupling, configure the BOOT0 pin, route USART/SPI/I2C/USB OTG FS interfaces, and select the right flash variant. This how-to covers those steps with data verified from the XAIPART product database as of 2026-08-05. See the STM32F411CEU6 product page for live stock and ordering.

What Is the STM32F411CEU6?

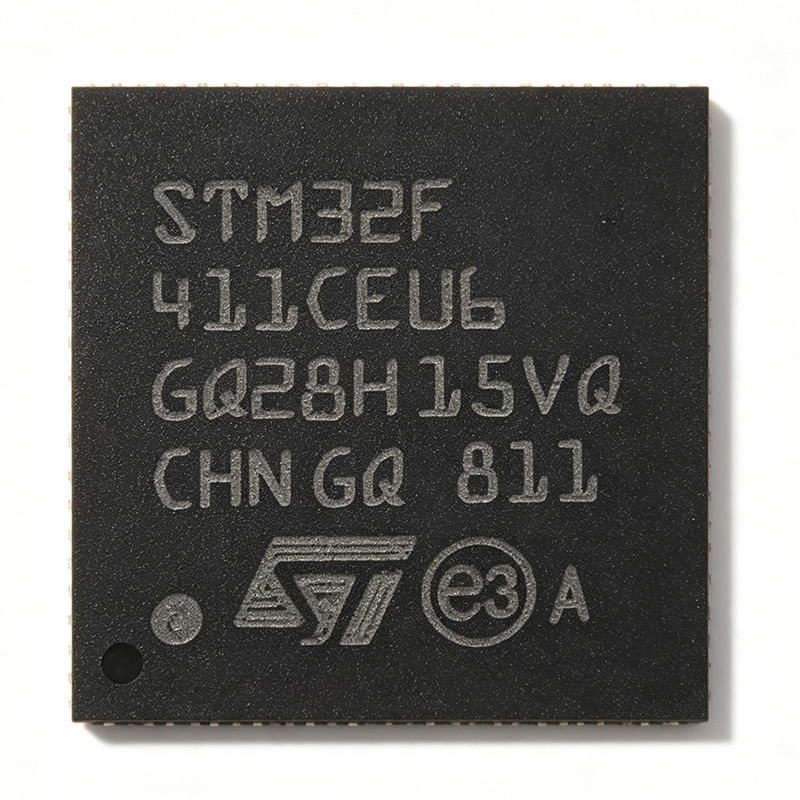

The STM32F411CEU6 is a high-performance ARM Cortex-M4F based microcontroller with a single-precision FPU. The 32-bit RISC core runs at up to 100 MHz and integrates 512 KB of flash and 128 KB of SRAM. It is housed in a 48-pin UFQFPN-48 package (7x7 mm), making it suitable for space-constrained PCB designs. The wide supply range of 1.7V to 3.6V allows direct battery operation, and the -40°C to +85°C operating temperature range supports industrial applications. The device is RoHS compliant and has an active lifecycle status. Its peripheral set includes 3 USARTs, 3 SPIs, 3 I2Cs, USB OTG FS, an RTC, and a 16-channel DMA controller.

How Do You Read the STM32F411CEU6 Pinout?

The UFQFPN-48 pinout includes power, reset, boot, GPIO, debug, and communication pins. Key connections to remember are VBAT on pin 1 for RTC backup, NRST on pin 7, VDD on pins 8 and 43, VSS on pins 9 and 44, VDDA on pin 47, VSSA on pin 48, and BOOT0 on pin 40. The debug interface uses PA13 (SWDIO) on pin 32 and PA14 (SWCLK) on pin 33. USB OTG FS uses PA11 (USB_DM) on pin 30 and PA12 (USB_DP) on pin 31. ADC-capable inputs include PA0-PA3 and PB0-PB1.

The complete 48-pin mapping is provided as structured pinout_data in this article for machine-readable use.

How Should You Power the STM32F411CEU6?

Because the supply range is 1.7V to 3.6V, a 3.3V rail is the simplest choice. A Li-Po cell with a 3.7V nominal voltage requires an LDO to keep the MCU within its maximum rating. Place 100nF decoupling capacitors close to each VDD pin, connect VDDA (pin 47) to a clean analog supply, and route VSSA (pin 48) to analog ground. VBAT (pin 1) can be connected to a backup battery to maintain RTC timekeeping. The VCAP pins require external capacitors as specified in the STM32F411CEU6 datasheet. The BOOT0 pin configuration determines the boot source and is critical for programming and debugging.

How Does the STM32F411CEU6 Compare With Drop-In Alternatives?

Two verified drop-in alternatives share the same UFQFPN-48 package and pinout. The STM32F411CCU6 provides 256 KB flash instead of 512 KB. The STM32F401CEU6 runs at a maximum clock of 84 MHz and has no FPU. These differences matter for firmware size and floating-point performance.

Step-by-Step: Design a Battery-Powered IoT Sensor Node With the STM32F411CEU6

Follow these steps to create a compact, battery-powered IoT sensor node:

1. Define the power architecture. Use a 3.3V rail converted from a battery with an LDO, and place 100nF decoupling capacitors at each VDD pin.
2. Configure boot and debug. Set BOOT0 (pin 40) per the datasheet boot configuration, and connect SWDIO (PA13) and SWCLK (PA14) to an ST-Link debugger.
3. Connect sensors to I2C1 using PB6 (I2C1_SCL) and PB7 (I2C1_SDA), or to SPI1 using PA5 (SPI1_SCK), PA6 (SPI1_MISO), and PA7 (SPI1_MOSI).
4. Read analog signals with the 12-bit ADC on PA0-PA3 or PB0-PB1.
5. Send processed data to a wireless module over USART1 using PA9 (USART1_TX) and PA10 (USART1_RX).
6. Enable the RTC and standby mode. The typical standby current is 2.2 µA with RTC enabled and 1.1 µA without RTC, as reported in the verified XAIPART FAQ.

Calculation example: with a 100 MHz core, one instruction cycle is 1/100 MHz = 10 ns. The 12-bit ADC returns 2^12 = 4096 codes. Using the 2.2 µA standby figure, a 200 mAh coin cell theoretically provides 200 mAh / 0.0022 mA ≈ 90,909 hours (≈10.4 years) of sleep-only lifetime, assuming ideal conditions and no other loads. The DMA controller offloads data transfer, and the 128 KB SRAM buffers communication stacks.

Which Applications Are Verified for the STM32F411CEU6?

The verified applications database lists IoT devices, wearable electronics, motor control, audio processing, industrial automation, and USB peripherals. For each scenario, relevant verified specifications are:

• IoT sensor nodes: 100 MHz core with FPU, 512 KB flash, 128 KB SRAM, USART/SPI/I2C, DMA, low-power modes, and 1.7V-3.6V supply.
• Wearables: UFQFPN-48 package, low-power modes, RTC, and 1.7V-3.6V range for Li-Po operation.
• Motor control: Cortex-M4F FPU and DSP instructions, timers for PWM generation, and 12-bit ADC for phase current sampling.
• Audio processing: FPU for real-time DSP, I2S via SPI, and DMA for audio streaming.
• USB peripherals: USB OTG FS on PA11/PA12, 512 KB flash for descriptors and firmware, and 128 KB SRAM for packet buffers.

How Much Does the STM32F411CEU6 Cost?

As of 2026-08-19, the XAIPART base price is $4.16 at quantities of 1000 or more. The MOQ is 1 and current stock is 99,999 units.

STM32F411CEU6 Frequently Asked Questions

Common questions about the STM32F411CEU6 are answered with verified data. The maximum clock speed is 100 MHz, giving 125 DMIPS. Flash memory is 512 KB. The STM32F411CCU6 is a drop-in replacement with 256 KB flash. The supply voltage range is 1.7V to 3.6V. Standby current is 2.2 µA typical with the RTC enabled and 1.1 µA without the RTC.

Datasheet and References

The STM32F411CEU6 datasheet is available at https://www.st.com/resource/en/datasheet/stm32f411ce.pdf (accessed 2026-08-19). All specifications were verified against the XAIPART product database as of 2026-08-05, with pricing verified as of 2026-08-19.
