How to Design with STM32L431CBT6: Complete Pinout, Power, and Low-Power Design Guide

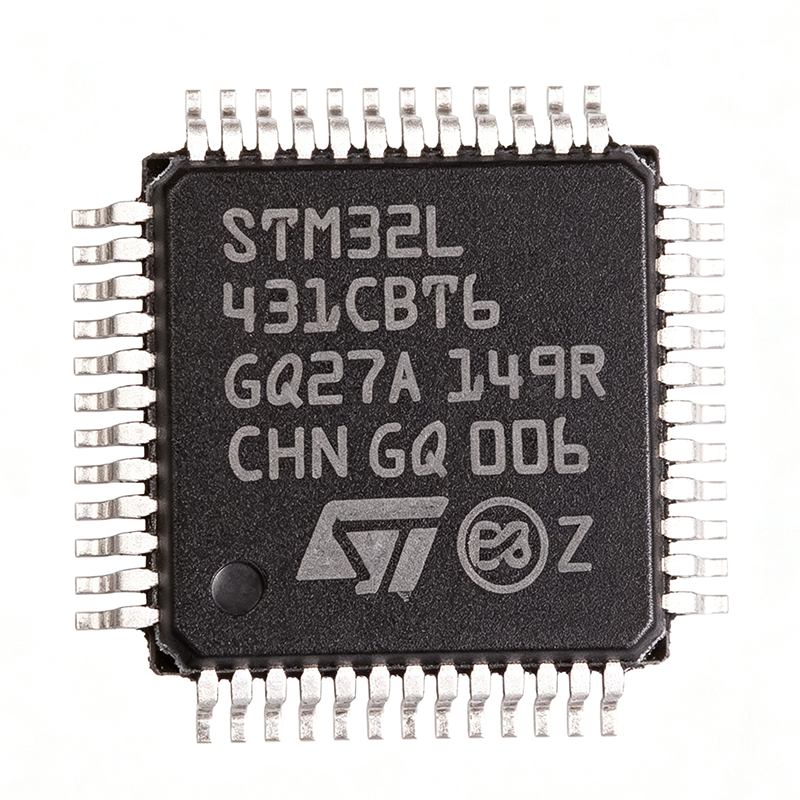

The STM32L431CBT6 is a 32-bit ARM Cortex-M4 microcontroller from STMicroelectronics with a floating-point unit (FPU), running at up to 80 MHz, with 128 KB flash memory, 64 KB SRAM, and 38 I/O pins in a 48-pin LQFP (7x7 mm) package. It operates from 1.71V to 3.6V over -40°C to +85°C and supports low-power modes including Sleep, Low-power run, Low-power sleep, Stop 0/1/2, and Standby. At XAIPART, the base price is $5.83 with a qty>=1 tier price of $4.0768, MOQ 1, and 99,999 units in stock (as of 2026-08-19). This guide explains power decoupling, the complete LQFP-48 pinout, low-power mode selection, sensor interfacing, development tools, and verified drop-in alternatives.

What Are the Key Specifications of the STM32L431CBT6?

The STM32L431CBT6 pairs an ARM Cortex-M4 core with FPU and DSP instructions with an ultra-low-power STM32L4 process. The 80 MHz core delivers 100 DMIPS performance per the XAIPART FAQ. Key verified parameters are summarized below.

How Should You Design the Power Supply and Decoupling?

The STM32L431CBT6 accepts 1.71V to 3.6V, so it can be powered directly from batteries or a standard 3.3V rail (verified from XAIPART FAQ). The LQFP-48 package has two VDD pins, two VSS pins, and two VBAT pins:

• VDD — pins 8 and 43 (digital power supply)
• VSS — pins 9 and 44 (ground)
• VBAT — pins 1 and 48 (battery backup for RTC and backup registers)

The STMicroelectronics design guidance carried in the XAIPART description specifies a 100 nF capacitor close to each VDD pin plus a 4.7 µF bulk capacitor. Route VBAT to a backup battery or through a low-leakage diode to the main rail so the real-time clock keeps running while the rest of the MCU is unpowered. Keep NRST (pin 7) connected to a reset supervisor or RC network per the datasheet reset section. [VERIFY_NEEDED: NRST RC reset circuit values are not provided in the verified database]

Complete STM32L431CBT6 Pinout for the LQFP-48 Package

The 48-pin LQFP package provides 38 general-purpose I/O pins with extensive function multiplexing. The verified pinout below is taken directly from the XAIPART database pinout table.

Which Low-Power Mode Should You Use?

The STM32L431CBT6 supports Sleep, Low-power run, Low-power sleep, Stop 0, Stop 1, Stop 2, and Standby. The XAIPART FAQ and application notes highlight Stop 2 at 1.2 µA, ideal for battery-powered IoT sensors and wearables. Use this quick selection guide:

For a periodic sensing node, wake from Stop 2 on the RTC or the WKUP1 pin (PA0), sample the sensor, transmit, and return to Stop 2.

How to Interface Analog Sensors with the 12-Bit ADC and DAC

The MCU integrates a 12-bit ADC with 16 channels and a 12-bit DAC with 2 channels. Example verified pin assignments:

• PA0 — GPIO / ADC_IN0 / WKUP1 (wake on analog pin)
• PA1 — GPIO / ADC_IN1
• PA2 — GPIO / ADC_IN2 / USART2_TX
• PA4 — GPIO / ADC_IN4 / DAC_OUT1
• PA5 — GPIO / ADC_IN5 / DAC_OUT2

With 2^12 = 4096 quantization levels, the ADC resolves fine sensor deltas; the FPU then accelerates calibration math before data is packed and sent over USART, SPI, or I2C. The 16-channel ADC and 2-channel DAC cover most sensor and actuator interfaces without external converters.

Design Example: Battery-Powered IoT Sensor Node Using Stop 2 Mode

Problem: Build an IoT temperature sensor node that must run for years on a small battery.

Approach: Keep the STM32L431CBT6 in Stop 2 mode between acquisitions. Wake on RTC or WKUP1, sample a 12-bit ADC channel, transmit over USART to a radio module, then re-enter Stop 2.

Power and decoupling: Connect 100 nF capacitors close to VDD pins 8 and 43 and a 4.7 µF bulk capacitor. Power from a 3.3V rail or a battery within the 1.71V–3.6V range.

Calculations:

• Stop 2 sleep current: 1.2 µA (0.0012 mA) — verified from XAIPART FAQ.
• Ideal battery life on a 1000 mAh cell, ignoring active drain: 1000 mAh ÷ 0.0012 mA ≈ 833,333 hours ≈ 95 years. This is a theoretical floor. [VERIFY_NEEDED: calculation ignores active-session current and battery self-discharge]
• Realistic average current with one 60 s cycle (59.9 s sleep at 1.2 µA + 0.1 s active): I_avg = 0.0012 × 59.9/60 + I_active × 0.1/60. [DATA_NEEDED: active current consumption at 80 MHz to complete]
• ADC resolution: 12-bit = 4096 steps for temperature quantization.

Result: The microampere-level Stop 2 floor dominates the sleeping budget, so multi-year operation from a coin or AA cell is achievable; exact lifetime requires the active-mode current from the datasheet electrical characteristics table. [DATA_NEEDED: active-mode current at 80 MHz]

Six Proven Application Scenarios for the STM32L431CBT6

• Industrial Sensors — real-time sensor processing with 16 ADC channels, USART/SPI/I2C for industrial networks, -40°C to +85°C operation, and Stop 2 at 1.2 µA for remote monitoring.
• IoT Devices — 80 MHz Cortex-M4 with FPU runs MQTT/TLS stacks; USART/SPI/I2C connect Wi-Fi, Bluetooth, and LoRa modules; 128 KB flash and 64 KB SRAM buffer protocol data.
• Portable Medical Devices — FPU accelerates ECG/PPG processing; 12-bit ADC acquires biosignals; the 2-channel DAC generates calibration stimuli.
• Smart Home Controllers — RTC enables scheduling; multiple serial interfaces drive Zigbee/Z-Wave/Wi-Fi; an RTOS fits inside 128 KB flash / 64 KB SRAM.
• Battery Management Systems — multiple ADC channels monitor cell voltage, current, and temperature; SPI/I2C link to battery monitoring ICs; MPU and RNG enhance safety.
• Test and Measurement Equipment — fast data acquisition on 16 ADC channels, precise timers for timebase, FPU-accelerated FFT analysis.

All six scenarios are verified from the XAIPART product_applications table.

Which Development Tools and Debug Interfaces Work with the STM32L431CBT6?

Programming and debugging use the Serial Wire Debug (SWD) interface on PA13 (SWDIO) and PA14 (SWCLK). The XAIPART FAQ confirms support for STM32CubeIDE, Keil MDK, IAR EWARM, and GCC toolchains, with STM32CubeMX for pin configuration and code generation, and the ST-Link for programming and debugging. In-circuit programming via SWD facilitates firmware development.

What Are the Best Drop-In Alternatives to the STM32L431CBT6?

Three alternatives are verified in the XAIPART database:

• STM32L431CBT6TR — same die and package, tape-and-reel packaging variant.
• STM32L431CCT6 — same LQFP-48 package and pinout, 256 KB flash (double), drop-in replacement with param_match_percentage = 90.
• STM32L431RBT6 — same core and peripherals, but a 64-pin package with more I/O (not a drop-in for 48-pin layouts).

For a 48-pin design that needs more code space, the STM32L431CCT6 is the closest verified upgrade path. Note that the STM32L431CCT6 values come from the XAIPART alternatives and FAQ database entries.

Design Checklist: 10 Steps Before You Tape Out

1. Place 100 nF capacitors close to VDD pins 8 and 43 and a 4.7 µF bulk capacitor.
2. Connect VBAT (pin 1 or 48) to a backup supply for RTC retention.
3. Verify the supply stays within 1.71V–3.6V across load steps.
4. Route SWD signals to PA13 (SWDIO) and PA14 (SWCLK) for programming.
5. Assign ADC inputs (e.g., PA0–PA7, PB0–PB1) to analog sensors; keep analog traces away from switching nets.
6. Select the low-power mode per duty cycle: Stop 2 (1.2 µA) for periodic sensing, Standby for maximum reduction.
7. Configure the RTC for time-based wakeups if using Stop 2.
8. Plan the 128 KB flash and 64 KB SRAM budget (RTOS + application + data buffers).
9. Check thermal limits: -40°C to +85°C operating range.
10. For higher code density, plan a drop-in swap to the STM32L431CCT6 (256 KB flash, pin-compatible).
