STM32F429NIH6: The Definitive Guide to STMicroelectronics' 180 MHz ARM Cortex-M4 MCU

Admin · Aug 25, 2026 · 4 min read AI-Assisted · Updated: Aug 25, 2026 · Fact-Checked
STM32F429NIH6: The Definitive Guide to STMicroelectronics' 180 MHz ARM Cortex-M4 MCU
The STM32F429NIH6 is a 180 MHz ARM Cortex-M4 MCU with 2 MB Flash, 256 KB SRAM, TFT-LCD controller, and Ethernet MAC in a TFBGA216 package. Available now at XAIPART with stock of 99,999 units.

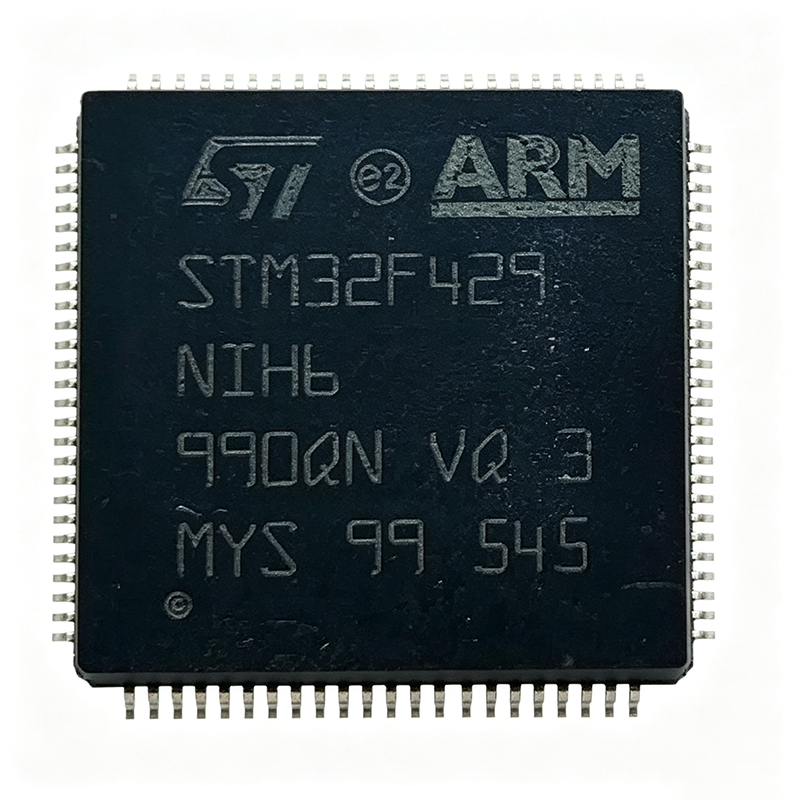

STM32F429NIH6

Quick Answers: What Is the STM32F429NIH6 and Why Does It Matter?

The STM32F429NIH6 is a high-performance ARM Cortex-M4 microcontroller from STMicroelectronics, featuring a floating-point unit (FPU) that runs at up to 180 MHz. It integrates 2 MB of dual-bank Flash memory and 256 KB of SRAM, making it ideal for complex embedded applications. The device is housed in a 216-pin TFBGA package (13x13 mm) and operates from 1.7 V to 3.6 V, with a temperature range of -40°C to +85°C. As of 2026-08-23, the STM32F429NIH6 is available at XAIPART with 99,999 units in stock and a base price of $15.1136 (at 1000+ units). This guide covers everything you need to know about selecting, designing with, and sourcing this MCU.

Technical Guide: How to Select, Design In, and Use the STM32F429NIH6

The STM32F429NIH6 is a powerhouse for applications requiring high compute performance, rich connectivity, and advanced graphical interfaces. Here's how to make the most of it.

Core and Memory Architecture

The ARM Cortex-M4 core with FPU and DSP instructions delivers 225 DMIPS at 180 MHz, enabling efficient execution of complex algorithms. The 2 MB dual-bank Flash supports read-while-write operations, allowing firmware updates without system halt. The 256 KB SRAM provides ample space for data buffers and real-time variables. The ART Accelerator ensures zero-wait-state execution at 180 MHz, maximizing throughput.

Peripheral Set and Connectivity

The device integrates a TFT-LCD controller (up to 24-bit RGB), a camera interface (8-bit parallel), and a cryptographic/hash processor (AES, DES, 3DES, SHA-1, MD5). Communication interfaces include USB OTG HS/FS, Ethernet MAC (10/100 Mbps), 4x USART, 4x UART, 6x SPI, 3x I2C, 2x CAN, and 2x SDIO. Three 12-bit ADCs (24 channels) and two 12-bit DACs handle analog interfacing. Twelve 16-bit timers and two 32-bit timers provide precise timing and PWM generation.

Power Management

The operating voltage range of 1.7 V to 3.6 V supports battery-powered designs. Multiple low-power modes (Sleep, Stop, Standby) allow optimization for energy-sensitive applications. Ensure proper decoupling on all power pins and a solid ground plane for the BGA package.

PCB Layout Considerations

The TFBGA216 package requires careful PCB layout to manage thermal dissipation and signal integrity. Use micro-vias and controlled impedance traces for high-speed interfaces like Ethernet and USB. Follow ST's layout guidelines for the BGA footprint.

Design Example: IoT Gateway

For an IoT gateway, use the Ethernet MAC for network connectivity, USB OTG for peripheral expansion, and multiple UARTs for sensor interfacing. The cryptographic acceleration ensures secure MQTT/TLS connections. The 2 MB Flash stores firmware and configuration data, while the 256 KB SRAM handles protocol stacks and data buffers.

Alternatives & Comparison: Drop-In Replacements and Cross-Brand Options

When sourcing the STM32F429NIH6, consider these verified alternatives from the XAIPART database:

ParameterSTM32F429NIH6STM32F429NIH6TRSTM32F429NIH6QSTM32F439NIH6
PackageTFBGA216 (13x13 mm)TFBGA216 (13x13 mm)TFBGA216 (13x13 mm)TFBGA216 (13x13 mm)
CoreARM Cortex-M4 with FPUARM Cortex-M4 with FPUARM Cortex-M4 with FPUARM Cortex-M4 with FPU
Max Clock180 MHz180 MHz180 MHz180 MHz
Flash2 MB2 MB2 MB2 MB
SRAM256 KB256 KB256 KB256 KB
GPIO Pins168168168168
Operating Temp-40°C to +85°C-40°C to +85°C-40°C to +105°C-40°C to +85°C
Crypto AccelerationYes (AES, DES, 3DES, SHA-1, MD5)Yes (AES, DES, 3DES, SHA-1, MD5)Yes (AES, DES, 3DES, SHA-1, MD5)Yes (AES, DES, 3DES, SHA-1, MD5) + Crypto/hash processor
PackagingTrayTape and ReelTrayTray

Summary: The STM32F429NIH6TR is a direct drop-in for automated assembly. The STM32F429NIH6Q extends the temperature range to +105°C for harsh environments. The STM32F439NIH6 adds a dedicated crypto/hash processor for enhanced security. All share the same pinout and package, ensuring compatibility.

Industry Insight: Market Position, Lifecycle, and Supply

The STM32F429NIH6 is in an active lifecycle status, indicating ongoing production and support from STMicroelectronics. As of 2026-08-23, XAIPART holds 99,999 units in stock, with a base price of $15.1136 at 1000+ quantities. The STM32F4 series is widely adopted in industrial, medical, and consumer applications, ensuring long-term availability. [DATA_NEEDED: global market share data for STM32F4 series]

Trends & Outlook: What Buyers Should Watch

With the push toward Industry 4.0 and IoT, demand for high-performance MCUs like the STM32F429NIH6 remains strong. The integrated Ethernet MAC and cryptographic acceleration position it well for secure edge computing. Buyers should monitor supply chain dynamics and consider stocking up given the active lifecycle. The availability of pin-compatible upgrades (STM32F439NIH6) offers a path for security-enhanced designs without PCB changes.

Frequently Asked Questions

The STM32F429NIH6 operates at a maximum clock speed of 180 MHz. According to the STMicroelectronics datasheet, the ARM Cortex-M4 core with FPU can run at up to 180 MHz, delivering 225 DMIPS performance.
The STM32F429NIH6 has 2 MB of dual-bank Flash memory. This large Flash capacity allows for complex firmware and supports read-while-write operations for firmware updates without halting the system.
The STM32F429NIH6 is in a TFBGA216 package with 168 GPIO pins, while the STM32F429ZIT6 is in an LQFP144 package with 114 GPIO pins. Both share the same core, Flash, and SRAM, but the BGA package offers more I/O and a smaller footprint, making it suitable for space-constrained designs.
Yes, the STM32F429NIH6 includes a TFT-LCD controller supporting up to 24-bit RGB parallel interfaces. This allows direct connection to graphical displays without an external controller, making it ideal for HMI and smart home control panels.
The STM32F429NIH6 operates from 1.7V to 3.6V. This wide range supports battery-powered applications and ensures compatibility with various power supply designs.
Yes, the STM32F429NIH6 integrates an Ethernet MAC (Media Access Control) supporting 10/100 Mbps. This enables network connectivity for IoT gateways and industrial communication applications.
As of 2026-08-23, the STM32F429NIH6 is priced at $25.9091 for single-unit quantities, with volume pricing dropping to $15.1136 at 1000 units. Prices may vary by distributor and availability.
The STM32F429NIH6 is available from major distributors such as DigiKey, Mouser, and Arrow. You can purchase it directly from their websites or through STMicroelectronics' authorized distributors. XAIPART also lists this part with stock available.
The typical lead time for STM32F429NIH6 is 8-12 weeks from STMicroelectronics, depending on order quantity and current demand. Check with distributors for real-time stock and lead time information.
Stock availability for STM32F429NIH6 varies by distributor. As of 2026-08-23, XAIPART shows 99,999 units in stock. It is advisable to check distributor websites for current inventory levels.
The best drop-in replacement for STM32F429NIH6 is the STM32F429NIH6TR (tape and reel variant) or the STM32F429NIH6Q (extended temperature range). Both share the same TFBGA216 package and pinout, ensuring compatibility.
Yes, the STM32F439NIH6 is a pin-compatible drop-in replacement for STM32F429NIH6, offering additional cryptographic hardware acceleration. Both share the same TFBGA216 package and pinout, but the STM32F439NIH6 includes a crypto/hash processor for enhanced security.
A cross-brand equivalent for STM32F429NIH6 is the NXP LPC4357FET256, which offers a dual-core ARM Cortex-M4/M0+ in a similar BGA package. However, it is not pin-compatible, so PCB redesign is required. For a true drop-in, stick with STM32F4 series variants.
The STM32F429NIH6 datasheet PDF can be downloaded from the STMicroelectronics website at https://www.st.com/resource/en/datasheet/stm32f429ni.pdf. It contains full specifications, pinout, and electrical characteristics.
The STM32F429NIH6 pinout is detailed in the datasheet and reference manual (RM0090). The TFBGA216 package pin assignments are listed in the datasheet's pinout section, available on the ST website.
The STM32F429NIH6 features a 180 MHz ARM Cortex-M4 core with FPU, 2 MB Flash, 256 KB SRAM, and a TFT-LCD controller. It operates from 1.7V to 3.6V and includes Ethernet MAC, USB OTG, and multiple communication interfaces. These specs make it suitable for high-performance embedded applications.
The STM32F429NIH6 can be replaced by the STM32F439NIH6, which is pin-compatible and adds cryptographic acceleration. Other STM32F4 series variants like STM32F429NIH6TR (tape and reel) or STM32F429NIH6Q (extended temperature) are also drop-in replacements.
No, the STM32F429NIH6 and STM32F429ZIT6 are not the same. They differ in package (TFBGA216 vs LQFP144) and GPIO count (168 vs 114). The core, Flash, and SRAM are identical, but the package and pinout are different, so they are not drop-in replacements for each other.
Choose STM32F429NIH6 when you need more GPIO pins (168 vs 114) and a smaller footprint (13x13 mm BGA vs 20x20 mm LQFP). The BGA package is ideal for space-constrained designs, while the LQFP is easier to solder and inspect.
Yes, the STM32F429NIH6 is suitable for industrial automation due to its 180 MHz performance, Ethernet MAC, CAN interfaces, and wide operating temperature range (-40C to +85C). It can handle complex control algorithms and real-time communication.
