TCAN4550RGYRQ1 Complete Guide: TI CAN FD Controller with Transceiver (8 Mbps, AEC-Q100, VQFN-20)

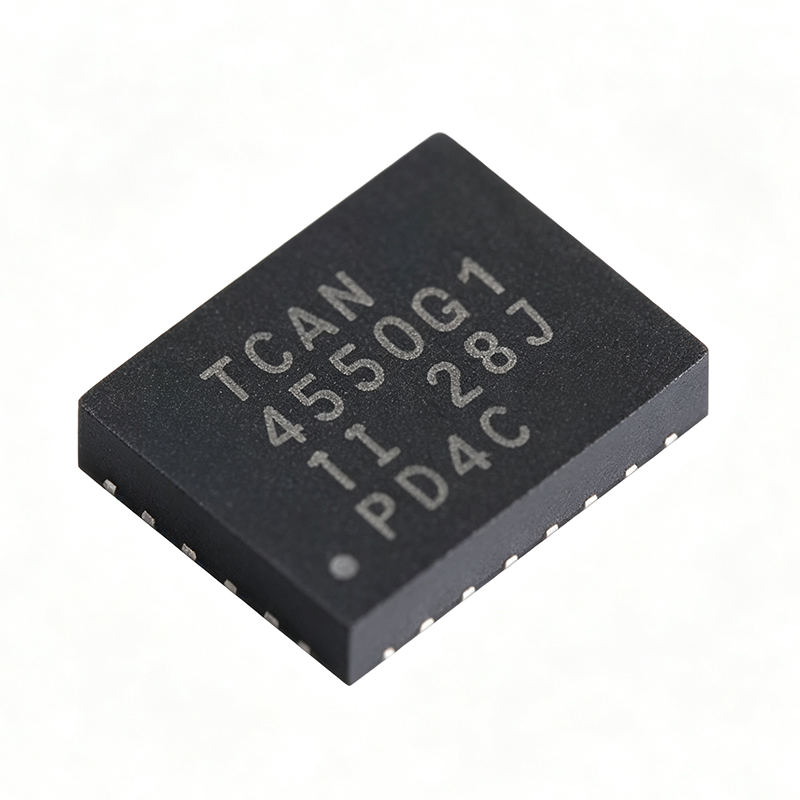

The Texas Instruments TCAN4550RGYRQ1 is an automotive system basis chip (SBC) that integrates a full CAN FD controller and a CAN FD transceiver in a single 20-pin VQFN (RGY) package measuring 3.5 x 4.5 mm. It supports CAN FD data rates up to 8 Mbps, complies with ISO 11898-1:2015 and ISO 11898-2:2016, is AEC-Q100 qualified for operation from -40C to +125C, and communicates with the host MCU through an SPI interface. The device is active in the lifecycle, in stock with 99,999 units available at XAIPART, MOQ of 1, priced from $1.75 per unit at 1,000-piece quantities (as of 2026-08-30). By combining the data link layer controller and physical layer transceiver on one die, this part eliminates the external CAN controller and PHY chips that a discrete design requires, reducing board space, simplifying wiring, and improving reliability in automotive gateways, battery management systems, body control modules, powertrain ECUs, and ADAS sensor fusion nodes.

What Are the Quick Answers About the TCAN4550RGYRQ1?

The TCAN4550RGYRQ1 is Texas Instruments' automotive-qualified single-chip CAN FD solution: a CAN FD controller meeting ISO 11898-1:2015 paired with a high-speed transceiver meeting ISO 11898-2:2016, plus an integrated LDO and watchdog timer, all in a 20-VQFN (3.5 x 4.5 mm) package. Verified key specifications include a data rate up to 8 Mbps, an operating temperature range of -40C to +125C, AEC-Q100 automotive qualification, SPI host interface, and surface-mount assembly. As of 2026-08-30 the part is active, RoHS status is listed as unknown pending verification, and XAIPART shows 99,999 units in stock with tiered pricing: $3.00 at qty 1, $2.1667 at qty 10, $1.9167 at qty 100, $1.8333 at qty 500, and $1.75 at qty 1,000 (as of 2026-08-30).

Engineers frequently ask how this part differs from its siblings. The TCAN4550RGYRQ1 is AEC-Q100 qualified, while the TCAN4550RGYR is not; both share the identical VQFN-20 (RGY) package, pinout, and 8 Mbps CAN FD capability. The TCAN4550RGYTQ1 offers the same automotive qualification in tube packaging instead of tape-and-reel, and the TCAN4550RGYT is the non-automotive tube-packaged variant. These four variants form a fully interchangeable family, which we compare in detail in the Alternatives section below.

How Do You Select and Design In the TCAN4550RGYRQ1?

Design-in begins with confirming the electrical and mechanical fit. The device requires a 3.5 x 4.5 mm VQFN-20 footprint with an exposed pad for thermal management; connect this pad solidly to the ground plane to dissipate heat across the -40C to +125C automotive range. Because the part is surface mount, standard reflow assembly applies.

Host Interface and Configuration Sequence

The TCAN4550RGYRQ1 connects to the host microcontroller through SPI. Key interface pins verified from the pinout table are SPI_CLK (pin 7), SPI_CS (pin 8), SPI_SDO (pin 9, data output), and SPI_SDI (pin 10, data input), with an INT interrupt output on pin 11. The VIO pin (pin 14) supplies the I/O voltage so the SPI logic levels can match your MCU bank. Configuration must be completed over SPI before enabling the CAN bus through the EN pin (pin 13). Plan your firmware boot flow accordingly: initialize SPI, configure the CAN FD controller (bit timing, filters, mailboxes), then assert enable.

CAN Bus Connections

The physical bus interfaces through CANH (pin 5) and CANL (pin 6). The transceiver meets ISO 11898-2:2016, so it interoperates with other compliant high-speed CAN FD nodes. TXD (pin 1) and RXD (pin 2) expose the raw CAN controller-side data signals for diagnostics or test access. Ground returns on pins 3, 17, and 20 must all be tied to a low-impedance ground.

Power Architecture

Power enters through VCC (pin 4) and LDO_IN (pin 16). The integrated LDO produces the logic supply on LDO_OUT (pin 15) and requires adequate output capacitance for stability per the device description. Because the LDO is integrated, many designs can eliminate a separate low-voltage regulator, saving BOM cost and board area. Decouple the supply voltage properly with local ceramic capacitors close to the power pins. Exact supply voltage range and LDO output voltage values are documented in the 142-page TCAN4550-Q1 datasheet referenced below.

Low-Power Modes and Supervision

The device supports standby and sleep low-power states, reducing system current draw when the node is not transmitting. This matters for body control modules and any ECU that must draw minimal current when the vehicle is parked. The watchdog timer input on pin 12 (WDT) gives the host a hardware supervision mechanism; the integrated watchdog enhances system safety, which is particularly valuable in battery management systems. Quiescent and standby current figures are specified in the datasheet; consult it for exact values before finalizing your power budget.

Layout Recommendations

For a robust CAN FD node at 8 Mbps: (1) keep the CANH/CANL traces short and differential; (2) route SPI signals away from the CAN bus lines to limit coupling; (3) provide a continuous ground plane under the device and solder the exposed pad; (4) place decoupling capacitors within a few millimeters of VCC, VIO, and LDO_IN. Following these practices preserves signal integrity at the highest arbitration-free data phase rates the part supports.

Which Alternatives and Drop-In Replacements Compare to the TCAN4550RGYRQ1?

Within the verified data, three drop-in alternatives exist, all from Texas Instruments and all pin-compatible in the same VQFN-20 package. The choice reduces to automotive qualification and packaging format.

Summary: If your application requires AEC-Q100 qualification, choose the TCAN4550RGYRQ1 (reel) or TCAN4550RGYTQ1 (tube). If automotive quality grading is not required, the TCAN4550RGYR or TCAN4550RGYT may offer cost savings with identical pinout and function. Engineers sometimes ask about NXP equivalents: the NXP TJA1145AT/FD is functionally similar but comes in a SOIC-14 package, so it is not pin-compatible and cannot serve as a drop-in replacement.

What Is the Market Position, Lifecycle, and Supply Situation of the TCAN4550RGYRQ1?

The lifecycle status of the TCAN4550RGYRQ1 is active in the XAIPART product database, confirming that Texas Instruments continues to manufacture and support this part. On the supply side, XAIPART lists 99,999 units in stock with a minimum order quantity of 1, meaning you can prototype with a single unit or scale to production volumes from the same source. Distributor availability is strong: DigiKey lists the part (product #10820438) as in stock with same-day shipping, and Mouser also carries it. Lead time is not formally specified; for in-stock distributor inventory, actual delivery depends on order quantity and current stock at time of order. [DATA_NEEDED: long-term lifecycle forecast, RoHS status confirmation]. At $1.75 per unit at 1,000-piece volume (as of 2026-08-30), the pricing curve rewards consolidated production orders: buying 1,000 units instead of ten separate 100-piece lots saves roughly $0.17 per unit.

What Trends Should Buyers Watch for CAN FD Controller-Transceiver Integration?

The first trend to watch is the migration from classic CAN to CAN FD in automotive and industrial networks. The TCAN4550RGYRQ1 supports up to 8 Mbps, a major step above classic CAN data rates, which is why it appears in ADAS sensor fusion designs streaming radar, camera, and LiDAR data to central processors. When you future-proof a node with an 8 Mbps-capable controller-transceiver today, you avoid redesigning the physical layer when network bandwidth demands grow.

The second trend is functional integration. This single package combines the CAN FD controller (ISO 11898-1:2015), transceiver (ISO 11898-2:2016), an LDO, and a watchdog timer, replacing at least two ICs and their supporting passives in a traditional split architecture. That reduces BOM count, shrinks the PCB footprint to 3.5 x 4.5 mm, and removes inter-chip failure points. For space-constrained ECUs such as BMS daughter boards and ADAS camera modules, integration is often the deciding factor.

The third trend is automotive qualification as a procurement gate. As vehicle electronics proliferate, more OEMs mandate AEC-Q100 parts across the -40C to +125C range. Buying the Q1 variant from the start, backed by an active lifecycle status and deep distributor stock, protects your program against requalification cost later. Watch tiered pricing as of 2026-08-30: $3.00 at single-unit quantities dropping to $1.75 at 1,000 units, a 42 percent reduction that makes volume commitments worthwhile. Review the TCAN4550RGYRQ1 product page for live stock and pricing, browse our Interface ICs category for comparable CAN FD devices, and read our CAN FD design fundamentals guide for bus architecture best practices.
