TMS320F280041-Q1: 100 MHz C2000 Real-Time MCU — Complete Engineer's Guide (Specs, Design-In, Alternatives)

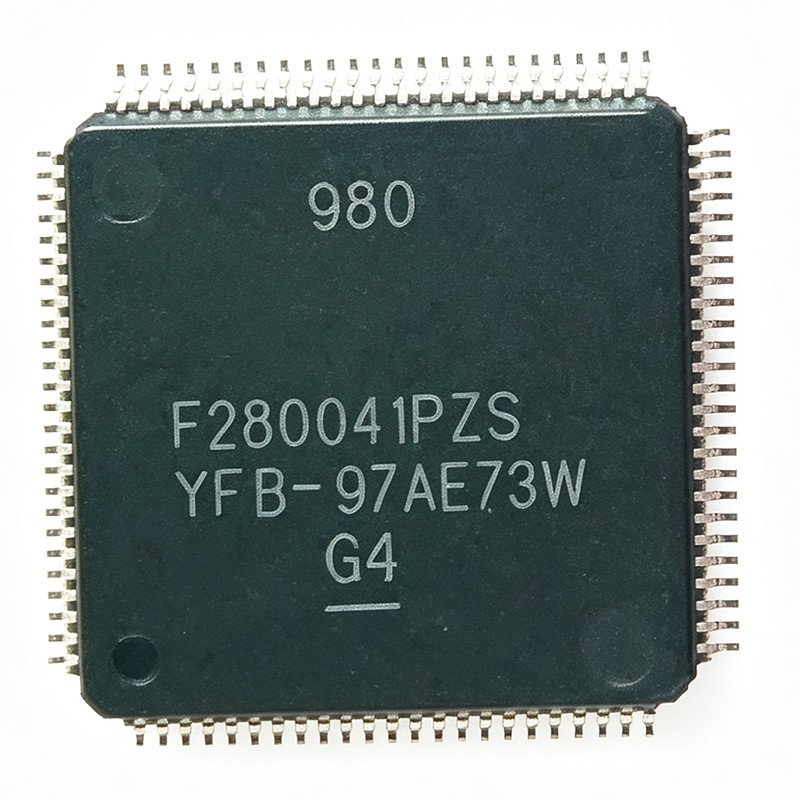

The Texas Instruments TMS320F280041-Q1 is an automotive-grade C2000 32-bit real-time microcontroller that runs at 100 MHz with a floating-point unit (FPU), a trigonometric math unit (TMU), 128 KB of embedded flash, integrated programmable gain amplifiers (PGAs), and sigma-delta filter modules (SDFM), packaged in an LQFP-64 (PZ) surface-mount footprint. It is designed for deterministic, closed-loop control in motor drives, solar inverters, EV power electronics, digital power supplies, robotics, and servo drives. The part is currently listed as active lifecycle status, with 99,999 units in stock at XAIPART and pricing starting at $32.7273 for single units down to $19.0909 at 1,000 units as of 2026-08-30, with a minimum order quantity of 1. This pillar guide covers verified specifications, design-in guidance, drop-in alternatives, supply outlook, and purchasing considerations for engineers specifying this real-time MCU.

What Are the Quick Answers About the TMS320F280041-Q1?

The TMS320F280041-Q1 is TI's automotive-qualified member of the F28004x C2000 family, targeting real-time control loops. Verified key specifications from the XAIPART database include:

• Core: C2000 32-bit CPU operating at 100 MHz
• Accelerators: Single-precision FPU and TMU (accelerates sine, cosine, arctangent for field-oriented control)
• Memory: 128 KB embedded flash
• Analog integration: PGAs and SDFM modules on-chip
• Package: LQFP-64 (PZ), surface mount
• Supply: In stock with 99,999 units, MOQ 1, as of 2026-08-30

Some specifications are not present in the verified database and are flagged as [DATA_NEEDED: supply voltage (VDD) range], [DATA_NEEDED: RAM size], [DATA_NEEDED: ADC resolution], [DATA_NEEDED: operating temperature range], [DATA_NEEDED: AEC-Q100 qualification level], and [DATA_NEEDED: RoHS compliance status]. Consult the official TI datasheet (SPRS945G, 271 pages) for those parameters before finalizing a design.

Regarding power supply topology, the datasheet notes that the core (VDD) can be supplied by an internal LDO or an external 1.2V supply depending on package configuration, and that the external supply is not available for 56-pin RSH package configurations — relevant context if your project evaluates multiple F28004x packages.

How Do You Select and Design In the TMS320F280041-Q1?

Step 1: Confirm the Part Fits Your Control Loop Budget

The 100 MHz C2000 core with Harvard architecture and dual CPU pipelines executes complex algorithms such as field-oriented control (FOC) and PID loops. The TMU offloads trigonometric functions (sine, cosine, arctangent) that dominate FOC coordinate transformations, while the single-precision FPU handles the remaining floating-point math. If your firmware requires fast current loops — typical of servo drives and traction inverters — the combination of FPU and TMU meaningfully reduces CPU burden compared to software-only math libraries.

Step 2: Verify Flash and Analog Requirements

The 128 KB flash accommodates multi-axis control loops, MPPT algorithms, communication stacks, multiple motion profiles, and fault diagnostics in typical applications. On the analog side, the integrated PGAs amplify low-level sensor signals without external op-amps, and the SDFM modules interface directly with sigma-delta modulators, improving current-sensing accuracy. This integration reduces BOM cost and board space — a primary selection advantage of this device.

Step 3: Design the Power Supply Correctly

Per the datasheet, the core VDD can use the internal LDO or an external 1.2V supply, depending on package configuration. Follow TI's recommended power sequencing and apply proper decoupling to avoid undefined states during startup. Note the package-specific constraint: external core supply is unavailable on 56-pin RSH packages, so on the LQFP-64 (PZ) package, verify the supported configuration in the datasheet before routing your power tree. [VERIFY_NEEDED: VDD external vs. internal LDO availability specifically for the PZ package.]

Step 4: Plan the Feedback Path

For current sensing, choose between PGA-based analog amplification of shunt or sensor signals, or SDFM-based interfacing to external sigma-delta modulators for isolated, high-accuracy measurement. In high-voltage environments such as EV traction inverters, SDFM with isolated modulators is the common architecture enabled by this device.

Step 5: Automotive Qualification

The -Q1 suffix indicates automotive-grade qualification per TI naming conventions, making the device suitable for EV traction inverters and DC-DC converters. However, the specific AEC-Q100 grade details are not in the verified data — [DATA_NEEDED: AEC-Q100 qualification grade]. Confirm the exact temperature grade in SPRS945G before committing to an automotive program.

Which Alternatives Are Drop-In Compatible With the TMS320F280041-Q1?

All verified alternatives share the same pinout in the LQFP-64 package, differing primarily in flash size and feature set:

Selection guidance: Choose the TMS320F280040-Q1 (64 KB flash, pin-compatible) if your firmware fits in 64 KB and you want a lower-cost option; choose the TMS320F280041-Q1 (128 KB) as the baseline; move to the TMS320F280049-Q1 (256 KB) when larger control algorithms demand more memory. The TMS320F280048-Q1 adds CAN among its enhanced features. For non-TI equivalents: there is no direct pin-compatible non-TI drop-in; STMicroelectronics' STM32G4 and other MCUs are functionally similar but not pin-compatible, so switching vendors requires a board respin and software port.

What Is the Market Position, Lifecycle, and Supply Situation of the TMS320F280041-Q1?

Per verified database data, the TMS320F280041-Q1 holds active lifecycle status, meaning TI is in full production and the part is recommended for new designs. Supply at XAIPART is strong: 99,999 units in stock as of 2026-08-30, with a minimum order quantity of 1, supporting both prototyping and volume production. Tiered pricing is as of 2026-08-30: $32.7273 (qty ≥ 1), $23.6364 (qty ≥ 10), $20.9091 (qty ≥ 100), $20.00 (qty ≥ 500), and $19.0909 (qty ≥ 1,000) — a 41.7% unit-price reduction from single-unit to 1,000-unit quantity. Authorized distribution includes Mouser Electronics and DigiKey per verified web data as of 2026-08-28. [DATA_NEEDED: long-term lifecycle/commitment date from TI product page.]

What Trends Should Buyers and Engineers Watch for the TMS320F280041-Q1?

Three trends anchored to verified specs:

1. Flash escalation in real-time control: As control algorithms absorb MPPT stacks, multi-axis loops, and safety routines, flash demand migrates from 64 KB (F280040-Q1) to 128 KB (this part) to 256 KB (F280049-Q1). Buy the 128 KB part when firmware headroom matters but 256 KB cost is unjustified.
2. Integrated analog displacing external components: On-chip PGAs (eliminating external op-amps) and SDFM (direct sigma-delta modulator interface) continue to shrink BOM cost and board space in inverter and servo designs — a durable selection advantage over generic MCUs.
3. Hardware math acceleration as a differentiator: The FPU + TMU combination remains the C2000 family's structural moat; no pin-compatible non-TI equivalent exists, so supply continuity and the active lifecycle status make multi-year sourcing from this low-risk part practical.

Watch pricing tiers when volume-planning: crossing the 100-unit tier saves $11.82 per unit versus single-unit pricing, and the 1,000-unit tier delivers the best verified price of $19.0909 as of 2026-08-30.
