TUSB8041RGCR: 4-Port USB 3.0 Hub Controller — Complete Engineer's Guide, Specs, Pricing & Alternatives

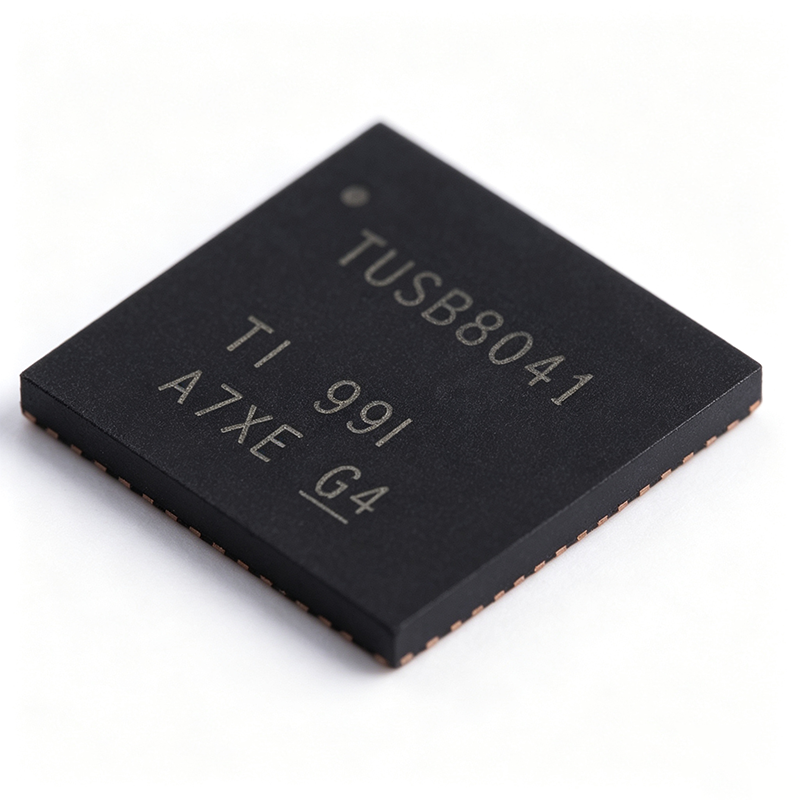

The TUSB8041RGCR is a four-port SuperSpeed USB 3.0 hub controller from Texas Instruments that delivers 5 Gbps per downstream port, operates from dual 1.1 V (core) and 3.3 V (I/O) supplies, and comes in a 64-pin VQFN (RGC) 9x9 mm exposed-pad package. It is backward compatible with USB 2.0 full-speed and high-speed traffic and is configurable via GPIO, I2C, or SMBus. The commercial grade is rated 0C to 70C, while the pin-identical TUSB8041IRGCR extends coverage to -40C to 85C. The part is lifecycle-active and in stock at XAIPART (99,999 units, MOQ 1) with tiered pricing from $6.12 (qty 1) down to $4.05 (qty 1,000) as of 2026-09-12, making it a low-friction sourcing choice for docking stations, monitors, industrial PCs, external storage, and multi-camera hubs.

What Is the TUSB8041RGCR and What Does It Do?

A USB hub controller fans out a single upstream USB connection into multiple downstream ports, handling enumeration, packet routing, and power management per the USB 3.0 specification. The TUSB8041RGCR performs this function at the interface-IC layer, bridging the USB physical layer and the host controller in computers, docking stations, and embedded processors.

Architecturally, the TUSB8041 integrates the SuperSpeed repeater/retimer functions and hub transaction logic on a single die, using internal PLL-based clocking to regenerate the 5-Gbps link. The dual-rail 1.1 V core / 3.3 V I2V supply scheme reduces core power while maintaining signaling compliance, and the exposed-pad VQFN package provides a low-inductance ground return for the high-speed differential pairs.

How Do You Design In the TUSB8041RGCR? A Practical Technical Guide

Power design. The TUSB8041RGCR requires a dual-rail supply: 1.1 V for core logic and 3.3 V for I/O and analog circuits. Decouple both rails with low-ESR ceramic capacitors placed close to the pins, and follow the datasheet power-up sequencing requirements for the 1.1 V rail to ensure reliable PLL and SuperSpeed link operation.

High-speed layout. Maintain 90-ohm differential impedance on the SuperSpeed pairs, keep them short and length-matched, and route them away from aggressors. Per TI datasheet guidance, keeping SuperSpeed stubs shorter than a few millimeters prevents reflections at multi-gigabit edge rates. Solder the exposed pad to a solid ground plane for thermal and signal-integrity performance.

Configuration. Configure the hub via GPIO strapping for firmware-free designs, or connect an I2C EEPROM or an SMBus master when non-default settings such as custom vendor ID, product ID, and port mapping are required. Designs requiring non-default VID/PID must include an EEPROM or an SMBus-capable host to load configuration at power-up.

Power topology: self-powered vs bus-powered. The TUSB8041RGCR supports both hub types per the USB 3.0 specification. In bus-powered designs, the hub must enforce the 900 mA upstream budget across four downstream ports, which means most or all downstream ports must be limited or disabled simultaneously. Most high-performance designs — external SSDs, multi-camera hubs — use a self-powered topology with an external supply and per-port power switching so each port can deliver full current without current-limit faults.

Placement. Place the hub close to the connector field with solid ground return through the exposed pad. The hub regenerates (retimes) the 5-Gbps link, so cable and connector losses do not accumulate through the design — a key advantage over passive repeater approaches.

What Are the Best Alternatives to the TUSB8041RGCR?

Only same-family TI alternatives are verified in the available cross-reference data. The industrial TUSB8041IRGCR is the best drop-in replacement: it shares the identical 64-pin VQFN (RGC) footprint, pinout, and 4-port 5-Gbps functionality, but is rated -40C to 85C instead of 0C to 70C. No cross-brand pin-compatible drop-in equivalent was verified; functional USB 3.0 hub ICs from other vendors exist but require PCB changes and requalification [VERIFY_NEEDED: cross-brand equivalent verification].

Selection guidance: For industrial enclosures that exceed 70C ambient near heat-generating components, choose the TUSB8041I grade — it costs essentially no redesign, only a modest price premium per unit. Choose the RGCT suffix when reel quantities for your pick-and-place batch size differ from the standard R reel.

What Is the Market Position, Lifecycle, and Supply Situation of the TUSB8041RGCR?

The TUSB8041RGCR is lifecycle-active per the verified database. Supply is strong: XAIPART lists 99,999 units in stock with MOQ 1, and distributor listings show in-stock availability at LCSC and DigiKey ('ships today') as of 2026-09-03. Pricing at LCSC starts at $6.12 for single units, with XAIPART tiered pricing of $5.55 (10+), $4.95 (100+), $4.45 (500+), and $4.05 (1,000+) as of 2026-09-12. Lead times range from a few days for stock items to several weeks for factory orders. [DATA_NEEDED: long-term lifecycle forecast / last-time-buy status]

Where to buy: Purchase directly on the XAIPART TUSB8041RGCR product page, or from authorized distributors DigiKey, Mouser, LCSC, and TI.com. Confirm live inventory before finalizing volume BOM cost.

What Should Buyers Watch Next? Trends & Outlook

Industrial-grade substitution is the low-risk hedge. Because the TUSB8041IRGCR is pin- and function-identical with a -40C to 85C rating, buyers designing any product that could ship into semi-industrial environments should qualify the industrial grade up front to avoid a future respin.

Configuration flexibility drives platform differentiation. The GPIO/I2C/SMBus configuration paths let platform BIOS/EC teams set custom VID/PID and port power behavior during system sleep — a differentiator for docking stations and monitors where platform-level power compliance matters.

Signal integrity is the performance gate. The 5-Gbps retiming is what separates this hub from passive repeaters in machine-vision and multi-drive workloads; buyers evaluating hub ICs should compare retiming capability, not just port count and line rate.

Temperature and compliance data. The widest verified temperature option in this footprint is -40C to 85C (TUSB8041I); no automotive-qualified (AEC-Q100) TUSB8041 variant is documented in the verified data — confirm qualification status directly with TI for automotive programs. RoHS status is not confirmed in the verified data; check the product page before compliance sign-off. [VERIFY_NEEDED: RoHS/automotive qualification confirmation]
