AD9680BBCZ vs AD9680BCPZ-500 Comparison
Detailed side-by-side comparison of AD9680BBCZ by Analog Devices and AD9680BCPZ-500 by Analog Devices. Compare key specifications, electrical parameters, packaging, lifecycle status, pricing, and availability to determine the best component for your design requirements.
Analog Devices
AD9680BBCZ
AD9680BBCZ - Dual 14-Bit 1.25 GSPS ADC | Analog Devices
AD9680BBCZ β ActiveAnalog Devices

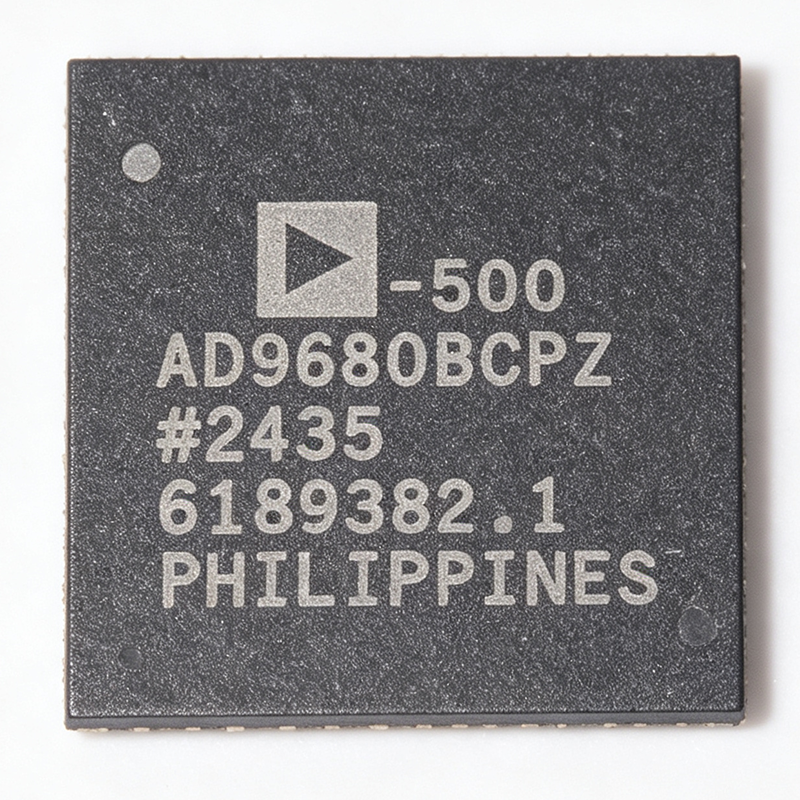

AD9680BCPZ-500 - Dual 14-Bit 500 MSPS JESD204B ADC | Analog Devices
AD9680BCPZ-500 β ActiveSpecification Comparison
| Parameter | AD9680BBCZ | AD9680BCPZ-500 |
|---|---|---|
| Brand | Analog Devices | Analog Devices |
| Category | ADC/DAC | ADC/DAC |
| Lifecycle Status | Active | Active |
| Stock Status | In Stock | In Stock |
| Unit Price (USD) | $160.00 | $0.00 |
| Resolution | 14 bits | 14 bit |
| Number of Channels | 2 | 2 |
| Sampling Rate | 1.25 GSPS / 1 GSPS / 820 MSPS / 500 MSPS | 500 MSPS |
| Input Bandwidth | Up to 2 GHz | β |
| Supply Voltage | 1.2 V / 2.5 V | β |
| Package | 64-LFCSP (9x9 mm) | 64-LFCSP (9 mm x 9 mm) with exposed pad |
| Architecture | Pipelined | Pipelined |
| Output Interface | JESD204B | β |
| On-Chip Buffer | Yes | β |
| Sample-and-Hold | Yes | β |
| Operating Temperature Range | [DATA_NEEDED: Operating temperature range] | [DATA_NEEDED: Operating Temperature Range] |
| Power Dissipation | [DATA_NEEDED: Power dissipation] | β |
| SNR | [DATA_NEEDED: SNR] | [DATA_NEEDED: SNR] |
| SFDR | [DATA_NEEDED: SFDR] | [DATA_NEEDED: SFDR] |
| RoHS Status | Compliant | Compliant |
| Interface Type | β | JESD204B Serial |
| Supply Voltage (Analog) | β | 2.5 V |
| Supply Voltage (Core) | β | 1.2 V |
| Mounting Type | β | Surface Mount |
| On-Chip Features | β | Buffer and sample-and-hold circuit |
| Fast Detect Outputs | β | FD_A (pin 17), FD_B (pin 32) |
| Input Configuration | β | Differential |
| Power Consumption | β | [DATA_NEEDED: Power Consumption] |
