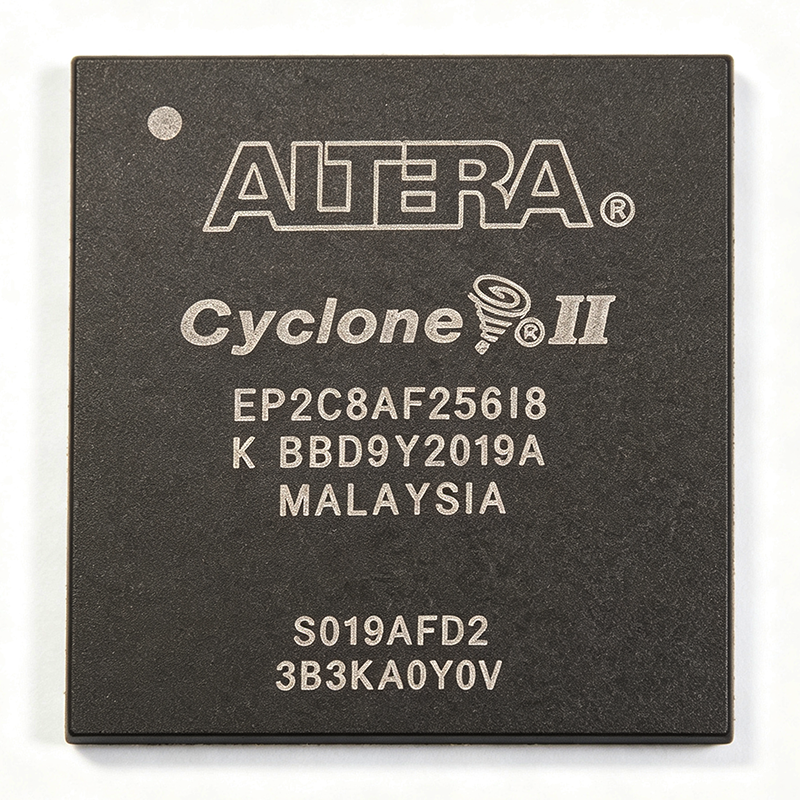

EP2C8F256C6N vs EP2C8AF256I8N Comparison
Detailed side-by-side comparison of EP2C8F256C6N by Altera and EP2C8AF256I8N by Intel. Compare key specifications, electrical parameters, packaging, lifecycle status, pricing, and availability to determine the best component for your design requirements.
Specification Comparison
| Parameter | EP2C8F256C6N | EP2C8AF256I8N |
|---|---|---|
| Brand | Altera | Intel |
| Category | FPGA & CPLD | FPGA & CPLD |
| Lifecycle Status | Active | Nrnd |
| Stock Status | In Stock | In Stock |
| Unit Price (USD) | $31.20 | $21.40 |
| Series | Cyclone II | β |
| Manufacturer | Altera (Intel PSG) | β |
| Logic Elements (LEs) | 8,256 | β |
| Total RAM Bits | 165,888 | β |
| User I/O Count | 182 | β |
| Number of Logic Array Blocks (LABs) | 516 | β |
| Embedded 18x18 Multipliers | 18 | β |
| Number of PLLs | 4 | β |
| Package | 256-LBGA (FineLine BGA), 17x17 mm | 256-ball FBGA (FineLine BGA) |
| Speed Grade | C6 | 8 |
| Operating Temperature (Commercial) | 0C to +85C | β |
| Core Voltage | 1.2 V | β |
| Process Node | 90 nm | β |
| Mounting Type | Surface Mount (BGA) | Surface Mount (BGA) |
| MSL Level | [DATA_NEEDED: MSL rating] | β |
| RoHS Status | Compliant | Lead-free (per Altera ordering code suffix) |
| Lead-Free | Yes | β |
| Family | β | Cyclone II |
| Logic Elements (LE) | β | 8,256 |
| Embedded Memory Bits | β | 165,888 bits (162 Kbit RAM) |
| Embedded Multipliers (18x18) | β | 36 |
| Maximum User I/O Pins | β | 182 |
| PLLs | β | 4 |
| Global Clocks | β | 16 |
| Configuration Elements | β | Embedded SRAM, JTAG, AS, PS |
| Core Voltage (VCCINT) | β | 1.2 V |
| I/O Voltage (VCCIO) | β | 1.5 V / 1.8 V / 2.5 V / 3.3 V (bank-selectable) |
| Process Technology | β | 90 nm CMOS, SRAM-based |
| Operating Temperature | β | -40C to +100C (Industrial, I suffix) |
| Status Suffix | β | N (lead-free, Pb-free) |
