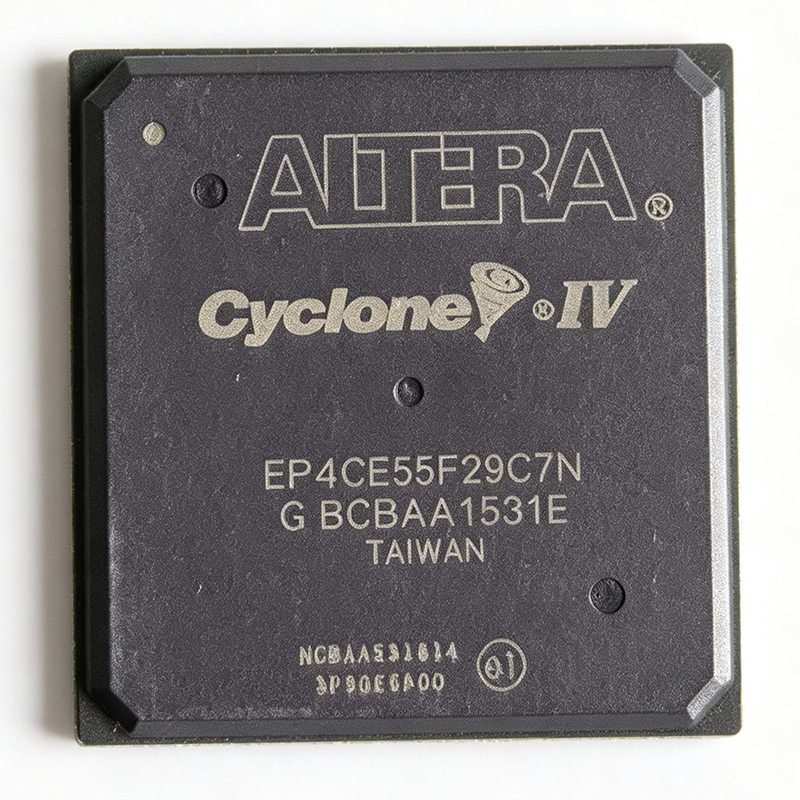

EP4CE55F29C8LN vs EP4CE55F29C7N Comparison
Detailed side-by-side comparison of EP4CE55F29C8LN by Intel and EP4CE55F29C7N by Intel. Compare key specifications, electrical parameters, packaging, lifecycle status, pricing, and availability to determine the best component for your design requirements.
Specification Comparison
| Parameter | EP4CE55F29C8LN | EP4CE55F29C7N |
|---|---|---|
| Brand | Intel | Intel |
| Category | FPGA & CPLD | FPGA & CPLD |
| Lifecycle Status | Active | Active |
| Stock Status | In Stock | In Stock |
| Unit Price (USD) | $78.90 | $138.00 |
| Device Family | Cyclone IV E | β |
| Logic Elements (LE) | 55,856 | 55,856 |
| Logic Array Blocks (LAB) | 3,491 | β |
| Embedded Memory | 2,396,160 bits | β |
| Embedded 18x18 Multipliers | 156 | β |
| Maximum User I/Os | 374 | β |
| PLLs | 4 | β |
| Global Clocks | 20 | β |
| Process Technology | 60 nm (TSMC low-power) | β |
| Core Voltage | 1.2 V | 1.2 V nominal |
| Supply Voltage (VCCINT) | 1.0 V to 1.2 V | β |
| Package | 780-ball FBGA (F29), 1.0 mm pitch | 780-ball FBGA (F29) |
| Temperature Grade | Commercial 0C to +85C | β |
| Speed Grade | 8 | -7 (C7) |
| Configuration Modes | Active Serial, JTAG, Passive Serial | β |
| Family | β | Cyclone IV E |
| Configurable Logic Blocks (CLBs) | β | 3,491 |
| Total RAM Bits | β | 2,396,160 |
| Embedded Multipliers (18x18) | β | [DATA_NEEDED: 18x18 multiplier count] |
| User I/O Count | β | 374 |
| Number of PLLs | β | [DATA_NEEDED: PLL count] |
| Package Dimensions | β | 29 mm x 29 mm |
| Ball Pitch | β | 1.0 mm |
| Operating Temperature | β | 0C to +85C (commercial) |
| Supply Voltage | β | 1.2 V |
| Mounting Type | β | Surface Mount |
| RoHS Status | β | Compliant (LEAD FREE) |
| Lead Free | β | Yes |
| Configuration Mode | β | JTAG, Active Serial, Passive Parallel |
