TMS320F28032 vs TMS320F28032PAGT Comparison
Detailed side-by-side comparison of TMS320F28032 by Texas Instruments and TMS320F28032PAGT by Texas Instruments. Compare key specifications, electrical parameters, packaging, lifecycle status, pricing, and availability to determine the best component for your design requirements.
Texas Instruments

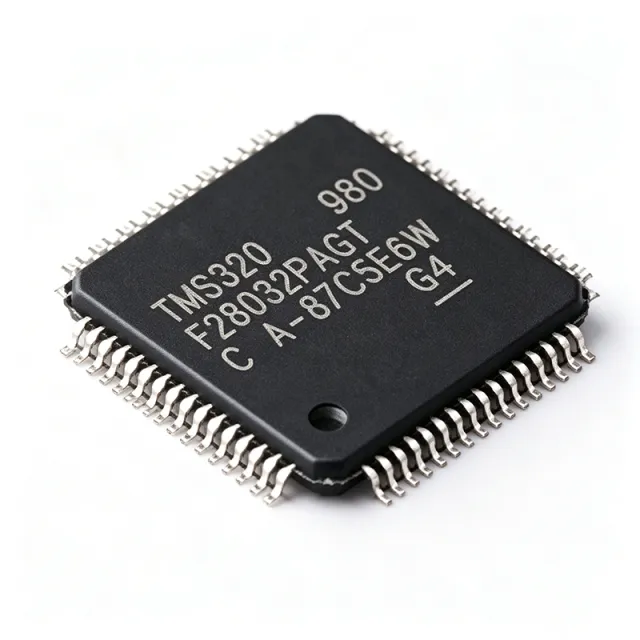

TMS320F28032PAGT - C2000 32-bit 60MHz 64KB Flash MCU | TI
TMS320F28032PAGT ✓ ActiveSpecification Comparison
| Parameter | TMS320F28032 | TMS320F28032PAGT |
|---|---|---|
| Brand | Texas Instruments | Texas Instruments |
| Category | Microcontrollers | Microcontrollers |
| Lifecycle Status | Active | Active |
| Stock Status | In Stock | In Stock |
| Unit Price (USD) | $3.55 | $1.95 |
| Core Processor | TMS320C28x (32-bit fixed-point) | C28x (C2000 Piccolo) |
| Core Size | 32-Bit | 32-Bit |
| Speed | 60 MHz (16.67 ns cycle time) | — |
| Flash Memory | 64 KB (32K x 16) | 64 KB (32K x 16) |
| ADC Resolution | 12-bit | 12-bit, 4.6 MSPS |
| ADC Conversion Rate | 4.6 MSPS | — |
| MAC Operations | 16x16, 32x32, 16x16 dual MAC | — |
| Bus Architecture | Harvard, unified memory | — |
| Family | C2000 Piccolo F2803x | — |
| Operating Temperature | [DATA_NEEDED: operating temperature range] | -40C to +85C |
| Package | 64-TQFP (10x10 mm) | 64-TQFP (PAG), 10x10 mm |
| Mounting Type | Surface Mount | Surface Mount |
| Ordering Code (example) | TMS320F28032PAGT / TMS320F28032PNTR | — |
| Automotive Variant | TMS320F28032-Q1 (AEC-Q100 qualified) | — |
| Debug Interface | JTAG (real-time mode, Code Composer Studio) | — |
| RoHS Status | [DATA_NEEDED: RoHS status] | — |
| RAM | [DATA_NEEDED: on-chip RAM size] | — |
| Supply Voltage | [DATA_NEEDED: supply voltage] | [DATA_NEEDED: supply voltage] |
| Maximum Clock Frequency | — | 60 MHz |
| Series | — | C2000 C28x Piccolo (F2803x) |
| Accelerator | — | Control Law Accelerator (CLA) |
| Code Compatibility | — | C28x source-code compatible (TMS320C2xx lineage) |
| Packaging | — | Tray |
| Product Status | — | Active |
| Programmability | — | In-system flash programmable via JTAG |
| Technology | — | High-performance static CMOS |
