VNH7100BASTR vs VNH3SP30 Comparison
Detailed side-by-side comparison of VNH7100BASTR by STMicroelectronics and VNH3SP30 by STMicroelectronics. Compare key specifications, electrical parameters, packaging, lifecycle status, pricing, and availability to determine the best component for your design requirements.
STMicroelectronics

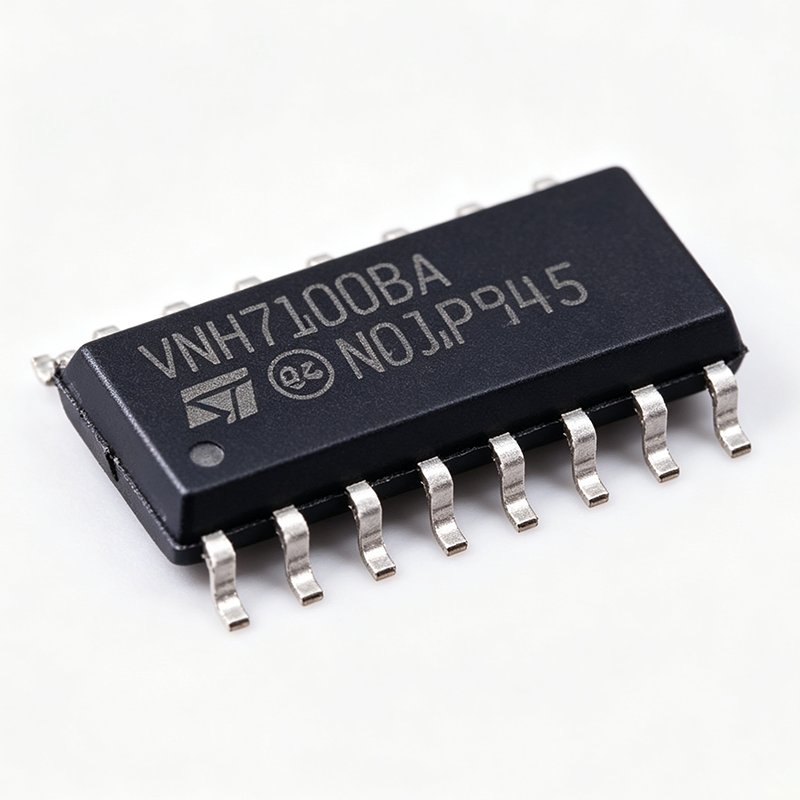

VNH7100BASTR - 12A Automotive H-Bridge Driver | STMicroelectronics
VNH7100BASTR β Active
Specification Comparison
| Parameter | VNH7100BASTR | VNH3SP30 |
|---|---|---|
| Brand | STMicroelectronics | STMicroelectronics |
| Category | Motor Drivers | Motor Drivers |
| Lifecycle Status | Active | Active |
| Stock Status | In Stock | In Stock |
| Unit Price (USD) | $2.90 | $8.10 |
| Output Current | 12 A (continuous) | β |
| Supply Voltage Range | 4 V to 28 V | 5.5 V to 36 V |
| On-Resistance (per switch) | 60 mOhm | β |
| PWM Frequency | Up to 20 kHz | β |
| Operating Temperature Range | -40Β°C to +150Β°C | -40Β°C to +150Β°C |
| Package | PowerSSO-16 (SO-16N) | MultiPowerSO-30 |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Outputs | 1 (H-bridge) | β |
| Motor Type | DC Brushed | β |
| Protection Features | Undervoltage lockout, overvoltage clamp, thermal shutdown, load current limitation | β |
| Diagnostic Output | Yes | β |
| Technology | VIPower M0 | β |
| AEC-Q100 Qualified | Yes | β |
| RoHS Compliant | Yes | β |
| Lead-Free | Yes | β |
| Function | β | Full-bridge motor driver |
| Maximum Output Current | β | 30 A |
| On-Resistance (RDS(on)) | β | 0.05 ohm per switch |
| Control Interface | β | Parallel, PWM |
| Thermal Resistance (junction-to-ambient) | β | 1.5 Β°C/W |
| Undervoltage Lockout | β | Yes |
| Overcurrent Protection | β | Yes |
| Thermal Shutdown | β | Yes |
| Automotive Grade | β | AEC-Q100 qualified |
| RoHS Status | β | Compliant |
| Logic Level | β | 5V logic (not 3.3V compatible) |
