ADM2487EBRWZ - Isolated RS-485 Transceiver | Analog Devices

Name: ADM2487EBRWZ
Brand: Analog Devices
Price: 4.16 USD
Availability: InStock

MPN: ADM2487EBRWZ ✓ Active

In Stock Ships in 1-3 business days

2500 Vrms Vdss 2.5 mA (typical) Id 16-SOIC (0.295", 7.50mm Width) Package

From $4.16 USD / Unit

MOQ: 1 |

Price updated: 2026-08-23

Volume Pricing

Qty	Unit Price	Extended
1	$6.5	$6.50
10	$5.85	$58.50
100	$5.2	$520.00
500	$4.68	$2,340.00
1,000	$4.16	$4,160.00

ℹ️ All prices are in USD

View Datasheet (PDF) View Alternatives

Quantity

Drop-in alternatives for ADM2487EBRWZ — same package, pin-to-pin compatible. Different-package parts requiring PCB rework are excluded.

Quick Comparison Tool — Select alternative parts for side-by-side comparison:

ADM2487EBRWZ-REEL7

✅ Drop-In

📦 16-SOIC (0.295", 7.50mm Width)

Same device, tape-and-reel packaging

📋 Reference alternative (not in catalog)

ADM2482EBRWZ

✅ Drop-In

📦 16-SOIC (0.295", 7.50mm Width)

Higher data rate (16 Mbps vs 500 kbps)

📋 Reference alternative (not in catalog)

ADM2483BRWZ

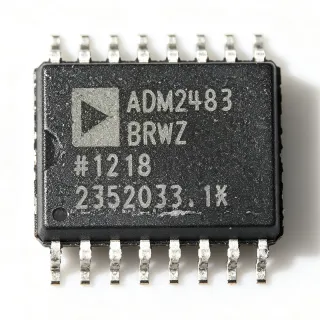

✅ Drop-In

Analog Devices

📦 16-SOIC (0.295", 7.50mm Width)

Isolated RS-485/RS-422 Transceiver · 3 · 2500 Vrms · 500 kbps · 25 kV/µs · 3 V or 5 V · 5 V · -40°C to +85°C

✓ In Stock

$3.75 / Unit

View Datasheet →

ADM2484EBRWZ

✅ Drop-In

Analog Devices

📦 16-SOIC (0.295", 7.50mm Width)

Isolated RS-485/RS-422 Transceiver · 3 · 5000 Vrms · 500 kbps · 25 kV/µs · ±15 kV · 3.3 V or 5 V · 5 V

✓ In Stock

$3.1 / Unit

View Datasheet →

ISO3082DW

✅ Drop-In

📦 16-SOIC (0.295", 7.50mm Width)

Cross-brand, lower data rate (200 kbps vs 500 kbps)

📋 Reference alternative (not in catalog)

ADM2487EBRWZ Maximum Ratings & Electrical Characteristics

Type	Isolated RS-485/RS-422 Transceiver
Isolation Voltage	2500 Vrms
Number of Channels	3
Data Rate	500 kbps
CMTI	25 kV/µs
ESD Protection	±15 kV (HBM)
Supply Voltage (Logic Side)	5 V
Supply Voltage (Bus Side)	5 V
Quiescent Current	2.5 mA (typical)
Operating Temperature Range	-40°C to +85°C
Package	16-SOIC (0.295", 7.50mm Width)
Mounting Type	Surface Mount
Duplex	Half/Full
Integrated Transformer Driver	Yes
RoHS Status	Compliant

ADM2487EBRWZ Pin Configuration

Pin 1	VDD1 — Logic side supply voltage (5V)
Pin 2	GND1 — Logic side ground
Pin 3	TXD — Transmit data input
Pin 4	RXD — Receive data output
Pin 5	DE — Driver enable (active high)
Pin 6	RE — Receiver enable (active low)
Pin 7	NC — No connect
Pin 8	NC — No connect
Pin 9	VDD2 — Bus side supply voltage (5V)
Pin 10	GND2 — Bus side ground
Pin 11	A — Non-inverting receiver input / driver output
Pin 12	B — Inverting receiver input / driver output
Pin 13	Y — Non-inverting driver output
Pin 14	Z — Inverting driver output
Pin 15	VISO — Isolated supply output (from transformer)
Pin 16	GNDISO — Isolated ground

Safe Operating Area (SOA) & Thermal Characteristics

No official SOA curve available for this digital IC. Always operate within absolute maximum ratings specified in the datasheet. Ensure adequate cooling and derate as needed.

Typical Applications

ADM2487EBRWZ is suitable for 6 applications: Industrial Fieldbus Networks, Building Automation, Instrumentation and Data Acquisition, Motor Control and Drives, Power Grid Monitoring, Transportation and Rail.

🏭

Industrial Fieldbus Networks

The ADM2487EBRWZ is ideal for industrial fieldbus networks such as Modbus and PROFIBUS, where reliable communication over long distances and harsh environments is critical. Its 2.5 kVrms isolation protects against ground potential differences, while the 500 kbps data rate supports standard fieldbus protocols. The integrated transformer driver simplifies power supply design, reducing component count and board space. With ±15 kV ESD protection and 25 kV/µs CMTI, it ensures robust operation in electrically noisy industrial settings.

Recommended

ADM2483BRWZ · Analog Devices ADM2482EBRWZ (Higher-speed alternative for 16 Mbps networks)

🏢

Building Automation

In building automation systems, the ADM2487EBRWZ enables reliable communication between HVAC controllers, lighting systems, and security panels over RS-485 buses. Its isolation capability prevents ground loops that can occur when devices are powered from different phases or distant locations. The half-duplex mode supports 2-wire bus topologies, reducing cabling costs. The device's wide operating temperature range (-40°C to +85°C) makes it suitable for rooftop units and other outdoor installations.

Recommended

ADM2483BRWZ · Analog Devices

🔧

Instrumentation and Data Acquisition

The ADM2487EBRWZ is used in instrumentation systems to transmit measurement data from sensors and data acquisition modules to central controllers. Its high CMTI (25 kV/µs) ensures accurate data transfer even when large common-mode voltage transients are present, such as those caused by motor starts or switching power supplies. The integrated transformer driver allows for a compact isolated power supply, which is beneficial in space-constrained designs. The device's full-duplex capability supports simultaneous data transmission and reception, enabling real-time monitoring.

Recommended

ADM2482EBRWZ (Higher-speed option for faster data acquisition)

⚙️

Motor Control and Drives

In motor control applications, the ADM2487EBRWZ provides isolated communication between the motor drive controller and the fieldbus network. The isolation protects the low-voltage control circuitry from high-voltage transients generated by the motor. The device's robustness against ESD and high CMTI ensures reliable operation in the presence of electromagnetic interference. The half-duplex mode is commonly used in daisy-chained motor drives, simplifying wiring. The integrated transformer driver reduces the need for an external isolated DC-DC converter, saving board space and cost.

Recommended

ADM2483BRWZ · Analog Devices

⚡

Power Grid Monitoring

The ADM2487EBRWZ is suitable for power grid monitoring systems where isolation is essential to protect personnel and equipment from high voltages. It enables communication between remote terminal units (RTUs) and central control systems over RS-485 links. The device's 2.5 kVrms isolation rating provides a safety barrier, and its high CMTI ensures reliable data transmission in the presence of power line transients. The wide temperature range allows operation in outdoor substations.

Recommended

ADM2482EBRWZ (Higher-speed option for faster data reporting)

🚄

Transportation and Rail

In transportation systems, the ADM2487EBRWZ is used for communication between train control units, signaling systems, and passenger information displays. Its isolation capability prevents ground loops that can occur due to long cable runs and different power supplies. The device's robustness against ESD and high CMTI ensures reliable operation in the harsh electromagnetic environment of railway applications. The half-duplex mode is suitable for bus-based communication between multiple nodes.

Recommended

ADM2483BRWZ · Analog Devices

Recommended Products Summary

ADM2483BRWZ Analog Devices Used in: Industrial Fieldbus Networks, Building Automation, Motor Control and Drives, Transportation and Rail ADM2482EBRWZ Higher-speed alternative for 16 Mbps networks Used in: Industrial Fieldbus Networks, Instrumentation and Data Acquisition, Power Grid Monitoring

What is the isolation voltage of ADM2487EBRWZ?

The ADM2487EBRWZ provides 2500 Vrms isolation, as specified in the Analog Devices datasheet. This isolation rating is suitable for industrial applications where galvanic isolation is required to protect against ground potential differences and voltage transients.

What is the maximum data rate of ADM2487EBRWZ?

The ADM2487EBRWZ supports data rates up to 500 kbps. This makes it suitable for standard RS-485 networks such as Modbus and PROFIBUS, which typically operate at lower speeds. For higher speeds, consider the ADM2482E which supports 16 Mbps.

Does ADM2487EBRWZ support half-duplex and full-duplex operation?

Yes, the ADM2487EBRWZ is configurable for both half-duplex and full-duplex operation. In half-duplex mode, the transmitter outputs and receiver inputs share the same transmission line, while in full-duplex mode, separate lines are used for transmit and receive.

What is the CMTI of ADM2487EBRWZ?

The common-mode transient immunity (CMTI) of ADM2487EBRWZ is 25 kV/µs. This high CMTI ensures reliable operation in noisy industrial environments where fast voltage transients can occur, preventing data corruption.

What is the price of ADM2487EBRWZ?

As of 2026-08-23, the price of ADM2487EBRWZ is approximately $6.50 for a single unit, with volume discounts available. For example, at 1000 units, the price drops to around $4.16 per unit. Prices may vary by distributor and availability.

Where can I buy ADM2487EBRWZ?

ADM2487EBRWZ is available from major distributors such as DigiKey, Mouser, and Octopart. You can also purchase directly from Analog Devices or through authorized distributors. Check current stock and pricing on these platforms.

What is the lead time for ADM2487EBRWZ?

The lead time for ADM2487EBRWZ typically ranges from 1 to 4 weeks, depending on distributor stock and order quantity. For large orders, it is advisable to check with the distributor for specific lead times.

Is ADM2487EBRWZ in stock?

As of 2026-08-23, ADM2487EBRWZ is in stock at major distributors like DigiKey and Mouser. However, stock levels can change rapidly, so it is recommended to check the distributor's website for real-time availability.

ADM2487EBRWZ vs ADM2483BRWZ - which is better for industrial Modbus?

For industrial Modbus networks, the ADM2487EBRWZ is generally better because it offers 2.5 kVrms isolation and ±15 kV ESD protection, while the ADM2483BRWZ provides only 2.5 kVrms isolation without the integrated transformer driver. The ADM2487E also supports higher data rates (500 kbps vs 500 kbps for ADM2483B, but ADM2487E has better ESD). Choose ADM2487E for enhanced robustness.

What is the difference between ADM2487EBRWZ and ADM2482EBRWZ?

The main difference is data rate: ADM2487EBRWZ supports up to 500 kbps, while ADM2482EBRWZ supports up to 16 Mbps. Both have the same isolation voltage and package, but the ADM2482E is suited for higher-speed applications. For standard industrial protocols, ADM2487E is sufficient.

When should I choose ADM2487EBRWZ over ADM2483BRWZ?

Choose ADM2487EBRWZ when you need higher ESD protection (±15 kV vs ±8 kV) and an integrated transformer driver, which simplifies the power supply design. The ADM2483BRWZ is a lower-cost option but lacks the integrated driver and has lower ESD rating. For robust industrial environments, ADM2487E is preferred.

What is the best drop-in replacement for ADM2487EBRWZ?

The best drop-in replacement for ADM2487EBRWZ is the ADM2487EBRWZ-REEL7, which is the same device in tape-and-reel packaging. For cross-brand alternatives, consider the ISO3082DW from Texas Instruments, which is pin-compatible and offers similar isolation and data rate, but verify pinout before use.

Where can I download the ADM2487EBRWZ datasheet PDF?

You can download the ADM2487EBRWZ datasheet PDF from the Analog Devices website at https://www.analog.com/media/en/technical-documentation/data-sheets/ADM2482E_2487E.pdf. It is also available on distributor sites like DigiKey and Mouser.

What are the key specifications of ADM2487EBRWZ that engineers should know?

Engineers should know that the ADM2487EBRWZ is an isolated RS-485 transceiver with 2500 Vrms isolation, ±15 kV ESD protection, 500 kbps data rate, and 25 kV/µs CMTI. It operates from 5V supplies, has an integrated transformer driver, and comes in a 16-SOIC package. These specs make it ideal for industrial networks.

Is ADM2487EBRWZ the same as ADM2483BRWZ?

No, ADM2487EBRWZ and ADM2483BRWZ are different. ADM2487E has higher ESD protection (±15 kV vs ±8 kV) and includes an integrated transformer driver, while ADM2483B does not. They are pin-compatible but not identical in features.

What is the best Texas Instruments equivalent for ADM2487EBRWZ?

The best Texas Instruments equivalent for ADM2487EBRWZ is the ISO3082DW, which is an isolated RS-485 transceiver with 2500 Vrms isolation and 200 kbps data rate. It is pin-compatible with the ADM2487E, but verify the pinout and specifications before use.

Engineering reference data for ADM2487EBRWZ — comparison, design guidance, and compliance information.

Selection Guide

Choose the ADM2487EBRWZ when you need a robust isolated RS-485 transceiver with integrated transformer driver, ±15 kV ESD protection, and 500 kbps data rate. It is ideal for industrial fieldbus, building automation, and instrumentation applications. If you require higher data rates (up to 16 Mbps), consider the ADM2482EBRWZ. For cost-sensitive designs with lower ESD requirements, the ADM2483BRWZ is a viable alternative but lacks the integrated transformer driver. For cross-brand options, the ISO3082DW from TI is pin-compatible but has a lower data rate (200 kbps) and no integrated driver, so it may require additional components. Always verify pinout and specifications before substitution.

Comparison with Alternatives

Parameter	This Product	ADM2487EBRWZ-REEL7	ADM2482EBRWZ	ADM2483BRWZ	ADM2484EBRWZ	ISO3082DW
Package	16-SOIC (0.295", 7.50mm Width)	16-SOIC (same)	16-SOIC (same)	16-SOIC (same)	16-SOIC (same)	16-SOIC (same)
Brand	Analog Devices	Analog Devices	Analog Devices	Analog Devices	Analog Devices	Texas Instruments
Isolation Voltage	2500 Vrms	2500 Vrms	2500 Vrms	2500 Vrms	2500 Vrms	2500 Vrms
Data Rate	500 kbps	500 kbps	16 Mbps	500 kbps	20 Mbps	200 kbps
ESD Protection	±15 kV	±15 kV	±15 kV	±8 kV	±15 kV	±16 kV
CMTI	25 kV/µs	25 kV/µs	25 kV/µs	25 kV/µs	25 kV/µs	50 kV/µs
Integrated Transformer Driver	Yes	Yes	Yes	No	Yes	No
Supply Voltage	5V	5V	5V	5V	5V	5V

Key Differentiators

Integrated transformer driver (vs ADM2483BRWZ)
Higher ESD protection (vs ADM2483BRWZ)
Higher data rate than ISO3082 (vs ISO3082DW)

Design Notes

For the ADM2487EBRWZ, maintain a minimum creepage distance of 8 mm between the logic side (pins 1-8) and bus side (pins 9-16) to meet the 2.5 kVrms isolation rating. Use a PCB with adequate clearance and avoid placing copper traces under the device. Place the external transformer close to the VISO and GNDISO pins to minimize parasitic inductance and ensure stable isolated power.

The ADM2487EBRWZ requires a 5V supply on both VDD1 and VDD2. The integrated transformer driver generates an isolated supply (VISO) using an external transformer and rectifier. Ensure the transformer has a suitable turns ratio (e.g., 1:1) and that the rectifier diodes and capacitors are rated for the required current. The typical quiescent current is 2.5 mA, but the bus side may draw more during transmission.

For RS-485 networks, terminate the bus with 120-ohm resistors at both ends to prevent reflections. Place the termination resistors close to the connector. Use twisted-pair cabling for the A and B lines. The ADM2487E's high CMTI (25 kV/µs) helps reject common-mode noise, but proper grounding and shielding are still recommended for long cable runs.
