STM32H723VGT6 - 550MHz ARM Cortex-M7 MCU | STMicroelectronics
STM32H723VGT6

STM32H723VGT6 - 550MHz ARM Cortex-M7 MCU | STMicroelectronics

The STMicroelectronics STM32H723VGT6 is a high-performance 32-bit microcontroller based on the ARM Cortex-M7 core, operating at up to 550 MHz. It is part of the STM32H7 series, designed for demanding applications requiring high processing power, advanced connectivity, and rich analog peripherals. The device is housed in a 100-pin LQFP package (LQFP100) and offers 1 Mbyte of Flash memory and 564 Kbytes of SRAM, making it suitable for complex real-time control and signal processing tasks. What is a microcontroller? A microcontroller (MCU) is a compact integrated circuit designed to govern a specific operation in an embedded system. It integrates a processor core, memory (Flash and SRAM), and programmable input/output peripherals on a single chip. Microcontrollers are the brains of countless electronic devices, from automotive engine control units to industrial robots and consumer electronics. The STM32H723VGT6 belongs to the high-performance segment of the microcontroller family, positioned above mid-range MCUs like the STM32F4 series, and is optimized for applications that require intensive computation, such as digital signal processing, motor control, and artificial intelligence at the edge. Key features of the STM32H723VGT6 include a 550 MHz Cortex-M7 core with double-precision floating-point unit (FPU), a Chrom-ART Accelerator for 2D graphics, and a comprehensive set of communication interfaces including Ethernet, USB OTG HS, CAN FD, and multiple UARTs/SPIs/I2Cs. The device also integrates a 16-bit ADC with up to 5 MSPS, a 12-bit DAC, and advanced timers for precise PWM generation. With its high clock speed and rich peripheral set, the STM32H723VGT6 delivers exceptional performance for real-time applications. From a technical architecture perspective, the STM32H723VGT6 features a Harvard architecture with separate instruction and data buses, enabling simultaneous fetch and data access. The Cortex-M7 core includes a 6-stage pipeline, branch prediction, and a memory protection unit (MPU) for enhanced reliability. The device supports external memory interfaces (FMC) for SDRAM, NOR, and NAND Flash, and includes a hardware cryptographic accelerator for AES, DES, and RSA, ensuring secure data communication. The integrated power management allows operation from 1.62V to 3.6V, with multiple low-power modes to optimize energy consumption. Typical applications for the STM32H723VGT6 include industrial automation, motor control, power conversion, medical devices, and high-end consumer electronics. Its high-speed ADC and timers make it ideal for digital power supplies and motor drives, while the Ethernet and USB interfaces enable connectivity in IoT gateways and industrial networking. The device's graphics acceleration supports human-machine interfaces (HMI) with smooth rendering. When designing with the STM32H723VGT6, ensure proper decoupling of the power supply pins with 100nF capacitors placed close to each VDD pin, and a 4.7uF bulk capacitor. The VDDA pin requires a dedicated analog supply with a ferrite bead to reduce noise. For high-speed interfaces like Ethernet and USB, follow the layout guidelines in the datasheet to maintain signal integrity. The device supports in-circuit programming via SWD or JTAG, and the STM32CubeIDE toolchain simplifies development.

USD $8,10 В наличии
STM32H723ZGT6 - 550MHz Cortex-M7 MCU, 1MB Flash | ST
STM32H723ZGT6

STM32H723ZGT6 - 550MHz Cortex-M7 MCU, 1MB Flash | ST

The STMicroelectronics STM32H723ZGT6 is a high-performance 32-bit Arm Cortex-M7 microcontroller running at up to 550 MHz, with 1 MB of Flash memory and 564 KB of RAM, housed in a 144-pin LQFP (20x20 mm) surface-mount package. A microcontroller (MCU) is a single-chip computer that integrates a processor core, memory, and peripherals on one die, forming the top of the embedded processing hierarchy that also spans DSPs and application processors. The STM32H7 family sits at the high-performance end of the STM32 portfolio, targeting real-time control and signal-processing workloads that previously required a separate DSP. Key features include the Cortex-M7 core with double-precision FPU and L1 cache, an external memory interface, and 35 communication peripherals and analog interfaces. Integrated Ethernet, USB, and 3x FDCAN controllers make the device well suited for connected industrial nodes, while 2x 16-bit ADCs with 12-bit resolution handle multi-channel analog acquisition. Architecturally, the STM32H723 combines the DSP and double-precision floating-point capabilities of the Cortex-M7 with ST ART Accelerator prefetch logic, enabling execution from internal Flash at full core speed. The 564 KB RAM is organized in multiple blocks (including DTCM/ITCM) to sustain deterministic real-time behavior at 550 MHz. Typical applications include drone flight controllers (ArduPilot/PX4 autopilots such as Cube Orange+/Purple class hardware), industrial automation and motor control, and connected IoT gateways using the integrated Ethernet and FDCAN interfaces. When designing with the STM32H723ZGT6, budget the 550 MHz core supply rail (VOS0 operation) carefully and verify that peripheral subsets required by your firmware are present in this family member; pin-compatible H7 siblings differ in memory size and clock ceiling. This page synthesizes distributor pricing, drop-in alternatives, and practical design notes not found in the manufacturer datasheet.

USD $6,39 В наличии
STM32H725AEG6 - 550MHz Cortex-M7 MCU with 1MB Flash | STMicroelectronics
STM32H725AEG6

STM32H725AEG6 - 550MHz Cortex-M7 MCU with 1MB Flash | STMicroelectronics

The STMicroelectronics STM32H725AEG6 is a high-performance 32-bit microcontroller based on the Arm Cortex-M7 core, operating at up to 550 MHz. It integrates 1 MB of flash memory and 564 KB of SRAM, along with a rich set of peripherals including a TFT-LCD controller, cryptographic acceleration, and high-speed connectivity interfaces. The device is housed in a 144-pin UFBGA package (UFBGA144) with a 10x10 mm footprint, offering a compact solution for advanced embedded applications. A microcontroller (MCU) is a compact integrated circuit designed to govern a specific operation in an embedded system. It contains a processor core, memory, and programmable input/output peripherals on a single chip. MCUs are the brains of countless electronic devices, from automotive engine control units to IoT sensors and industrial automation systems. The STM32H7 series represents the high-performance tier of STMicroelectronics' STM32 family, positioned above the mainstream F4 series and the low-power L4 series, targeting applications that demand maximum processing power and advanced features. Key features of the STM32H725AEG6 include a 550 MHz Arm Cortex-M7 core with double-precision FPU, 1 MB of dual-bank flash memory, 564 KB of SRAM, and a Chrom-ART Accelerator for graphics. It also features a TFT-LCD controller supporting up to XGA resolution, a camera interface, and a cryptographic processor with hardware acceleration for AES, DES, and 3DES. The device supports a wide range of communication interfaces including Ethernet, USB OTG HS/FS, CAN FD, and multiple USART/SPI/I2C ports, making it suitable for complex connectivity requirements. From a technical architecture perspective, the STM32H725AEG6 leverages a 7-stage pipeline with branch prediction and a memory protection unit (MPU) for enhanced real-time performance. The dual-bank flash allows read-while-write operations, enabling firmware updates without halting the system. The device also includes a power management unit with multiple low-power modes, including Sleep, Stop, and Standby, to optimize energy consumption in battery-powered applications. Typical applications include industrial control systems, motor drives, smart home gateways, audio processing, and high-end consumer electronics. The combination of high clock speed, large memory, and rich peripherals makes it ideal for applications requiring real-time processing and complex user interfaces. When designing with this MCU, careful attention must be paid to power supply decoupling and PCB layout to ensure stable operation at 550 MHz. The use of multiple supply pins (VDD, VDDA, VDDUSB) requires proper filtering to minimize noise and maintain signal integrity.

USD $8,10 В наличии
STM32H725REV6 - 550MHz Cortex-M7 MCU, 512KB Flash | STMicroelectronics
STM32H725REV6

STM32H725REV6 - 550MHz Cortex-M7 MCU, 512KB Flash | STMicroelectronics

The STMicroelectronics STM32H725REV6 is a high-performance 32-bit ARM Cortex-M7 microcontroller with double-precision FPU, 512 KB of embedded Flash, 564 KB of total SRAM, and a 550 MHz maximum CPU clock, housed in a 68-pin VFQFPN (8x8 mm) package. The device integrates a 32 KB instruction cache and a 32 KB data cache that enable 0-wait-state execution from flash and external memories, plus an external memory interface (FMC), an integrated SMPS step-down converter for core supply, and a subset of high-speed peripherals including Ethernet MAC, USB OTG, and multiple UART/SPI/I2C ports. An ARM Cortex-M7 microcontroller is the highest-performance member of the Cortex-M family, featuring a six-stage superscalar pipeline, hardware single- and double-precision floating-point unit, SIMD DSP instructions, and tightly-coupled instruction/data caches. Within the broader system hierarchy, the Cortex-M7 sits above Cortex-M4/M3 in DSP and signal-processing capability and below Cortex-A application cores in raw integer performance, making it ideal for embedded systems that require deterministic real-time control combined with high-throughput DSP — for example, motor control, audio codecs, and motor drives. The STM32H7 family from STMicroelectronics is the first commercial Cortex-M7 implementation and pairs the core with a Chrom-ART graphics accelerator, a hardware JPEG codec, and advanced analog peripherals. Key features of the STM32H725REV6 include 550 MHz CPU clock (with MPU and DSP instructions), 2x 16-bit ADCs (up to 36 MSPS each), 2x 12-bit DACs, 2x comparators, 2x op-amps, a low-power RTC, and support for cryptographic/hash acceleration on selected derivatives. The integrated SMPS reduces external component count by generating the internal 1.2V core voltage from a single 3.3V rail, and the wide operating voltage range of 1.62V to 3.6V simplifies battery-backed designs. The 68-pin VFQFPN package exposes a subset of the H7 peripheral set, balancing I/O count with PCB-friendly 8x8 mm footprint. Typical applications include high-performance motor control (FOC for PMSM/BLDC drives), industrial automation controllers, audio processing and digital audio bridges, edge AI / TinyML inference nodes (paired with CMSIS-NN), HMI and graphical touch panels, and Ethernet-connected IoT gateways. The 564 KB SRAM enables moderate on-chip frame buffers and full-frame audio streaming without external memory, while the 550 MHz Cortex-M7 with FPU delivers ~1027 CoreMark and ~277 DMIPS per MHz performance. When designing with this part, allocate decoupling capacitors per the reference manual (100 nF near every VDD pin plus 4.7 µF bulk), and verify the SMPS inductor selection against the datasheet's recommended LC network. The package exposes a subset of H7 peripherals; if your design needs a larger I/O count or the full peripheral set, the 100-pin and 144-pin STM32H725 siblings share the same silicon and firmware. This page synthesizes verified distributor pricing, AEC-Q100/automotive variants, drop-in alternative candidates and practical design notes that are not consolidated on the manufacturer datasheet, giving an engineer a single reference for part selection, BOM risk management, and schematic-to-layout bring-up.

USD $8,95 В наличии
STM32H725VGT6 - 550MHz Cortex-M7 MCU with 1MB Flash | STMicroelectronics
STM32H725VGT6

STM32H725VGT6 - 550MHz Cortex-M7 MCU with 1MB Flash | STMicroelectronics

The STMicroelectronics STM32H725VGT6 is a high-performance 32-bit microcontroller based on the Arm Cortex-M7 core, operating at up to 550 MHz. It integrates 1 Mbyte of flash memory and 564 Kbytes of SRAM, along with a rich set of peripherals including a Chrom-ART Accelerator, a JPEG codec, and advanced security features. The device is housed in a 100-pin LQFP package (LQFP100) with a 14x14 mm body and 0.5 mm pitch, making it suitable for space-constrained industrial and consumer applications. What is a microcontroller? A microcontroller (MCU) is a compact integrated circuit designed to govern a specific operation in an embedded system. It contains a processor core, memory (flash and SRAM), and programmable input/output peripherals on a single chip. Microcontrollers are the brain of countless electronic devices, from automotive engine control units to smart home sensors. In the system hierarchy, the STM32H725VGT6 sits at the application processor level, providing the computational power and connectivity for complex tasks such as real-time control, digital signal processing, and human-machine interfaces. Key features of the STM32H725VGT6 include a 550 MHz Cortex-M7 core with double-precision FPU, a Chrom-ART Accelerator for 2D graphics, a hardware JPEG codec, and a comprehensive set of communication interfaces: 6x SPI, 4x I2C, 4x USART, 2x UART, 2x FDCAN, 2x SDMMC, 1x USB OTG FS/HS, 1x Ethernet MAC, and 1x camera interface. It also features a 16-bit ADC with 3.6 MSPS, a 12-bit DAC, and multiple timers including a high-resolution timer. Security is enhanced with a true random number generator (TRNG), a cryptographic accelerator (AES, DES, 3DES, SHA-1, SHA-256), and a secure boot option. The STM32H725VGT6 is built on a high-performance architecture with an L1 cache (32 Kbytes I-cache and 32 Kbytes D-cache) and a memory protection unit (MPU) for enhanced real-time performance. The device supports a wide supply voltage range of 1.62V to 3.6V and operates over a temperature range of -40°C to +85°C (T suffix). It is available in both commercial and industrial temperature grades, with the '6' suffix indicating the -40°C to +85°C range. Typical applications include industrial control systems, motor drives, power conversion, medical devices, audio processing, and IoT gateways. The combination of high clock speed, rich peripherals, and security features makes it ideal for applications requiring both computational power and connectivity. When designing with this device, ensure proper decoupling of the power supply pins with 100 nF capacitors placed close to each VDD pin, and a 4.7 uF bulk capacitor. The VDDA pin must be connected to a clean analog supply, and the VCAP pins require external capacitors as specified in the datasheet. For high-speed interfaces like USB and Ethernet, follow the layout guidelines in the STM32H7 reference manual (RM0433) to ensure signal integrity.

USD $7,50 В наличии
STM32H725ZGT6 - 550MHz Cortex-M7 MCU, 1MB Flash | STMicroelectronics
STM32H725ZGT6

STM32H725ZGT6 - 550MHz Cortex-M7 MCU, 1MB Flash | STMicroelectronics

The STMicroelectronics STM32H725ZGT6 is a high-performance 32-bit microcontroller built around the Arm Cortex-M7 core running at up to 550 MHz, integrating 1 Mbyte of Flash and 564 Kbytes of SRAM in a 144-pin LQFP package (LQFP144, 20x20 mm). The device targets demanding real-time applications including industrial control, motor drives, audio processing, and high-end consumer electronics. A double-precision FPU, L1 cache (16 KB I-cache / 16 KB D-cache), and a multi-layer AXI bus matrix deliver high compute throughput with deterministic memory access. A microcontroller (MCU) is a single-chip computer integrating a processor core, program memory, data memory, and programmable peripherals. The STM32H725ZGT6 belongs to the STM32H7 series within the broader STM32 family of 32-bit Arm Cortex-M microcontrollers. This hierarchy places it as a high-tier MCU within the STM32 ecosystem, sitting above Cortex-M4/M0+ variants in compute performance while sharing the same ST ecosystem (CubeMX, HAL/LL libraries, STM32CubeIDE). Key features include the 550 MHz Cortex-M7 with double-precision FPU, 1 MB dual-bank Flash with ECC, 564 KB total SRAM (including TCM and backup SRAM), 16-bit ADC up to 3.6 MSPS, 12-bit DAC, advanced motor-control timers with high-resolution PWM, USB 2.0 OTG HS/FS, two CAN FD controllers, Ethernet MAC, multiple SPI/I²C/UART/USART instances, SDMMC, and hardware cryptographic accelerators (AES, SHA, RSA, ECC). An integrated SMPS step-down regulator reduces core-power dissipation. Architecturally, the device couples an L1 cache to TCM (Tightly Coupled Memory) for deterministic code execution and uses a multi-layer AHB/AXI matrix to allow simultaneous peripheral DMA and CPU access. The Chrom-ART Accelerator offloads 2D graphics, and the JPEG codec accelerator handles image compression. The on-chip SMPS drives the internal core logic from VBAT or VDD, simplifying power-tree design and improving efficiency versus an external LDO. Typical applications include industrial PLCs and HMIs, motor-control drives (PMSM, BLDC, stepper), high-end audio equipment, IoT gateways, smart appliances, and medical instrumentation. The 144-pin LQFP exposes up to 112 GPIO for extensive system integration, while the Ethernet and CAN FD interfaces enable connected industrial nodes. A subset of peripherals is provided versus the STM32H735/H730, suiting designs that do not need the full H730 feature set. When designing with this part, supply VBAT from a backup source if RTC retention is required, and ensure adequate decoupling on every VDD/VDDA/VDD_USB pin. For high-MIPS operation, an external SMPS (such as ST's ST1PS02) is recommended to limit internal dissipation. Boot configuration (BOOT0, nSWBOOT0) must be set according to the desired boot source. This page synthesizes distributor pricing, drop-in alternatives, and practical design notes not found in the manufacturer datasheet.

USD $9,35 В наличии
STM32H730IBK6Q - 550MHz Cortex-M7 MCU, 128KB Flash | STMicroelectronics
STM32H730IBK6Q

STM32H730IBK6Q - 550MHz Cortex-M7 MCU, 128KB Flash | STMicroelectronics

The STMicroelectronics STM32H730IBK6Q is a high-performance ARM Cortex-M7 microcontroller operating at 550 MHz with 128 KB of Flash and 564 KB of RAM, housed in a 176+25-pin UFBGA (10x10) package. Built on the STM32H7 platform, it integrates a double-precision FPU, L1 cache, and a hardware crypto/hash accelerator. A microcontroller (MCU) is a single-chip computer that combines a CPU core, memory, and programmable peripherals. Within the broader semiconductor taxonomy, the STM32H730IBK6Q sits at the level of a 32-bit RISC MCU (Cortex-M7 -> ARM Cortex family -> 32-bit MCU -> microcontroller -> semiconductor). It belongs to the high-performance tier of the STM32 family and is designed for applications that demand both DSP capability and real-time control. Key features include 550 MHz CPU clock, 16 KB I-cache / 16 KB D-cache, 4 KB backup SRAM, an external memory interface (FMC), and an integrated SMPS step-down converter for core supply. The device also provides Ethernet, USB OTG, 3x FDCAN, two 16-bit ADCs, and a graphics subset (Chrom-ART, JPEG codec). The crypto/hash accelerator accelerates AES, SHA, and RSA, allowing secure firmware updates and authenticated communication. The STM32H730IBK6Q uses a 40 nm CMOS process and a multi-power-domain architecture that allows the SMPS to supply the core directly, reducing external component count. The 564 KB of SRAM is split across DTCM, AXI SRAM, and backup SRAM domains, allowing concurrent DMA and CPU access without contention. Compared to STM32F7 series, the Cortex-M7 core at 550 MHz and 6-stage pipeline provide roughly twice the CoreMark performance. Typical applications include industrial motor control, factory automation, audio processing with DSP, USB-based peripherals, secure IoT gateways, and human-machine interface (HMI) panels with graphics. The combination of crypto, Ethernet, and FDCAN makes the device suitable for networked industrial controllers and connected medical instruments. The 176-pin UFBGA also supports external SRAM/PSRAM/NOR/NAND via the FMC for applications requiring large buffers. When designing with this MCU, ensure the SMPS inductor and output capacitors are placed close to the VCAP pins and that the high-speed USB and Ethernet differential pairs are routed with 90-ohm impedance. The crypto accelerator must be clocked from the HSI or HSE source before being used; otherwise the peripheral stays in reset. This page synthesizes distributor pricing, package-aware drop-in alternatives, and practical layout notes that go beyond the manufacturer datasheet summary.

USD $8,10 В наличии
STM32H730IBT6 - 550MHz Cortex-M7 MCU with 1MB Flash | STMicroelectronics
STM32H730IBT6

STM32H730IBT6 - 550MHz Cortex-M7 MCU with 1MB Flash | STMicroelectronics

The STMicroelectronics STM32H730IBT6 is a high-performance ARM Cortex-M7 based microcontroller operating at up to 550 MHz, delivering 3224 CoreMark points. It integrates 1 MB of flash memory and 564 KB of SRAM in a 176-pin LQFP package, making it suitable for demanding embedded applications requiring real-time processing and advanced connectivity. A microcontroller (MCU) is a compact integrated circuit designed to govern a specific operation in an embedded system. It contains a processor core, memory, and programmable input/output peripherals. The STM32H730IBT6 belongs to the STM32H7 series, which is part of the broader STM32 family of 32-bit ARM Cortex-M microcontrollers. This hierarchy places it within the embedded processing domain, where it serves as the central control unit for applications ranging from industrial automation to consumer electronics. Key features include a 550 MHz Cortex-M7 core with double-precision FPU, a Chrom-ART Accelerator for 2D graphics, and a hardware cryptographic accelerator supporting AES, DES, and HASH algorithms. The device also offers a comprehensive set of communication interfaces including Ethernet, USB OTG HS, multiple SPI, I2C, UART, and CAN FD. Its advanced timer peripherals and 16-bit ADC with oversampling enable precise motor control and high-resolution sensing. The STM32H730IBT6 is built on a high-performance architecture with an L1 cache, a 32-bit multi-AHB bus matrix, and a power-efficient design that includes multiple low-power modes. The Chrom-ART Accelerator offloads graphics rendering from the CPU, while the cryptographic accelerator ensures secure data transfer without burdening the core. This combination of raw processing power and dedicated hardware accelerators makes it ideal for real-time control and edge computing. Typical applications include industrial motor control, robotics, high-end audio processing, and smart home gateways. Its rich peripheral set and high-speed interfaces allow it to handle complex tasks such as real-time audio effects, predictive maintenance, and secure IoT connectivity. The device's 550 MHz clock speed ensures rapid response in time-critical control loops. When designing with this MCU, careful attention must be paid to power supply decoupling and PCB layout to maintain signal integrity at high frequencies. The device supports a wide supply voltage range of 1.62V to 3.6V, and its multiple power domains require proper sequencing. Additionally, the extensive peripheral set demands a well-structured firmware architecture to fully utilize its capabilities.

USD $8,50 В наличии
STM32H730VBT6 - 550MHz Cortex-M7 MCU with 128KB RAM | STMicroelectronics
STM32H730VBT6

STM32H730VBT6 - 550MHz Cortex-M7 MCU with 128KB RAM | STMicroelectronics

The STMicroelectronics STM32H730VBT6 is a high-performance 32-bit microcontroller based on the Arm Cortex-M7 core, operating at up to 550 MHz. It is part of the STM32H7 series, designed for applications requiring intensive computation, advanced connectivity, and rich peripheral integration. The device comes in a 100-pin LQFP package (LQFP100) and offers 128 KB of SRAM and 128 KB of flash memory, with an extensive set of peripherals including multiple communication interfaces, timers, ADCs, DACs, and cryptographic acceleration. What is a microcontroller? A microcontroller (MCU) is a compact integrated circuit designed to govern a specific operation in an embedded system. It contains a processor core, memory (RAM and flash), and programmable input/output peripherals on a single chip. Microcontrollers are the brain of countless electronic devices, from automotive engine control units to IoT sensors and industrial automation systems. In the hierarchy of computing devices, a microcontroller sits between a simple logic gate and a full application processor, offering a balance of performance, power efficiency, and cost for dedicated control tasks. Key features of the STM32H730VBT6 include a 550 MHz Arm Cortex-M7 core with double-precision floating-point unit (FPU), 128 KB of SRAM, and 128 KB of flash memory. It supports a wide range of communication interfaces: 6x SPI, 4x I2C, 4x USART, 2x UART, 2x FDCAN, 2x SDMMC, 1x USB 2.0 OTG FS/HS, 1x Ethernet MAC, and 1x camera interface. The device also integrates a 16-bit ADC with 3.6 MSPS, a 12-bit DAC, multiple 16-bit and 32-bit timers, and a true random number generator (TRNG). For security, it includes hardware cryptographic acceleration (AES, DES, 3DES, SHA-1, SHA-256, and CRC). The STM32H730VBT6 is built on a high-performance architecture with an L1 cache (I-Cache and D-Cache) to optimize execution from external memory. It supports external memory interfaces for SDRAM, SRAM, and NOR/NAND flash via FMC (Flexible Memory Controller). The device operates from a 1.62V to 3.6V power supply and features multiple low-power modes (Sleep, Stop, Standby) to optimize energy consumption. The LQFP100 package provides a compact footprint with 100 pins, including multiple GPIOs with alternate functions. Typical applications include industrial control systems, motor control, advanced IoT gateways, audio processing, and high-end consumer electronics. The combination of high clock speed, rich peripherals, and security features makes it suitable for real-time control and edge computing tasks. For example, in motor control, the high-resolution timers and ADC enable precise field-oriented control (FOC) of brushless DC motors. When designing with this device, ensure proper decoupling of the power supply pins with 100nF capacitors close to each VDD pin and a bulk capacitor (e.g., 4.7uF) at the main supply. The VDDA pin must be connected to a clean analog supply, and VREF+ should be decoupled with a 1uF capacitor. For high-speed interfaces like USB and Ethernet, follow the layout guidelines in the datasheet to maintain signal integrity.

USD $8,10 В наличии
STM32H733VGT6 - 550MHz Cortex-M7 MCU with FPU | STMicroelectronics
STM32H733VGT6

STM32H733VGT6 - 550MHz Cortex-M7 MCU with FPU | STMicroelectronics

The STM32H733VGT6 is a high-performance 32-bit microcontroller from STMicroelectronics, featuring an Arm Cortex-M7 core running at up to 550 MHz. It integrates a floating-point unit (FPU), a large 1 Mbyte flash memory, and 564 Kbytes of SRAM, making it suitable for demanding embedded applications that require high computational throughput and real-time processing. A microcontroller (MCU) is a compact integrated circuit designed to govern a specific operation in an embedded system. It contains a processor core, memory, and programmable input/output peripherals on a single chip. The STM32H733VGT6 belongs to the STM32H7 series, which is part of the broader STM32 family of 32-bit microcontrollers based on the Arm Cortex-M architecture. This family is widely used in industrial, consumer, and automotive applications due to its balance of performance, power efficiency, and peripheral integration. Key features of the STM32H733VGT6 include a 550 MHz Cortex-M7 core with double-precision FPU, 1 Mbyte of flash memory, 564 Kbytes of SRAM, and a comprehensive set of peripherals such as multiple 16-bit and 32-bit timers, advanced analog-to-digital converters (ADCs) with 16-bit resolution, digital-to-analog converters (DACs), and a wide range of communication interfaces including USART, SPI, I2C, CAN, USB, and Ethernet. The device also supports external memory interfaces for SDRAM, SRAM, and NOR/NAND flash, enabling large data storage and high-speed data processing. The STM32H733VGT6 is built on a high-performance architecture that includes an L1 cache, a memory protection unit (MPU), and a hardware cryptographic accelerator for AES, DES, and HASH algorithms. This makes it ideal for secure applications such as IoT gateways, industrial control systems, and medical devices. The device operates over a supply voltage range of 1.62V to 3.6V and is available in a 100-pin LQFP package (LQFP100), which provides a compact footprint for space-constrained designs. Typical applications include motor control, power conversion, industrial automation, robotics, audio processing, and high-end consumer electronics. The high clock speed and rich peripheral set allow designers to implement complex algorithms, such as field-oriented control (FOC) for motors, real-time audio effects, and advanced human-machine interfaces (HMI). When designing with the STM32H733VGT6, it is essential to provide adequate decoupling capacitors on all power supply pins and to follow the recommended PCB layout guidelines in the datasheet to ensure stable operation at high frequencies. The device also supports multiple low-power modes, allowing designers to optimize energy consumption for battery-powered applications.

USD $8,10 В наличии
STM32H735RGT6 - 550MHz Cortex-M7 MCU with 1MB Flash | STMicroelectronics
STM32H735RGT6

STM32H735RGT6 - 550MHz Cortex-M7 MCU with 1MB Flash | STMicroelectronics

The STMicroelectronics STM32H735RGT6 is a high-performance 32-bit microcontroller based on the Arm Cortex-M7 core, operating at up to 550 MHz. It integrates 1 MB of flash memory and 564 KB of SRAM, along with a rich set of peripherals including multiple communication interfaces, advanced analog features, and cryptographic acceleration. The device is housed in a 64-pin LQFP package (LQFP64) with a 10x10 mm body and 0.5 mm pitch, making it suitable for space-constrained industrial and consumer applications. What is a microcontroller? A microcontroller (MCU) is a compact integrated circuit designed to govern a specific operation in an embedded system. It contains a processor core, memory (flash and SRAM), and programmable input/output peripherals on a single chip. Microcontrollers are the backbone of embedded systems, ranging from simple motor controllers to complex IoT gateways. The STM32H7 series sits at the high-performance end of the STM32 portfolio, positioned above the mainstream STM32F4 and STM32F7 families, offering higher clock speeds, more memory, and advanced security features for demanding applications. Key features of the STM32H735RGT6 include a 550 MHz Arm Cortex-M7 core with double-precision FPU and L1 cache, 1 MB of flash memory, 564 KB of SRAM, and a comprehensive set of peripherals: 5x USART, 4x SPI, 4x I2C, 2x FDCAN, 2x USB (OTG FS/HS), 1x Ethernet MAC, 2x SAI, 2x SDMMC, and a camera interface. It also features a 16-bit ADC with 3.6 MSPS, a 12-bit DAC, and a true random number generator (TRNG). The device supports hardware cryptographic acceleration (AES, DES, 3DES, SHA-1, SHA-256) and a secure boot option, making it suitable for secure IoT applications. Technically, the STM32H735RGT6 is built on a 40nm process technology, enabling high clock speeds with low power consumption. The Cortex-M7 core includes a 6-stage pipeline, branch prediction, and a single-precision and double-precision FPU, delivering 2.14 CoreMark/MHz. The device supports a wide supply voltage range of 1.62V to 3.6V, with separate VDDA for analog peripherals. It operates over a temperature range of -40°C to +85°C (industrial grade). The LQFP64 package provides 54 GPIOs, with many pins multiplexed to support multiple peripheral functions. Typical applications include industrial control systems, motor drives, PLCs, IoT gateways, smart home hubs, audio processing, and high-end consumer electronics. The combination of high performance, rich connectivity, and security features makes it ideal for applications requiring real-time processing and secure communication. When designing with this device, ensure proper decoupling of the power supply pins with 100nF capacitors placed close to each VDD pin, and a 4.7uF bulk capacitor. The VDDA pin must be connected to a clean analog supply, and VREF+ should be decoupled with a 1uF capacitor. For high-speed interfaces like USB and Ethernet, follow the layout guidelines in the datasheet to maintain signal integrity.

USD $8,10 В наличии

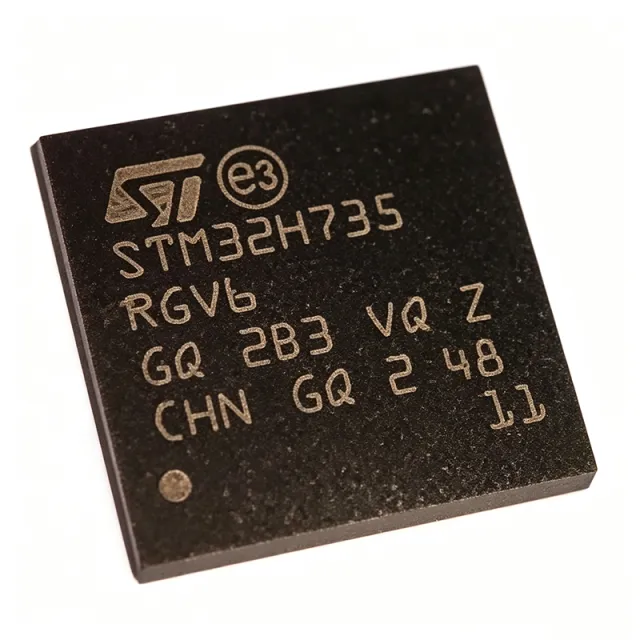

STM32H735RGV6 - 550MHz Cortex-M7 MCU with 1MB Flash | STMicroelectronics
STM32H735RGV6

STM32H735RGV6 - 550MHz Cortex-M7 MCU with 1MB Flash | STMicroelectronics

The STMicroelectronics STM32H735RGV6 is a high-performance 32-bit microcontroller based on the Arm Cortex-M7 core, operating at up to 550 MHz. It integrates 1 MB of flash memory and 564 KB of SRAM, making it suitable for demanding applications such as industrial control, motor control, and advanced human-machine interfaces. The device is housed in a 68-pin VFQFPN package (8x8 mm) with an exposed pad, offering a compact footprint for space-constrained designs. What is a microcontroller? A microcontroller (MCU) is a compact integrated circuit designed to govern a specific operation in an embedded system. It contains a processor core, memory (flash and SRAM), and programmable input/output peripherals on a single chip. Microcontrollers are the backbone of embedded systems, ranging from simple 8-bit devices for basic control to high-performance 32-bit cores like the Cortex-M7 for real-time signal processing and complex control algorithms. The STM32H7 series sits at the top of the STM32 portfolio, providing the highest performance for applications that require intensive computation and rich connectivity. Key features of the STM32H735RGV6 include a 550 MHz Cortex-M7 core with double-precision FPU, a Chrom-ART Accelerator for 2D graphics, and a comprehensive set of peripherals: multiple 16-bit and 32-bit timers, 12-bit ADCs with up to 5 MSPS, a true random number generator, and cryptographic acceleration (AES, DES, 3DES, and hash). The device supports a wide supply voltage range of 1.62V to 3.6V and operates over a temperature range of -40°C to +85°C. It also features a rich set of communication interfaces including Ethernet, USB OTG HS, FDCAN, SPI, I2C, UART, and SAI. The STM32H735RGV6 is built on ST's advanced 40nm process technology, enabling high clock speeds with low power consumption. The core is based on the Armv7E-M architecture with a 6-stage pipeline and includes a single-precision and double-precision FPU, DSP instructions, and a memory protection unit (MPU). The device also includes a flexible memory controller (FMC) for external SDRAM, SRAM, and NOR/NAND flash, and a camera interface for image capture. Typical applications include industrial automation (PLC, robotics), motor control (field-oriented control of BLDC motors), medical devices (patient monitors, infusion pumps), and high-end consumer electronics (smart speakers, home automation hubs). The high clock speed and rich peripherals make it ideal for real-time control and signal processing tasks. When designing with this device, ensure adequate decoupling on all power pins and a clean ground plane. The VFQFPN68 package requires careful thermal management; the thermal resistance (theta_JA) is approximately 45°C/W, so consider a heatsink or airflow for high-power applications. Also, use the internal LDO or external SMPS to generate the core voltage (1.2V) for optimal power efficiency.

USD $13,84 В наличии
STM32H742VIT6 - 480MHz Cortex-M7 MCU with 2MB Flash | STMicroelectronics
STM32H742VIT6

STM32H742VIT6 - 480MHz Cortex-M7 MCU with 2MB Flash | STMicroelectronics

The STMicroelectronics STM32H742VIT6 is a high-performance 32-bit microcontroller based on the ARM Cortex-M7 core, operating at up to 480 MHz. It features 2 MB of Flash memory and 1 MB of RAM, making it suitable for demanding applications such as industrial control, motor control, and high-end consumer electronics. The device is housed in a 100-pin LQFP package (LQFP100) with a 14x14 mm body and 0.5 mm pitch. A microcontroller (MCU) is a compact integrated circuit designed to govern a specific operation in an embedded system. It contains a processor core, memory, and programmable input/output peripherals. The STM32H742VIT6 belongs to the STM32H7 series, which is part of the broader STM32 family of 32-bit Flash microcontrollers. This family is widely used in embedded systems across automotive, industrial, and consumer domains, offering a balance of performance, power efficiency, and peripheral integration. Key features of the STM32H742VIT6 include a 480 MHz Cortex-M7 core with double-precision FPU, a Chrom-ART Accelerator for graphics, and a comprehensive set of communication interfaces including Ethernet, USB OTG HS/FS, CAN FD, and multiple USART/SPI/I2C. It also integrates advanced analog peripherals such as 3x 16-bit ADCs, 2x 12-bit DACs, and a true random number generator. The device supports a wide supply voltage range of 1.62V to 3.6V and operates over a temperature range of -40°C to +85°C. The STM32H742VIT6 is built on a high-performance architecture with an L1 cache, enabling zero-wait-state execution from Flash. It includes a power management unit with multiple low-power modes, making it suitable for battery-powered applications. The device also features a hardware cryptographic accelerator (AES, DES, 3DES) and a secure boot option, enhancing security for IoT and connectivity applications. Typical applications include industrial automation, motor control, robotics, audio processing, and high-end consumer devices such as smart home hubs and wearable devices. The rich peripheral set and high processing power make it ideal for real-time control and signal processing tasks. When designing with this MCU, careful attention must be paid to power supply decoupling and PCB layout to ensure stable operation at 480 MHz. The device requires a 1.8V supply for the internal logic and a 3.3V supply for I/O, with proper bypass capacitors placed close to the power pins.

USD $8,50 В наличии
STM32H743BIT6 - 480MHz Cortex-M7 MCU, 2MB Flash | STMicroelectronics
STM32H743BIT6

STM32H743BIT6 - 480MHz Cortex-M7 MCU, 2MB Flash | STMicroelectronics

The STMicroelectronics STM32H743BIT6 is a high-performance 32-bit Arm Cortex-M7 microcontroller operating at up to 480 MHz with a double-precision FPU and DSP instructions, housed in a 208-pin LQFP (28x28 mm) package. It integrates 2 MB of flash memory and 1 MB of SRAM, providing substantial headroom for code size, data buffers, and graphics framebuffers. What is a microcontroller (MCU)? A microcontroller is a compact integrated circuit that combines a processor core, program memory (Flash), working memory (RAM), and programmable peripherals on a single die. Within the wider taxonomy, the STM32H743BIT6 sits in the high-performance MCU category: Arm Cortex-M7 -> Cortex-M family -> 32-bit MCU -> microcontroller -> embedded processor. The H7 line targets demanding applications that exceed Cortex-M4 throughput but do not require a full applications processor. Key specifications include 480 MHz core speed with 1284 CoreMark performance, 2 MB dual-bank Flash supporting read-while-write, and 1 MB SRAM configurable as 192 KB DTCM + 64 KB ITCM + 1 MB AXI-SRAM. Connectivity options include 10/100 Ethernet, USB 2.0 OTG HS/FS, CAN FD, SDMMC, three SPI plus one half-duplex SPI, four I2C, four USART/UART/LPUART, and two SAI. Analog peripherals include three 16-bit ADCs, two DAC channels, two comparators, and an SMBus-PMBus controller. Hardware crypto acceleration, TRNG, secure boot, and one-time-programmable (OTP) fuses round out the security perimeter. Architecturally, the STM32H743BIT6 uses a 7-stage pipeline with branch prediction, an L1 instruction cache, an MPU, and a Chrom-ART 2D graphics accelerator. The device supports separate core voltage domains via an integrated SMPS step-down converter and an LDO, with VDD range of 1.62 V to 3.6 V. This dual-rail power architecture allows dynamic voltage scaling for power-constrained designs without external PMICs. Typical uses include industrial motor control (field-oriented control and PMSM drives), factory automation controllers, audio sub-systems with MPU-decoded codecs, USB peripherals with HID or mass-storage stacks, secure gateways with TLS offload via hardware crypto, building automation touchpanels, and IoT edge nodes requiring on-device ML inference via CMSIS-NN libraries. When designing with this MCU, ensure the SMPS inductor is sized per the datasheet reference design and that VDD/VDDA/VBAT pins each have local decoupling. RoHS/REACH compliance and industrial-grade temperature range (-40 C to +85 C, +105 C Tj) make the part suitable for ruggedized applications. This page synthesizes distributor pricing, drop-in pin-compatible alternatives, and design notes that augment the manufacturer datasheet.

USD $9,85 В наличии
STM32H743IIT6 - 480MHz Cortex-M7 MCU 2MB Flash | STMicroelectronics
STM32H743IIT6

STM32H743IIT6 - 480MHz Cortex-M7 MCU 2MB Flash | STMicroelectronics

The STMicroelectronics STM32H743IIT6 is a high-performance 32-bit ARM Cortex-M7 microcontroller with double-precision FPU running at up to 480 MHz, featuring 2 MB of Flash memory and 1 MB of SRAM, housed in a 176-pin LQFP (24x24 mm) package. A microcontroller (MCU) is a single-chip computer that integrates a processor core, memory, and programmable peripherals on one die. Within the semiconductor hierarchy, the STM32H743IIT6 belongs to the STM32H7 family of high-performance MCUs, which sits above general-purpose lines such as STM32F4/F7 in ST's portfolio and serves as the processing heart of embedded systems where heavy computation, rich connectivity, and real-time control must coexist. Key features include the Cortex-M7 core with 16 KB instruction and 16 KB L1 data caches, delivering up to 1027 DMIPS (2.14 DMIPS/MHz per Dhrystone 2.1), the ART Accelerator for zero-wait-state execution from Flash, and an external memory interface (FMC/QUADSPI) for expansion. Peripherals span Ethernet, USB, CAN, and multiple UART/SPI/I2C ports, with roughly 140 GPIO pins available in the LQFP-176 footprint. Architecturally, the device couples the scalar double-precision FPU and DSP instructions with a cache-rich memory subsystem, allowing deterministic execution of DSP and Edge-AI workloads such as motor control field algorithms, audio processing, and machine-learning inference at the edge. The large 1 MB SRAM accommodates frame buffers and real-time data pipelines without external DRAM in many designs. Typical applications include industrial HMI and automation controllers, digital power and motor drives, IoT gateways, and test/measurement instruments. High Flash density and Ethernet make it a natural fit for networked industrial nodes. Design consideration: confirm the power architecture (integrated LDO versus external SMPS regulator option) early in the design, since it differs from earlier STM32F7 generations and affects both PCB layout and firmware boot code. This page synthesizes verified distributor data, drop-in alternatives, pricing context, and practical design guidance not found in a single manufacturer source.

USD $12,00 В наличии
STM32H743VIH6 - 480MHz Cortex-M7 MCU | STMicroelectronics
STM32H743VIH6

STM32H743VIH6 - 480MHz Cortex-M7 MCU | STMicroelectronics

The STMicroelectronics STM32H743VIH6 is a high-performance 32-bit microcontroller based on the ARM Cortex-M7 core, operating at up to 480 MHz. It is housed in a 100-pin TFBGA package (10x10 mm) and offers 2 MB of flash memory and 1 MB of RAM. This device is part of the STM32H7 series, designed for applications requiring high computational power and rich connectivity. Data verified as of 2026-08-05. A microcontroller (MCU) is a compact integrated circuit designed to govern a specific operation in an embedded system. It contains a processor core, memory, and programmable input/output peripherals. The STM32H743VIH6 is a high-end MCU, positioned within the STM32H7 family, which is part of the broader STM32 portfolio of 32-bit ARM Cortex-M based microcontrollers. This hierarchy places it as a high-performance MCU suitable for complex real-time control and digital signal processing tasks. Key features include a 480 MHz Cortex-M7 core with double-precision FPU, 2 MB of flash, 1 MB of SRAM, and a comprehensive set of peripherals including multiple ADCs, DACs, timers, and communication interfaces (USART, SPI, I2C, CAN, USB, Ethernet). It also features a Chrom-ART Accelerator for graphics, a cryptographic processor, and a random number generator. The device supports a wide supply voltage range of 1.62V to 3.6V and operates over a temperature range of -40°C to +85°C. The STM32H743VIH6 leverages a 40nm process technology, enabling high clock speeds with efficient power consumption. It includes a power management unit with multiple low-power modes, making it suitable for battery-powered applications. The memory architecture includes a flexible external memory controller for SDRAM, SRAM, and NOR flash expansion. Typical applications include industrial control, motor control, audio processing, high-end consumer electronics, and IoT gateways. Its high performance and rich peripheral set make it ideal for applications requiring real-time processing and connectivity. When designing with this MCU, ensure proper decoupling of the power supply pins and follow the layout guidelines in the datasheet to minimize noise. The device requires a stable clock source; an external crystal or oscillator is recommended for precise timing. This page synthesizes distributor pricing, drop-in alternatives, and practical design notes not found in the STMicroelectronics datasheet, providing a comprehensive resource for engineers.

USD $11,50 В наличии
STM32H743VIT6 - 480MHz Cortex-M7 MCU 2MB Flash | ST
STM32H743VIT6

STM32H743VIT6 - 480MHz Cortex-M7 MCU 2MB Flash | ST

The STMicroelectronics STM32H743VIT6 is a high-performance 32-bit ARM Cortex-M7 microcontroller operating at up to 480 MHz with 2 MB of flash memory and up to 1 MB of RAM, housed in a 100-pin LQFP (14x14 mm) package. It belongs to the STM32H7 series and provides 46 communication and analog interfaces. A microcontroller unit (MCU) is a single-chip computer integrating a processor core, memory, and peripherals on one die. Within the embedded systems hierarchy, MCUs sit below application processors but above simple 8-bit controllers, and the STM32H7 family represents the flagship high-performance tier of the widely adopted STM32 platform from STMicroelectronics. Key features of the STM32H743VIT6 include the 480 MHz Cortex-M7 core with double-precision FPU and DSP instructions, 2 MB of on-chip dual-bank flash supporting execute-in-place, and up to 1 MB of SRAM for data-intensive workloads. The 46 communication and analog interfaces enable connectivity-rich designs without external bridge chips. Technically, the STM32H7 series implements the Armv7-E architecture with AXI and AHB bus fabrics, ART Accelerator and L1 cache for maximizing core utilization from flash, and an ecosystem of timers, ADCs, DACs, and digital communication peripherals. Multiple low-power modes balance the high 480 MHz performance against battery-sensitive duty cycles. Typical applications include industrial automation and motor control (leveraging high-resolution timers and fast ADCs), consumer and industrial HMI with graphical displays (driven by the processing headroom and memory), and communication gateways using the rich UART, SPI, CAN, and Ethernet-class peripheral mix. Design consideration: the LQFP-100 14x14 mm footprint balances I/O density with hand-solderability for prototyping; verify power-supply decoupling per the ST datasheet because 480 MHz core operation demands low-impedance rails. Firmware built with STM32CubeIDE/CubeH7 carries forward across family variants. This page synthesizes verified distributor data, drop-in same-family alternatives, and practical sourcing guidance not consolidated in the ST datasheet alone.

USD $7,98 В наличии
STM32H743ZIT6 - 480MHz Cortex-M7 MCU, 2MB Flash | STMicroelectronics
STM32H743ZIT6

STM32H743ZIT6 - 480MHz Cortex-M7 MCU, 2MB Flash | STMicroelectronics

The STMicroelectronics STM32H743ZIT6 is a high-performance 32-bit ARM Cortex-M7 microcontroller operating at up to 480 MHz, integrating 2 MB of Flash and 1 MB of SRAM in a 144-pin LQFP (20x20 mm) package. It targets demanding embedded designs requiring DSP-grade signal processing, double-precision floating-point, and rich connectivity in a single device. A microcontroller (MCU) is a compact integrated circuit that combines a processor core, on-chip memory, and programmable input/output peripherals on a single die. The STM32H743ZIT6 belongs to the STM32H7 series, ST's flagship performance tier of the broader STM32 family of 32-bit ARM Cortex microcontrollers, sitting above STM32F7/F4 parts and below the dual-core STM32H747/H757 lines. Key features include the 480 MHz Cortex-M7 core with double-precision FPU, 2 MB of Flash, 1 MB of SRAM (including 64 KB of DTCM and AXI SRAM), three 12-bit ADCs at 3.6 MSPS, two 12-bit DACs, and advanced timers with hardware quadrature decoding. Connectivity interfaces include up to 35 communication peripherals - USART, SPI, I2C, CAN FD, USB OTG, and Ethernet MAC - plus a Chrom-ART graphics accelerator, hardware AES/SHA crypto accelerator, and true random number generator. Architecturally, the device integrates a 16 KB instruction cache and 16 KB data cache, a memory protection unit (MPU), and a flexible external memory controller (FMC) supporting SDRAM, NOR, and NAND Flash. Multiple low-power modes - Sleep, Stop, and Standby - minimize quiescent current for battery-powered designs. Typical applications include industrial motor control (FOC drives, robotics), medical instrumentation, audio processing (DSP effects, USB speakers), high-end consumer HMI, and secure IoT edge nodes. The 480 MHz core plus L1 cache gives 2.14 DMIPS/MHz and DSP instructions that meet demanding real-time loops. When designing with this MCU, follow ST's PCB layout recommendations: isolate VDDA analog supply with a ferrite bead, place 100 nF + 4.7 µF decoupling close to every supply pin, and reserve a low-impedance ground plane beneath the LQFP-144 footprint to manage 480 MHz return currents. This page synthesizes distributor pricing, drop-in alternatives, and practical design notes that complement the ST datasheet, giving engineers a single reference for evaluating the STM32H743ZIT6.

USD $10,65 В наличии
STM32H745BGT6 - Dual-Core Cortex-M7/M4 MCU | STMicroelectronics
STM32H745BGT6

STM32H745BGT6 - Dual-Core Cortex-M7/M4 MCU | STMicroelectronics

The STMicroelectronics STM32H745BGT6 is a high-performance dual-core microcontroller combining an Arm Cortex-M7 core running at up to 480 MHz and an Arm Cortex-M4 core running at up to 240 MHz, with 1 Mbyte of Flash memory and 1 Mbyte of SRAM. It is housed in a 144-pin LQFP package (20x20 mm) and operates from a 1.62V to 3.6V supply. A microcontroller (MCU) is a compact integrated circuit designed to govern a specific operation in an embedded system. It contains a processor core, memory, and programmable input/output peripherals. The STM32H745BGT6 belongs to the STM32H7 series, which is part of the broader STM32 family of 32-bit Arm Cortex-based microcontrollers. This family is widely used in industrial, consumer, and automotive applications due to its performance, peripheral integration, and ecosystem support. Key features include a 32-bit Arm Cortex-M7 core with double-precision FPU and L1 cache, a 32-bit Arm Cortex-M4 core with FPU, a Chrom-ART Accelerator for graphics, a hardware cryptographic accelerator, and a rich set of communication interfaces including Ethernet, USB OTG, CAN FD, and multiple UART/SPI/I2C. The device also features a 16-bit ADC, a 12-bit DAC, and advanced timers. The dual-core architecture allows for asymmetric multiprocessing, where the M7 core handles compute-intensive tasks and the M4 core manages real-time control or communication. The device supports TrustZone for security, and includes a memory protection unit (MPU) for each core. The STM32H745BGT6 is designed for high-performance embedded applications requiring both processing power and real-time responsiveness. Typical applications include industrial automation, motor control, power conversion, audio processing, and high-end consumer electronics. The dual-core capability enables complex systems to be partitioned for better performance and reliability. When designing with this device, careful attention must be paid to power supply decoupling and PCB layout to ensure stable operation at high clock frequencies. The device supports multiple low-power modes, and the power management unit (PMU) should be configured appropriately to balance performance and energy consumption.

USD $11,60 В наличии
STM32H745IIK6 - Dual-Core M7+M4 MCU 2MB Flash UFBGA-176 | STMicroelectronics
STM32H745IIK6

STM32H745IIK6 - Dual-Core M7+M4 MCU 2MB Flash UFBGA-176 | STMicroelectronics

The STMicroelectronics STM32H745IIK6 is a high-performance dual-core 32-bit Arm Cortex microcontroller combining a Cortex-M7 core running up to 480 MHz with a Cortex-M4 core running up to 240 MHz, packed into a 176-ball UFBGA (10x10 mm) package. The device integrates 2 MB of dual-bank Flash memory and 1 MB of SRAM, plus an additional 4 KB of backup SRAM and a high-speed external memory interface supporting SDRAM, SRAM, NOR/NAND Flash, and CompactFlash. A microcontroller (MCU) is a single-chip computer that integrates a CPU core, program memory (Flash), working memory (RAM), and a rich set of peripherals into one package. Within the broader taxonomy, the STM32H745IIK6 belongs to the hierarchy: microcontroller -> embedded processor -> integrated circuit -> semiconductor. Dual-core MCUs are a specialized sub-category that combines a high-performance core with a real-time or DSP-capable core to split application-defined tasks, allowing real-time control and DSP/HMI layers to run independently on the same silicon. Key features include a built-in SMPS step-down converter for low-power operation, 46 communication and analog interfaces (UART/USART, SPI, I2C, CAN, USB, Ethernet, SDMMC), three 16-bit ADCs, two DACs, and an integrated TFT-LCD controller. The device also embeds a Chrom-ART graphics accelerator, an MMU for Linux-style OS support, and AES-256 plus two SAI audio interfaces, targeting HMI, motor control, and audio applications. The Cortex-M7 core delivers 1320 CoreMark / 2400 DMIPS while the Cortex-M4 handles up to 600 CoreMark / 300 DMIPS, with both cores sharing internal SRAM and peripherals through a multi-AHB bus matrix. This asymmetric architecture lets developers run an RTOS on one core while running DSP or graphics on the other. Typical applications include industrial HMI panels with TFT-LCD, motor control and field-oriented control (FOC) drives, audio processing products, IoT gateways, point-of-sale terminals, and smart appliances. Designers usually pair this MCU with external SDRAM, a TFT-LCD panel, and isolated CAN/RS-485 transceivers. The built-in SMPS makes it especially suitable for USB-powered and battery-operated systems. When designing with this MCU, distribute the UFBGA-176 ball escape carefully across at least 4 PCB layers with a dedicated ground/power plane, and ensure the SMPS external LC filter follows the datasheet reference layout within 5 mm of the VCORE/VDD pins. The internal regulator and backup domain require a 1 µF plus 100 nF decoupling combination on each supply pin for stable operation.

USD $12,60 В наличии
STM32H745IIT6 - 480MHz Dual-Core M7/M4 MCU, 2MB Flash | ST
STM32H745IIT6

STM32H745IIT6 - 480MHz Dual-Core M7/M4 MCU, 2MB Flash | ST

The STMicroelectronics STM32H745IIT6 is a high-performance 32-bit dual-core microcontroller built on the Arm Cortex-M7® and Cortex-M4® cores with FPU and DSP extensions, packaged in a 176-pin LQFP (24x24 mm). The Cortex-M7 core operates at up to 480 MHz and the Cortex-M4 core at up to 240 MHz, supported by 2 MB of dual-bank Flash and 1 MB of SRAM including 192 KB DTCM/AXI SRAM plus 64 KB DTCM for the M4 core. What is a dual-core Cortex-M7/M4 MCU? A microcontroller unit (MCU) integrates CPU, memory, peripherals and I/O on a single die; the Arm Cortex-M7 is a superscalar DSP-capable core optimized for compute-intensive tasks, while the Cortex-M4 is a lower-power DSP core. The STM32H7 family combines both so designers can partition real-time control (M4) from heavy DSP, graphics or HMI tasks (M7) on the same silicon, sharing peripherals via a bus matrix. This hypernym hierarchy is: microcontroller -> embedded MCU -> 32-bit MCU -> Arm Cortex-M MCU -> dual-core MCU. Key features of this device include a 16-bit ADC (3.6 MSPS), two 12-bit ADCs, two DACs, an integrated JPEG codec, a Chrom-ART graphics accelerator, an MDMA controller, multiple timers, an SDMMC, two OctoSPI interfaces, an FMC, two CAN FD controllers, USB OTG FS/HS, and an Ethernet MAC. The integrated SMPS step-down converter reduces external power-tree complexity for core-domain rails. Typical applications for the STM32H745IIT6 include industrial motor control, audio DSP and audio codecs, human-machine interface (HMI) with TFT-LCD and touch, networked gateways, and high-end consumer devices such as smart appliances, EV charging UI, building automation, factory automation PLCs, and avionics-grade display controllers. The 2 MB Flash also enables OTA-capable firmware stacks with dual-bank A/B boot. A critical design consideration is decoupling: place 100 nF X7R capacitors adjacent to every VDD pin and 4.7 µF bulk caps on the SMPS output. Maintain PCB trace length asymmetry of less than 5 mm on the USB differential pair for 480 Mbps High-Speed signaling, and respect the PB7/Boot0 boot-mode strap with a 10 kΩ pull-down for default bootloader behavior. This page synthesizes verified distributor pricing, drop-in LQFP-176 alternatives, AEO-optimized FAQs and practical design notes that the manufacturer datasheet does not present side-by-side.

USD $10,62 В наличии
STM32H745VGT6 - Dual-Core Cortex-M7/M4 MCU | STMicroelectronics
STM32H745VGT6

STM32H745VGT6 - Dual-Core Cortex-M7/M4 MCU | STMicroelectronics

The STMicroelectronics STM32H745VGT6 is a high-performance dual-core microcontroller combining an Arm Cortex-M7 core running at up to 480 MHz and an Arm Cortex-M4 core running at up to 240 MHz, with 1 Mbyte of Flash memory and 1 Mbyte of RAM. It is housed in a 100-pin LQFP100 package, offering a rich set of peripherals including multiple ADCs, DACs, timers, communication interfaces (USART, SPI, I2C, FDCAN, USB, Ethernet), and advanced security features. What is a dual-core microcontroller? A dual-core microcontroller integrates two independent processor cores on a single chip, allowing parallel execution of tasks. In the STM32H745, the Cortex-M7 core is optimized for high-performance compute-intensive operations, while the Cortex-M4 core handles control and communication tasks. This architecture enables real-time processing and efficient multitasking, making it a key component in the broader category of embedded microcontrollers, which are the brains of countless electronic systems. Key features include a 480 MHz Cortex-M7 with double-precision FPU, a 240 MHz Cortex-M4 with FPU, 1 Mbyte of Flash, 1 Mbyte of SRAM, a Chrom-ART Accelerator for graphics, a hardware cryptographic accelerator, and a comprehensive set of analog and digital peripherals. The device supports a wide supply voltage range of 1.62V to 3.6V and operates over a temperature range of -40°C to +85°C. The STM32H745VGT6 is built on ST's advanced 40nm process technology, delivering industry-leading performance per milliwatt. The dual-core architecture allows developers to partition tasks between the two cores, optimizing power consumption and responsiveness. The device includes a flexible memory-mapped architecture, enabling efficient data sharing between cores. Typical applications include industrial automation, motor control, high-end audio processing, medical devices, and IoT gateways. The dual-core design is particularly suited for applications requiring simultaneous high-speed data processing and real-time control, such as robotics and advanced driver assistance systems. When designing with this device, ensure proper decoupling of the power supply pins and careful layout of the high-speed interfaces. The device supports multiple low-power modes, allowing designers to balance performance and energy efficiency. For development, ST offers the STM32CubeIDE and HAL libraries, which simplify peripheral configuration and code generation.

USD $8,10 В наличии
STM32H745ZGT6 - Dual Cortex-M7/M4 MCU 1MB Flash | STMicroelectronics
STM32H745ZGT6

STM32H745ZGT6 - Dual Cortex-M7/M4 MCU 1MB Flash | STMicroelectronics

The STMicroelectronics STM32H745ZGT6 is a dual-core 32-bit ARM microcontroller integrating an Arm Cortex-M7 core running up to 480 MHz and a Cortex-M4 core running up to 240 MHz, packaged in a 144-pin LQFP (20x20 mm) with 1 MB of embedded Flash and approximately 1 MB of SRAM. It belongs to the high-performance STM32H7 family and is engineered for compute-intensive real-time control, motor drives, audio processing, and human-machine interface (HMI) applications where two heterogeneous cores share a workload - the M7 for DSP/graphics and the M4 for housekeeping, communications, or low-power task scheduling. As a microcontroller (MCU), the STM32H745ZGT6 sits in the broader taxonomy of embedded processing devices: MCU -> ARM Cortex-M MCU -> STM32 family -> STM32H7 high-performance series. It is a system-on-chip integrating CPU cores, memory, analog peripherals, and digital interfaces in a single package, programmed typically via STM32CubeIDE, STM32CubeMX, and the HAL/LL driver libraries. Key differentiating features include the dual-core asymmetric architecture (M7 + M4) with separate instruction caches, an integrated SMPS step-down converter for core supply (improving efficiency versus external LDOs), up to 2 MB Flash and 1 MB RAM across the full H745 line, a Chrom-ART graphics accelerator, JPEG codec hardware, and an extensive peripheral set including 16-/12-bit ADCs, DACs, timers, Ethernet, USB, CAN FD, and high-speed SPI/QSPI interfaces for external memory or displays. The device operates from 1.62 V to 3.6 V with internal SMPS generating the core voltage. Typical applications include industrial motor control (field-oriented control), audio amplifiers and DSP effects processors, HMI panels with TFT-LCD and touch, building automation, IoT edge gateways, programmable logic controllers, and medical instrumentation. The dual-core design enables deterministic real-time response on the M4 while the M7 executes complex algorithms without mutual blocking. When designing with this part, allocate a minimum 4-layer PCB with continuous GND pour around the LQFP-144 package to manage thermal dissipation at high clock speeds. Decouple each VDD/VBAT pin with 100 nF X7R ceramic capacitors placed within 2 mm of the respective pins. Use STM32CubeMX to configure the SMPS inductor and feedback compensation to achieve the specified core voltage ripple under your worst-case load transient. This page synthesizes distributor pricing, drop-in pin-compatible alternatives within the STM32H7 family, and practical PCB layout notes not found in the manufacturer datasheet.

USD $15,60 В наличии
STM32H745ZIT6 - Dual-Core Cortex-M7/M4 MCU, 480MHz, 2MB Flash | STMicroelectronics
STM32H745ZIT6

STM32H745ZIT6 - Dual-Core Cortex-M7/M4 MCU, 480MHz, 2MB Flash | STMicroelectronics

The STMicroelectronics STM32H745ZIT6 is a high-performance dual-core 32-bit microcontroller pairing an Arm Cortex-M7 core running up to 480 MHz with a Cortex-M4 core running up to 240 MHz, integrating 2 MB of Flash and 1 MB of SRAM in a 144-pin LQFP (20x20 mm) package. The device targets demanding real-time embedded workloads where DSP-grade signal processing, GUI rendering, and deterministic control must coexist on one silicon die. A Chrom-ART graphics accelerator and hardware JPEG codec offload pixel and image pipelines, while an integrated cryptographic accelerator handles AES, hash, and True Random Number Generator functions for secure connectivity. A microcontroller (MCU) is a compact, self-contained computer on a single integrated circuit that combines a processor core, volatile and non-volatile memory, programmable peripherals, and bus fabric. The STM32 family is STMicroelectronics' 32-bit Arm Cortex-M portfolio, with the STM32H7 series occupying the high-performance tier that bridges MCU and application-processor territory. The H745 sub-family adds heterogeneous dual-core asymmetric multiprocessing (AMP), so heavy graphics and DSP work runs on the M7 while time-critical control loops run independently on the M4. Key differentiating features include 480 MHz Cortex-M7 with double-precision FPU, 240 MHz Cortex-M4 with single-precision FPU, 2 MB dual-bank Flash for live firmware updates, 1 MB SRAM split across DTCM, AXI SRAM, and SRAM1-4 domains, and an extensive peripheral set including Ethernet, USB 2.0 HS, CAN-FD, SDMMC, three 12-bit ADCs up to 3.6 MSPS, two 12-bit DACs, and TFT LCD interface. Operating voltage spans 1.62 V to 3.6 V with multiple low-power modes (D1 Stop, Standby, VBAT) for energy-constrained designs. Architecturally, the device is built on ST's 40 nm low-power process and uses a multilayer AHB/APB bus matrix plus an AXI-to-DTCM bridge so each core can fetch zero-wait-state from its private TCM. The Cortex-M7 issues single-precision and double-precision floating-point instructions natively, while the Cortex-M4 handles real-time control and housekeeping. Dedicated DMA controllers (MDMA, DMA1/DMA2) keep peripherals fed without CPU intervention, enabling overlapped computation and data movement. Typical applications include industrial motor control and field-oriented drive (FOD) inverters, smart-home gateways with embedded graphics, audio processing and effects units, advanced HMI panels, factory automation PLCs, and high-end consumer devices requiring simultaneous DSP and GUI work. The dual-core split makes it a strong fit for protocols stacks (M4) plus UI/DSP (M7) architectures. When designing with this device, allocate decoupling capacitance close to every VDD/VDDA/VBAT pin and place the four-layer break-out symmetric around the exposed pad to dissipate the M7's dynamic power. Use the ST MC SDK for motor control and STM32CubeIDE plus TouchGFX for HMI development, and respect the boot pin strapping for Flash boot versus system memory bootloader. Cross-check VCAP pins with the reference schematic to avoid reset instability.

USD $11,50 В наличии
