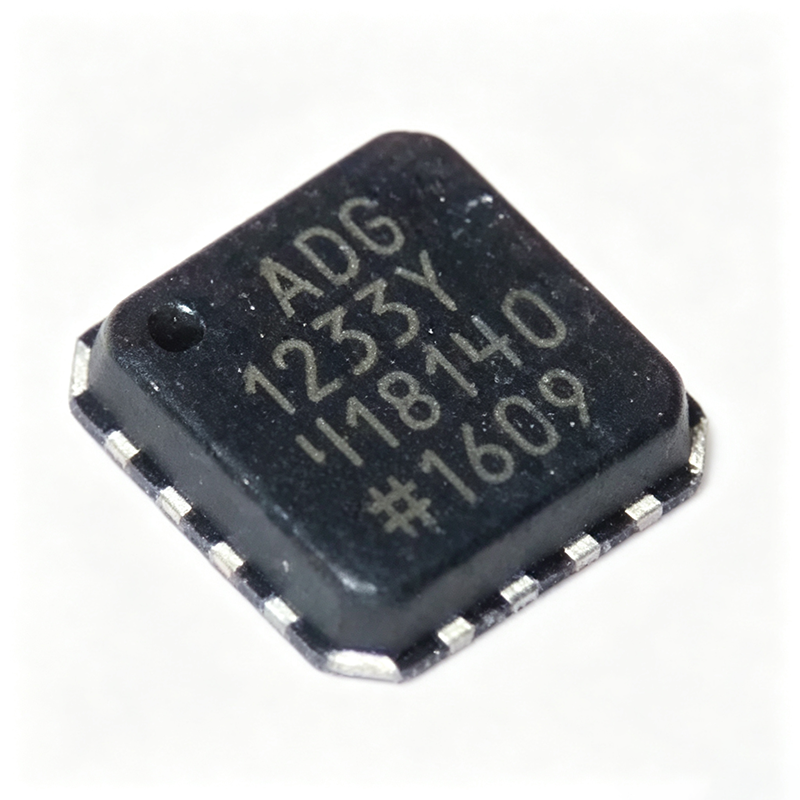

ADG1233YCPZ-REEL7 Triple SPDT Analog Switch: Specs, Design Guide, and Alternatives

Quick Answers: What is the ADG1233YCPZ-REEL7 and What Are Its Key Verified Specs?

The ADG1233YCPZ-REEL7 is a monolithic iCMOS® triple SPDT analog switch from Analog Devices, integrating three independently selectable single-pole, double-throw switches in a compact 16-lead LFCSP-VQ (4x4 mm) package. It operates over a wide supply range of ±15 V or +12 V, with a low on-resistance of 120 Ω (typical) and ultra-low off capacitance of 1.5 pF, making it ideal for high-performance signal routing in precision instrumentation, audio, and data acquisition systems. As of 2026-08-23, the device is in active lifecycle status with 99,999 units in stock at XAIPART, priced from $12.8864 per unit at 1000+ quantities.

Technical Guide: How to Select, Design In, and Use the ADG1233YCPZ-REEL7

When selecting the ADG1233YCPZ-REEL7 for your design, verify that your supply rails match the ±15 V or +12 V requirement. The device features 3 V logic-compatible inputs, allowing direct interface with low-voltage microcontrollers without level shifters. Ensure your digital control signals meet the logic thresholds; the EN pin (active high) provides a global enable/disable function. For optimal performance, place 0.1 µF decoupling capacitors close to VDD and VSS pins. The break-before-make action prevents momentary shorting during channel transitions, eliminating the need for external timing circuits. The low off capacitance (1.5 pF) and charge injection (0.5 pC) minimize signal degradation in high-frequency and precision applications. The operating temperature range of -40°C to +125°C suits industrial environments. The device is RoHS compliant and surface-mount, fitting compact PCB layouts.

Alternatives & Comparison: Drop-In Replacements and Pin-Compatible Options

Summary: The ADG1233YCPZ-REEL7 and ADG1233YCPZ-REEL are electrically identical, differing only in reel size (7-inch vs 13-inch). The ADG1234YCPZ-REEL7 offers a fourth SPDT switch and is pin-compatible. The ADG1213YCPZ-REEL7 provides lower on-resistance (1.2 Ω typical) and is pin-compatible. The ADG1433YCPZ-REEL7 supports higher voltage (±20 V) and is pin-compatible. The MAX14759EUE+ uses a different package (TSSOP) and requires a PCB change.

Industry Insight: Market Position, Lifecycle, and Supply Situation

The ADG1233YCPZ-REEL7 is in active lifecycle status, indicating ongoing production and availability. As of 2026-08-23, XAIPART holds 99,999 units in stock, with a minimum order quantity of 1. The base price is $12.8864, with tiered pricing from $22.0909 at 1 unit to $12.8864 at 1000+ units. The device is manufactured by Analog Devices, a leading analog IC supplier. [DATA_NEEDED: Market share or competitive positioning data]

Trends & Outlook: What Buyers Should Watch

Buyers should monitor the ongoing availability of the ADG1233YCPZ-REEL7 given its active lifecycle. The device's low off capacitance (1.5 pF) and charge injection (0.5 pC) align with trends toward higher-speed, higher-precision signal routing in data acquisition and communication systems. The 3 V logic-compatible inputs support low-power digital controllers, a growing requirement in portable and battery-powered designs. The wide supply range (±15 V or +12 V) ensures compatibility with industrial sensor interfaces. As designs evolve, pin-compatible alternatives like the ADG1213YCPZ-REEL7 (lower on-resistance) or ADG1433YCPZ-REEL7 (higher voltage) may offer performance upgrades without PCB changes. [VERIFY_NEEDED: Market trend statements beyond provided data]
