BTS462TATMA1 Smart High-Side Power Switch: 3.5 A, 5-34 V Design Guide, Alternatives and Supply Outlook

Quick Answers: What Is the BTS462TATMA1 and What Are Its Key Ratings?

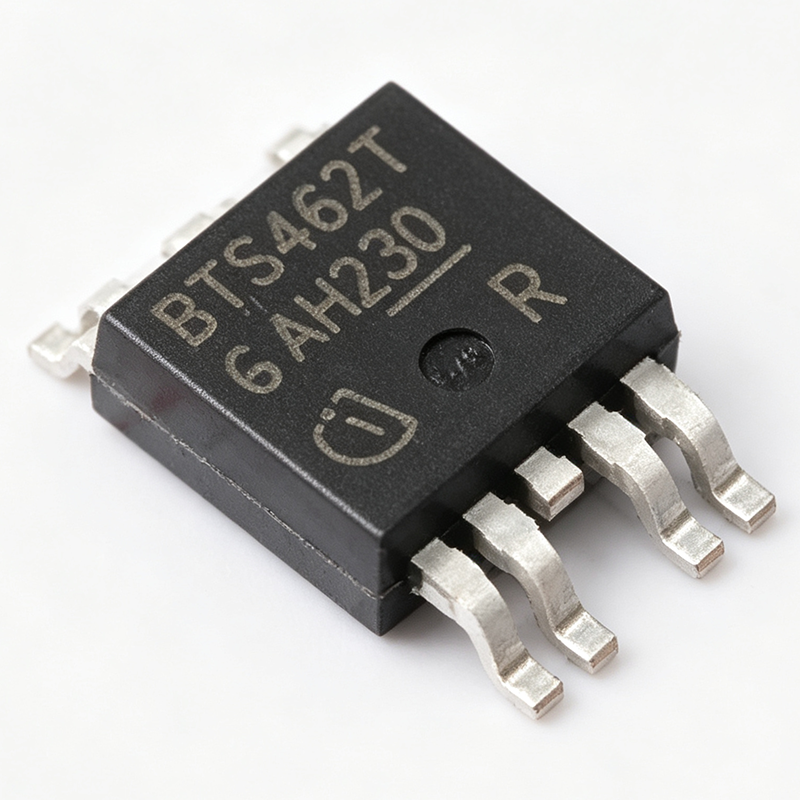

The BTS462TATMA1 is an Infineon MINI-PROFET single-channel smart high-side power switch rated for 3.5 A continuous output current from a 5 V to 34 V supply (Vbb), supplied in a PG-TO252-5 (DPAK-5) surface-mount package. It integrates a vertical N-channel DMOS output stage, a CMOS charge pump, a current limit that trips near 7 A, thermal shutdown with auto-restart, load-dump and overvoltage protection, undervoltage shutdown, fast inductive demagnetization, and an open-drain STATUS diagnostic pin on a single die. Lifecycle status is active, XAIPART stock is 99,999 units with an MOQ of 1, and the 1,000-piece price is $1.38 as of 2026-09-16. The junction temperature rating is -40 C to +150 C and the device is RoHS compliant.

The BTS462TATMA1 belongs to the smart high-side switch class, which functions as a semiconductor relay that places the load between ground and the switch output. That topology lets one IC drive resistive, capacitive, and inductive loads with controlled turn-on and turn-off. In the power management IC hierarchy these parts sit above a bare MOSFET driver and below multi-channel system basis chips, providing per-channel protection against the fault modes that dominate automotive wiring: short-to-ground, overload, load-dump, and reverse-battery events.

Availability: the part is in stock at DigiKey, Mouser, and LCSC as of 2026-09-13, with qty-1 pricing near $2.18 at LCSC and slightly higher at franchised distributors. XAIPART lists 99,999 units with MOQ 1. See the BTS462TATMA1 product page for live stock and tier pricing.

Technical Guide: How Do You Design In the BTS462TATMA1?

The device needs only five connections, but the layout and firmware choices around those pins decide whether a 12 V or 24 V design survives field transients. Work through the five steps below in order.

Step 1: Anchor the Vbb decoupling at the supply pin

The BTS462TATMA1 operates from Vbb = 5 V to 34 V on pin 2. An internal charge pump keeps the gate drive above the source rail, so RDS(on) stays low regardless of battery voltage. Place the Vbb decoupling capacitor as close to pin 2 as the layout permits. Load-dump and overvoltage protection are integrated, so an external TVS is generally redundant for the transients the device already absorbs. The exact recommended input capacitance is not published in the verified data set used here: [DATA_NEEDED: recommended Vbb decoupling capacitor value].

Step 2: Size the copper pour on the OUT tab for the real load current

Pin 1 (OUT) is tied to the exposed tab, so the tab is the load output and the primary heat path at the same time. The 3.5 A continuous rating applies in the PG-TO252-5 package when the tab is mounted on the minimum recommended copper pad. A first-pass conduction loss estimate uses the typical on-state resistance of about 50 mOhm at 25 C: at 3.5 A, P = I squared times R = 3.5 x 3.5 x 0.05 = 0.61 W. At 2.5 A the same calculation gives 0.31 W. Those figures are optimistic because RDS(on) rises with junction temperature, and the temperature coefficient plus the package thermal resistance are not in the verified data set: [DATA_NEEDED: RDS(on) at 150 C junction temperature] and [DATA_NEEDED: thermal resistance junction-to-ambient (R theta JA)]. Until those values are confirmed from the manufacturer datasheet, treat 3.5 A as the ceiling and add copper area rather than assuming a heatsink-free worst case.

Step 3: Debounce the STATUS pin in firmware

Pin 5 (STATUS) is an open-drain diagnostic output that pulls low to report overtemperature shutdown, open-load detection, and short-to-ground events. The flag is latched according to the operating mode, so software should debounce the line and clear it after a defined recovery interval. A status line that pulses during legitimate switching transients will otherwise generate false fault codes at the body control module or PLC CPU. According to the manufacturer datasheet, the STATUS pin doubles as the slew-rate control input in some MINI-PROFET variants, so verify the behavior of the exact lot before you assign it a dual function.

Step 4: Remove the fuse, the sense resistor, and most of the freewheeling diode

Choose the BTS462TATMA1 over a discrete MOSFET plus fuse when the design needs integrated overcurrent, overtemperature, and load-dump protection together with a fault-feedback pin in one footprint. The internal current limit trips at approximately 7 A, which protects the silicon during inrush events such as cold-lamp turn-on. Thermal shutdown with auto-restart means the IC self-recovers after a fault instead of requiring a field fuse replacement, a decisive advantage in industrial PLC output modules. Fast demagnetization circuitry absorbs inductive kickback inside the IC, so relay coils, solenoids, and small DC motors no longer need a discrete flyback diode. Add a catch resistor or TVS only if the load stored energy exceeds the device avalanche rating.

Step 5: Confirm qualification and moisture-sensitivity paperwork before release

The MINI-PROFET family was designed for automotive body electronics, and the BTS462TATMA1 covers body control modules driving lamps, mirror heaters, and small solenoids from a 12 V rail. The verified junction rating is -40 C to +150 C and the part is RoHS compliant. Two documents still need confirmation before a production release: the moisture sensitivity level, listed as [DATA_NEEDED: MSL rating], and the automotive qualification package. For AEC-Q100-qualified projects, confirm with Infineon whether the specific lot includes PPAP documentation, because some variants of the family are automotive-qualified while the base part is industrial grade [VERIFY_NEEDED: AEC-Q100 and PPAP qualification status of the base BTS462TATMA1 part number].

The logic input on pin 4 is TTL/CMOS compatible, so a 3.3 V or 5 V microcontroller GPIO drives it directly without a level shifter. Browse the Power MOSFET Drivers category for pin-compatible gate-drive and load-switch options.

Alternatives & Comparison: What Are the Drop-In Options in PG-TO252-5?

Only Infineon parts share the exact pin map of the BTS462TATMA1 according to cross-reference databases. The table below uses only values present in the verified data for this article; gaps are marked as data needed rather than estimated.

For a single 3.5 A load the BTS462TATMA1 is the better fit than the VNQ5E050MK-E, because the STMicroelectronics part is a quad-channel 27 mOhm device in a PowerSSO-12 footprint. Choose the VNQ5E050MK-E when you need four protected high-side outputs in one IC and can rework the PCB. Within the Infineon family, the BTS452RATMA1 is the lower-current variant and the BTS6143DAUMA1 is the higher-current variant in the same PG-TO252-5 footprint, which makes them the fastest replacements to qualify. The Infineon manufacturer page lists the wider MINI-PROFET portfolio for further cross-referencing.

Industry Insight: What Is the Market and Supply Situation for the BTS462TATMA1?

The lifecycle status of the BTS462TATMA1 is active, which means Infineon and its franchised channel continue to support new designs. XAIPART holds 99,999 units with an MOQ of 1, so prototype builders and small production runs face no minimum-order barrier. Published tier pricing as of 2026-09-16 steps from $2.18 at quantity 1 to $1.96 at 10 pieces, $1.74 at 100 pieces, $1.55 at 500 pieces, and $1.38 at 1,000 pieces. The $0.80 spread between the low and high tiers rewards a single consolidated buy rather than a series of small reorders.

Channel availability is broad. The part is stocked at DigiKey, Mouser, and LCSC as of 2026-09-13, with DigiKey listing same-day shipment for small quantities and Octopart aggregating eight distributors for real-time price and stock comparison. Lead time from Infineon through franchised distributors is typically 8 to 12 weeks as of 2026-09-13, so high-volume production should be covered by a scheduled order agreement that aligns with the manufacturing forecast rather than by spot buying. For automotive-qualified production runs, franchised distributors provide the traceability and warranty coverage that open-market sources cannot match.

Market size, unit-share, and revenue figures for the smart high-side switch segment are not part of the verified data set used for this article: [DATA_NEEDED: market size and share data for the smart high-side switch segment]. What the verified data does establish is the competitive position of the part inside its own family: a single-channel 3.5 A device in PG-TO252-5, flanked by a lower-current sibling (BTS452RATMA1) and a higher-current sibling (BTS6143DAUMA1) in the same footprint. That spread lets a designer scale current without changing the land pattern, which is a supply-chain advantage when one board variant must cover several load ratings.

Trends & Outlook: What Should Buyers Watch in 12 V and 24 V Smart Switching?

Protected switching keeps displacing the discrete MOSFET plus fuse. The BTS462TATMA1 removes a fuse, a sense resistor, and most discrete protection parts from the bill of materials while adding a STATUS feedback path. As 24 V industrial rails and 12 V automotive rails converge on the same 5 V to 34 V operating window, the 34 V upper supply limit of this device covers the nominal rail plus transient excursions, and the integrated current limit and thermal shutdown protect field wiring faults without a serviceable fuse.

Thermal design is the real constraint, not the current rating. The 3.5 A figure is a package-and-copper statement, not a silicon statement. Buyers should require RDS(on) at elevated junction temperature and the junction-to-ambient thermal resistance from the manufacturer before locking a copper area: [DATA_NEEDED: RDS(on) at 150 C junction temperature] and [DATA_NEEDED: thermal resistance junction-to-ambient (R theta JA)]. Designs that treat 3.5 A as unconditional will slide toward the +150 C junction limit in sealed enclosures.

Diagnostics are becoming a procurement criterion. Open-load detection on the STATUS pin supports predictive maintenance in LED lamp modules, automotive tail lamps, and architectural fixtures, where an open LED string must be reported rather than silently dark. Expect more designs to specify a diagnostic high-side channel at the component-selection stage instead of adding a discrete current-sense amplifier later.

Documentation, not silicon, gates automotive releases. The junction range of -40 C to +150 C and RoHS compliance are verified, but the MSL rating ([DATA_NEEDED: MSL rating]) and the automotive qualification package [VERIFY_NEEDED: AEC-Q100 and PPAP qualification status of the base BTS462TATMA1 part number] must be confirmed before reflow profiles and PPAP submissions are frozen. Buyers should ask for these two documents at the quotation stage so a qualification gap does not surface after tooling is committed.

Supply planning should track the whole family, not one part number. With the BTS462TATMA1, BTS452RATMA1, and BTS6143DAUMA1 sharing a footprint, a bill of materials can list a primary part and two same-footprint alternates, which shortens the 8 to 12 week franchised lead time exposure. Compare live stock and tier pricing on the XAIPART BTS462TATMA1 listing and review the smart high-side switch selection guide before the next design freeze.
