Samsung M321R8GA0EB2-CWM 64GB DDR5-5600 ECC RDIMM: Complete Buyer and Design Guide

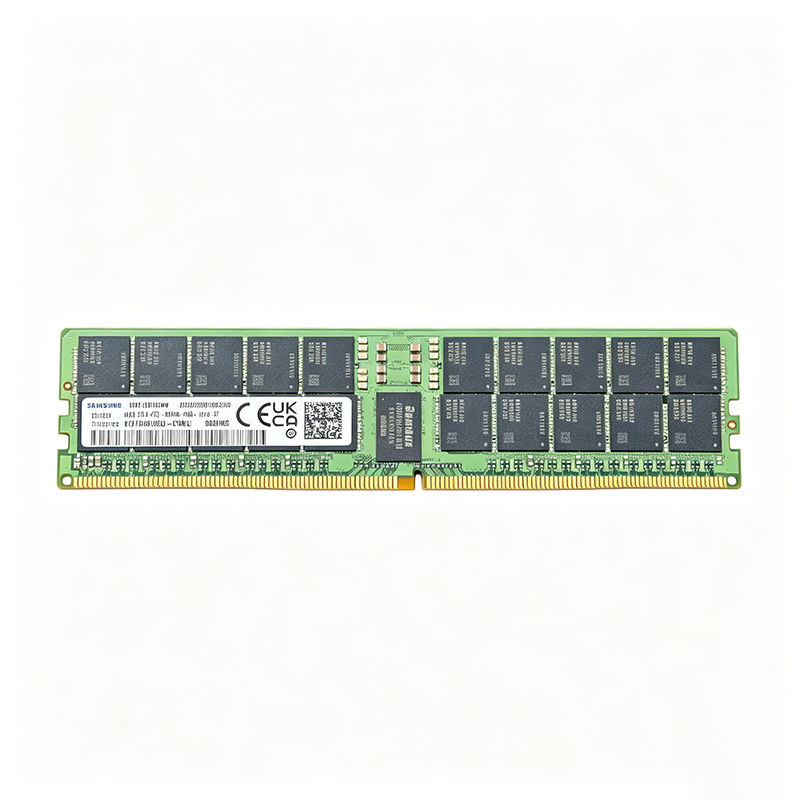

The Samsung M321R8GA0EB2-CWM is a 64GB DDR5-5600 ECC registered DIMM (RDIMM) that operates at 1.1V on a 288-pin server module and uses a dual-rank x4 (2Rx4) organization built from Samsung D-die DRAM in a (4G x 4) x 40 composition. It runs at 5600 MT/s with a 2800 MHz clock (PC5-44800 bandwidth class) at CAS latency CL46, and it is 100% JEDEC compliant. Lifecycle status is active, and XAIPART stock stands at 99,999 units with a minimum order quantity of 1, priced from $2,863.6364 per unit at 1,000+ pieces as of 2026-09-16. The module targets Dell PowerEdge, HPE ProLiant, Lenovo ThinkSystem, and Supermicro server platforms, plus virtualization hosts, in-memory databases, AI inference servers, and registered-memory workstations.

Quick Answers: What Is the Samsung M321R8GA0EB2-CWM and Is It Available?

The M321R8GA0EB2-CWM is a 64GB DDR5 SDRAM registered DIMM in the 288-pin ECC RDIMM form factor. Registered operation means address, command, and control signals pass through a register chip before reaching the DRAM devices, which reduces electrical load on the memory controller and allows more DIMM slots to be populated per channel than unbuffered memory allows. Samsung builds the module from 40 D-die (4G x 4) DDR5 DRAM devices to reach 64GB of registered capacity including ECC bits. The part is confirmed active in the XAIPART database, ships at MOQ 1, and carries network-distributor coverage from ServerSupply, DirectMacro, Network Republic, TrustedParts.com, and Win Source.

Verified specifications at a glance

Availability and pricing snapshot as of 2026-09-16

XAIPART stock is 99,999 units at MOQ 1. Reported distributor lead times in the verified data set range from 4-5 days (CoreWave Labs delivery estimate) to 7 days (Network Republic lead time listing); ServerSupply lists the module as brand new and in stock. Note the price spread between channel listings: the XAIPART database tier pricing above is stated as of 2026-09-16, while Network Republic lists an MSRP of $599.00 per module as of 2026-09-04 with request-based pricing. [VERIFY_NEEDED: reason for the price variance between XAIPART database tier pricing and distributor-listed MSRP]

Technical Guide: How Do You Select, Design In, and Deploy the M321R8GA0EB2-CWM?

Selecting server memory is a qualification exercise first and a pricing exercise second. The M321R8GA0EB2-CWM is a JEDEC-standard 288-pin DDR5 RDIMM, so it fits any slot keyed for that outline, but rated speed, rank count, and DIMMs-per-channel population determine the performance you actually get.

Step 1 - Confirm platform qualification before you buy

Confirm that the target server's BIOS and firmware support DDR5-5600 RDIMMs at the planned population. The verified data notes that many platforms default to lower speeds such as 4800 MT/s or 5200 MT/s depending on populated DIMMs per channel. The M321R8GA0EB2-CWM is documented as compatible with Dell, HPE, and other major server platforms, and fits Gen5-class platforms such as PowerEdge R660/R760 and ProLiant Gen11 families that accept 5600 MT/s RDIMMs. Always verify the specific server's QuickSpecs or owner's manual for supported speeds at your populated DIMMs-per-channel configuration.

Step 2 - Match rated speed to DIMMs per channel

The 5600 MT/s rating is achievable at the platform's validated population. If you install the module alongside DDR5-6400 parts such as the M321R8GA0EB2-CCP, the whole memory subsystem drops to the lowest common supported speed - in this case DDR5-5600 or lower depending on population. Mixing ranks and speeds also may prevent optimal multi-channel interleaving. The practical rule: populate all channels with identical MPNs, ranks, and speeds in matched sets, following the server vendor's population rules.

Step 3 - Calculate the bandwidth and capacity you actually get

PC5-44800 is the bandwidth class of this module, corresponding to 44,800 MB/s peak per 64-bit channel, or 44.8 GB/s. A 12-channel host fully populated at one DIMM per channel therefore has a theoretical peak of 537.6 GB/s, and a 16-channel host reaches 716.8 GB/s. Capacity scales linearly with module count because each module carries 64 GB: 4 modules give 256 GB, 6 modules give 384 GB, 8 modules give 512 GB, and 16 modules give 1,024 GB. Because the module uses x4 DRAM devices rather than x8, the memory controller can perform link ECC in x4-based RDIMM deployments in addition to the on-die ECC inside each DRAM die.

Step 4 - Understand the ECC architecture before you specify it

DDR5 implements on-die ECC within each DRAM die, detecting and correcting single-bit internal errors before data leaves the die. The x4 device width combined with registered operation supports strong RAS (reliability, availability, serviceability) characteristics demanded in virtualization and database environments. The registered interface buffers address, command, and control signals through a register IC, which keeps the memory controller load low enough to support high slot counts at rated speed. That combination - on-die ECC plus a buffered command bus - is why RDIMMs, not UDIMMs, are mandatory in most multi-socket x86 server platforms.

Step 5 - Apply population and mixing rules

Install multiple identical modules in matched sets for optimal multi-channel bandwidth. Do not assume that a socket will accept registered and unbuffered memory interchangeably: RDIMMs occupy the same physical outline but serve a different electrical role than UDIMMs. For phased fleet refreshes, genuine Samsung CWM parts allow mixed population with existing Samsung RDIMMs without brand-matching concerns. Third-party modules marketed as compatible replacements - such as NEMIX RAM and A-Tech products matching the 64GB DDR5 2Rx4 1.1V 288-pin registered ECC specification - occupy the same slot and meet the same JEDEC parameters, but they are not Samsung-manufactured silicon, which matters for enterprises with vendor support policies.

Step 6 - Account for power and thermal headroom

The module runs at 1.1V, which the verified data notes lowers power draw versus DDR4 RDIMMs running at 1.2V. DDR5 also moves the power management IC (PMIC) onto the module and introduces two independent 32-bit subchannels per module, which improves memory bandwidth efficiency for multi-core CPUs. Because large populations avoid excessive thermal load inside dense 1U/2U chassis, 1.1V operation helps sustain CPU boost clock behavior in memory-fed workloads. Module-level power consumption figures are [DATA_NEEDED: module power consumption] and must be confirmed from the vendor before thermal budgeting.

Alternatives & Comparison: What Are the Drop-In Replacements for the M321R8GA0EB2-CWM?

Two same-specification Samsung variants insert into the same DIMM slot without firmware or BIOS changes, and one higher-speed sibling is physically interchangeable but conditions the resulting speed on platform support. The table below uses only values confirmed in the verified product and FAQ data.

The best drop-in replacement is the Samsung M321R8GA0PB0-CWM, a 64GB DDR5-5600 PC5-44800R ECC registered DIMM with identical 2Rx4, 1.1V, 288-pin specifications that A-Tech markets as a direct replacement target. The Samsung M321R8GA0EB0-CWM is another same-specification drop-in: for a generic Dell, HPE, or Lenovo server the EB2 is the standard channel part, while for Supermicro builds where OEM-badged parts are preferred, the EB0 offers equivalent specifications. Choose the CWM over DDR5-6400 RDIMMs when your platform's memory controller officially supports up to 5600 MT/s with 2 DIMMs per channel, or when you are matching existing installed memory to avoid downspeeding; DDR5-6400 parts cost more and may fall back to lower speeds on platforms rated at 5600 MT/s.

Cross-brand equivalents would be 64GB DDR5-5600 ECC registered DIMMs (2Rx4, 1.1V, 288-pin) from Micron Technology or SK Hynix, which are electrically interchangeable in JEDEC-compliant servers. No specific Micron or SK Hynix 64GB DDR5-5600 RDIMM cross-reference for the M321R8GA0EB2-CWM appeared in the verified data, so no specific cross-brand MPN can be confirmed here. Consult your server vendor's qualified vendor list (QVL) for validated cross-brand part numbers.

Industry Insight: Where Does the M321R8GA0EB2-CWM Sit in the Server Memory Market?

The M321R8GA0EB2-CWM carries an active lifecycle status in the XAIPART database, which means it is a currently produced and stocked part rather than an end-of-life or last-time-buy item. That status matters for multi-year fleet planning: DDR5-5600 RDIMMs are the mainstream speed grade for Gen5-class x86 servers, and the 64GB x4 dual-rank density is the capacity building block that most enterprise configurations center on.

Supply signals in the verified data are positive. XAIPART holds 99,999 units at a minimum order quantity of 1, and ServerSupply lists the module as brand new and in stock as of the September 2026 data retrieval. TrustedParts.com also shows authorized-distributor inventory. Reported lead times run from 4-5 days (CoreWave Labs delivery estimate) to 7 days (Network Republic lead time listing), with request-based pricing at the distributor level. That combination - deep listed stock, MOQ 1, and sub-two-week lead times - indicates a liquid market rather than an allocation-constrained one.

Pricing, however, is the variable a buyer should track. The XAIPART database shows a steep volume curve as of 2026-09-16: $4,909.0909 at quantity 1 falling to $2,863.6364 at quantity 1,000, a 41.7 percent reduction from the single-unit price to the 1,000-unit price. Because server memory pricing fluctuates with DRAM market conditions, the effective street price can diverge from list. Network Republic lists an MSRP of $599.00 as of 2026-09-04 with request-based pricing. Buyers should confirm current pricing directly with the distributor rather than relying on cached list figures. [VERIFY_NEEDED: reconciliation of XAIPART database tier pricing against distributor MSRP listings]

One data-quality note deserves mention because it affects procurement diligence: a third-party page (ntclcr.com) describes the M321R8GA0EB2-CWM as an 8Gb LPDDR5 device. That is incorrect. All primary distributor data - Icecat, ServerSupply, Fusion WW, and Network Republic - identifies it as a 64GB DDR5-5600 registered DIMM for servers. Icecat maintains standardized XML product data for the module under product ID 131349523. LPDDR5 is a soldered, low-power mobile memory technology and is not interchangeable with 288-pin registered DDR5 modules. Buyers should trust consistent distributor and OEM channel data over outlier listings. Lifecycle projections and long-term DRAM die roadmap continuity for the D-die are [DATA_NEEDED: Samsung D-die lifecycle roadmap].

Trends & Outlook: What Should Server Memory Buyers Watch?

Speed-grade discipline beats headroom buying. The gap between 5600 MT/s and 6400 MT/s parts only converts into performance when the platform and population support it. On a server rated at 5600 MT/s, a DDR5-6400 module falls back to the slower speed, meaning you pay a premium for unusable headroom. Matching the module's rated speed to the platform's validated maximum at your DIMMs-per-channel configuration is the single highest-leverage purchasing decision, and the M321R8GA0EB2-CWM at 5600 MT/s is the correct match for platforms rated at that speed with two DIMMs per channel.

Capacity density per slot drives total cost of ownership. At 64GB per module, common sweet-spot configurations are reachable with fewer parts: 256GB needs four modules, 384GB needs six, 512GB needs eight, 1TB needs sixteen, and 3-4TB is achievable in dual-socket hosts across 24-32 DIMM slots. Fewer modules per gigabyte leaves slots free for later expansion and reduces the number of discrete devices that must be validated, monitored, and replaced over the server's service life.

Voltage efficiency compounds in dense racks. At 1.1V, the module draws less than a DDR4 RDIMM running at 1.2V per the verified data, and DDR5 moves the PMIC onto the module itself. In a 1U or 2U chassis packed with memory, that difference influences fan curves and CPU boost residency. Buyers sizing power and cooling budgets should request per-module power data, which is [DATA_NEEDED: module power consumption].

Error containment is now a specification, not a feature. The M321R8GA0EB2-CWM layers on-die ECC inside each DRAM die with a registered interface and x4 device width that supports link ECC at the memory controller in x4-based RDIMM deployments. As virtualization density and in-memory database footprints grow, buyers should treat the ECC architecture - not just the presence of an ECC label - as a selection criterion.

Subchannel granularity changes how you benchmark. DDR5 introduces two independent 32-bit subchannels per module, which improves bandwidth efficiency for multi-core CPUs compared with a single wide bus. Workloads that were bandwidth-starved on DDR4 generations benefit disproportionately, so benchmark planning should account for subchannel behavior rather than assuming linear scaling from clock alone.

Matched-set procurement protects validated performance. Because mixing speeds and ranks can force the entire subsystem to the lowest common speed and may prevent optimal multi-channel interleaving, phased rollouts should standardize on one MPN per server. Genuine Samsung CWM parts allow mixed population with existing Samsung RDIMMs without brand-matching concerns; third-party compatible modules exist for budget refreshes but are not Samsung-manufactured silicon. With active lifecycle status, 99,999 units listed in stock as of 2026-09-16, and MOQ 1, the M321R8GA0EB2-CWM supports both single-server upgrades and multi-hundred-module fleet builds without a supply hedge.
