Quick Answers: What Is the TL494CDT and Why Does It Matter?

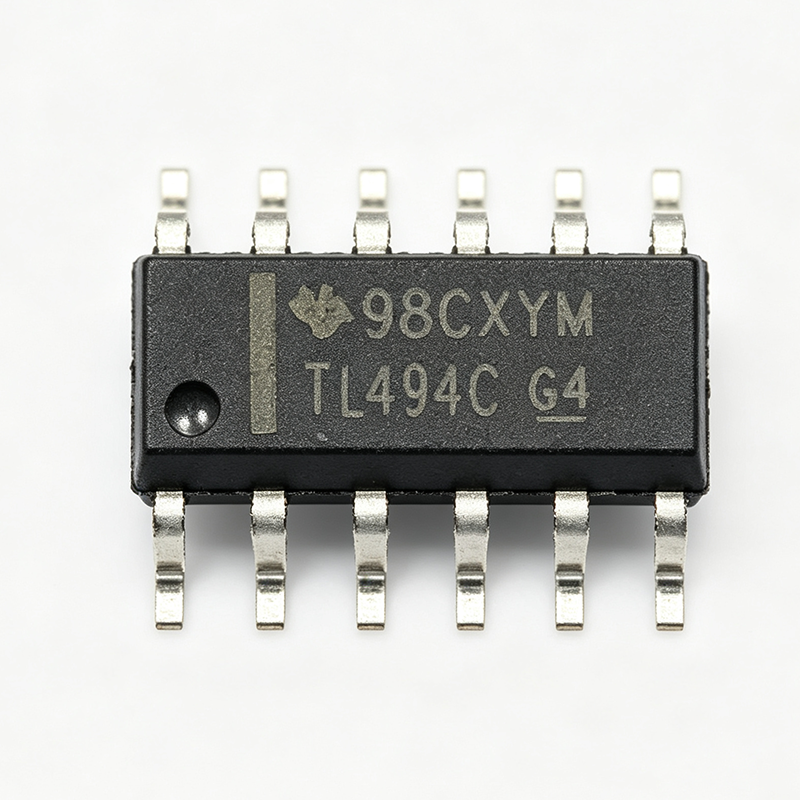

The TL494CDT is a fixed-frequency pulse-width modulation (PWM) control circuit from STMicroelectronics, designed for switch-mode power supplies (SMPS), DC-DC converters, battery chargers, inverters, and motor control. It operates from a supply voltage of 7V to 40V, delivers up to 250mA sink/source per output, and includes an internal oscillator adjustable from 1kHz to 300kHz. As of 2026-08-22, the TL494CDT is in stock at XAIPART with 99,999 units available, priced at $0.3182 per unit for quantities of 1000 or more. This guide covers its key specifications, design considerations, drop-in alternatives, and market outlook.
Technical Guide: How to Select, Design In, and Use the TL494CDT
Selecting the TL494CDT starts with understanding its core specifications. The device operates from 7V to 40V, making it suitable for both low-voltage DC-DC converters and higher-voltage offline supplies. Its output stage can sink or source 250mA, which is enough to directly drive power transistors or MOSFETs in small to medium power stages. The internal oscillator frequency is set by external timing components RT and CT, with a range of 1kHz to 300kHz. The frequency is calculated as f = 1.1 / (RT * CT), as per the STMicroelectronics datasheet.
When designing with the TL494CDT, pay attention to the error amplifier common-mode voltage range of -0.3V to VCC-2V. This limits the input voltage range for feedback signals. The 5V reference output (pin 14) can source up to 10mA and provides a stable voltage for setting thresholds. The dead-time control pin (pin 4) allows adjustment of the minimum off-time from 0% to 100%, which is critical for preventing shoot-through in push-pull topologies. The shutdown pin (also pin 4) can be used for overcurrent or overvoltage protection.
For a typical SMPS design, connect the timing components to pins 5 and 6, set the output mode via pin 13 (single-ended or push-pull), and use the error amplifiers to close the feedback loop. Ensure adequate decoupling on the VCC pin (pin 12) to avoid noise-induced instability. The standby current is typically 6mA, which is low enough for battery-powered applications.
For DC-DC converters, the TL494CDT can be configured for buck or boost topologies. In a buck converter, the PWM output drives a high-side switch; in a boost, it drives a low-side switch. The dead-time control can limit the maximum duty cycle to protect the switch and inductor. The oscillator frequency can be optimized to balance efficiency and component size—higher frequencies allow smaller magnetics but increase switching losses.
For battery chargers, the error amplifiers can implement constant-current/constant-voltage (CC/CV) profiles. The 5V reference provides a stable target voltage, and the dead-time control prevents overcharging. The wide supply range allows operation from various input sources, such as AC adapters or solar panels.
In inverter applications, the TL494CDT operates in push-pull mode to drive two power transistors alternately, producing a high-frequency AC signal that is filtered into a sine wave. The dead-time control is essential to prevent simultaneous conduction. The oscillator frequency can be set to 20kHz or higher to reduce transformer size and audible noise.
For motor control, the TL494CDT varies the PWM duty cycle to control the average voltage applied to a DC motor. Closed-loop speed control can be implemented using an error amplifier with tachometer feedback. The dead-time control prevents shoot-through in H-bridge configurations.
Alternatives & Comparison: Drop-In Replacements for TL494CDT
When the TL494CDT is not available or a different specification is needed, consider these drop-in alternatives from the XAIPART database. All are pin-compatible in the SOIC-16 package.
| Parameter | TL494CDT | TL594CDT | KA7500CD |
|---|---|---|---|
| Reference Voltage Tolerance | ±5% | ±1% | ±5% |
| Error Amplifier Common-Mode Range | -0.3V to VCC-2V | -0.3V to VCC-1.5V | -0.3V to VCC-2V |
| Supply Voltage Range | 7V to 40V | 7V to 40V | 7V to 40V |
| Output Current (per output) | 250mA | 250mA | 250mA |
| Oscillator Frequency Range | 1kHz to 300kHz | 1kHz to 300kHz | 1kHz to 300kHz |
| Package | SOIC-16 | SOIC-16 | SOIC-16 |
The TL594CDT offers a tighter reference tolerance (±1% vs ±5%) and a wider error amplifier common-mode range, making it better for precision power supplies. The KA7500CD is a direct functional equivalent with the same specifications. The TL494CDR is the same die as the TL494CDT but in a different tape and reel packaging variant.
Industry Insight: Market Position, Lifecycle, and Supply
The TL494CDT is an active product from STMicroelectronics, indicating it is still in production and supported. As of 2026-08-22, XAIPART has 99,999 units in stock, suggesting healthy supply. The device has been in production for decades, and its bipolar process technology is proven and reliable. [DATA_NEEDED: market share data, competitor pricing, lead times from other distributors]
Trends & Outlook: What Buyers Should Watch
Buyers should monitor the continued availability of the TL494CDT, especially as newer PWM controllers with higher frequency capabilities and lower power consumption enter the market. However, the TL494CDT's wide supply voltage range (7V to 40V) and flexible output configuration ensure its relevance in many applications. The 250mA output current capability and 5V reference with ±5% tolerance remain adequate for many designs. As of 2026-08-22, pricing is competitive at $0.3182 for 1000+ units. For high-precision applications, consider the TL594CDT with its ±1% reference tolerance. [VERIFY_NEEDED: future product roadmap from STMicroelectronics]
