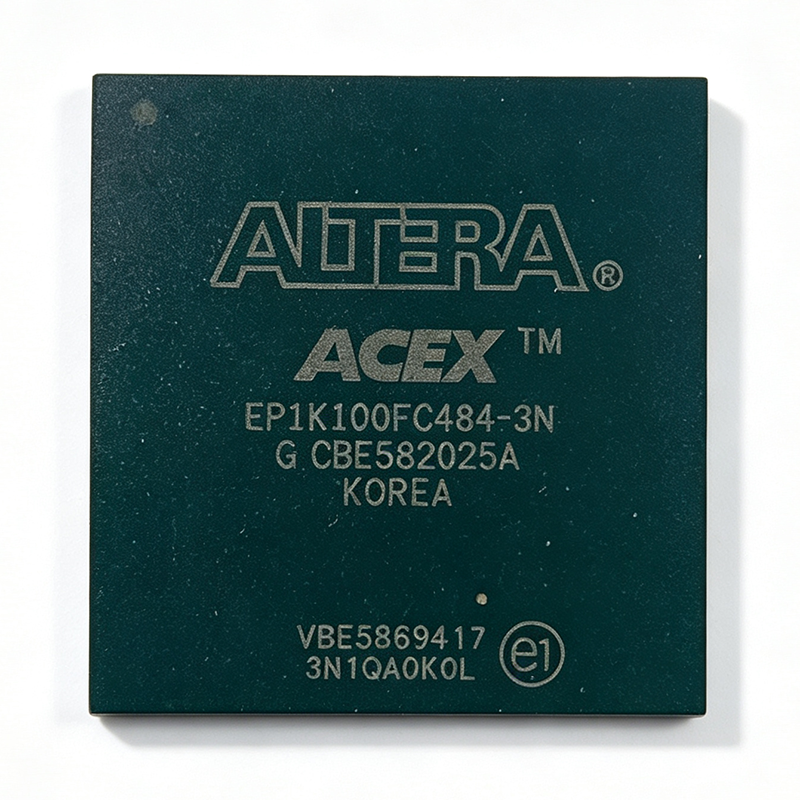

EP1K100FC484-3 vs EP1K100FC484-3N Comparison
Detailed side-by-side comparison of EP1K100FC484-3 by Altera and EP1K100FC484-3N by Intel. Compare key specifications, electrical parameters, packaging, lifecycle status, pricing, and availability to determine the best component for your design requirements.
Specification Comparison
| Parameter | EP1K100FC484-3 | EP1K100FC484-3N |
|---|---|---|
| Brand | Altera | Intel |
| Category | FPGA & CPLD | FPGA & CPLD |
| Lifecycle Status | Obsolete | Last_time_buy |
| Stock Status | In Stock | In Stock |
| Unit Price (USD) | $52.50 | $65.10 |
| Family | ACEX-1K | ACEX 1K |
| Logic Elements | 4,992 | 4,992 |
| System Gates | 100,000 | β |
| Maximum Equivalent Gates | 257,000 | β |
| Embedded RAM Bits | 49,152 bits | β |
| Embedded Array Blocks (EABs) | 12 | 12 |
| Logic Array Blocks (LABs) | 624 | 624 |
| Maximum User I/O | 333 | β |
| Core Voltage | 2.5 V | β |
| MultiVolt I/O Support | 2.5V / 3.3V / 5V | β |
| Process Technology | 0.18 Β΅m CMOS | 0.22 Β΅m CMOS |
| Package | 484-Ball FineLine BGA (FC484) | 484-ball FBGA |
| Operating Temperature | [DATA_NEEDED: operating temperature grade] | β |
| Configuration Method | SRAM, serial or parallel | Passive Serial, JTAG, PPA |
| Speed Grade | -3 | -3 |
| RoHS Status | Compliant | [DATA_NEEDED: RoHS status] |
| Typical Gate Count | β | 100,000 gates |
| Total RAM Bits | β | 49,152 |
| User I/Os | β | 333 |
| Operating Voltage (VCCINT) | β | 2.5 V |
| Internal Operating Frequency | β | up to 200 MHz |
| Mounting Type | β | Surface Mount |
| I/O Standards Supported | β | LVTTL, LVCMOS, PCI, 2.5V/3.3V/5V multiVolt I/O |
| Operating Temperature (Commercial) | β | 0 Β°C to +70 Β°C |
| Boundary-Scan Test | β | IEEE 1149.1 (JTAG) |
