STM32F407ZGT6 vs STM32F415ZGT6 Comparison
Detailed side-by-side comparison of STM32F407ZGT6 by STMicroelectronics and STM32F415ZGT6 by STMicroelectronics. Compare key specifications, electrical parameters, packaging, lifecycle status, pricing, and availability to determine the best component for your design requirements.
STMicroelectronics

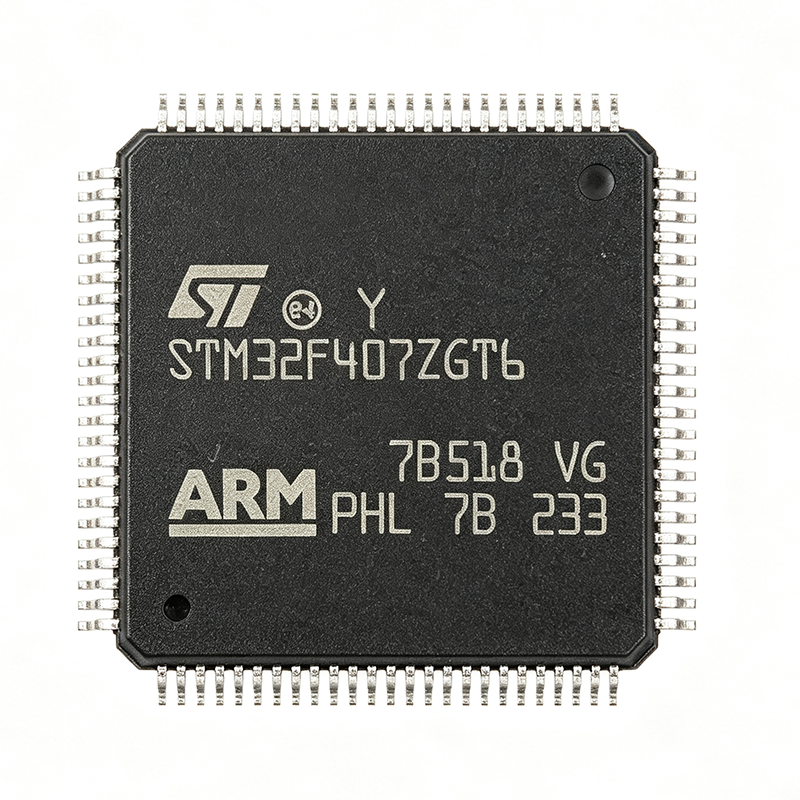

STM32F407ZGT6 - 168MHz Cortex-M4F MCU, 1MB Flash | STMicroelectronics
STM32F407ZGT6 β ActiveSTMicroelectronics
STM32F415ZGT6
STM32F415ZGT6 - 168MHz ARM Cortex-M4F MCU, 1MB Flash | STMicroelectronics
STM32F415ZGT6 β ActiveSpecification Comparison
| Parameter | STM32F407ZGT6 | STM32F415ZGT6 |
|---|---|---|
| Brand | STMicroelectronics | STMicroelectronics |
| Category | Microcontrollers | Microcontrollers |
| Lifecycle Status | Active | Active |
| Stock Status | In Stock | In Stock |
| Unit Price (USD) | $6.90 | $8.50 |
| Core | ARM 32-bit Cortex-M4 with FPU | ARM Cortex-M4F with FPU |
| Maximum Clock Frequency | 168 MHz | 168 MHz |
| Performance | 210 DMIPS (1.25 DMIPS/MHz) | β |
| Flash Memory | 1 MB | 1 MB |
| SRAM | 192 KB (+4 KB backup SRAM) | 192 KB |
| Supply Voltage Range | 1.8 V to 3.6 V | β |
| Operating Temperature | -40C to +85C | -40C to +85C |
| ADC | 3x 12-bit, 24 channels | 3x 12-bit, up to 24 channels |
| DAC | 2x 12-bit | 2x 12-bit |
| Timers | 17 (incl. 2x advanced motor control, 2x 32-bit) | Advanced-control, general-purpose, basic, and low-power timers |
| Communication Interfaces | 4x USART, 3x SPI, 3x I2C, 2x CAN, USB OTG FS/HS, Ethernet MAC | USART, SPI, I2C, USB OTG FS/HS, CAN, SDIO, Ethernet MAC |
| Package | LQFP-144 (20x20 mm) | LQFP144 (20x20 mm) |
| Mounting Type | Surface Mount | β |
| GPIO Count | 114 I/O | β |
| Special Peripherals | DCMI camera interface, RNG, SDIO, RTC | β |
| Low Power Modes | Sleep, Stop, Standby, VBAT | β |
| Process Technology | 90 nm | β |
| RoHS Status | Compliant | Compliant |
| Supply Voltage | β | 1.8V to 3.6V |
| Number of Pins | β | 144 |
| GPIO Pins | β | 114 |
| DSP Instructions | β | Yes |
| Floating-Point Unit | β | Single-precision |
