STM32L011F4P6 vs STM32G041F8P6 Comparison
Detailed side-by-side comparison of STM32L011F4P6 by STMicroelectronics and STM32G041F8P6 by STMicroelectronics. Compare key specifications, electrical parameters, packaging, lifecycle status, pricing, and availability to determine the best component for your design requirements.
STMicroelectronics

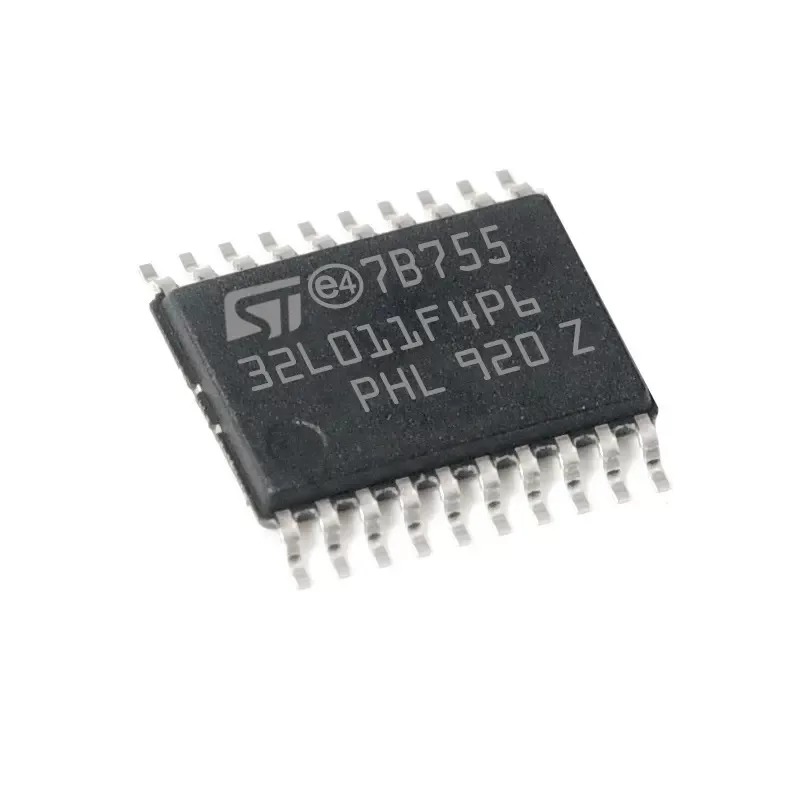

STM32L011F4P6 - 16KB Flash Cortex-M0+ MCU 32MHz | STMicroelectronics
STM32L011F4P6 β ActiveSTMicroelectronics
STM32G041F8P6 - 64MHz ARM Cortex-M0+ MCU | STMicroelectronics
STM32G041F8P6 β ActiveSpecification Comparison
| Parameter | STM32L011F4P6 | STM32G041F8P6 |
|---|---|---|
| Brand | STMicroelectronics | STMicroelectronics |
| Category | Microcontrollers | Microcontrollers |
| Lifecycle Status | Active | Active |
| Stock Status | In Stock | In Stock |
| Unit Price (USD) | $0.46 | $1.20 |
| Core | ARM Cortex-M0+ 32-bit RISC | ARM Cortex-M0+ |
| Maximum CPU Frequency | 32 MHz | β |
| Flash Memory | 16 KB | 32 KB |
| SRAM | 2 KB | 8 KB |
| Supply Voltage Range | 1.8 V to 3.6 V | 1.7 V to 3.6 V |
| Operating Temperature | -40C to +85C | β |
| ADC Resolution | 12-bit, up to 1 Msps | 12-bit |
| Communication Interfaces | I2C, SPI, USART, LPUART | I2C, SPI, USART |
| RTC | Yes, with calendar and alarms | β |
| Stop Mode Current | 0.23 uA typical (with RTC) | β |
| Timers | Multiple 16-bit timers (TIM2, TIM21, TIM22, LPTIM, SysTick, IWDG, WWDG) | β |
| Unique Device ID | 96-bit | β |
| Package | 20-TSSOP | TSSOP-20 |
| Mounting Type | Surface Mount | β |
| Supply Type | 1.8 V / 2.5 V / 3.3 V systems | β |
| Series | STM32L0 (access line) | β |
| Maximum Clock Frequency | β | 64 MHz |
| Operating Temperature Range | β | -40Β°C to +85Β°C |
| ADC Channels | β | 19 |
| DAC Resolution | β | 12-bit |
| Timer Count | β | Multiple 16-bit timers |
| Low-Power RTC | β | Yes |
| Standby Current | β | 0.3 Β΅A (typical) |
| Process Technology | β | 90nm |
| Internal Oscillator Accuracy | β | Β±1% (calibrated HSI) |
| Hardware RNG | β | Yes |
| CRC Unit | β | Yes |
| Debug Interface | β | SWD |
| RoHS Status | β | Compliant |
