Circuitos integrados

TRS3221EIDBR

TRS3221EIDBR - 3-5.5V RS-232 Transceiver, ±15kV ESD | Texas Instruments

The Texas Instruments TRS3221EIDBR is a 3-V to 5.5-V single-channel RS-232 line driver/receiver with ±15-kV IEC-ESD protection, packaged in a 16-pin SSOP (DB). It operates from a single supply rail and integrates a charge-pump that generates the ±RS-232 voltage swing from the input supply, so no external ±12 V rails are required. The device supports data rates up to 250 kbps and is rated for ±15-kV HBM, ±8-kV IEC 61000-4-2 contact, and ±15-kV IEC 61000-4-2 air-gap ESD strikes on the RS-232 bus pins. An RS-232 transceiver is a type of line driver/receiver IC that converts logic-level (typically 0/3.3 V or 0/5 V CMOS/CMOS) UART signals into the ±5 V to ±15 V voltage swings required by the TIA/EIA-232-F and ITU v.28 standards. It belongs to the broader interface-IC category, sitting between the UART block of a microcontroller/SoC and a DB-9 (or equivalent) connector on the serial port. Single-channel variants like the TRS3221E serve compact, point-to-point designs where two driver/receiver channels are not needed, helping shrink BOM cost and PCB area versus 2-channel parts. Key features include 1 driver and 1 receiver per channel, a dedicated enable input for power management, an auto-powerdown mode that drops quiescent current to 1 µA typical when the cable is disconnected, and an always-active supplementary receiver that monitors the ring-indicator path even in shutdown. The device meets or exceeds the TIA/EIA-232-F and ITU v.28 electrical specifications, and is offered in industrial temperature grades of -40 °C to +85 °C. A high-speed pin-compatible upgrade, the TRSF3221E, is available where 1 Mbit/s operation is required. The TRS3221E uses an on-chip switched-capacitor voltage converter with four external 0.1 µF charge-pump capacitors. The architecture tolerates supply rails as low as 3.0 V while still generating compliant ±5 V (minimum) RS-232 output swings, which is the headline advantage over legacy 5-V-only RS-232 transceivers. Drivers are slew-rate limited to keep EMI low, and the receivers include hysteresis to reject noise on long cables. Typical applications include industrial single-port serial ports, point-of-sale terminals, handheld data collectors, factory automation equipment, medical instruments with DB-9 serial interfaces, and any embedded system that needs a robust RS-232 link from a 3.3 V or 5 V UART. Designers often pair this part with a TVS array for additional surge protection when the cable is exposed to outdoor or industrial transients. When designing with the TRS3221EIDBR, place the four charge-pump capacitors (typically 0.1 µF X7R) as close as possible to the C0+, C0-, C1+, C1- pins to minimize supply ripple. Decouple VCC with a 0.1 µF + 1 µF combination near the pin, and respect the absolute-maximum ratings on the RS-232 outputs (typically ±13.2 V) by avoiding back-drive when the IC is unpowered. This page synthesizes distributor pricing, drop-in alternatives, and practical design notes not found in the manufacturer datasheet.

USD $1,59 En stock

TRS3221EIRGTR

TRS3221EIRGTR - 3-5.5V RS-232 Transceiver, 250kbps, ±15kV ESD | Texas Instruments

The Texas Instruments TRS3221EIRGTR is a 3- to 5.5-V single-channel RS-232 line driver/receiver delivering 250 kbps data rate with ±15 kV IEC-ESD protection in a 16-pin VQFN (RGT) package measuring 3x3 mm with an exposed thermal pad. The device integrates one driver and one receiver, supports VCC operation from 3.0 V to 5.5 V (compatible with TTL/CMOS logic levels), and meets or exceeds the requirements of TIA/EIA-232-F and ITU v.28 standards. An RS-232 transceiver is a charge-pump-based interface IC that translates between TTL/CMOS logic levels (0-3.3 V or 0-5 V) and the ±5 V to ±15 V swing required by the legacy TIA/EIA-232-F serial communication standard. RS-232 transceivers belong to the broader interface IC family, which sits hierarchically between discrete level-shifters and protocol controllers (UARTs) in wired communication systems. RS-232 remains widely deployed in industrial equipment, point-of-sale terminals, medical instruments, and embedded debug ports where simplicity, point-to-point connectivity, and proven robustness outweigh the bandwidth advantages of USB or Ethernet. Key features include ±15 kV Human-Body Model (HBM) ESD protection on RS-232 pins, ±8 kV IEC 61000-4-2 contact discharge, ±15 kV IEC 61000-4-2 air-gap discharge, and an automatic powerdown feature that disables drivers when no valid RS-232 cable is detected. The on-chip dual charge pump requires only four external 0.1 µF capacitors, enabling true 5 V operation from a single 3.3 V supply without a separate ±12 V rail. The 250 kbps data rate is adequate for all standard RS-232 baud rates up to and beyond 115200 with margin to spare. The architecture combines a regulated switched-capacitor voltage doubler/inverter with a proprietary low-dropout RS-232 driver stage and a precision hysteresis receiver. ESD protection is implemented at the cable-side pins using TI's integrated silicon-controlled-rectifier (SCR) clamps. The 16-pin VQFN package's exposed pad provides a low thermal resistance path, which is useful when the part operates near the upper end of its 1 mA quiescent current budget in warm enclosures. Typical applications include industrial PLC programming ports, point-of-sale (POS) terminals, medical device serial consoles, battery-powered handhelds, and embedded debug UARTs that need robust ESD performance in the field. The TRS3221EIRGTR's small 3x3 mm footprint suits space-constrained designs such as USB-to-serial dongles, IoT gateways, and barcode scanners. When designing with this part, place the four charge-pump capacitors as close as possible to the C1+ / C1- / C2+ / C2- pins and keep the RS-232 trace lengths short to maximize ESD margin. Note that the TRSF3221E is the higher-speed (1 Mbit/s) pin-compatible alternative if 250 kbps is insufficient. This page synthesizes distributor pricing, drop-in alternatives, and practical design notes not found in the manufacturer datasheet.

USD $1,05 En stock

TRSF3222CPW

TRSF3222CPW - 3V-5.5V RS-232 Transceiver, 2/2 Drivers | TI TSSOP-20

The Texas Instruments TRSF3222CPW is a 2-driver/2-receiver RS-232 line transceiver that operates from a single 3.0V to 5.5V supply in a 20-pin TSSOP package. It supports data rates up to 1 Mbit/s and accepts 5-V logic inputs when powered from a 3.3V rail, making it ideal for mixed-voltage system designs. A line transceiver is an interface device that bridges a logic-level UART (universal asynchronous receiver/transmitter) on a host microcontroller with the RS-232 standard, which swings between +12V and -12V on the bus side. It sits within the Interface IC hierarchy (RS-232 transceiver -> line transceiver -> interface IC -> integrated circuit) and converts TTL/CMOS logic levels to TIA/EIA-232-F compliant voltage levels while protecting the host from ESD events on the cable side. The TRSF3222CPW integrates a dual charge-pump that generates the required +5.5V and -5.5V rails from a single 3.3V supply using four small 0.1 uF external capacitors. Standby current is typically 1 uA, supporting low-power portable designs. The receivers remain active in shutdown, allowing wake-up characters to be detected without waking the host. ESD protection exceeds +/-15 kV HBM on the bus pins. Typical applications include industrial point-of-sale terminals, factory automation equipment, portable diagnostic instruments, and battery-powered barcode scanners where 3.3V logic must communicate with legacy RS-232 peripherals. The wide 3.0V-5.5V supply range also makes the part suitable for USB-to-serial bridges and embedded computing modules. When designing with this device, place the four charge-pump capacitors as close to the IC as possible to minimize loop inductance. The TSSOP-20 footprint requires standard surface-mount assembly with a maximum reflow temperature per JEDEC J-STD-020. Decouple VCC with a 0.1 uF ceramic plus a bulk tantalum if the supply impedance is high.

USD $1,42 En stock

TS3A27518ERTWR

TS3A27518ERTWR - 6-Ch 2:1 Analog Mux, 240MHz | Texas Instruments

The Texas Instruments TS3A27518ERTWR is a bidirectional 6-channel 1:2 (SPDT) analog multiplexer/demultiplexer with 6.2 ohm on-resistance, 240 MHz bandwidth, and integrated IEC 61000-4-2 ESD protection, housed in a 24-pin WQFN (4x4 mm) package operating from a 1.65 V to 3.6 V single supply. An analog multiplexer is a signal-routing semiconductor that selects one of several input channels and connects it to a common output, functioning as a digitally controlled switch for both analog and digital signals. Within the signal-chain hierarchy, it sits between passive switches and full crosspoint matrices, and belongs to the broader family of interface and analog switch ICs used in power management and signal conditioning subsystems. Key features include low 6.2 ohm typical on-resistance for minimal signal attenuation, 21.5 pF typical switch capacitance, up to 240 MHz bandwidth for high-speed rail-to-rail signal handling, and -62 dB crosstalk and OFF isolation. The device also provides isolation in power-down mode (VCC = 0 V), and 1.8 V logic-threshold-compatible control inputs that allow direct interfacing with low-voltage microcontrollers. Architecturally, the TS3A27518E uses two control pins, each simultaneously controlling three 1:2 multiplexer sections, plus an enable pin that places all outputs in high-impedance mode. Integrated ESD cells rated to IEC 61000-4-2 on the signal pins eliminate the need for external TVS diodes in USB and port-protection designs, and the device is qualified for automotive applications. Typical applications include USB 2.0 high-speed signal switching, audio jack and headset detection, battery-powered portable equipment, and general-purpose analog signal routing in industrial systems. A key design consideration is on-resistance flatness across the signal range: at lower VCC the Ron rises, so budget for insertion loss at 1.65 V operation, and keep stub lengths short to preserve the 240 MHz bandwidth. This page adds value beyond the datasheet by synthesizing distributor pricing tiers, drop-in alternatives, cross-reference data, and practical design notes in one reference.

USD $0,65 En stock

TS3A44159RGTR

TS3A44159RGTR - 0.45Ω Quad SPDT Analog Switch | TI

The Texas Instruments TS3A44159RGTR is a 0.45-Ω quad-channel single-pole double-throw (SPDT) analog switch housed in a 16-pin VQFN (RGT) 3x3 mm package. Operating from 1.65 V to 4.3 V, it delivers low on-state resistance with excellent Ron matching across four independent 2:1 multiplexers and supports bidirectional signal flow on every channel. Two logic-level control inputs select between the NO/NC paths of all four switches simultaneously, simplifying firmware-driven signal routing. An analog switch is a solid-state semiconductor device that routes analog or digital signals between two or more terminals under the control of a logic-level signal. It belongs to the analog switch and multiplexer family, which sits inside the broader interface IC category of integrated circuits. Quad SPDT switches are commonly used to swap between two sources on four channels at once, an arrangement also called a 2-channel DPDT function in this device. Key features include 0.45 Ω typical on-state resistance, 50 pA typical switch leakage, break-before-make switching to prevent momentary channel cross-connection, and a -3 dB bandwidth greater than 35 MHz. The control inputs are 1.8 V logic-compatible, while supply operation extends from 1.65 V to 4.3 V. ESD protection on the switch pins exceeds 2000 V per the HBM model. Architecturally the part uses CMOS transmission gates with integrated charge-pump-derived well biasing, enabling low Ron and rail-to-rail signal swing on a single positive supply. Ron flatness is held tight across the input common-mode range, which preserves harmonic distortion performance in audio paths. The device draws only microamps of quiescent current, which is essential for battery-powered systems. Typical applications include portable audio routing between headphone jack and Bluetooth receiver, USB 2.0 high-speed signal switching, SPI/I²C bus multiplexing, smartphone audio codec path selection, and PDA or portable media player source switching. Industrial uses include 4-wire resistance measurement multiplexing and analog front-end signal routing. When designing with this part, ensure that the logic-high level on IN1/IN2 exceeds 0.85 x VDD and the logic-low is below 0.15 x VDD to guarantee full CMOS-level switching. Place 0.1 µF bypass capacitors within 5 mm of the VDD pin to keep digital control noise out of the analog path. This page synthesizes distributor pricing, drop-in same-family alternatives, and practical PCB layout guidance not found in the manufacturer datasheet alone.

USD $0,55 En stock

TS3A4741DCNR

TS3A4741DCNR - 0.9Ω Dual SPST Analog Switch | TI SOT-23-8

The Texas Instruments TS3A4741DCNR is a 0.9 Ω low on-resistance, low-voltage, single-supply, dual single-pole single-throw (SPST) analog switch housed in an 8-pin SOT-23 (DCN) package. It integrates two independent normally open (NO) switches, each with a 1:1 (SPST) topology, designed for 1.8 V logic compatibility when operated from a single 3 V supply rail. What is an SPST analog switch? An SPST (Single-Pole Single-Throw) analog switch is a solid-state semiconductor device that routes analog signals by electrically connecting or isolating one signal path. The TS3A4741 belongs to the broader category of analog switches and multiplexers, a subfamily of interface ICs used for signal routing in mixed-signal and low-power systems. Compared with mechanical relays, analog switches offer far faster switching speeds, lower power, smaller PCB area, and no mechanical bounce, at the cost of lower absolute voltage and current handling. Key specifications include a 0.9 Ω typical on-resistance (Ron), 1.8 V CMOS-compatible digital logic inputs, rail-to-rail analog signal handling, very low quiescent current, and integrated ESD protection. The two switches operate completely independently, allowing them to be used as separate signal paths or as complementary paths in a single function. The device is fabricated in a CMOS process and supports fast switching speeds, low off-leakage current, and bidirectional analog signal flow. Its small SOT-23-8 footprint and 1.8 V logic compatibility make it well suited to portable and battery-powered designs. Typical applications include audio signal routing in portable devices, switching between two sensors in handheld instruments, power rail multiplexing in low-power systems, and general-purpose signal gating in test equipment and consumer electronics. When designing with the TS3A4741, ensure the analog signal stays within the supply rails to avoid distortion or excessive leakage, and add 0.1 µF decoupling close to VCC. For applications requiring normally closed (NC) switches, use the pin-compatible TS3A4742. This page synthesizes verified distributor pricing, same-brand and cross-brand drop-in alternatives, and practical design notes not found in the manufacturer datasheet.

USD $0,18 En stock

TS3A4751PWR

TS3A4751PWR - 0.9-Ohm Quad SPST Analog Switch | Texas Instruments

The Texas Instruments TS3A4751PWR is a bidirectional, 4-channel, normally-open (NO) single-pole single-throw (SPST) analog switch in a 14-pin TSSOP package. It operates from a single 1.6V to 3.6V supply, delivers a maximum on-state resistance of 0.9 ohm at a 3V supply, and handles rail-to-rail analog signals with fast switching speeds and very low quiescent power. An analog switch is an IC that routes or isolates analog signal paths under digital control. Within the signal-routing hierarchy, the TS3A4751 belongs to the SPST switch family, a subset of analog switches and multiplexers used in signal conditioning and power-management systems. Key features include 0.9-ohm maximum Ron at 3V (1.5-ohm maximum at 1.8V), Ron flatness of 0.4-ohm maximum at 3V, and Ron matching of 0.05-ohm maximum at 3V. The 1.8-V CMOS-compatible digital inputs allow direct interface with low-voltage GPIO when using a 3-V supply, eliminating level-shift circuitry. The device is available in 14-pin TSSOP (PW), 14-pin VQFN (RGY), and 2x2-mm micro X2QFN (RUC) packages. The low Ron supports power-switching and low-distortion signal paths, while rail-to-rail operation preserves full signal swing on 1.8V, 2.5V, and 3.3V rails. Typical applications include low-voltage power switching, audio signal routing in portable devices, battery-powered test points, and general-purpose signal muxing in smartphones, tablets, and industrial sensing modules. Its normally-open configuration makes it suitable for fail-safe, default-disconnected paths. When designing, remember that Ron rises at lower supply voltages: at a 1.8-V supply the maximum Ron is 1.5 ohm, so account for insertion loss and on-resistance flatness in high-fidelity or precision-current paths. According to TI datasheet, the TS3A4751 is the NO-switch counterpart within the TI low-voltage quad SPST family.

USD $0,31 En stock

TS3A5018PWR

TS3A5018PWR - 10-Ohm Quad SPDT Analog Switch | Texas Instruments

The Texas Instruments TS3A5018PWR is a quad single-pole double-throw (SPDT) analog switch designed to operate from a 1.8V to 3.6V supply in a 16-pin TSSOP (PW) package rated from -40C to +85C. It handles both digital and analog signals, and signals up to V+ can be transmitted in either direction. An analog switch is a semiconductor device that selectively connects or disconnects an analog signal path under digital control. It is a fundamental signal-routing building block in the broader family of multiplexers, demultiplexers, and interface ICs. Analog switches provide a low-resistance path when ON and a high-impedance path when OFF, replacing bulky mechanical relays in audio/video routing, data acquisition, and communication systems. Key features include the wide 1.8V to 3.6V operating range (ideal for battery-powered and 3.3V systems), low 10-ohm ON-state resistance with excellent channel-to-channel matching, and low charge injection that minimizes glitches during switch transitions. All four SPDT switches share a common enable function so the entire device can be disabled to reduce power consumption. The TS3A5018 is built on TI CMOS process technology, providing low quiescent power dissipation and high reliability. Bidirectional signal flow means either of the two throw terminals can serve as the port, essential for multiplexing and demultiplexing on the same hardware. Turn-on and turn-off times are fast, supporting high-speed signal routing in data converters and communication interfaces. Typical applications include audio signal routing in portable devices, battery-powered data acquisition front ends, communication interface switching, and test equipment signal multiplexing. The low power consumption and wide supply range make it well suited for portable and industrial designs. Design consideration: the 10-ohm ON resistance introduces series attenuation in high-impedance circuits, so prefer low-impedance loads or buffer the switched node. Place a 0.1uF decoupling capacitor close to the V+ pin, and use the enable pin in battery designs to cut standby current when switching is idle.

USD $0,24 En stock

TS3A5018QPWRQ1

TS3A5018QPWRQ1 - 10-Ohm Quad SPDT Analog Switch | Texas Instruments

The Texas Instruments TS3A5018QPWRQ1 is an automotive-qualified (AEC-Q100) quad single-pole double-throw (SPDT) analog switch designed to operate from a 1.8V to 3.6V supply. Packaged in a 16-pin TSSOP (PW), it provides four independent SPDT switches with a low 10-ohm on-resistance, handling both digital and analog signals up to V+ in either direction. An analog switch (also called an analog multiplexer/demultiplexer or bidirectional switch IC) is a semiconductor device that routes analog or digital signals through a MOSFET transmission gate controlled by a digital select input. Analog switches sit within the broader signal-routing hierarchy: analog switch IC -> signal multiplexer -> interface and switching IC -> analog signal chain. They are fundamental building blocks wherever a processor must dynamically reconfigure signal paths without degrading signal integrity. Key features of the TS3A5018QPWRQ1 include the low 10-ohm typical on-resistance, wide 1.8V to 3.6V single-supply operation suited to battery-powered and low-voltage systems, full rail-to-rail signal handling, and break-before-make switching that prevents momentary shorting of signal sources. The Q1 suffix denotes AEC-Q100 qualification for automotive environments, with an extended operating temperature range supporting under-hood and body electronics applications. The device uses CMOS transmission-gate architecture, which keeps on-resistance relatively flat across the signal range and minimizes signal distortion for audio and data-routing tasks. Because signals up to V+ can pass in either direction, the switches work equally well for multiplexing and demultiplexing, such as sharing a codec between microphone and headset paths or switching antenna and test signals. Typical applications include automotive infotainment audio routing, battery-management cell-monitoring multiplexing, portable instrument signal switching, and general-purpose I/O expansion in industrial control boards. Design tip: minimize RON signal loss by keeping source impedance low, and always provide a solid V+ decoupling capacitor (0.1uF close to the pin). Remember that the analog signal range is limited to the 0V-to-V+ supply window; signals outside this range must be blocked or level-shifted.

USD $0,45 En stock

TS3USB3000MRSER

TS3USB3000MRSER - DPDT USB 2.0/MHL Switch | TI | UQFN-10

The Texas Instruments TS3USB3000MRSER is a double-pole, double-throw (DPDT) analog switch that combines a USB 2.0 High-Speed (480 Mbps) switch and a Mobile High-Definition Link (MHL) switch in a single 10-pin UQFN (RSE) package measuring 1.5 mm × 2.0 mm. It supports a -3 dB bandwidth of 6.1 GHz on the MHL path and operates from a 2.3 V to 4.8 V supply. The device is designed to share a common USB or Micro-USB connector between USB 2.0 data and MHL video signals in mobile phones, tablets, and portable media devices. A USB switch IC is a special-purpose analog multiplexer that routes high-speed differential signals between a single downstream port and two upstream paths (host vs. MHL sink). In the hierarchy of power management and signal routing components, this part belongs to the USB interface IC category, sitting between the connector and the application processor. DPDT switches such as the TS3USB3000 are critical because they must pass 480 Mbps USB signals and up to 3 GHz MHL content with minimal insertion loss, low crosstalk, and high off-isolation. Key features of the TS3USB3000 include low on-resistance (Ron) on the USB data paths, low on-capacitance (Con) for high-bandwidth signal transmission, 1.8-V-compatible select pins for direct GPIO control from a mobile processor, and a quiescent current of approximately 5 uA. The wide supply range (2.3 V to 4.8 V) covers both 3.3 V system rails and the typical 3.8 V Li-ion battery range without additional regulation. The small 1.5 mm × 2 mm UQFN footprint makes it ideal for space-constrained mobile applications. The TS3USB3000 uses a charge-pump-less architecture with simple CMOS logic-level select inputs. The two select pins (S1 and S0 per TI documentation) determine whether the common port is routed to the USB path or the MHL path. Internal ESD protection on the signal pins improves robustness against connector-level transients, which is critical for hot-plug consumer electronics. Typical applications include smartphones and tablets with MHL-enabled video output, automotive infotainment systems that mirror mobile content via USB or MHL, portable media players, and USB/MHL dongles. The wide bandwidth also makes it suitable for any system needing to multiplex two high-speed differential pairs onto a single connector. When designing with this part, place the device as close as possible to the USB/MHL connector to minimize stub lengths and signal-integrity degradation. Use controlled-impedance differential routing (90 ohm) on both sides of the switch, and provide adequate ground stitching vias along the signal path to maintain return-current continuity. This page synthesizes distributor pricing, pin-compatible alternatives, and practical design notes that are not aggregated in any single manufacturer datasheet or distributor catalog page.

USD $0,62 En stock

TS5A2053

TS5A2053 - 10Ω SPDT Analog Switch | Texas Instruments

The TS5A2053 is a single-pole double-throw (SPDT) analog switch from Texas Instruments, designed to operate from 1.65 V to 5.5 V. It can handle both digital and analog signals, and signals up to V+ can be transmitted in either direction. The device features a low ON-state resistance of 10Ω (typical) and includes an enable pin for power management. It is available in the 8-pin VSSOP (DCU) package, making it suitable for space-constrained applications. An analog switch is a semiconductor device that selectively connects or disconnects an analog signal path based on a digital control signal. It is a fundamental building block in signal routing, multiplexing, and sample-and-hold circuits. Analog switches are part of the broader category of interface ICs, which manage signal integrity and connectivity between different subsystems in electronic systems. Key features of the TS5A2053 include a low ON-state resistance of 10Ω, which minimizes signal attenuation, and a wide operating voltage range from 1.65 V to 5.5 V, allowing compatibility with various logic levels. The device also offers fast switching speeds, with a typical turn-on time of 20 ns and turn-off time of 15 ns, making it suitable for high-frequency signal routing. The enable pin allows the switch to be disabled, reducing power consumption in standby modes. Technically, the TS5A2053 uses a CMOS process that provides low power consumption and high ESD robustness. The device has a bandwidth of 300 MHz, enabling it to pass high-frequency signals with minimal distortion. The ON-state resistance is flat across the input voltage range, ensuring consistent performance. The device also features break-before-make switching, preventing momentary short circuits between channels. Typical applications include audio signal routing, data acquisition systems, and test equipment. In audio systems, the low ON-state resistance and high bandwidth ensure minimal signal degradation. In data acquisition, the switch can route analog signals to an ADC, with the enable pin allowing power saving when not in use. In test equipment, the TS5A2053 can be used for signal multiplexing and routing. When designing with the TS5A2053, it is important to consider the ON-state resistance and its effect on signal integrity. For high-frequency signals, the parasitic capacitance of the switch can cause signal attenuation, so proper PCB layout and termination are recommended. Additionally, the enable pin should be tied to a defined logic level to avoid floating inputs.

USD $0,20 En stock

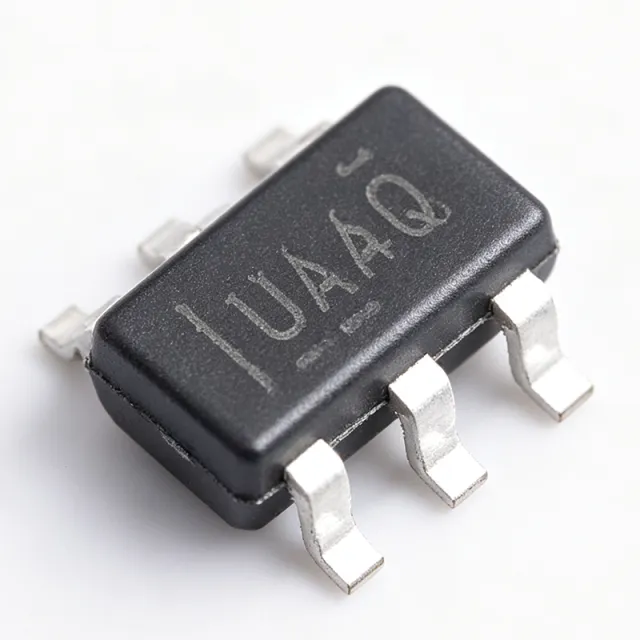

TS5A3159QDBVRQ1

TS5A3159QDBVRQ1 - 1Ω SPDT Analog Switch AEC-Q100 | TI

The Texas Instruments TS5A3159QDBVRQ1 is an automotive-qualified (AEC-Q100) single-pole double-throw (SPDT) 2:1 analog switch with 1Ω typical ON-state resistance (1.3Ω max), operating from a 1.65V to 5.5V supply in a 6-pin SOT-23 (DBV) package. An analog switch is a semiconductor device that routes or gates analog and digital signals under the control of a logic-level input. Within the signal-chain hierarchy, the SPDT analog switch sits in the analog switches and multiplexers family, below large multiplexer arrays and alongside transmission-gate logic. An SPDT device connects one common (COM) terminal to either of two throw terminals (NO or NC), making it the fundamental building block of signal routing and redundancy switching. Key features include break-before-make switching, which prevents momentary channel shorting during transition and eliminates signal distortion when a signal source moves between paths; an excellent total harmonic distortion (THD) specification that preserves audio and precision-signal integrity; and low ON-resistance matching and flatness, which minimize signal error across the input range. The device operates from a single 1.65V to 5.5V supply, compatible with 1.8V, 2.5V, 3.3V, and 5V logic systems. The switch core uses a low-charge-injection MOS transmission-gate architecture with approximately 8pF typical ON capacitance (per TI family data), limiting high-frequency insertion loss in data and RF routing paths. The digital IN pin is logic compatible across the full supply range, and the -Q1 suffix denotes AEC-Q100 qualification with -40C to +125C operation for automotive environments. Typical applications include automotive audio source selection, sensor-signal multiplexing in battery-management and body-control modules, UART/SPI/SMBus line sharing, and general-purpose signal gating in industrial systems. The 2.9mm x 1.6mm SOT-23-6 footprint suits densely populated boards. Design tip: terminate or AC-ground unused throw terminals to reduce crosstalk, and place the device close to the signal source to minimize parasitic trace capacitance. This page synthesizes distributor pricing, drop-in alternatives, comparison tables, and practical design notes not found in the manufacturer datasheet.

USD $0,28 En stock

TS5A63157

TS5A63157 - 10-Ohm SPDT Analog Switch 1.65-5.5V | TI

The Texas Instruments TS5A63157 is a single-pole, double-throw (SPDT) analog switch, also described as a 2:1 multiplexer/demultiplexer, designed to operate from a 1.65 V to 5.5 V supply. It handles both digital and analog signals with a low on-state resistance of approximately 10-12 ohms and comes in a 6-pin SC-70 (SOT, SC70-6, DCK) surface-mount package. An analog switch is a type of signal-routing IC in the broader family of multiplexers and switches within the semiconductor component hierarchy. Unlike a relay or mechanical switch, an analog switch uses CMOS transmission gates to route signals with low distortion, fast switching times, and no moving parts, making it fundamental to signal-chain design in portable and battery-powered systems. Key features include overshoot and undershoot voltage protection: the device senses voltage events at the I/Os and responds by preventing voltage differentials from developing and turning the switch on. It also provides isolation in powered-off mode (leakage specified at 0 when V+ = 0), break-before-make switching, 5-V tolerant control inputs, low charge injection, and excellent on-state resistance flatness. Technically, the TS5A63157 uses a CMOS switch architecture with integrated protection circuitry, allowing it to survive I/O faults that would damage unprotected switches. The powered-off isolation makes it ideal for hot-swap and battery-powered systems where rails may be sequenced or removed while signal lines remain connected. Typical applications include battery-powered portable devices, audio signal routing, hot-swap USB and peripheral switching, and multiplexing sensor or test signals in instrumentation. Priced at roughly $0.34 in single units as of 2026-08-30 per distributor data, it is also cost-effective for high-volume designs. Design tip: ensure the control input logic level is compatible with the V+ rail; control inputs are 5-V tolerant regardless of supply, and the break-before-make timing prevents momentary shorting of the two switch paths during transitions.

USD $0,16 En stock

TS7003ITD833

TS7003ITD833 - 12-Bit 300ksps SAR ADC, 2.5V Ref, TDFN-8 | Silicon Labs

The Silicon Labs TS7003ITD833 is a 12-bit, 300 ksps successive-approximation analog-to-digital converter (ADC) with a single-ended single-channel input, integrated +2.5V reference, and a high-speed serial digital interface, packaged in an 8-pin TDFN (3x3 mm) with exposed pad for thermal and ground integrity. Designed for single-supply operation from +2.7V to +3.6V, it draws less than 1 mA at full 300 ksps conversion rate. An ADC in this product category is a mixed-signal data converter that translates real-world analog voltages into discrete digital codes. The successive-approximation register (SAR) architecture family uses a binary-search algorithm with an internal track-and-hold front end, achieving a balance of speed, accuracy, and low power consumption suitable for embedded sensing, instrumentation, and process-control front-ends. This part sits within the broader hierarchy: ADC -> data converter -> mixed-signal IC -> semiconductor. Its integrated reference removes an external component and reduces board area, an important benefit for compact sensor-interface designs. Key features include 12-bit resolution, 300 ksps throughput, a high-bandwidth input track-and-hold amplifier, and an internal +2.5V reference. The serial interface reduces pin count compared to parallel-output ADCs, simplifying routing and host-MCU connection. Low conversion-mode power consumption and an industrial temperature range support battery-aware and factory-floor deployments alike. The TS7003ITD833 successive-approximation architecture implements a charge-redistribution DAC internally, capturing input samples on the T/H at the rising edge of CNVST and presenting results one frame later through the SPI-compatible serial port. The integrated reference and single-supply rail minimizes external component count, while the 8-pin TDFN EP package provides a low-impedance thermal/ground path that enhances noise immunity at full throughput. Typical applications include industrial process-control analog front-ends, portable battery-powered data loggers, sensor-signal digitizers, weigh-scale and load-cell readouts, and microcontroller-based instrumentation. Use it where channel count is small, sampling rate is moderate, and PCB real estate is at a premium. When designing with this ADC, place the decoupling capacitor directly between AVDD and GND, keep analog and digital ground returns separated until they join at the exposed pad, and respect the tACQ acquisition-time timing parameter when writing firmware. Driving the analog input from a low-impedance buffer maintains data-sheet linearity at high source resistances. This page synthesizes distributor pricing, drop-in alternatives, and practical design notes not found in the manufacturer datasheet to help procurement and design engineers evaluate the TS7003ITD833 for new designs and second-source risk mitigation.

USD $1,49 En stock

TS7221BILT

TS7221BILT - Single BiCMOS R2R uPower Comparator | STMicroelectronics

The STMicroelectronics TS7221BILT is a single BiCMOS rail-to-rail micropower comparator housed in a 5-pin SOT-23 (SOT-23-5) package, designed for space- and weight-critical designs. It is fully specified at 2.7 V, 5 V and 10 V operation, drawing only a few microamperes of supply current while delivering rail-to-rail input performance and an open-drain output stage. The 'B' grade denotes a tighter input offset voltage grade versus the 'A' suffix variant, while the 'I' temperature suffix indicates the -40C to +85C industrial operating range and 'LT' indicates SOT-23-5 tape-and-reel packaging. A comparator is an analog building block that compares two input voltages and produces a logic-level output indicating which is larger. Micropower comparators like the TS7221 occupy a position in the power-management/analog signal-chain hierarchy below op-amps but above simple logic gates, and are favoured for always-on battery-powered designs where quiescent current dominates total energy consumption. Within ST's broader comparator family, the TS7221 sits alongside the TS7222 (dual) and TS7223 (quad) as the single-channel foundation of the series. Key features include rail-to-rail input common-mode range, an open-drain output that allows wired-OR logic and level-shifting to any pull-up voltage, very low supply current typically well under 10 uA, and 5 V/10 V operation suitable for industrial sensor interfaces. The BiCMOS process combines CMOS input stages with bipolar output drive for a balance of low power and reasonable switching speed. Internal ESD protection on the inputs (HBM 2000 V per the datasheet absolute maximum ratings) further improves robustness in handheld and field-deployed equipment. Typical applications include battery-pack voltage monitoring, threshold detectors, window comparators, and signal conditioning in IoT sensor nodes, wearables, and portable medical devices. The small SOT-23-5 footprint also makes the device attractive for space-constrained designs such as hearing aids and remote keyless-entry keyfobs. When designing with this part, choose the pull-up resistor on the open-drain output based on the desired propagation delay versus power budget; lower pull-up resistance speeds up edges but increases static current when the output is LOW.

USD $0,78 En stock

TS931BILT

TS931BILT - 100kHz Rail-to-Rail Micropower Op Amp | STMicroelectronics

The STMicroelectronics TS931BILT is a single-channel CMOS operational amplifier in a SOT-23-5 package, featuring rail-to-rail output swing, micropower consumption, and operation down to 2.7 V single supply. As a member of the TS93x family (single/dual/quad variants), it delivers 100 kHz gain-bandwidth product while drawing only a few microamps of quiescent current, making it an excellent choice for battery-powered and portable applications. An operational amplifier (op-amp) is a high-gain DC-coupled electronic voltage amplifier with differential inputs and, typically, a single-ended output. Within the broader signal-conditioning hierarchy, op-amps sit between transducers/ADC front ends and downstream digital processing; rail-to-rail output variants extend the usable output swing to nearly both supply rails, maximizing dynamic range in low-voltage systems. Micropower CMOS op-amps like the TS931BILT optimize this topology for low-Iq operation, trading GBW and slew rate for extended battery life in handheld, IoT, and remote-sensor designs. Key specifications include a 2.7 V to 10 V supply range, 100 kHz GBW, rail-to-rail output (reaching 2.9 Vpp with RL = 100 kΩ at 3 V supply), CMOS input stage, and an operating temperature range of -40 °C to +105 °C. The SOT-23-5 package is among the smallest standard op-amp footprints, enabling compact PCB layouts in space-constrained designs. Architecturally, the TS931BILT uses a CMOS input stage with a class-AB output stage to deliver rail-to-rail output swing at low quiescent current. The 'B' suffix denotes the enhanced second-generation variant, offering improved offset and noise compared with the original TS931, while the 'I' in 'ILT' indicates the industrial temperature grade (-40 °C to +105 °C). Typical applications include battery-powered instrumentation, portable medical devices, sensor signal conditioning, active filters, and transducer interfaces. The micropower Iq makes it ideal for always-on circuits where sleep current must be minimized. When designing with this op-amp, note that the CMOS inputs have lower bias current than bipolar alternatives but may exhibit higher leakage at elevated temperatures. Decouple the supply with a 100 nF ceramic capacitor placed close to the VCC pin to suppress noise. This page synthesizes distributor pricing, drop-in alternatives within the same SOT-23-5 footprint, and practical design notes that go beyond the manufacturer datasheet, helping engineers select the right op-amp quickly.

USD $0,58 En stock

TS944IPT

TS944IPT - Quad Rail-to-Rail 1.2µA Op-Amp | STMicroelectronics

The STMicroelectronics TS944IPT is a quad CMOS-input operational amplifier delivering rail-to-rail output swing while consuming only 1.2 µA typical quiescent current per channel, packaged in a 14-pin TSSOP (Tape & Reel). It operates from a single 2.5 V to 10 V supply over the -40 °C to +85 °C industrial temperature range and provides a gain-bandwidth product of 10 kHz, making it ideal for ultra-low-power signal conditioning. An operational amplifier (op-amp) is a high-gain DC-coupled differential amplifier that uses external feedback components to set closed-loop gain, bandwidth, and transfer function. The TS944 belongs to the micropower CMOS op-amp family — a class of linear ICs that prioritize nano- to micro-amp quiescent current draw for battery-powered and energy-harvesting designs. Within the broader semiconductor hierarchy, it sits under: op-amp -> amplifier -> analog IC -> linear IC -> integrated circuit. Key features include four independent op-amp channels in one package, CMOS inputs delivering ultra-low input bias current, rail-to-rail output swing that maximizes dynamic range on low-voltage supplies, and 1.2 µA typical supply current per amplifier that enables years of runtime from small cells. The device is unity-gain stable and supports single-supply operation from 2.5 V to 10 V, simplifying designs that previously needed bipolar ±5 V rails. The TS944 architecture uses a CMOS input stage that achieves very low bias current while the class-AB output stage swings to within millivolts of both supply rails. This combination eliminates the need for input bias-current compensation in high-impedance sensor interfaces and lets designers operate the part directly from a single lithium cell or 3.3 V digital rail without sacrificing headroom. Typical applications include battery-powered sensor signal conditioning, portable medical monitors, IoT edge nodes, active filters, transducer pre-amplifiers, and any micropower analog front end where four amplifiers must fit in a small 14-pin TSSOP footprint. Designers should bypass supplies with 100 nF ceramic capacitors placed within 5 mm of VCC and avoid capacitive loads above 1 nF without an isolation resistor to prevent oscillation.

USD $0,92 En stock

TSA1005-40IFT

TSA1005-40IFT - 10-Bit 40MSPS Dual ADC | STMicroelectronics

The STMicroelectronics TSA1005-40IFT is a dual-channel, 10-bit resolution analog-to-digital converter (ADC) based on a pipelined architecture, sampling up to 40 MSPS in a 48-pin TQFP (7x7 mm) package. It uses a 0.25 µm deep sub-micron CMOS process, operates from a single 2.5 V analog supply, and supports an independent 2.5 V or 3.3 V CMOS output supply. A pipelined ADC is a high-speed converter architecture that resolves an analog input across multiple cascaded low-resolution stages, each driving a sample-and-hold amplifier and a flash sub-ADC. The pipeline allows new conversions to begin every clock cycle, achieving sample rates well above 100 MSPS while keeping per-stage hardware compact. Pipelined ADCs sit within the broader taxonomy: data converter -> ADC -> high-speed ADC -> pipelined ADC -> integrated circuit -> semiconductor. The TSA1005 belongs to a category often called "baseband IF sampling ADCs," used when analog signals need to be digitized near the antenna or sensor for downstream DSP. Key specifications include 1 GHz analog input bandwidth, an integrated track-and-hold amplifier per channel, common clocking for synchronous dual-channel sampling, and a multiplexed digital output mode. The device targets applications needing a low noise floor and high SFDR; SFDR (Spurious-Free Dynamic Range) measures how far the largest spurious tone sits below the fundamental when digitizing a pure sine wave, with higher values meaning cleaner spectra. The TSA1005 is engineered for very low noise floor, high SFDR, and good channel-to-channel isolation. Typical applications include medical ultrasound imaging, professional video processing, IF (intermediate frequency) sampling for communications receivers, instrumentation, and industrial non-destructive testing. Each application relies on the part's combination of 10-bit resolution at video-grade sample rates and dual-channel synchronous capture. When designing with this part, decouple both the 2.5 V analog and 2.5/3.3 V digital rails with 100 nF ceramic capacitors placed as close as possible to each supply pin. Route the analog inputs as 50 Ω controlled-impedance traces with the analog ground plane isolated from the digital return to minimize coupling. This page synthesizes distributor pricing, drop-in same-package alternatives, and practical PCB layout notes not found in the manufacturer datasheet alone. Information current as of 2026-10-15.

USD $10,25 En stock

TSA1203IF

TSA1203IF - Dual 12-bit 40MSPS ADC | STMicroelectronics

The STMicroelectronics TSA1203IF is a dual-channel, 12-bit, 40 MSPS analog-to-digital converter fabricated in a mainstream 0.25 µm CMOS process, housed in a 48-pin TQFP (7x7 mm) package. It integrates two simultaneous sample-and-hold amplifiers, a 1 GHz analog input bandwidth, and a built-in reference voltage, dissipating 230 mW at 40 Msps from a single 2.5 V supply. The CMOS output stage can be driven from an independent 2.5 V or 3.3 V rail, simplifying interfacing to both legacy and modern FPGA/ASIC logic families. An analog-to-digital converter (ADC) is a mixed-signal integrated circuit that converts a continuous-time, continuous-amplitude analog input into a discrete-time, discrete-amplitude digital code. Pipeline ADCs such as the TSA1203IF use a multi-stage switched-capacitor architecture to achieve high sampling rates while keeping per-stage power and die area modest, sitting within the broader hierarchy of data converters -> ADC -> high-speed pipeline ADC -> semiconductor. Dual-channel variants like this one are favored for diversity receivers, I/Q baseband sampling, and simultaneous multi-antenna digital beamforming because the two channels are sampled on a common clock edge, eliminating channel-to-channel skew. Key features include 1 GHz analog input bandwidth, SFDR of -68.3 dBc at 10 MHz input, multiplexed outputs for reduced pin count, common clocking between channels, and pin-to-pin compatibility with the dual 10-bit 20/40 MSPS TSA1005-20/40 and the dual 12-bit 20 MSPS TSA1204. The pipelined architecture combined with digital error correction yields clean 12-bit outputs at full clock rate without requiring complex external calibration at room temperature. Typical applications include cellular base station receivers, IF sampling for software-defined radio, medical imaging front-ends, and industrial ultrasound beamformers. The integrated reference and dual independent input channels also suit multi-channel data-acquisition cards for test and measurement instrumentation. When designing with this part, ensure the analog and digital grounds are joined only at a single point near the exposed pad, and that the analog supply is decoupled with both 0.1 µF ceramic and 10 µF bulk capacitance within 5 mm of the supply pins.

USD $8,20 En stock

TSA1204IFT

TSA1204IFT - 12-Bit 20MSPS Dual-Channel ADC | STMicroelectronics

The STMicroelectronics TSA1204IFT is a 12-bit resolution, dual-channel pipelined Analog-to-Digital Converter sampling up to 20 MSPS, packaged in a 48-pin TQFP (7x7 mm). The device operates from a single 2.5 V analog supply with an independent 2.5 V/3.3 V CMOS output stage supply, consuming only 95 mW per channel at 20 MSPS and scaling down adaptively at lower sampling rates. An Analog-to-Digital Converter (ADC) is a mixed-signal integrated circuit that converts continuous-time analog voltages into discrete digital codes at a specified sampling rate. Dual-channel pipelined ADCs belong to the broader hierarchy of data converter IC -> mixed-signal IC -> semiconductor, and they occupy the performance tier between successive-approximation (SAR) converters (slow, low-power, <5 MSPS) and high-speed flash converters (very fast, very high power). The TSA1204IFT targets moderate-bandwidth multi-channel systems where engineers need two synchronized channels without the cost of two discrete ADCs. Key features include a 1 GHz analog input bandwidth, an integrated Track-and-Hold amplifier, 11.2-bit effective number of bits (ENOB) at the Nyquist input frequency, and -81.5 dBc spurious-free dynamic range (SFDR) at Nyquist. The 0.25 micrometer CMOS process enables adaptive power consumption scaling from 0.5 MSPS to 20 MSPS, allowing the part to drop to lower power in standby. The CMOS outputs are pin-selectable between 2.5 V and 3.3 V logic levels, simplifying interface to FPGAs, ASICs, or microcontrollers in mixed-voltage systems. Typical applications include dual-channel digital oscilloscopes, intermediate-frequency (IF) signal processing in communications receivers, ultrasound imaging front-ends, and high-speed industrial data acquisition. The dual channel allows simultaneous sampling of in-phase and quadrature (I/Q) baseband signals, or two channels of a multi-channel instrumentation system. When designing with the TSA1204IFT, place the analog and digital ground returns on a split ground plane joined under the ADC, use wide PCB traces for the analog supply pins, and decouple each supply pin with 100 nF and 10 uF capacitors placed as close as possible to the device. The exposed pad of the TQFP should be soldered to a ground plane for thermal and electrical performance. This page synthesizes distributor pricing, drop-in same-family alternatives, and practical design notes not collected in any single manufacturer datasheet revision, giving engineers a one-stop reference for sourcing and second-sourcing the TSA1204IFT.

USD $5,40 En stock

TSA1401IF

TSA1401IF - 14-bit 20MSPS 85mW ADC | STMicroelectronics

The STMicroelectronics TSA1401IF is a 14-bit, 20 MSPS pipelined analog-to-digital converter that consumes only 85 mW at full sampling rate. Housed in a 48-pin TQFP (7x7 mm) package, the part targets low-power imaging and instrumentation applications where conventional 14-bit ADCs exceed the system thermal budget. According to the STMicroelectronics datasheet, the TSA1401IF implements ST's OPTIMWATT architecture to dynamically scale internal bias currents with clock rate, enabling designers to lower the sampling clock for slower channels and reduce overall system power. An ADC (analog-to-digital converter) is a mixed-signal integrated circuit that quantizes a continuous-time analog input into a discrete N-bit binary code at a programmable sample rate. TSA1401IF sits in the high-speed, mid-resolution segment of the ADC taxonomy (ADC -> pipelined ADC -> high-speed ADC -> data converter -> mixed-signal IC). Pipelined ADCs use multiple low-resolution flash stages interleaved with residue gain and digital correction to achieve both high conversion rate and moderate resolution; this architecture dominates the 10-100 MSPS / 10-14 bit space used in CCD imaging, ultrasound front ends, and digital oscilloscope channels. Key specifications include 14-bit resolution, 20 MSPS maximum sample rate, 85 mW typical power dissipation at full speed, single 5 V analog supply, single +3 V to +5 V digital supply, 48-pin TQFP (7x7 mm) package, industrial temperature range (-40 C to +85 C), and an external reference input. The pipelined converter includes self-calibrated digital error correction that typically holds DNL within 0.5 LSB and INL within 1.0 LSB across the industrial temperature range. Differential analog inputs are AC-coupled through on-chip clamp protection, supporting full-scale ranges from 1 Vp-p to 2 Vp-p driven by op-amp or transformer front ends. Typical applications include high-end infrared imaging for surveillance and thermography, X-ray medical imaging front ends, professional CCD camera front ends for broadcast and industrial vision, document scanners and digital copiers, and test instrumentation including digital storage oscilloscopes and arbitrary waveform recorders. Designers value the TSA1401IF in battery-powered portable imaging systems where total BOM power directly limits field runtime. When designing with the TSA1401IF, the analog input must be driven from a low-impedance differential source; designers typically use a transformer (for single-ended to differential conversion) or a fully-differential op-amp such as the THS4503. Decoupling must include 10 uF tantalum plus 100 nF ceramic on each supply pin, placed within 5 mm of the package. The clock line should be routed with 50 ohm controlled impedance and kept away from analog signal traces. This page synthesizes distributor pricing, identical-footprint drop-in alternatives from the same STMicroelectronics family, and practical layout notes that complement the official datasheet.

USD $10,95 En stock

TSA7887ARMZ

TSA7887ARMZ - 12-Bit 125ksps 2-Ch SAR ADC | Silicon Labs

The Silicon Labs TSA7887ARMZ is a 12-bit, 125 ksps, 2-channel successive-approximation register (SAR) analog-to-digital converter with a serial SPI/QSPI/MICROWIRE-compatible output, an internal 2.5V reference, and an 8-pin MSOP package. Originally developed by Touchstone Semiconductor (later acquired and second-sourced by Silicon Labs), the device operates from a 2.7V to 5.25V analog supply and is targeted at low-power instrumentation that demands sub-microamp standby current and 12-bit true conversion precision. An SAR ADC (successive-approximation-register analog-to-digital converter) is a type of data converter that uses a binary-search algorithm against an internal capacitive DAC to resolve an analog input one bit per conversion clock cycle. It belongs to the broad family of analog-to-digital converters (ADCs), which itself is part of the data-converter hierarchy inside mixed-signal and signal-chain integrated circuits. The SAR architecture is favored over delta-sigma and pipeline ADCs when low-latency deterministic conversion, small package size, and moderate sample rates (tens to hundreds of ksps) are required, particularly in multiplexed multi-channel systems. Key features of the TSA7887ARMZ include an internal 2.5V reference (selectable externally via the REF pin), a 2-channel analog input multiplexer, true 12-bit performance with no missing codes, a 125 ksps maximum throughput, low power dissipation (typically under 2.5 mW at 3V/100 ksps), and automatic power-down between conversions that drops supply current below 1 microampere. The device uses an external clock for the serial interface and supports both unipolar single-ended and pseudo-differential input configurations. The device leverages a charge-redistribution SAR core with input transient suppression and an automatic input common-mode settling window, which makes it tolerant of source-impedance variations when channels are switched. Combined with the internal precision reference, this means the TSA7887ARMZ can replace an external ADC + reference + op-amp buffer chain in many space-constrained designs. Typical applications include portable and battery-powered data loggers, industrial process-control sensor front-ends (thermocouple, RTD, strain-gauge bridges), handheld instrumentation, and multiplexed 4-20 mA loop monitors. Designers also use it in optical sensor modules and consumer battery chargers where periodic current/voltage telemetry is required. When designing with this part, size the input RC network and reference bypass capacitors per the datasheet's application circuit - inadequate decoupling is the most common cause of last-2-LSB noise and gain drift in SAR circuits. Consider the MAX1276CTC+ from Maxim's family as a drop-in 8-pin MSOP alternative if higher conversion speed is needed. This page synthesizes distributor pricing, drop-in MSOP-8 alternatives, and practical design notes not found in the manufacturer datasheet alone.

USD $3,10 En stock

TSA7887ARMZ-REEL

TSA7887ARMZ-REEL - 12-bit 125ksps 2-ch SAR ADC | Silicon Labs

The Silicon Labs TSA7887ARMZ-REEL is a 12-bit, 125 ksps, 2-channel successive-approximation-register (SAR) analog-to-digital converter housed in an 8-pin MSOP package with a single +2.7V to +5.25V supply. The 'RMZ' suffix indicates the MSOP-8 (RM) tape-and-reel (REEL) packaging variant. Originally designed by Touchstone Semiconductor as a pin-compatible second source for the ADI AD7887, the part features an internal +2.5V reference, internal wideband track-and-hold, and serial I/O compatible with SPI, MICROWIRE, QSPI, and DSP ports. Typical supply current is 0.85 mA at full throughput, qualifying the part as a micropower converter for battery and loop-powered systems. A SAR ADC is a successive-approximation-register analog-to-digital converter, a converter topology that uses a binary-search algorithm and a capacitive charge-redistribution DAC to resolve each conversion in N clock cycles for an N-bit result. SAR converters sit in the data-converter hierarchy between flash converters (fastest, lowest resolution) and sigma-delta converters (highest resolution, slowest). They are valued for deterministic latency, low power consumption, and the ability to drive them directly from a microcontroller or DSP serial port without an external reference or high-speed clock. Key features include a 500 ns input track-and-hold acquisition time, an internal +2.5V reference that eliminates external reference components, and a single-ended analog input structure that supports one or two channels multiplexed to the ADC core. Throughput scales with the external serial clock up to 125 ksps at 2 MHz SCLK. The wide supply range allows direct interfacing to 3.3V and 5V microcontrollers, while the small MSOP-8 footprint suits space-constrained sensor readouts and portable instrumentation. Typical applications include transducer and sensor signal conditioning, battery-powered data loggers, industrial process control loops with 4-20 mA interfaces, and portable medical or instrumentation front-ends. The combination of low power, internal reference, and small footprint also suits loop-powered 4-20 mA smart transmitters where every milliwatt and square millimeter matters. When designing with this device, ensure the analog input stays within the input common-mode range specified by the supply, and add a small RC anti-alias filter on each input to limit out-of-band noise folding into the conversion result.

USD $2,55 En stock

TSA7887ARZ

TSA7887ARZ - 12-bit 125ksps 2-ch SAR ADC | Silicon Labs SOIC-8

The Silicon Labs TSA7887ARZ is a micropower, 2-channel, 125-ksps, serial-output 12-bit successive-approximation analog-to-digital converter housed in an 8-pin SOIC (RZ) package. It integrates a precision 2.5V internal reference, supports a single 2.7V to 5.25V analog supply, and consumes only 3.2 mW at 125 ksps with full power-down modes reducing quiescent current to sub-microamp levels. The part accepts true bipolar input ranges via flexible reference configuration. An ADC (analog-to-digital converter) is a data-acquisition integrated circuit that samples continuous analog voltages and converts each sample into a discrete digital code for processing by a microcontroller, DSP, or FPGA. Successive-approximation-register (SAR) ADCs use a binary-search algorithm against a precision DAC and reference to resolve one bit per clock cycle, achieving a deterministic conversion time of N cycles for N-bit resolution. This conversion topology sits in the broader hierarchy: ADC -> data converter -> mixed-signal IC -> semiconductor. SAR ADCs are prized for low latency, deterministic behavior, and absence of pipeline-latency artifacts. Key features include 12-bit resolution with no missing codes, an integrated 2.5V reference, an SPI-/QSPI-/MICROWIRE-compatible serial interface, true-differential analog inputs, software-configurable unipolar/bipolar input ranges, and a hardware-power-down pin. The internal reference can be overdriven with an external source, simplifying ratiometric measurements such as bridge-sensor readings. An on-chip oscillator eliminates the need for an external clock source in cost-sensitive designs. Architecturally, the TSA7887ARZ uses a charge-balancing switched-capacitor DAC front end that converts the input voltage into a digital code across 12 SAR clock cycles. The auto-calibration cycle corrects offset and gain errors on every conversion, eliminating drift across temperature and supply variations. Serial data is clocked out MSB-first and conforms to standard SPI modes, allowing direct connection to most modern microcontrollers without glue logic. Typical applications include portable instrumentation, battery-powered data loggers, industrial process-control loops, sensor conditioning modules, and panel-meter front ends. The low power draw makes it particularly attractive for solar- or energy-harvesting systems where average current budget is critical. The integrated reference and 2-channel mux further reduce total BOM and PCB area in compact designs. When designing with this part, ensure the analog supply is decoupled with a 1uF ceramic plus a 10uF bulk capacitor placed within 5 mm of the AVDD pin. Reference-pin decoupling is equally critical - a 0.1uF ceramic directly across REF should be used. Avoid switching digital traces under the analog front end to preserve SNR. This page synthesizes distributor pricing, drop-in alternatives, and practical design notes not found in the manufacturer datasheet alone.

USD $1,85 En stock
