MSP430FR5994IPMR vs MSP430FR5989IPMR Comparación
Comparación detallada lado a lado de MSP430FR5994IPMR por Texas Instruments y MSP430FR5989IPMR por Texas Instruments. Compare las especificaciones clave, los parámetros eléctricos, el encapsulado, el estado del ciclo de vida, los precios y la disponibilidad para determinar el mejor componente para los requisitos de su diseño.
Texas Instruments
MSP430FR5994IPMR - 16MHz 256KB FRAM MCU | Texas Instruments
MSP430FR5994IPMR ✓ ActivoTexas Instruments

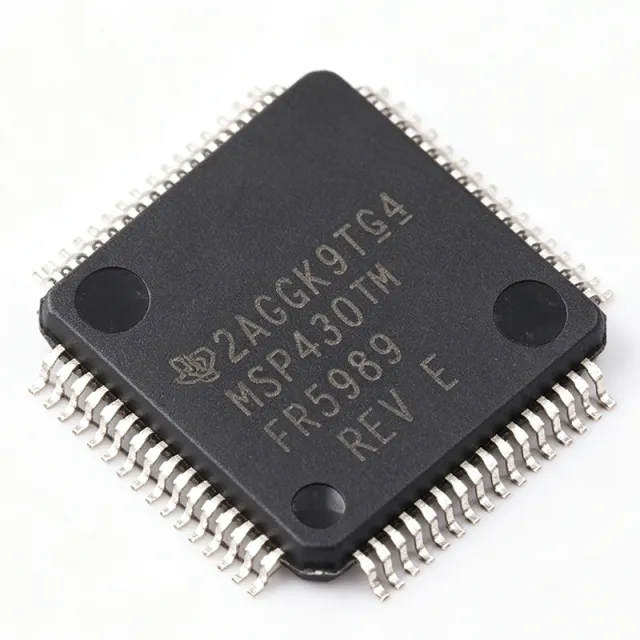

MSP430FR5989IPMR - 128KB FRAM 16MHz Rotary Sensing MCU | TI
MSP430FR5989IPMR ✓ ActivoComparación de especificaciones
| Parámetro | MSP430FR5994IPMR | MSP430FR5989IPMR |
|---|---|---|
| Marca | Texas Instruments | Texas Instruments |
| Categoría | Microcontrollers | Microcontrollers |
| Estado del ciclo de vida | Activo | Activo |
| Estado del stock | In Stock | In Stock |
| Precio unitario (USD) | $4,21 | $6,30 |
| Core | MSP430 CPUXV2 16-bit RISC | — |
| Frecuencia de reloj máxima | 16 MHz | 16 MHz |
| Program Memory | 256 KB FRAM | — |
| SRAM | 8 KB | — |
| Ancho del bus de datos | 16 bit | — |
| ADC Resolution | 12 bit | 12-bit |
| Hardware Accelerators | LEA (Low-Energy Accelerator), AES256 | — |
| Communication Interfaces | UART, SPI, I2C | — |
| DMA Channels | Yes (DMA controller) | — |
| Comparators | Yes | — |
| Timers | Yes (Timer peripherals) | — |
| Tensión de alimentación | [DATA_NEEDED: supply voltage range] | — |
| Temperatura de funcionamiento | [DATA_NEEDED: operating temperature range] | -40C to +85C |
| Encapsulado | 64-LQFP (10x10 mm, PM) | 64-LQFP (PM) 10x10 mm |
| Tipo de montaje | Surface Mount | Surface Mount |
| Series | MSP430FR599x FRAM | — |
| Core Processor | — | MSP430 CPUXV2 16-bit RISC |
| Core Size | — | 16-bit |
| Program Memory Type | — | FRAM |
| Program Memory Size | — | 128 KB (128K x 8) |
| RAM Size | — | 2 KB |
| Supply Voltage Range | — | 1.8 V to 3.6 V |
| Active Mode Current | — | approx. 100 uA/MHz |
| Standby Current (LPM3 with VLO) | — | approx. 0.4 uA |
| Peripherals | — | Extended Scan Interface 2, AES accelerator, RTC, DMA, 32-bit hardware multiplier, comparator |
| Number of I/O | — | [DATA_NEEDED: number of GPIO] |
| Debug Interface | — | JTAG, Spy-Bi-Wire (2-wire) |
| Packaging | — | Tape & Reel (R suffix) |
