TCAN337G vs SN65HVD230QDRQ1 Comparación
Comparación detallada lado a lado de TCAN337G por Texas Instruments y SN65HVD230QDRQ1 por Texas Instruments. Compare las especificaciones clave, los parámetros eléctricos, el encapsulado, el estado del ciclo de vida, los precios y la disponibilidad para determinar el mejor componente para los requisitos de su diseño.
Texas Instruments

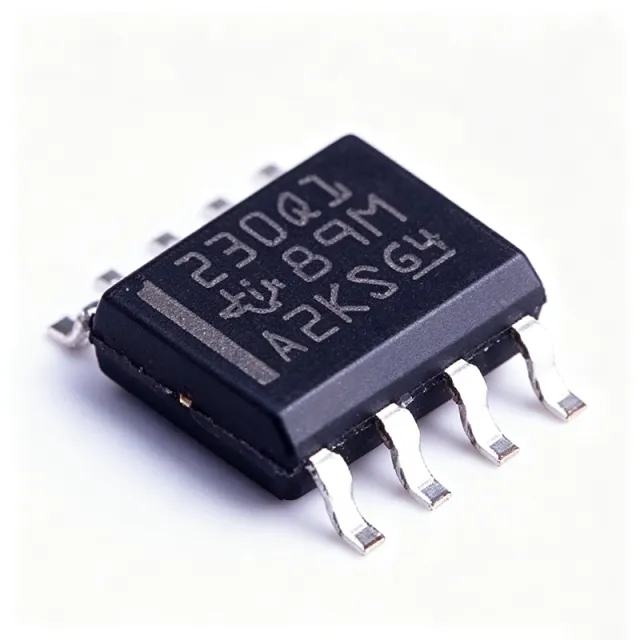

SN65HVD230QDRQ1 - 3.3V CAN Transceiver AEC-Q100 | Texas Instruments
SN65HVD230QDRQ1 ✓ ActivoComparación de especificaciones
| Parámetro | TCAN337G | SN65HVD230QDRQ1 |
|---|---|---|
| Marca | Texas Instruments | Texas Instruments |
| Categoría | Interface ICs | Interface ICs |
| Estado del ciclo de vida | Activo | Activo |
| Estado del stock | In Stock | In Stock |
| Precio unitario (USD) | $0,55 | $1,11 |
| Tensión de alimentación | 3.3 V single supply | 3.3 V |
| Signaling Rate (CAN FD) | Up to 5 Mbps (G version) | — |
| Protocol Standard | ISO 11898-2 High Speed CAN | — |
| Bus Fault Protection | -58 V to +58 V | — |
| Temperatura de funcionamiento | -40C to +125C | — |
| Encapsulado | SOT-23-8 (DCN) | 8-SOIC (D), 3.90 mm width |
| Tipo de montaje | Surface Mount | Surface Mount |
| Número de pines | 8 | — |
| Operating Modes | Normal, Standby, Shutdown | — |
| Dominant Timeout | Yes (prevents bus lock-up) | Yes |
| Apagado térmico | Yes | — |
| I/O Logic Level | 3.3 V logic | — |
| Low Power Standby Current | [DATA_NEEDED: standby current value] | — |
| Common-Mode Voltage Range | [DATA_NEEDED: common-mode range] | — |
| Package Option | SOIC-8 (D) also available in TCAN33x family | — |
| Estado RoHS | Compliant | — |
| Transceiver Type | — | CAN (Half-duplex, 1 driver / 1 receiver) |
| Velocidad de datos | — | Up to 1 Mbps |
| Standby Mode Current | — | 370 uA (typical) |
| Bus Pin ESD Protection | — | Exceeds 15 kV HBM |
| Device ESD Rating | — | Exceeds 2000 V per MIL-STD-883 |
| Protocol Compatibility | — | ISO 11898-2 High Speed CAN Physical Layer |
| Standby Mode | — | Yes (RS pin controlled) |
| Slew Rate Control | — | Yes (RS pin) |
| Unpowered Node Behavior | — | Does not disturb the bus |
| Rango de temperatura de funcionamiento | — | -40C to +125C |
| AEC-Q100 Qualification | — | Qualified (Automotive Catalog) |
| Packaging | — | Tape & Reel (DR) |
