TMS320F28335PGFA vs TMS320F28335PTPQ Comparación
Comparación detallada lado a lado de TMS320F28335PGFA por Texas Instruments y TMS320F28335PTPQ por Texas Instruments. Compare las especificaciones clave, los parámetros eléctricos, el encapsulado, el estado del ciclo de vida, los precios y la disponibilidad para determinar el mejor componente para los requisitos de su diseño.
Texas Instruments

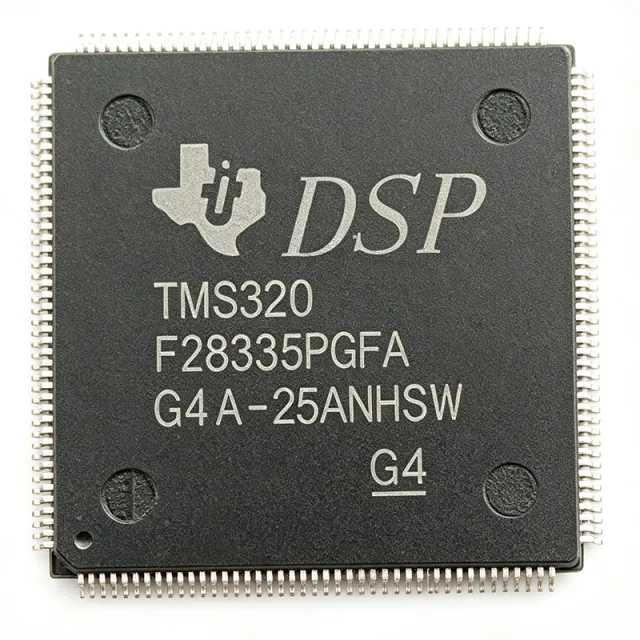

TMS320F28335PGFA - 150MHz 32-bit C2000 DSC MCU | Texas Instruments
TMS320F28335PGFA ✓ ActivoTexas Instruments
TMS320F28335PTPQ - 150MHz C2000 DSC MCU, 512KB Flash | TI
TMS320F28335PTPQ ✓ ActivoComparación de especificaciones
| Parámetro | TMS320F28335PGFA | TMS320F28335PTPQ |
|---|---|---|
| Marca | Texas Instruments | Texas Instruments |
| Categoría | Microcontrollers | Microcontrollers |
| Estado del ciclo de vida | Activo | Activo |
| Estado del stock | In Stock | In Stock |
| Precio unitario (USD) | $14,20 | $35,20 |
| Core | C28x (C2000 Delfino) | — |
| Ancho del bus de datos | 32 bit | — |
| Frecuencia de reloj máxima | 150 MHz (150 MIPS) | 150 MHz |
| Floating-Point Unit | Yes (single-precision FPU) | — |
| Flash Memory | 512 KB (256K x 16) | 512KB (256K x 16) |
| SRAM | 68 KB | 68KB |
| ADC Resolution | 12 bit | 12 bit |
| ADC Channels | up to 16 | 16 |
| PWM Outputs | 18 (including HRPWM) | Up to 18 |
| Communication Interfaces | CAN, SPI, SCI (UART), I2C, McBSP | — |
| External Memory Interface | EMIF | Yes (EMIF) |
| Core Supply Voltage | 1.9 V | 1.9 V |
| I/O Supply Voltage | 3.3 V | 3.3 V |
| Typical Power Consumption | approx. 300 mW at full speed | — |
| Temperatura de funcionamiento | -40C to +85C | -40C to +125C |
| Encapsulado | 176-LQFP (24x24 mm, PGF) | 176-HLQFP (PTP), 24x24 mm |
| Tipo de montaje | Surface Mount | Surface Mount |
| Process Technology | TI 180 nm static CMOS | — |
| Core Processor | — | C28x C2000 Delfino |
| Core Size | — | 32-Bit |
| Processing Performance | — | 150 MIPS |
| Floating Point Unit | — | Yes (hardware FPU) |
| DMA Channels | — | 6 |
| Qualification | — | AEC-Q100 Grade 1 (automotive) |
| Safety Features | — | Watchdog timer, code security module, real-time interrupt |
