IRFP2907PBF vs IRFB4110PBF 比較
詳細な並列比較: IRFP2907PBF メーカー: Infineon および IRFB4110PBF メーカー: Infineon。主要仕様、電気的特性、パッケージ、ライフサイクルステータス、価格、在庫状況を比較して、設計要件に最適な部品を判断してください。
仕様比較
| パラメータ | IRFP2907PBF | IRFB4110PBF |
|---|---|---|
| ブランド | Infineon | Infineon |
| カテゴリ | MOSFETs | MOSFETs |
| ライフサイクル状態 | 有効 | 有効 |
| 在庫状況 | In Stock | In Stock |
| 単価（USD） | $2.45 | $1.55 |
| Manufacturer | Infineon Technologies (formerly International Rectifier) | — |
| Part Number | IRFP2907PBF | — |
| Technology | HEXFET Stripe Planar DMOS (N-Channel) | HEXFET (planar DMOS) |
| Drain-to-Source Voltage (V_DSS) | 75 V | — |
| Continuous Drain Current (I_D) at T_C = 25 C | 209 A | — |
| Static Drain-to-Source On-Resistance (R_DS(on)) | 4.5 mOhm at V_GS = 10 V | — |
| Power Dissipation (P_D) at T_C = 25 C | 470 W | — |
| Total Gate Charge (Q_g) | 410 nC | — |
| Maximum Junction Operating Temperature | +175 C | — |
| Package / Mounting Type | TO-247AC (Through Hole) | — |
| ピン数 | 3 (Gate, Drain, Source) | — |
| RoHS Compliance | Yes (Pb-free) | — |
| Avalanche Rated | Yes (repetitive avalanche rated) | — |
| Body Diode | Integral (no external anti-parallel diode required) | — |
| Lead-Free | Yes | Yes (PBF suffix denotes Pb-free) |

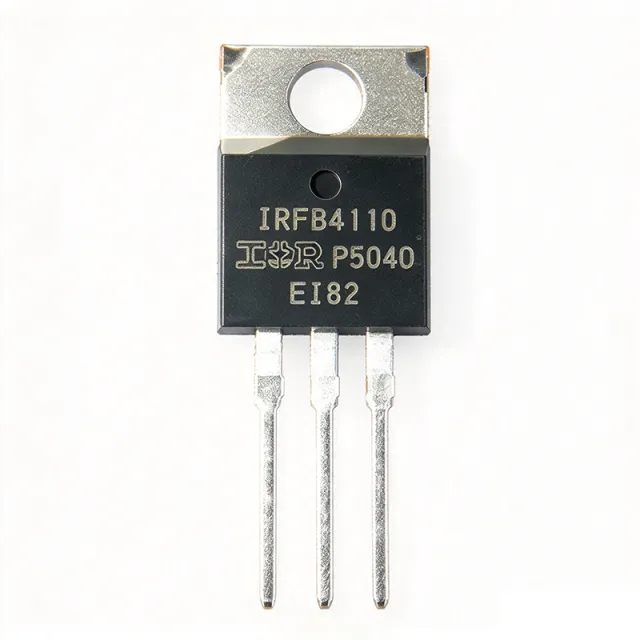

| トランジスタタイプ | — | N-Channel MOSFET |
| Drain-Source Voltage (VDS) | — | 100 V |
| Continuous Drain Current (ID) at TC=25°C | — | 120 A (bond-wire limited) |
| Pulsed Drain Current (IDM) | — | [DATA_NEEDED: pulsed drain current] |
| Gate-Source Voltage (VGS) max | — | ±20 V |
| Gate Threshold Voltage (VGS(th)) | — | [DATA_NEEDED: VGS(th) typical/min/max] |
| On-Resistance RDS(on) max at VGS=10V | — | 4.5 mΩ |
| On-Resistance RDS(on) typ at VGS=10V | — | 3.7 mΩ |
| Power Dissipation (PD) at TC=25°C | — | 370 W |
| 動作接合温度 | — | -55 °C to +175 °C |
| パッケージ | — | TO-220AB (through-hole) |
| 実装タイプ | — | Through Hole |
| RoHS ステータス | — | Compliant (Pb-free suffix) |
