SC1112 - Raspberry Pi 5 8GB SBC, 2.4GHz Cortex-A76 | Raspberry Pi | Edge AI & IoT
MPN: SC1112 β Active| Qty | Unit Price | Extended |
|---|---|---|
| Contact us for volume pricing | ||
Drop-in alternatives for SC1112 β same package, pin-to-pin compatible. Different-package parts requiring PCB rework are excluded.
Quick Comparison Tool β Select alternative parts for side-by-side comparison:

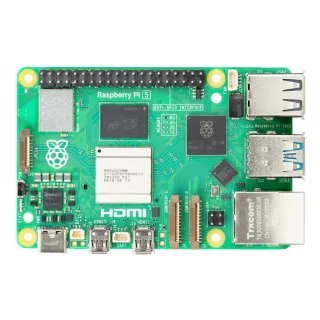

SC1111
β Drop-Inβ In Stock
$68.56 / Unit
View Datasheet βSC1110
β Drop-In β οΈ εζ°εΎ ιͺθ―π Reference alternative (not in catalog)
SC1113
β Drop-In β οΈ εζ°εΎ ιͺθ―β In Stock
Contact for price
View Datasheet βORANGEPI5-16G
β‘ Same Package β οΈ εζ°εΎ ιͺθ―π Reference alternative (not in catalog)
CM5102032
β‘ Same Package β οΈ εζ°εΎ ιͺθ―π Reference alternative (not in catalog)
SC1112 Maximum Ratings & Electrical Characteristics
| Product Series | Raspberry Pi 5 |
| MPN | SC1112 |
| Memory Capacity | 8GB |
| Processor | 64-bit quad-core Arm Cortex-A76, 2.4 GHz (Broadcom BCM2712) |
| CPU Performance | 2-3x increase in CPU performance compared to Raspberry Pi 4 |
| Form Factor | Full-size Raspberry Pi SBC, 85.6 x 56.5 mm |
| SoC Origin | In-house designed silicon (Raspberry Pi RP1/BCM2712 platform) |
| GPIO | Standard 40-pin GPIO header |
| OS Support | Raspberry Pi OS, Ubuntu, and other Linux distributions |
SC1112 Pin Configuration
| Pin 1 | 3V3 β 3.3V power rail for HATs and peripherals |
| Pin 2 | 5V β 5V power rail directly from the supply |
| Pin 3 | GPIO2 (SDA1) β I2C1 data line |
| Pin 4 | 5V β 5V power rail |
| Pin pin 5 | GPIO3 (SCL1) β I2C1 clock line |
| Pin 6 | GND β Ground |
| Pin 8 | GPIO14 (TXD) β UART transmit |
| Pin 10 | GPIO15 (RXD) β UART receive |
| Pin 19 | GPIO10 (MOSI) β SPI0 master-out/slave-in |
| Pin 21 | GPIO9 (MISO) β SPI0 master-in/slave-out |
| Pin 23 | GPIO11 (SCLK) β SPI0 serial clock |
| Pin 27 | GPIO0 (ID_SD) β HAT EEPROM ID data (I2C0) |
Safe Operating Area (SOA) & Thermal Characteristics
No official SOA curve available for this digital IC. Always operate within absolute maximum ratings specified in the datasheet. Ensure adequate cooling and derate as needed.
Typical Applications
SC1112 is suitable for 6 applications: Edge AI Inference, Industrial IoT Gateway, Desktop Computing / Thin Client, Robotics Control, Home Media Server / NAS, Test & Measurement / Data Logger.
Edge AI Inference
The SC1112's 2.4GHz quad-core Cortex-A76 and 8GB memory pool make it well suited to running compact neural network models such as MobileNet-class image classifiers or object detection pipelines directly on the device. The 8GB capacity allows larger model weights and input buffers to reside in RAM, and the 40-pin GPIO header connects sensors and actuators for closed-loop vision systems. Per the official Raspberry Pi documentation, the Pi 5's CPU uplift of two to three times over Raspberry Pi 4 translates directly into faster per-frame inference for CPU-bound workloads.
Recommended
Industrial IoT Gateway
As an industrial IoT gateway, the Raspberry Pi 5 8GB aggregates fieldbus, Modbus, and MQTT traffic between shop-floor sensors and cloud platforms. The 8GB memory supports multiple containerized protocol converters running side by side, while the 40-pin GPIO header interfaces with relay and sensor HATs. Ethernet networking plus the standard Raspberry Pi OS toolchain shortens integration time versus bespoke gateways. Use a DIN-rail enclosure and industrial-grade power supply for field deployment, and verify the exact Ethernet and wireless specifications in the official Raspberry Pi 5 documentation.
Recommended
Desktop Computing / Thin Client
The Raspberry Pi 5 SC1112 serves as a low-power desktop computer or thin client for office, education, and digital-signage environments. Its 8GB RAM comfortably supports web browsing with many tabs, office productivity suites, and multi-monitor desktop sessions. Per the official Raspberry Pi product brief, the Pi 5 was engineered in-house for full-size desktop-class use with two to three times the CPU performance of Raspberry Pi 4. For best results, pair it with the official power supply and an active cooler to sustain peak CPU clocks under desktop load.
Recommended
Robotics Control
Robotics platforms benefit from the SC1112's combination of compute and I/O: the quad-core Cortex-A76 runs ROS 2 nodes, sensor fusion, and path-planning while the 40-pin GPIO header drives motor controllers and reads encoders. The 8GB memory pool holds map data and vision pipelines without swapping. The broad Raspberry Pi accessory ecosystem - camera modules, servo HATs, and motor driver boards - integrates with standard Raspberry Pi OS images. Estimated: CPU headroom of 2-3x over Raspberry Pi 4 allows real-time control loops to coexist with perception stacks on one board.
Recommended
Home Media Server / NAS
With 8GB of RAM and desktop-class CPU performance, the Raspberry Pi 5 SC1112 operates as a home media server, network-attached storage frontend, or Plex/Jellyfin host. Memory buffering smooths transcode bursts and multi-client streaming, and the Pi 5's in-house silicon provides modern I/O bandwidth for external storage. Consult the official Raspberry Pi 5 documentation for exact USB and storage interface capabilities, which are not detailed in the data on this page. Add an SSD via the appropriate interface rather than relying on SD card storage for sustained read/write media workloads.
Recommended
Test & Measurement / Data Logger
The SC1112 functions as a networked data acquisition and logging node: high-rate sensor sampling over the GPIO/serial interfaces with local buffering in the 8GB memory, then batch upload to a historian or cloud database. The 2.4GHz Cortex-A76 sustains timestamping and preprocessing that earlier Raspberry Pi models offloaded to a PC. Using Python and the standard Raspberry Pi OS stack, engineers can deploy logging pipelines quickly, and the standard form factor fits existing Raspberry Pi 4 enclosures and HAT stacks. Estimated: the Pi 5 generation's performance uplift reduces sample-dropout risk versus Raspberry Pi 4 at equivalent sampling rates.
Recommended
Recommended Products Summary
Engineering reference data for SC1112 β comparison, design guidance, and compliance information.
Selection Guide
Comparison with Alternatives
| Parameter | This Product | SC1111 | SC1113 | ORANGEPI5-16G |
|---|---|---|---|---|
| Package / Form Factor | Full-size Raspberry Pi 5, 85.6 x 56.5 mm, 40-pin GPIO | identical Raspberry Pi 5 form factor | identical Raspberry Pi 5 form factor | ~85 x 56 mm, different connector layout |
| Brand | Raspberry Pi | Raspberry Pi | Raspberry Pi | Orange Pi (Shenzhen Xunlong) |
| RAM | 8GB | 8GB | 4GB | 16GB |
| CPU | 64-bit quad-core Arm Cortex-A76, 2.4 GHz (BCM2712) | same quad-core Cortex-A76, 2.4 GHz | same quad-core Cortex-A76, 2.4 GHz | Rockchip RK3588S octa-core |
| CPU Performance vs Pi 4 | 2-3x faster (per official Raspberry Pi documentation) | 2-3x faster | 2-3x faster | [DATA_NEEDED] |
| GPIO Header | Standard 40-pin Raspberry Pi GPIO | Standard 40-pin (identical) | Standard 40-pin (identical) | 40-pin, different pin mapping |
| OS Ecosystem | Raspberry Pi OS (primary), Ubuntu, other Linux | identical | identical | Armbian/Debian-based images |
| Drop-in Compatibility with SC1112 | - | Yes - same board, RAM only differs | Yes - same board, RAM only differs | No - functional alternative only |
| Power | 5V USB-C, higher current than Pi 4 (exact rating: [DATA_NEEDED]) | same power requirement | same power requirement | [DATA_NEEDED] |
Key Differentiators
- 8GB memory, a mid-tier Raspberry Pi 5 configuration (vs SC1111 (4GB))
- 2-3x CPU performance over Raspberry Pi 4 via 2.4GHz Cortex-A76 (vs Raspberry Pi 4 series)
- Drop-in mechanical compatibility across the Pi 5 series (vs SC1111 / SC1113 / SC1110)
- Full-size ecosystem vs module form factor (vs CM5102032 (Compute Module 5))
Design Notes
The Raspberry Pi 5 generation draws more power under sustained CPU load than Raspberry Pi 4 due to the 2.4GHz Cortex-A76 cores and higher memory bandwidth. Use the official Raspberry Pi 5 power supply (5V USB-C) rated per the official Raspberry Pi 5 documentation, and avoid underspecified phone chargers: brownouts under peak load are a leading cause of SD card filesystem corruption on Pi-class boards. When powering via a HAT or backplane, ensure the 5V rail can carry the combined load of the board plus peripherals.
Estimated: the Pi 5's higher sustained CPU power versus Pi 4 means passive cooling alone may not sustain peak 2.4GHz clocks in enclosed spaces. Plan for the official Raspberry Pi Active Cooler or a heatsink with airflow for continuous heavy workloads such as AI inference or transcoding. Verify ambient temperature derating against the official documentation before finalizing enclosure design.
Note that 'SC1112' is shared with an unrelated Semtech triple linear controller IC (visible on aggregator sites such as alldatasheet.com). When sourcing, always qualify the part with the brand 'Raspberry Pi' and the descriptor 'Raspberry Pi 5 16GB' to avoid receiving the wrong component. Also verify 40-pin GPIO function changes from Raspberry Pi 4 before reusing existing HATs, and consult the official Raspberry Pi 5 documentation for pin function updates.
The SC1112 retains the full-size Raspberry Pi form factor, so enclosures, HAT stacking hardware, and DIN-rail brackets designed for Raspberry Pi 4 generally fit mechanically. Confirm clearance for the taller Pi 5 components and active cooler in tight enclosures, and use standoffs to prevent GPIO header stress from cable pull.
Compliance Information
Compliance declarations for SC1112 are not included in the provided verified data. Raspberry Pi publishes Declarations of Conformity (CE/UKCA and similar) on its official compliance documentation pages; obtain the current declarations directly from Raspberry Pi before specifying in regulated products.
