EP1S60F1020I6GB vs EP1S60F1020C5N Comparison
Detailed side-by-side comparison of EP1S60F1020I6GB by Intel and EP1S60F1020C5N by Intel. Compare key specifications, electrical parameters, packaging, lifecycle status, pricing, and availability to determine the best component for your design requirements.
Intel

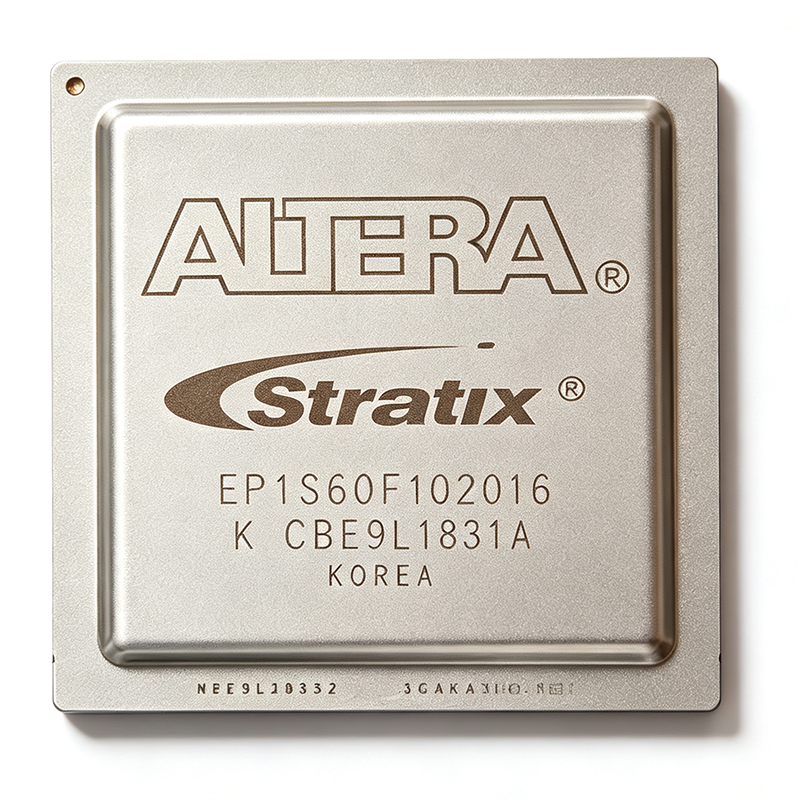

EP1S60F1020I6GB - Stratix FPGA 57K LE, 1020-BGA, Industrial | Intel (Altera)
EP1S60F1020I6GB Obsolete
Specification Comparison
| Parameter | EP1S60F1020I6GB | EP1S60F1020C5N |
|---|---|---|
| Brand | Intel | Intel |
| Category | FPGA & CPLD | FPGA & CPLD |
| Lifecycle Status | Obsolete | Nrnd |
| Stock Status | In Stock | In Stock |
| Unit Price (USD) | $4,200.00 | $2,050.00 |
| Family | Stratix (First-generation) | Stratix |
| Logic Elements | 57,120 | β |
| Approximate Logic Array Blocks | 6,570 | β |
| Embedded Memory Bits | 5,215,104 | β |
| Maximum User I/O | 773 | β |
| Package | 1020-ball FCBGA (33 x 33 mm, 1.0 mm pitch) | 1020-ball FBGA (33 x 33 mm, 1 mm pitch) |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature | -40C to +100C (industrial, I6 grade) | 0 C to 85 C (commercial) |
| Supply Voltage | Multi-rail (core 1.5 V, I/O 1.5/1.8/2.5/3.3 V per bank) | β |
| Process Technology | 0.13 Β΅m CMOS | 130 nm CMOS |
| DSP Blocks | Yes (9 x 9 multipliers with 36-bit accumulators) | β |
| PLLs | Yes (multiple, for clock management) | β |
| Configuration Modes | Passive Serial, Fast Passive Parallel, JTAG | β |
| MSL Level | 3 (168 hours, JEDEC J-STD-020) | [DATA_NEEDED: MSL rating] |
| RoHS Status | Compliant (GB suffix) | β |
| Lead-Free | Yes | β |
| Logic Elements (LEs) | β | 57,120 |
| Logic Array Blocks (LABs) | β | 6,570 |
| Total RAM Bits | β | 5,215,104 |
| Core Supply Voltage | β | 1.425 V to 1.575 V |
| Speed Grade | β | C5 (commercial, slowest) |
| Lead-Free (N suffix) | β | Yes |
| Maximum Toggle Frequency | β | [DATA_NEEDED: fMAX figure per logic block] |
| Logic Family | β | CMOS |
| Supplier Device Package | β | 1020-FBGA (33x33) |
