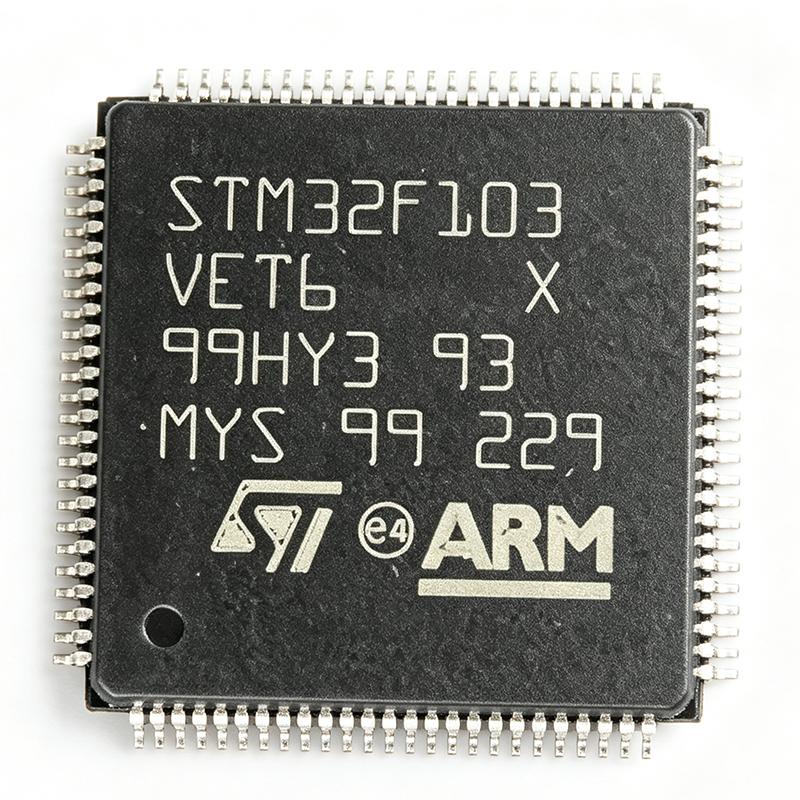

STM32F103VET6 vs STM32F103VCT6 Comparison
Detailed side-by-side comparison of STM32F103VET6 by STMicroelectronics and STM32F103VCT6 by STMicroelectronics. Compare key specifications, electrical parameters, packaging, lifecycle status, pricing, and availability to determine the best component for your design requirements.
STMicroelectronics
STM32F103VCT6
STM32F103VCT6 - 256KB Flash Cortex-M3 MCU 72MHz | ST
STM32F103VCT6 β ActiveSpecification Comparison
| Parameter | STM32F103VET6 | STM32F103VCT6 |
|---|---|---|
| Brand | STMicroelectronics | STMicroelectronics |
| Category | Microcontrollers | Microcontrollers |
| Lifecycle Status | Active | Active |
| Stock Status | In Stock | In Stock |
| Unit Price (USD) | $3.85 | $2.68 |
| Core | ARM Cortex-M3, 32-bit RISC | ARM Cortex-M3 |
| Maximum Clock Frequency | 72 MHz | β |
| Core Performance | 1.25 DMIPS/MHz (Dhrystone 2.1) | β |
| Flash Memory | 512 KB (512K x 8) | 256 KB |
| SRAM | 64 KB | 48 KB |
| Supply Voltage Range | 2.0 V to 3.6 V | 2.0 V to 3.6 V |
| ADC Resolution | 12-bit | β |
| Number of ADCs | 3 | β |
| General-Purpose Timers | 4 x 16-bit | β |
| Advanced PWM Timers | 2 | β |
| Communication Interfaces | USART, SPI, I2C, USB, CAN, SDIO | β |
| GPIO Count | Up to 80 | β |
| Package | 100-LQFP (14x14 mm) | LQFP-100 (14x14 mm) |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature | -40C to +85C | -40C to +85C |
| Debug Interfaces | SWD, JTAG | JTAG, SWD |
| Series | STM32F1 (high-density performance line) | β |
| RoHS Status | Compliant | β |
| Maximum CPU Frequency | β | 72 MHz |
| I/Os | β | 80 |
| ADC | β | 3x 12-bit, up to 21 channels |
| DAC | β | 2x 12-bit |
| USART | β | 3 |
| SPI | β | 3 |
| I2C | β | 2 |
| USB | β | USB 2.0 full-speed device |
| CAN | β | 1x CAN 2.0B |
| SDIO | β | 1 |
| Timers | β | Advanced, general-purpose and basic timers (PWM capable) |
| DMA Channels | β | 12 |
