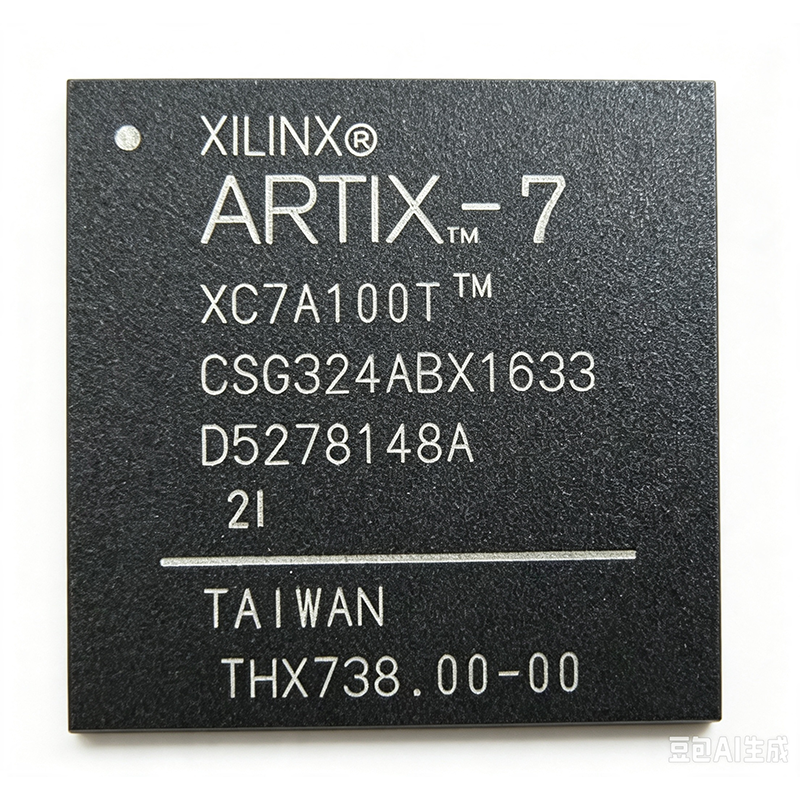

XC7A100T-1CSG324C vs XC7A100T-2CSG324I Comparison
Detailed side-by-side comparison of XC7A100T-1CSG324C by AMD and XC7A100T-2CSG324I by AMD. Compare key specifications, electrical parameters, packaging, lifecycle status, pricing, and availability to determine the best component for your design requirements.
Specification Comparison
| Parameter | XC7A100T-1CSG324C | XC7A100T-2CSG324I |
|---|---|---|
| Brand | AMD | AMD |
| Category | FPGA & CPLD | FPGA & CPLD |
| Lifecycle Status | Active | Active |
| Stock Status | In Stock | In Stock |
| Unit Price (USD) | $59.90 | $105.00 |
| Family | Artix-7 | Artix-7 |
| Logic Cells | 101,440 | β |
| System Logic Cells (equivalent) | 285,000 | β |
| Block RAM | 4,860 Kb | β |
| DSP Slices | 240 | β |
| User I/O Pins | 210 | β |
| Package | CSG324 (324-ball Chip Scale BGA) | 324-LFBGA, CSPBGA (CSG324) |
| Speed Grade | -1 | -2 |
| Core Voltage (VCCINT) | 1.0 V | β |
| I/O Voltage (VCCO) | 1.2 V to 3.3 V | β |
| GTP Transceivers | 8 (up to 6.6 Gbps) | β |
| PCIe Blocks | 1 (Gen2 x4) | β |
| XADC | 1 (12-bit, 1 MSPS) | 12-bit, 1 MSPS |
| Operating Temperature | 0C to +85C (Commercial) | β |
| RoHS Status | Compliant | β |
| Number of Logic Elements/Cells | β | 101440 |
| Number of LABs/CLBs | β | 7925 |
| Total RAM Bits | β | 4976640 |
| Number of I/O | β | 210 |
| Number of DSP Slices | β | 240 |
| Number of Block RAM Blocks | β | 135 (36 Kb each) |
| Number of Flip-Flops | β | 285120 |
| Number of GTP Transceivers | β | 16 (up to 6.6 Gbps) |
| Operating Supply Voltage | β | 0.95 V ~ 1.05 V |
| Operating Temperature Range | β | -40Β°C ~ +100Β°C (TJ) |
| Mounting Type | β | Surface Mount |
| Internal Clock Speed | β | Up to 628 MHz |
| Process Technology | β | 28 nm HKMG |
| Configuration Interface | β | JTAG, SelectMAP, Quad-SPI |
| PCIe Support | β | Gen2 x1 |
| Ethernet Support | β | 10/100/1000 Mbps |
