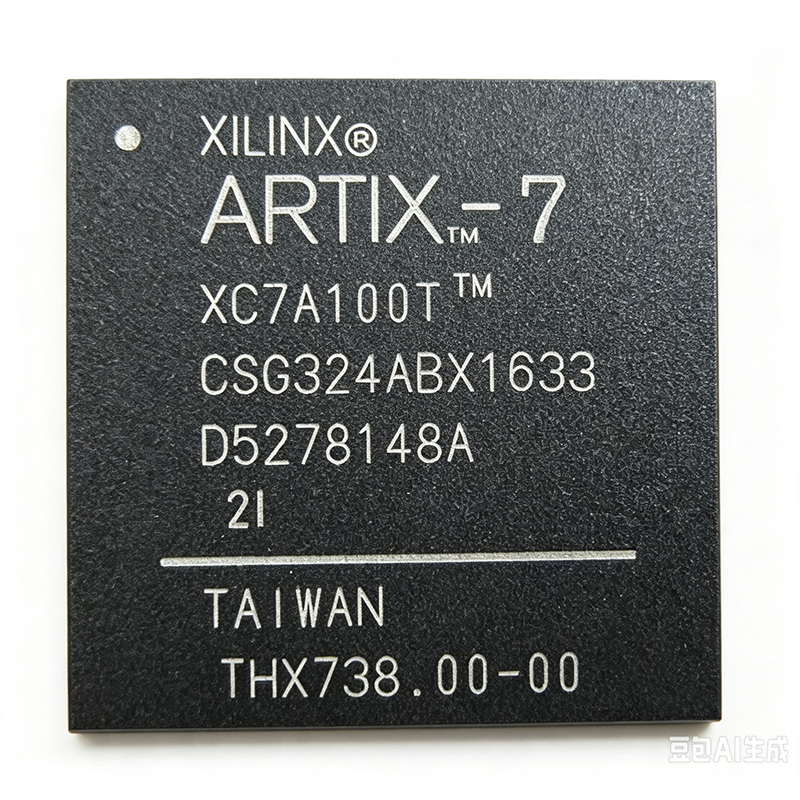

XC7A100T-2CSG324I vs XC7A100T-2CSG324C Comparison
Detailed side-by-side comparison of XC7A100T-2CSG324I by AMD and XC7A100T-2CSG324C by AMD. Compare key specifications, electrical parameters, packaging, lifecycle status, pricing, and availability to determine the best component for your design requirements.
Specification Comparison
| Parameter | XC7A100T-2CSG324I | XC7A100T-2CSG324C |
|---|---|---|
| Brand | AMD | AMD |
| Category | FPGA & CPLD | FPGA & CPLD |
| Lifecycle Status | Active | Active |
| Stock Status | In Stock | In Stock |
| Unit Price (USD) | $105.00 | $59.50 |
| Family | Artix-7 | Artix-7 |
| Number of Logic Elements/Cells | 101440 | β |
| Number of LABs/CLBs | 7925 | β |
| Total RAM Bits | 4976640 | β |
| Number of I/O | 210 | β |
| Number of DSP Slices | 240 | β |
| Number of Block RAM Blocks | 135 (36 Kb each) | β |
| Number of Flip-Flops | 285120 | β |
| Number of GTP Transceivers | 16 (up to 6.6 Gbps) | β |
| Operating Supply Voltage | 0.95 V ~ 1.05 V | β |
| Operating Temperature Range | -40Β°C ~ +100Β°C (TJ) | β |
| Package | 324-LFBGA, CSPBGA (CSG324) | CSBGA-324 (CSG324) |
| Mounting Type | Surface Mount | β |
| Speed Grade | -2 | -2 |
| Internal Clock Speed | Up to 628 MHz | β |
| Process Technology | 28 nm HKMG | β |
| Configuration Interface | JTAG, SelectMAP, Quad-SPI | β |
| XADC | 12-bit, 1 MSPS | β |
| PCIe Support | Gen2 x1 | β |
| Ethernet Support | 10/100/1000 Mbps | β |
| Logic Cells | β | 101440 |
| Block RAM | β | 4860 Kb |
| DSP Slices | β | 240 |
| User I/O | β | 210 |
| Core Voltage | β | 1.0 V |
| I/O Voltage | β | 1.2V to 3.3V |
| Operating Temperature | β | 0C to +85C |
| Clock Management Tiles | β | 6 |
| PCIe Blocks | β | 1 (Gen2 x1) |
| Gigabit Transceivers | β | 4 (up to 6.6 Gbps) |
| Configuration | β | SRAM-based, supports SPI, BPI, JTAG |
| RoHS Status | β | Compliant |
