HF-Module
Produkte (174)
ESP32-C5-WROOM-1U-N8R8 - Dual-Band Wi-Fi 6 BLE Module | Espressif
The Espressif Systems ESP32-C5-WROOM-1U-N8R8 is a general-purpose 2.4 GHz and 5 GHz dual-band Wi-Fi 6 (802.11ax) module with Bluetooth 5 (LE), Zigbee, and Thread (802.15.4) connectivity, built around a 32-bit RISC-V single-core processor running at up to 240 MHz, with 8 MB Quad SPI flash and 8 MB Quad SPI PSRAM in an 18.0 x 21.2 x 3.3 mm surface-mount package with an IPEX (U.FL) connector for an external antenna. A wireless module is a pre-certified, self-contained circuit board that integrates a microcontroller SoC, RF front end, crystal, flash memory, and antenna interface into a single castellated-edge surface-mount unit. Modules sit above bare SoCs in the electronics hierarchy - embedded system, wireless connectivity module, SoC, silicon - and let designers add certified radio connectivity without in-house RF design or regulatory re-certification. Key features include simultaneous dual-band Wi-Fi 6 support in the 2.412-2.484 GHz and 5.18-5.885 GHz bands, which reduces congestion in dense IoT deployments; 802.15.4 radio for Zigbee and Thread, enabling native Matter and Thread mesh networks; Bluetooth 5 LE for phone provisioning and beacons; and a low-power coprocessor that can monitor peripherals while the main CPU is powered off. At the core is the ESP32-C5 SoC, a single-core 32-bit RISC-V processor clocked up to 240 MHz with a rich peripheral set including SPI, I2C, UART, I2S, PWM, and ADC. The N8R8 variant pairs 8 MB flash with 8 MB PSRAM, providing ample headroom for TLS stacks, display buffers, and Matter applications. Typical applications include smart home hubs that must bridge Wi-Fi, Thread, Zigbee, and BLE simultaneously; industrial automation gateways using the 5 GHz band to avoid 2.4 GHz factory interference; and healthcare or consumer electronics requiring dual-stack wireless provisioning. For design, keep the IPEX antenna feedline at 50 ohms impedance and follow Espressif hardware design guidelines for module keep-out zones. Note that the 1U variant has no onboard PCB antenna, so an external antenna is mandatory. This page synthesizes verified datasheet specifications, drop-in same-family alternatives, and practical design notes not found on distributor listing pages.
ESP32-S3-WROOM-1 - Wi-Fi 4 + BLE 5 Module, Xtensa LX7 Dual-Core | Espressif
The Espressif ESP32-S3-WROOM-1 is a 2.4 GHz Wi-Fi 4 (802.11 b/g/n) and Bluetooth 5 (LE) MCU module built around the ESP32-S3 series SoC, integrating an Xtensa dual-core 32-bit LX7 microprocessor with vector instructions for AI/ML acceleration. It is supplied as a surface-mount module with on-board PCB antenna, flash up to 16 MB (variant-dependent) and optional PSRAM up to 16 MB, exposed through up to 36 GPIOs. Common ordering codes include N8 (8 MB flash, no PSRAM), N16 (16 MB flash, no PSRAM), N8R8 (8 MB flash, 8 MB PSRAM), and N16R8 (16 MB flash, 8 MB PSRAM). A Wi-Fi + Bluetooth LE module is a self-contained radio subsystem that combines an RF transceiver, baseband, MCU, antenna, and regulatory shielding into a single reflow-solderable package. The module drops by several orders of magnitude of PCB RF design effort for the host product, exposing digital interfaces (UART, SPI, I2C, I2S, USB-OTG) instead of 50-ohm traces. Within the system hierarchy, an ESP32 module sits between the SoC layer and the finished connected-product (module -> wireless SoC -> 32-bit microcontroller -> embedded computing platform). The S3 series specifically adds vector instructions for SIMD-style acceleration of neural-network inference. Key features include hardware acceleration for neural network and signal processing workloads (vector instructions + ESP-DSP/VIEW libraries), integrated 2.4 GHz radio with Wi-Fi 4 (802.11 b/g/n, up to 150 Mbps) + Bluetooth 5 (LE) + Bluetooth Mesh, USB OTG 1.1 with on-chip PHY (no external bridge required), and rich peripherals including SPI, I2S, I2C, UART, ADC, DAC, TWAI (CAN), LCD, camera interface, RMT, pulse counters, and motor PWM. The module supports secure boot, flash encryption, and a hardware crypto accelerator (AES, SHA, RSA, HMAC, digital signature). Architecturally, the LX7 dual-core runs at up to 240 MHz with 512 KB SRAM, 2 MB PSRAM-internal block, and an additional 8 MB external PSRAM on R8 variants. Wi-Fi and Bluetooth share a single antenna through the on-module RF switch; the LX7 + radio architecture is the same die family as the bare ESP32-S3 chip, packaged with crystal, flash, RF matching network, and a copper-pour PCB antenna on the module substrate. Typical applications include AIoT endpoints (voice wake-word, on-device keyword spotting), smart-home hubs with Matter/Bluetooth Mesh, USB-HID devices (the S3 brings native USB-OTG so no UART bridge is needed), wearables with LCD/camera, industrial sensor nodes with TWAI (CAN), and low-cost Wi-Fi/BLE bridge boards. For new designs, observe the strapping-pin (GPIO0/3/45/46) boot-state requirements and ensure the on-module antenna keep-out zone is respected on the host PCB; failure to do so is the most common reason an otherwise-correct ESP32-S3 design has poor RF range. This page synthesizes Espressif datasheet specifications, family-level parametric positioning, and same-footprint alternatives - giving a one-stop overview that individual distributor listings cannot.
ESP32-S3-WROOM-1-N16R8 - WiFi+BLE 5, 16MB Flash | Espressif
The Espressif Systems ESP32-S3-WROOM-1-N16R8 is a 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE) MCU module built around the ESP32-S3R8 SoC, featuring a dual-core Xtensa 32-bit LX7 processor running at up to 240 MHz, 16 MB quad SPI flash, 8 MB octal PSRAM, and a PCB trace antenna in a surface-mount castellated package of approximately 18 mm x 25.5 mm x 3.1 mm. A Wi-Fi plus Bluetooth LE module is a wireless system-in-package that integrates an RF transceiver, antenna, microcontroller, memory, and power management onto a single certified PCB assembly. Within the hierarchy of wireless connectivity solutions, such modules sit above bare SoCs (which require RF design expertise) and below complete single-board computers, making them the standard choice for IoT product integration. Key differentiating features include 8 MB of octal SPI PSRAM for AI workloads, vector instructions for neural network computing acceleration, 36 GPIOs, and the ESP32-S3's rich peripheral set including SPI, I2S, I2C, UART, RMT, and a 14-bit LCD camera interface. The dual-core LX7 architecture allows one core to run the wireless protocol stack while the other executes user applications. Technically, the module integrates the ESP32-S3R8 chip with the PSRAM die stacked inside, a 40 MHz crystal, flash memory, and a PCB antenna with matching network. The AI acceleration makes it suitable for wake word detection, speech command recognition, and camera-based face detection at the edge. Typical applications include AIoT devices, smart speakers, home automation hubs, industrial sensor gateways, and battery-powered voice assistants. Design considerations: respect strapping pin configurations (IO0, IO45, IO46) at boot, and note peak Wi-Fi TX currents near 350 mA require a low-ESR 3.3 V supply with adequate decoupling. This page synthesizes distributor availability, same-family drop-in variants, and practical design notes not found in the manufacturer datasheet.
ESP32-S3-WROOM-1-N8 - WiFi/BLE5 MCU Module 8MB Flash | Espressif
The Espressif Systems ESP32-S3-WROOM-1-N8 is a generic Wi-Fi + Bluetooth LE MCU module built around the dual-core ESP32-S3 SoC, offering 8 MB of Quad SPI flash, 2.4 GHz Wi-Fi 802.11 b/g/n and Bluetooth 5 connectivity in a 25.5 x 18 mm surface-mount module with a PCB trace antenna. A Wi-Fi/BLE MCU module integrates a microcontroller, radio, RF matching network, antenna, flash memory and crystal oscillator onto a single certified surface-mount assembly. In the system hierarchy it sits above the bare SoC (here the ESP32-S3 chip) and below finished boards such as development kits, serving as the compute-plus-connectivity engine of an IoT device. Key differentiating features include a dual-core 32-bit LX7 processor that accelerates neural network computing and signal processing workloads, 8 MB of on-module SPI flash for code and assets, and Bluetooth 5 LE with long-range support. The module exposes a rich set of peripherals, making it suitable for designs that need both wireless connectivity and local AI inference such as wake word detection. Architecturally, the ESP32-S3 SoC combines two processor cores with vector instructions for machine-learning workloads, integrated Wi-Fi and BLE radios, and peripherals including SPI, I2C, UART, I2S, and native USB. The on-module PCB antenna and RF front end remove the need for external RF design, while flash is connected over Quad SPI for fast code execution from cache. Typical applications include AIoT devices performing wake word detection and speech command recognition, smart home and industrial IoT nodes, and human-interface products that leverage the ESP32-S3 USB and display-oriented peripherals. The 2.4 GHz radio and 8 MB flash cover the memory and connectivity needs of most connected-device firmware stacks. Design considerations: verify memory-map configuration for Quad SPI flash, respect strapping-pin requirements at boot, and provide clean 3.3 V power with adequate decoupling for Wi-Fi transmit bursts. This page adds value beyond the manufacturer datasheet by synthesizing distributor availability data, same-footprint memory variants for drop-in flexibility, comparison tables, and practical design notes in one place.
ESP32-S3-WROOM-1U - WiFi/BLE 5 Module, ESP32-S3 | Espressif
The Espressif Systems ESP32-S3-WROOM-1U is a generic 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE) MCU module built around the ESP32-S3 series SoC, featuring an Xtensa dual-core 32-bit LX7 processor, support for up to 16 MB flash and up to 8 MB PSRAM, and a U.FL connector for external antennas instead of an on-board PCB antenna. A Wi-Fi + Bluetooth LE MCU module is a surface-mount system-in-package that integrates a wireless SoC, flash memory, crystal oscillator, RF matching network, and power management onto a single castellated-edge PCB. Modules occupy the top of the embedded wireless hierarchy - above bare SoCs, which require RF layout expertise, and below finished development boards - and are the standard building block for IoT products that need certified radio performance without in-house RF engineering. Key features of the ESP32-S3-WROOM-1U include up to 36 GPIOs with a rich peripheral set, hardware acceleration for neural network computing and signal processing workloads, native USB OTG on the ESP32-S3 SoC, and Bluetooth 5 LE long-range support. The U.FL (IPEX) antenna connector allows designers to place the antenna remotely or use higher-gain external antennas, which distinguishes it from the PCB-antenna ESP32-S3-WROOM-1 sibling in the same series. Technically, the module is built around the ESP32-S3 SoC with dual-core LX7 CPUs clocked for general-purpose embedded workloads, integrating AI vector instructions that offload edge-inference tasks. The RF front end is pre-matched and pre-certified, dramatically reducing design risk compared to a discrete ESP32-S3 chip implementation where antenna matching and regulatory testing fall on the designer. Typical applications include AIoT edge devices, voice assistant endpoints, smart-home controllers, industrial sensor gateways, and any product requiring an external or remote-mounted antenna such as metal-enclosure designs that route the U.FL cable to an external bulkhead antenna. A key design consideration is strapping-pin handling: GPIO0, GPIO45, and GPIO46 configure boot mode and flash voltage at reset, so external circuits on these pins must respect datasheet pull-up/pull-down requirements to avoid boot failures. This page synthesizes the Espressif datasheet, distributor availability, drop-in family alternatives, and practical design notes not found on the manufacturer product page alone.
ESP32-S3-WROOM-1U-N16R2 - WiFi/BLE 5 Module 16MB Flash | Espressif
The Espressif Systems ESP32-S3-WROOM-1U-N16R2 is a Wi-Fi + Bluetooth LE MCU module built around the ESP32-S3R2 SoC, featuring a dual-core Xtensa LX7 CPU clocked at up to 240 MHz, 16 MB of quad SPI flash, and 2 MB of integrated quad SPI PSRAM, housed in a 19.2 x 18 x 3.2 mm SMD package with a U.FL (IPEX) antenna connector instead of an onboard PCB antenna. A Wi-Fi + Bluetooth LE MCU module is a system-in-package device that integrates a wireless SoC, flash memory, crystal oscillator, RF matching network, and power management into a single surface-mount unit. Within the embedded hierarchy, it sits above bare microcontrollers and below finished boards, functioning as the wireless connectivity and compute heart of an Internet of Things (IoT) node, edge-AI endpoint, or connected industrial device. Key differentiating features include the N16R2 memory configuration (16 MB flash + 2 MB PSRAM), the external-antenna U.FL footprint that lets designers place the antenna optimally inside a metal or RF-constrained enclosure, and the ESP32-S3 SoC's vector instructions for neural network computing and signal processing acceleration. The module supports Wi-Fi 802.11 b/g/n in the 2.4 GHz band and Bluetooth 5 LE, and exposes a rich peripheral set including SPI, I2C, I2S, UART, PWM, and native USB OTG. The underlying ESP32-S3R2 integrates the 2 MB PSRAM die inside the module stack, allowing quad SPI PSRAM access for memory-hungry workloads such as voice buffers, image frames, and TinyML models. The dual-core LX7 architecture lets one core handle the wireless protocol stack while the second executes application code, improving real-time determinism. Typical applications include wake word detection and speech command recognition, AIoT gateways, face recognition terminals, smart-home controllers, and industrial sensors where the external antenna connector simplifies certification and enclosure integration. Design consideration: because the RF path is external, keep the U.FL-to-antenna cable loss below approximately 1 dB and follow Espressif's RF layout guidance for the keep-out area near the connector; also respect the strapping pin states (GPIO0, GPIO45, GPIO46) at power-up for correct boot mode. This page synthesizes distributor pricing, same-family drop-in alternatives, practical design notes, and AI-optimized technical FAQs not found in the manufacturer datasheet alone. Pricing shown is as of 2026-10-11.
ESP32-WROOM-32E - WiFi + BT 4.2 MCU Module | Espressif
The Espressif Systems ESP32-WROOM-32E is a 2.4 GHz Wi-Fi and Bluetooth/Bluetooth LE combination module built around the ESP32-D0WD-V3 dual-core Xtensa LX6 SoC, delivering up to 240 MHz clock speed, 520 KB SRAM, and 4 MB SPI flash in a compact 18 x 25.5 x 3.1 mm castellated-pad module with an integrated PCB antenna. A Wi-Fi + Bluetooth MCU module is a surface-mount system-in-package that combines a microcontroller, radio transceiver, RF matching network, flash memory, crystal, and antenna onto a single certified PCB assembly. Such modules sit at the top of the embedded hierarchy: semiconductor -> wireless SoC -> RF-certified module -> end IoT device, letting engineers add wireless connectivity without RF design expertise or regulatory re-certification of the radio section. Key differentiating features include dual-core processing that separates Wi-Fi protocol stacks from user applications, 802.11 b/g/n with a data rate up to 150 Mbps, Bluetooth v4.2 BR/EDR and BLE Class 1/2/3 operation, and 38 castellated edge pads that allow both hand soldering and automated assembly. The castellated half-hole pads also enable mounting the module as a sub-PCB on a carrier board. Technically, the ESP32-D0WD-V3 silicon inside is the bug-fixed revision 3 die, improving RF transmit spectrum cleanliness and resolving the well-known strapping-pin flash-voltage issue found in older revision 1 silicon used in the original ESP32-WROOM-32. The module integrates a 40 MHz crystal, flash memory, and a PCB inverted-F antenna tuned during production. Typical applications include low-power sensor networks, voice encoding and MP3 streaming devices, smart-home nodes, and industrial IoT gateways, where integrated dual-radio connectivity and sufficient compute headroom are required in one certified package. For design, respect the strapping pins (GPIO0, GPIO2, GPIO12, GPIO15) at boot and keep the antenna area of the host PCB free of copper and components for best RF performance. This page synthesizes datasheet specifications, drop-in replacement options, and practical design notes not found on standard distributor listings.
ESP32-WROOM-32E-H4 - WiFi BT4.2 Module 4MB | Espressif
The Espressif Systems ESP32-WROOM-32E-H4 is a 2.4 GHz WiFi and Bluetooth 4.2 +BR/EDR/BLE combination module built on the ESP32-D0WD-V3 dual-core Xtensa LX6 SoC with 4 MB of embedded SPI flash, a PCB antenna, and a 25.5 x 18 x 3.1 mm castellated SMD package rated from -40C to +105C. A WiFi module is a self-contained embedded system that integrates a microcontroller, radio transceiver, antenna, flash memory, and power management into a single surface-mount unit, eliminating the RF design effort of discrete solutions. Within the wireless connectivity hierarchy, the ESP32-WROOM-32E-H4 sits at the system-in-package (SiP) module level: SoC (ESP32-D0WD-V3) -> module (WROOM-32E family) -> IoT device. Modules are pre-certified for radio regulatory domains, shortening time to certification for end products. Key features include dual-core 32-bit LX6 CPUs clocked up to 240 MHz, 520 KB on-chip SRAM, 802.11 b/g/n WiFi with up to 150 Mbps PHY rate and -98 dBm receive sensitivity, Bluetooth v4.2 BR/EDR and BLE, and 26 GPIOs with UART, SPI, I2C, SDIO, I2S, PWM, and 12-bit ADC peripherals. The -H4 suffix denotes 4 MB SPI flash; supply range is 3.0 V to 3.6 V with typical TX current around 112 mA and peak around 239 mA at 20 dBm output. The ESP32-D0WD-V3 silicon (ECO V3) incorporates the bug fixes and cleaner WiFi RF spectrum of the revised ESP32 revision, improving coexistence and reliability compared with original ESP32-WROOM-32 modules. The onboard PCB antenna is tuned for 2.4 GHz to 2.5 GHz operation, and the metal shield plus castellated edge pads simplify reflow assembly onto standard PCB footprints. Typical applications include smart-home devices and sensors, industrial automation and control nodes, and battery-powered IoT endpoints where integrated dual-protocol wireless reduces BOM cost and development risk. A key design consideration: the module is 3.3 V only - do not feed 5 V logic into GPIOs without level shifting, and keep copper keep-out clearance under and around the PCB antenna per Espressif hardware design guidelines. This page adds value beyond the datasheet by synthesizing distributor pricing tiers, drop-in same-footprint alternatives across flash densities, and practical engineering design notes in one place.

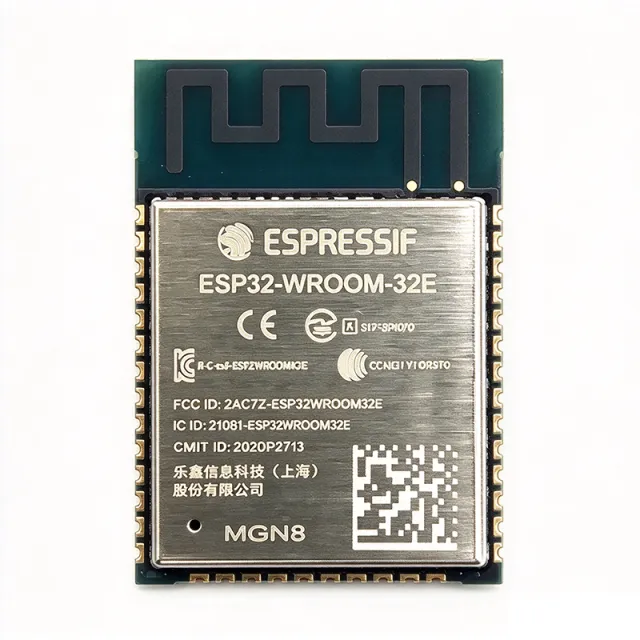

ESP32-WROOM-32E-N8 - WiFi/BT4.2 Module, 8MB Flash | Espressif
The Espressif Systems ESP32-WROOM-32E-N8 is a 2.4 GHz Wi-Fi and Bluetooth 4.2 + EDR combo module built on the ESP32-D0WD-V3 SoC with a dual-core 32-bit Xtensa LX6 processor running up to 240 MHz, 8 MB of SPI flash, and an onboard PCB antenna, housed in a 38-pin surface-mount castellated package measuring 18 x 25.5 x 3.1 mm. A Wi-Fi/BT module is an RF transceiver subsystem that integrates the radio, antenna, crystal, flash memory, and power management into a certified, ready-to-embed unit. Within the wireless connectivity hierarchy, it sits above bare SoCs (which require external RF design) and below finished development boards, serving as the standard connectivity building block for IoT products. Key features include 802.11 b/g/n Wi-Fi with Class 1, 2 and 3 Bluetooth transmit capability, 26 usable GPIOs, a rich peripheral set (SPI, I2C, UART, I2S, CAN, touch sensors, ADC/DAC), and support for simultaneous Wi-Fi and Bluetooth operation. The 8 MB SPI flash supports large application images, OTA updates, and embedded assets. Technically, the module integrates the ESP32-D0WD-V3 silicon revision 3 chip, which fixes earlier RF spectral spur issues for a cleaner Wi-Fi spectrum. The ESP32-WROOM-32E family offers 4/8/16 MB flash options; the -N8 variant is the 8 MB member. The PCB antenna is tuned for the 2.400-2.4835 GHz ISM band. Typical applications include IoT sensor nodes and smart-home devices, industrial wireless control and monitoring, and wearable or battery-powered connected products. Design consideration: keep at least 5 mm of clearance around the PCB antenna region on the host board and follow the Espressif layout guidelines to avoid detuning RF performance; supply 3.0-3.6 V with adequate peak-current capability for Wi-Fi TX bursts. This page synthesizes distributor pricing, drop-in alternatives within the same footprint, and practical design notes not found in the manufacturer datasheet.
ESP32-WROOM-32E-N8R2 - WiFi/BT 4.2 Module, 8MB Flash | Espressif
The Espressif Systems ESP32-WROOM-32E-N8R2 is a 2.4 GHz Wi-Fi and Bluetooth v4.2 + EDR combo module built around the ESP32-D0WD-V3 SoC with Xtensa dual-core 32-bit LX6 processors, 8 MB of SPI flash and 2 MB of PSRAM, delivered in a shielded surface-mount package with an onboard PCB trace antenna. A Wi-Fi MCU module is a self-contained wireless system that integrates a microcontroller, radio transceiver, antenna, RF matching network, flash memory and power management on one certified PCB. Within the product hierarchy it sits between a bare SoC and a full development board: it offers complete radio certification and shielding without the overhead of a carrier board, making it the standard building block for power management, connectivity and edge computing in IoT endpoints. Key features of the N8R2 variant include 802.11 b/g/n Wi-Fi with 150 Mbps PHY rate, Bluetooth v4.2 BR/EDR and BLE, dual-core LX6 operation for concurrent application and protocol processing, and 26 GPIOs with a rich peripheral set (SPI, I2S, I2C, UART, ADC, DAC, PWM, touch). The 8 MB flash plus 2 MB PSRAM configuration gives headroom for OTA update partitions, larger TLS stacks and display frame buffers that smaller N4/N8 variants cannot support. Technically, the module integrates antenna switches, RF balun, power amplifier, low-noise receive amplifier, filters and power management on the embedded ESP32-D0WD-V3 silicon, achieving higher stability and safety performance than the original ESP32-WROOM-32. The V3 die revision adds security features such as flash encryption and secure boot support. Typical applications include smart-home devices, industrial controllers and wireless sensor nodes where both Wi-Fi and Bluetooth connectivity and extra RAM are required in a single certified footprint. Design-wise, supply the module from a clean 3.3 V rail capable of delivering 500 mA peaks, and keep the antenna region free of copper and enclosures with high dielectric constants. This page synthesizes distributor pricing, memory-variant drop-in options and practical design notes not found in the manufacturer datasheet. Pricing references are as of 2026-09-15.
FGE573QAAMD - Wi-Fi 7 Triple-Band BLE 5.3 Module | Quectel
The Quectel FGE573QAAMD is a Wi-Fi 7 and Bluetooth 5.3 multi-protocol transceiver module operating across 2.4 GHz, 5 GHz, and 6 GHz bands with a maximum physical-layer data rate of 2.9 Gbps. Housed in a surface-mount LGA module form factor with integrated antenna RF interface, the device supports 802.11a/b/g/n/ac/ax/be, BLE 5.3, BLE Long Range, and multi-link operation (MLO) for ultra-low-latency wireless links. A Wi-Fi 7 module is a self-contained radio subsystem that integrates the RF transceiver, baseband processor, and protocol stack on a single PCB, allowing host processors to add IEEE 802.11be connectivity without RF design expertise. As part of the broader Wi-Fi module taxonomy (Wi-Fi module -> wireless SoC module -> RF transceiver module -> electronic module), the FGE573QAAMD belongs to the high-throughput multi-band segment that serves cloud gaming, AR/VR, 8K streaming, industrial IoT, and telemedicine. Key differentiating specifications include triple-band simultaneous operation across 2.4/5/6 GHz, 802.11be (Wi-Fi 7) compliance with 320 MHz channel support, BLE 5.3 with LE Long Range, and MLO for sub-millisecond handover latency. The module ships without an on-board RF filter (per the 'w/o filter' suffix in the MPN), letting designers integrate a customer-selected filter chain for regulatory or band-edge optimization. Surface-mount packaging simplifies high-volume SMT lines, while the antenna-not-included design enables antenna placement flexibility. The FGE573QAAMD uses a Qualcomm-based Wi-Fi 7 silicon platform with separate 2x2 MIMO radios for 2.4/5/7 GHz and a third 1x1 radio for 6 GHz, achieving 2.9 Gbps aggregate throughput under ideal conditions. Multi-link operation lets a single client transmit simultaneously on multiple bands, reducing latency variance for time-sensitive applications. The host interface is typically PCIe or SDIO for Wi-Fi and UART/PCM for Bluetooth, allowing the module to pair with a wide range of application processors. Typical applications include AR/VR headsets, cloud-gaming handhelds, 8K video streaming dongles, industrial IoT gateways, telemedicine endpoints, and Wi-Fi 7 access points. Its MLO support particularly benefits variable-latency workloads such as cloud rendering and industrial robotics. The wide-band triple-radio architecture suits gateways, mesh routers, and edge-AI appliances requiring simultaneous high-throughput backhaul and low-power BLE provisioning. When designing with this module, ensure the host processor supplies stable 3.3 V to the module's VBAT rail and that the antenna trace is a 50 ohm controlled-impedance line with a pi-network footprint reserved for the missing filter. Thermal management is generally passive because the module's average dissipation is below 1.5 W, but a copper keep-out region is recommended under the antenna. Always validate the regulatory domain (FCC, CE, MIC) for the specific 6 GHz band subset in your deployment region. This page synthesizes distributor pricing, drop-in alternatives, application pairings, and practical design notes not found in the manufacturer datasheet alone.
FGE576QAAMD - Wi-Fi 7 + BT 5.3 Triple-Band Module | Quectel
The Quectel FGE576QAAMD is a highly integrated Wi-Fi 7 and Bluetooth 5.3 short-range transceiver module that supports triple-band operation across 2.4 GHz, 5 GHz, and 6 GHz with a maximum physical-layer data rate of 3.6 Gbps. The module is delivered as a surface-mount LGA-style SiP that combines the radio transceiver, baseband, and power management, and is offered in an antenna-not-included variant for designs where an external antenna or u.FL connector is required. According to the Quectel FGE576Q specification document, the FGE576QAAMD supports dual-band simultaneous operation (2.4 GHz + 5 GHz and 2.4 GHz + 6 GHz), 4K-QAM modulation, 160 MHz channel bandwidth, and ultra-low latency suitable for real-time response applications. A Wi-Fi 7 module belongs to the IEEE 802.11be family of wireless transceivers and sits within the broader hierarchy of short-range wireless modules -> wireless modules -> RF & Wireless -> electronic component. Wi-Fi 7 (802.11be) introduces 320 MHz channels, 4K-QAM, multi-link operation (MLO), and multi-resource unit (MRU) features that materially improve throughput, latency, and spectrum efficiency compared to Wi-Fi 6/6E. Bluetooth 5.3 adds LE Audio, isochronous channels, and connection subrating for power-efficient audio streaming, making combined Wi-Fi 7 + BT 5.3 modules the reference connectivity solution for next-generation gateways, AIoT edge devices, and premium consumer electronics. Key differentiating features of the FGE576QAAMD include: triple-band 2.4/5/6 GHz support (vs dual-band on most Wi-Fi 6 modules), 4K-QAM which adds two bits per symbol versus 1024-QAM, 160 MHz channel bandwidth for high-throughput operation, multi-link operation for simultaneous multi-band aggregation, and integrated Bluetooth 5.3 with BLE Long Range. Together these specifications enable AR/VR offload, 8K video streaming, real-time cloud gaming, and Matter-over-Wi-Fi commissioning in a single silicon footprint. Architecturally, the FGE576QAAMD integrates a 2x2 MIMO RF front end, baseband processor, MAC, and power-management circuits in a single shielded module package. The module exposes an SDIO or PCIe host interface depending on firmware configuration, and the antenna-not-included variant allows OEM antenna tuning for end-product certifications (FCC, CE, MIC, NCC, etc.). Typical applications include Wi-Fi 7 home gateways and mesh nodes, premium AIoT hubs with edge inference, AR/VR streaming gateways, 4K/8K wireless display dongles, smart-home Matter bridges, and industrial gateways needing low-latency wireless backhaul. The triple-band capability is most useful when the 6 GHz spectrum is locally available (US, EU regions under 6E/7 rules) because the 2.4 GHz + 6 GHz combination provides low interference for high-throughput links. When designing with this module, note that the antenna-not-included variant requires the integrator to source, tune, and certify an external antenna chain. Most regions require radiated testing on the final integrated product; Quectel provides an antenna reference design in the FGE576Q hardware design guide. Confirm regulatory status with Quectel regional support for the target market. This page synthesizes distributor stock, drop-in module alternatives, and design considerations not present in the manufacturer datasheet.
FortiAP-432FR - Wi-Fi 6 Rugged C1D2 Outdoor AP | Fortinet
The Fortinet FortiAP-432FR is a ruggedized tri-radio Wi-Fi 6 (IEEE 802.11ax) outdoor industrial wireless access point delivering up to 3.47 Gbit/s aggregate throughput across 2.4 GHz and 5 GHz bands, housed in an IP67-rated enclosure that is UL Class 1 Division 2 (C1D2) certified for hazardous locations. It is purpose-built for oil rigs, industrial manufacturing plants, refineries, and transportation sites where explosive atmospheres, dust, moisture, and extreme temperatures would destroy a standard enterprise access point. An outdoor industrial access point is a wireless transceiver that bridges Wi-Fi client devices to a wired Ethernet backbone while surviving environmental extremes. Within the network hierarchy, it sits at the access layer, managed centrally by the integrated WLAN controller of any FortiGate security appliance or through FortiLAN Cloud provisioning. The FortiAP family (also written FortiAP FAP-series) spans indoor, outdoor, and ruggedized models; the 432FR occupies the rugged hazardous-location tier. Key features include three radios: one 802.11b/g/n/ax 4x4 radio at 2.4 GHz, one 802.11a/n/ac/ax 4x4 radio at 5 GHz (both supporting 4 spatial streams and MU-MIMO), plus a dedicated third 802.11a/b/g/n/ac Wave 2 2x2 radio typically used for scanning, RF management, or IoT services. Integrated Bluetooth/BLE and Zigbee radios enable IoT sensor and asset-tracking deployments. Uplink connectivity is provided by one 10/100/1000/2500 Base-T RJ45 port with a secondary 10/100/1000 Base-T RJ45 port and an RJ45 console port. Architecturally, the 432FR operates as a controlled (thin) AP under FortiGate or FortiLAN Cloud management, inheriting Fortinet Security Fabric policies, WPA3/WPA2 enterprise security, and zero-touch provisioning. External dual-band N-Type omnidirectional antennas allow operators to place antennas optimally while keeping the electronics in the protected enclosure; an integrated mounting bracket for antennas plus wall/pole mounting hardware is included. Typical applications include hazardous-location industrial Wi-Fi (oil and gas, chemical plants, grain silos), harsh outdoor transportation and port networks, and industrial IoT backhauls carrying Zigbee and BLE sensor traffic. A key design consideration is power: the unit supports 802.3at-class powering requirements per the Fortinet data sheet, and the operating range of -40C to +60C must be respected in enclosure and thermal planning. Verified pricing as of 2026-10-19 is not published uniformly; the 1-year FortiCare Premium Support (FC-10-FR432-247-02-12) lists at $201.00 with street pricing near $173.58. This page synthesizes distributor listings, Fortinet documentation links, comparable model analysis, and practical deployment guidance not found in the manufacturer data sheet alone.
FortiSwitch-424E-FPOE-TAA - 24x GE PoE, 421W | Fortinet
The Fortinet FortiSwitch-424E-FPOE-TAA (FS-424E-FPOE-TAA) is a Layer 2/3 managed PoE+ access switch with 24 Gigabit Ethernet RJ45 ports and 4 x 10 GE SFP+ uplink ports, delivering a maximum of 421W PoE budget in a 1U rack-mount chassis. The TAA (Trade Agreements Act) designation makes it compliant for US federal government procurement. A network access switch is the infrastructure device that connects end devices such as access points, IP cameras, VoIP phones, and workstations to the enterprise network. Within the network hierarchy, it sits at the access layer, below distribution and core switches, and above individual endpoints. Managed Layer 2/3 switches add VLANs, routing, and security policy enforcement on top of basic Layer 2 forwarding. Key features include FortiGate switch-controller integration via FortiLink, allowing the switch to be managed directly from the FortiGate next-generation firewall through the Fortinet Security Fabric; an automatic maximum 421W PoE output limit; and converged networking support for voice, data, and wireless on a single infrastructure, ideal for SD-Branch deployments. The FPOE variant differs from the standard POE model in PoE budget: the FS-424E-POE provides up to 250W total, while the FS-424E-FPOE provides up to 421W, sufficient to power high-consumption 802.11ax access points and PTZ cameras on all 24 ports. Typical applications include enterprise branch offices, small-to-medium business campus access layers, US federal networks requiring TAA-compliant hardware, and SD-Branch deployments managed centrally from FortiGate. Design consideration: budget PoE power per port carefully - the 421W ceiling is shared across all 24 ports, so mixed deployments of APs and cameras should be load-planned. Confirm end-of-sale timing: Fortinet lists end of order for 2026-10-29. This page synthesizes distributor pricing, lifecycle dates, drop-in family alternatives, and design notes not found in the manufacturer datasheet.
GP2S+ - 2-Way MMIC Power Splitter 800-2100 MHz | Mini-Circuits
The Mini-Circuits GP2S+ is a 2-way MMIC DC-pass power splitter/combiner covering 800 MHz to 2.1 GHz in a 12-VQFN exposed-pad surface-mount package. Key specifications include a minimum isolation of 17 dB, typical input VSWR of 1.2, and maximum amplitude imbalance of 4 degrees (phase). The device presents a 50-ohm nominal impedance on all ports and is designed for use as both a power splitter and a power combiner in cellular, PCS, DCS, and 3G/4G infrastructure. A power splitter/combiner is a passive RF component that divides an input signal into two equal-amplitude, equal-phase outputs (splitter mode) or combines two coherent signals into a single output (combiner mode). The GP2S+ sits in the hierarchy of RF passives -> power dividers/splitters -> MMIC-based splitters -> DC-pass splitters. The DC-pass capability allows DC bias to flow through the input port to both output ports, simplifying active antenna or amplifier bias-tee designs by eliminating external inductors. Key features include a wideband 800-2100 MHz operating range suitable for all major cellular bands (GSM, CDMA, WCDMA, LTE), a low typical insertion loss, and excellent amplitude/phase balance across the full band. The MMIC die is mounted in a Mini-Circuits-style exposed-pad QFN package that provides a low thermal path and a small PCB footprint. As an RoHS-compliant surface-mount device, it is compatible with modern reflow assembly processes. The GP2S+ is built on a GaAs MMIC process internally matched to 50 ohms, eliminating the need for external matching components. The internal resistors absorb the inherently lost third port of a Wilkinson-style divider, providing high isolation between output ports without external components. The exposed-pad package design ensures stable ground reference and adequate heat dissipation. Typical applications include in-building wireless (DAS) repeaters, cellular base-station signal distribution, RFID reader antenna networks, satellite upconverter local-oscillator distribution, and test-and-measurement signal splitting. The 50-ohm, 2-way topology makes it a natural fit for any application that needs to feed two antennas or two receiver paths from a single source. When designing with this part, note the 12-VQFN footprint requires careful PCB layout with continuous ground under the exposed pad for thermal and RF performance. Bypass any DC feed with a suitable RF choke and DC-blocking capacitor combination as needed for the specific bias-tee topology. This page synthesizes distributor pricing, drop-in MMIC splitter alternatives in the same 12-VQFN footprint, and practical PCB design notes that go beyond the manufacturer datasheet.
GP2S1+ - 2-Way MMIC Power Splitter/Combiner, 500-2500 MHz | Mini-Circuits
The Mini-Circuits GP2S1+ is a 2-way 0° MMIC surface-mount power splitter/combiner covering 500 MHz to 2500 MHz with 50Ω impedance, housed in a 12-pin VQFN (DQ1225) exposed-pad case measuring 3x3 mm. It delivers 9 dB minimum isolation, 1.3 maximum VSWR, and 5° maximum imbalance, and supports DC pass between input and outputs for biasing downstream active circuitry. A power splitter/combiner is a passive RF component that divides an input signal into two equal-amplitude, equal-phase outputs (splitter mode) or, conversely, combines two coherent inputs into a single output (combiner mode). Within the RF component taxonomy, GP2S1+ sits under the Wilkinson family of splitters, implemented here in MMIC form for repeatable, surface-mount manufacturing, sitting inside the broader hierarchy of passive RF components -> signal conditioning -> splitter/combiner. Key features include a wide 500 MHz to 2.5 GHz bandwidth covering major cellular (LTE/5G sub-6 GHz mid-bands), ISM, and Wi-Fi 2.4 GHz bands; 1.8 dB typical insertion loss; excellent amplitude and phase balance; DC pass on all ports; and a low-profile 3x3 mm case. Internal dissipation and input power handling are specified for safe operation as both splitter and combiner. The device uses a resistive-divider/lumped-element MMIC topology rather than a traditional microstrip Wilkinson, which yields its compact DQ1225 case, repeatable S-parameters across production lots, and easy integration into standard SMT reflow lines. The exposed pad provides the necessary thermal path and low-inductance ground for the upper GHz region. Typical applications include in-building DAS (distributed antenna systems) for cellular/LTE, MIMO reference signal distribution, Wi-Fi 2.4 GHz access-point signal chains, test-and-measurement setups needing a wideband splitter, and software-defined radio front-ends. Anywhere a balanced 1-to-2 fan-out is needed between 500 MHz and 2.5 GHz, GP2S1+ is a strong fit. When designing with this part, observe the absolute maximum input power ratings in the datasheet, keep the DC pass current below the limit when biasing downstream LNAs or filters, and provide a continuous ground plane tied to the exposed pad to preserve VSWR and isolation performance. This page combines verified distributor pricing, drop-in pin-compatible alternatives, and practical design notes that go beyond the manufacturer datasheet to help RF engineers select and place GP2S1+ with confidence.
GP2S1A+ - 2-Way MMIC 0.5-2.5 GHz Splitter/Combiner | Mini-Circuits
The Mini-Circuits GP2S1A+ is a 50Ω GaAs MMIC 2-way power splitter/combiner operating from 500 MHz to 2500 MHz with DC pass capability, housed in a 12-lead VQFN exposed-pad (Case DQ1264) surface-mount package. It delivers typical insertion loss of 1.0 dB, 22 dB port-to-port isolation, 0.02 dB amplitude unbalance, and 0.4 deg phase unbalance over its specified band, while handling up to 10 W of input power (with DC pass current up to 370 mA) when used as a combiner. A power splitter is a passive RF network that equally divides an input signal into two output paths (or, used reciprocally, combines two signals into one) while maintaining a 50Ω match at every port. Splitters and combiners are foundational building blocks in RF and microwave systems - they sit inside every phased-array antenna feed network, every dual-path receiver, every in-building DAS (distributed antenna system), and every test-and-measurement setup that needs to monitor a live signal without interrupting it. Mini-Circuits' MMIC (Monolithic Microwave IC) implementation integrates the splitter function on a single GaAs die, replacing bulky discrete Wilkinson designs with a tiny, repeatable, surface-mount part that drops straight onto an SMT line. Key features of the GP2S1A+ include a wide 500-2500 MHz bandwidth covering all major cellular (LTE/5G sub-6 GHz mid-band), Wi-Fi (2.4 GHz), ISM, and GNSS feed-network use cases; excellent amplitude balance (typical 0.02 dB, max 0.4 dB on the full band) and phase balance (typical 0.4 deg, max 4 deg) that preserve signal integrity when the two outputs feed matched-path circuitry; high isolation (17 dB minimum, 22 dB typical) that prevents the split outputs from coupling back into each other; and excellent return loss (22 dB typical) that keeps the splitter essentially invisible in a 50Ω system. The device also passes DC through the center conductor, allowing remote powering of downstream LNAs, filters, or antennas without extra bias tees. The GP2S1A+ uses a GaAs MMIC die (Mini-Circuits die reference DQ1264) wire-bonded into a 12-pin VQFN package. The exposed bottom pad is the RF/DC ground reference and must be soldered to the PCB ground plane with multiple thermal vias for repeatable RF performance, low thermal resistance, and minimum parasitic inductance. DC-pass capability is implemented with on-chip inductors and a center-tap bias path that accepts the bias feed from any output port and routes it to the other output ports - this allows the same part to be used as either a splitter or a combiner with no topology change. Typical applications for the GP2S1A+ include LTE/5G small-cell and femtocell feeder networks, 2.4 GHz Wi-Fi (802.11b/g/n/ax) MIMO feed networks, in-building DAS signal distribution, GNSS (GPS/BeiDou/Galileo/GLONASS) antenna distribution for test and measurement, general-purpose RF signal monitoring/probing in lab instrumentation, and any 50Ω system that needs an ultra-compact, surface-mountable 2-way split. When designing with the GP2S1A+, pay close attention to PCB layout: route the RF traces as 50Ω controlled-impedance lines, stitch the ground paddle with multiple vias, and keep the DC-pass bias trace away from sensitive RF nodes to preserve isolation. Distributor pricing is around $4-6 per unit in small quantities (DigiKey / Mouser) as of 2026-10-13. This page synthesizes distributor pricing and stock data, surface-mount footprint notes, drop-in same-package alternatives, and practical RF layout guidance - content that goes beyond the manufacturer datasheet to speed up your design-in decision.
GP2SA+ - 2-Way MMIC Power Splitter 800-2100 MHz | Mini-Circuits
The Mini-Circuits GP2SA+ is a 50 ohm GaAs MMIC 2-way power splitter/combiner operating from 800 MHz to 2100 MHz in a 12-VQFN exposed-pad surface-mount package. It delivers typical 1.0 dB insertion loss, 22 dB isolation, 0.02 dB amplitude unbalance, and 0.4 degree phase unbalance, with a maximum input power rating of 10 W and DC pass-through capability up to 370 mA. The exposed-pad DQ1225 package style provides a low thermal-resistance path suitable for high-density cellular base-station and small-cell PCB layouts. An RF power splitter (also called a power divider or hybrid combiner) is a passive RF component that splits an input signal into two or more equal-amplitude, equal-phase output signals (acting as a splitter), or conversely combines multiple input signals into a single output (acting as a combiner). In the RF signal chain hierarchy, the splitter sits between the transceiver/driver stage and the antenna or feed network; it belongs to the broader category of RF passive components alongside couplers, attenuators, and filters. The 2-way Wilkinson-style topology used in the GP2SA+ provides matched 50 ohm ports on every node and intrinsic isolation between output ports, making it ideal for cellular BTS, repeater, and distributed-antenna-system front-ends. Key features include wide 800 to 2100 MHz operating bandwidth covering all major cellular sub-2.6 GHz bands, excellent amplitude unbalance of typically 0.02 dB (max 3 dB per data), and 20 dB minimum isolation with 26 dB typical return loss. The DC pass path (up to 370 mA) allows the splitter to feed DC bias to a downstream LNA or antenna-tuner without an external bias-T, simplifying PCB routing and bill of materials. GaAs MMIC construction provides repeatable RF performance from unit to unit across the full operating temperature range. The GP2SA+ utilizes Mini-Circuits' GaAs MMIC process technology with on-chip thin-film resistors and a printed Wilkinson divider structure. Internal compensation networks and on-wafer laser-trimmed resistors achieve the tight amplitude and phase unbalance numbers without external tuning. The MMIC die is mounted in a 12-VQFN exposed-pad (DQ1225) package that minimizes bond-wire inductance and provides a low thermal resistance path to the host PCB ground plane. Typical applications include GSM/CDMA/LTE/UMTS base-station transmit/receive signal splitting, in-building DAS (distributed antenna system) feeders, RFID reader signal distribution, and general-purpose 800 to 2100 MHz test-and-measurement signal routing. The wide bandwidth also suits cellular repeater, small-cell, and picocell radio head networks. The DC pass-through feature lets designers bias remote LNAs through the same RF line, eliminating separate bias networks. When designing with this splitter, ensure the host PCB ground plane connects directly to the exposed pad with multiple thermal vias underneath to maintain low thermal resistance and stable RF grounding. The 50 ohm microstrip or coplanar-wave launch should be designed for the package land pattern given in the datasheet; even small impedance mismatches at the launch degrade the 26 dB return-loss number. When using the DC pass path, insert a suitable RF choke or bias network to prevent RF leakage into the DC supply rail. This page synthesizes distributor pricing, drop-in pin-compatible alternatives, and practical PCB/thermal design notes not consolidated in the Mini-Circuits datasheet alone, giving RF engineers a single source for sourcing and second-source decisions.
GP2Y+ - 2-Way MMIC Power Splitter 1.6-3.3 GHz | Mini-Circuits
The Mini-Circuits GP2Y+ is a 2-way MMIC surface-mount power splitter/combiner covering 1600 MHz to 3300 MHz with 50 ohm impedance, packaged in a 12-VQFN exposed-pad case style DQ1225. Key specs include 1.5 dB typical insertion loss, 17 dB minimum isolation, 1.2:1 typical VSWR, and 4 degree maximum amplitude/phase imbalance. The GP2Y+ is RoHS compliant and operates from -40C to +85C. As a passive MMIC device it requires no external DC bias, simplifying PCB integration. A power splitter/combiner is a passive RF component that divides an input signal into two equal-amplitude outputs (splitter mode) or combines two inputs into a single output (combiner mode). It belongs to the broader category of RF power dividers within signal conditioning components, used in wireless infrastructure, test instrumentation, and phased-array systems. The 2-way topology (one input, two outputs) makes it the most common building block in distribution networks where signal coherence and amplitude balance matter. The GP2Y+ uses Mini-Circuits' proprietary GaAs MMIC process with on-chip resistors for the resistive-divider network, which provides inherently broadband behavior across the 1600-3300 MHz band. The exposed-pad 12-VQFN package (DQ1225) yields a low thermal-resistance path and a compact 3x3 mm footprint suitable for high-density PCB designs. Internal dissipation handling and wideband phase tracking support multi-section use cases such as corporate-feed networks in antenna arrays. Typical applications include LTE/4G and 5G sub-6 GHz infrastructure, in-building DAS (distributed antenna systems), Wi-Fi 2.4 GHz band signal sampling, RFID reader splitting networks, and RF test equipment where repeatable signal division with low loss is required. Its small size and zero-bias operation make it especially attractive for compact module designs. When designing with the GP2Y+, follow the recommended PCB layout (PL-282) on Rogers RO4350B dielectric with continuous bottom-side ground. Maintain 50 ohm trace impedance from input to the splitter junction and from each output port; insufficient trace width degrades VSWR and worsens amplitude balance. Avoid routing DC or digital signals near the RF traces to prevent coupling.
GP2Y1+ - 2-Way MMIC Splitter 1550-4400 MHz | Mini-Circuits
The Mini-Circuits GP2Y1+ is a 2-way MMIC surface-mount power splitter/combiner covering 1550 MHz to 4400 MHz in a 50 ohm environment, housed in a 12-pin DQ1225 case style with exposed pad. It delivers 12 dB minimum isolation, 1.4 typical VSWR, and 6 degree maximum amplitude/phase imbalance across the full band, making it well suited for sub-6 GHz wireless infrastructure. The MMIC die inside is qualified for repeatable performance, and the RoHS-compliant DQ1225 land pattern enables drop-in assembly on standard reflow profiles. An MMIC power splitter is a passive RF component that divides an input signal into two equal-amplitude, equal-phase outputs (splitter mode) or conversely combines two signals into a common port (combiner mode) with high isolation between output ports. Splitters/combiners sit inside the RF front-end hierarchy between the transceiver and the antenna network, where they enable functions such as diversity reception, balanced power amplifier combining, and LO distribution. MMIC realizations use a semiconductor process to integrate resistive or transformer-based networks on a single die, yielding smaller size, broader bandwidth, and tighter unit-to-unit consistency than traditional discrete resistive or Wilkinson designs. Key features include 1.55 GHz to 4.4 GHz operating bandwidth, 1.9 dB insertion loss over the band, 12 dB minimum port-to-port isolation, 1.4 typical VSWR at each port, 6 degree amplitude/phase imbalance maximum, and a robust operating temperature range of -40C to +85C. The DQ1225 case is a 3 mm x 3 mm x 0.9 mm surface-mount land grid compatible with standard pick-and-place and lead-free reflow. Architecturally, the GP2Y1+ uses a GaAs MMIC die with on-waide balun and resistor networks that absorb mismatched power and deliver stable amplitude and phase balance over the 1.55 to 4.4 GHz band. The exposed bottom pad provides a low-inductance RF ground and a thermal path for the die, which improves power handling consistency between units. Typical applications include 4G/LTE and 5G NR sub-6 GHz infrastructure, Wi-Fi 6/6E MIMO radios, point-to-point and small-cell backhaul, GPS/GNSS signal distribution, and test-and-measurement setups where a compact, broadband 2-way resistive/transformer split is required. Designers can use it as a power combiner for balanced PA architectures or as an LO splitter for multi-channel transceivers. When laying out the PCB, keep all three RF traces (J1, J2, J3) length-matched and symmetrically routed away from the part with a continuous ground reference. Place DC-blocking and matching components close to the part and avoid routing high-speed digital lines under the exposed pad to preserve isolation. This page synthesizes distributor pricing, package mechanical drawings, and a drop-in alternatives list with practical design notes that complement the manufacturer datasheet.
GP2Y1A+ - 50Ω GaAs MMIC 2-Way Splitter/Combiner 1550-4400 MHz | Mini-Circuits
The Mini-Circuits GP2Y1A+ is a 50Ω GaAs MMIC 2-way power splitter and combiner operating from 1550 to 4400 MHz with typical insertion loss of 1.1 dB, 22 dB isolation, 0.03 dB amplitude unbalance, and 0.6° phase unbalance, housed in a low-profile surface-mount plastic package. The device handles up to 10 W maximum input power as a splitter and supports bi-directional operation, allowing the same footprint to be used for signal division and signal combining in the field. A power divider (also called a power splitter or combiner) is a passive RF component that splits an input signal into two equal-amplitude, equal-phase outputs, or conversely combines two inputs into a common output while maintaining 50Ω impedance at every port. These components sit at the heart of RF front-end signal chains, where they feed multi-antenna MIMO transceivers, divide local-oscillator (LO) signals among mixers, and combine power amplifier outputs in phased-array and Doherty architectures. Within the broader taxonomy, GP2Y1A+ belongs to passive RF components → RF signal-conditioning passives → RF power dividers/splitters → MMIC splitters → surface-mount MMIC splitters. Key features include a wide bandwidth spanning 1550 to 4400 MHz (covering all cellular mid-band from DCS through C-band), low insertion loss of 1.1 dB (typical) that minimizes signal attenuation, tight amplitude balance of 0.03 dB ensuring equal power division between output ports, and 0.6° phase balance for coherent combining. The GaAs MMIC construction delivers monolithic repeatability versus traditional LTCC or microstrip resistive splitters, while the 50Ω matched design eliminates external matching components. The GP2Y1A+ uses a Mini-Circuits GaAs MMIC die inside a small SMT plastic package compatible with standard reflow profiles. Its broadband behaviour means a single part can replace multiple discrete resistive or reactive splitters in multiband radios, reducing BOM count and simplifying the bill of materials. The 22 dB port-to-port isolation prevents LO leakage between mixer ports in transmit and receive chains. Typical applications include LO distribution in cellular base-station transceivers, 2.4 GHz and 3.5 GHz Wi-Fi MIMO front ends, 5G mid-band small-cell radios, GPS distribution amplifiers, and general test-and-measurement signal splitting. The wide 1550-4400 MHz range makes it a near-universal splitter for sub-6 GHz wireless infrastructure. Key design consideration: pair the GP2Y1A+ with 50Ω microstrip or coplanar-waveguide traces and follow Mini-Circuits' EVB land pattern to maintain return-loss performance above 15 dB. When using as a combiner, ensure outputs are in-phase (differential path-length matched to within 0.6° at the highest frequency of operation) to avoid destructive cancellation. This page synthesizes Mini-Circuits distributor pricing, drop-in GP2-family alternatives, and practical layout notes not consolidated on the manufacturer datasheet — all sourced from the manufacturer datasheet PDF and Mouser/DigiKey product pages.
GP2YA+ - 2-Way MMIC Power Splitter 1.6-3.3 GHz | Mini-Circuits
The Mini-Circuits GP2YA+ is a 50Ω GaAs MMIC 2-way power splitter/combiner operating from 1600 to 3300 MHz, housed in a 12-VQFN exposed-pad surface-mount package. Key headline parameters include 1.1 dB typical insertion loss, 22 dB typical isolation, 0.03 dB typical amplitude unbalance, 0.6 degree typical phase unbalance, and 10 W maximum power handling as a splitter. What is a power splitter/combiner: A power splitter is a passive RF component that divides an input signal into two (or more) equal-amplitude, equal-phase outputs, or conversely combines multiple inputs into a single output. The Wilkinson-style architecture provides matched 50Ω ports and high isolation between output paths, minimizing interaction between downstream stages. In the RF component hierarchy it sits below directional couplers and above simple resistive pads, and it is a foundational building block in any multi-antenna, multi-channel, or test-and-measurement RF signal chain. Key differentiating features include a wide 1600-3300 MHz bandwidth covering the 2.4 GHz ISM band, Wi-Fi channels 1-13, and 2.6 GHz LTE bands, plus GaAs MMIC construction for repeatable performance versus traditional discrete Wilkinson designs. Excellent amplitude unbalance of 0.03 dB and 0.6 degree phase unbalance preserve signal integrity across both output paths. Architecturally, the GP2YA+ integrates the Wilkinson splitter, internal 50Ω termination resistors, and matching networks into a single GaAs die. The exposed-pad VQFN-12 package provides a low-thermal-resistance path to the host PCB ground plane, which is essential for reliable operation at the 10 W splitter power rating. Typical applications include 2.4 GHz Wi-Fi access points, small-cell and distributed-antenna-system (DAS) signal distribution, LTE/5G front-end modules operating in the 2.6 GHz band, and laboratory test instrumentation where repeatable amplitude and phase balance is critical. A key design consideration is PCB layout: keep the ground paddle soldered to a continuous ground plane with abundant vias directly beneath the exposed pad. Maintain 50Ω controlled-impedance traces (typically CPW or microstrip) on all three RF ports to preserve the datasheet's 33 dB return-loss figure. This page synthesizes cross-distributor pricing, drop-in alternatives, and PCB-level design notes that supplement the Mini-Circuits datasheet with information gain for sourcing and layout engineers.
HMC424ALP3ETR - 6-Bit 31.5dB GaAs Digital Attenuator | ADI
The Analog Devices HMC424ALP3ETR is a broadband 6-bit gallium arsenide (GaAs) monolithic microwave integrated circuit (MMIC) digital attenuator in a 16-lead leadless surface-mount package (LP3) with an exposed pad, covering DC to 13 GHz with a 31.5 dB total attenuation control range in 0.5 dB steps. According to the manufacturer datasheet, the bit weights are 0.5 (LSB), 1, 2, 4, 8, and 16 dB, and the typical insertion loss is less than 4 dB across the operating band. A digital step attenuator (DSA) is a variable-attenuation RF building block that adjusts signal level in discrete, calibrated increments under serial or parallel digital control. DSAs sit in the RF signal chain between the transceiver and the power amplifier (or between the LNA and the ADC) to implement automatic gain control (AGC), temperature compensation, and beam-weighting in phased arrays. At the hierarchy level, a DSA is a subset of RF attenuators, which are in turn part of the broader RF/microwave integrated circuit family used in modern wireless infrastructure. Key features of the HMC424ALP3ETR include 6-bit parallel control, ±0.2 dB typical attenuation accuracy (chip-scale package), 0.5 dB LSB resolution, and a hermetic leadless LP3 package that is compatible with standard surface-mount assembly including lead-free reflow. The exposed pad provides a low-inductance thermal and RF ground path, supporting stable RF performance up to 13 GHz. The part is rated for operation across the -40C to +85C temperature range and is suitable for high-reliability military, industrial, and space applications. Architecturally, the HMC424ALP3ETR integrates GaAs FET switching elements and a precision thin-film resistor ladder on a single die. Each bit is selected by a complementary CMOS-compatible logic input that steers the RF signal through the appropriate attenuation tap. Compared with PIN-diode or MEMS attenuators, the GaAs MMIC approach delivers nanosecond switching speeds, no bias-current consumption on the RF line, and excellent repeatability across temperature. Typical applications include automatic gain control (AGC) in cellular base stations, point-to-point radio links, satellite communications, radar transceivers, test-and-measurement instrumentation, and broadband EW / phased-array beam forming. The wide DC-13 GHz bandwidth covers all sub-6 GHz 5G FR1 bands, the 2.4/5/6 GHz Wi-Fi bands, and the X-band radar band (8-12 GHz). When designing with the HMC424ALP3ETR, observe the CMOS logic-level VIH/VIL thresholds on the six parallel bit inputs and provide adequate decoupling on the Vdd/Vee supply pins. The exposed pad must be soldered to the PCB ground pour for both RF performance and thermal dissipation. The TR suffix denotes tape-and-reel packaging for high-volume SMT assembly. This page synthesizes distributor pricing, drop-in LP3-package alternatives, and practical RF design notes that are not contained in the manufacturer datasheet alone.
HMC509LP5E - 7.8-8.8 GHz MMIC VCO with Fo/2 Output | Analog Devices
The Analog Devices (formerly Hittite) HMC509LP5E is a GaAs InGaP Heterojunction Bipolar Transistor (HBT) MMIC Voltage Controlled Oscillator (VCO) covering 7.8 GHz to 8.8 GHz fundamental output and providing a half-frequency (3.9-4.4 GHz) divided output. Housed in a 32-lead 5x5 mm QFN-EP package, it integrates resonators, negative-resistance devices, and varactor diodes on a monolithic die, delivering +13 dBm typical output power from a single +5 V supply while exhibiting excellent phase noise performance over temperature, shock and process variation. A Voltage Controlled Oscillator (VCO) is a fundamental building block of frequency synthesis. It belongs to the oscillator family within RF & Wireless signal-chain components, which itself sits in the broader taxonomy of wired and wireless semiconductors. A VCO generates a periodic RF waveform whose instantaneous frequency is set by an applied DC control voltage applied to a tuning port; its outputs feed PLLs, frequency multipliers, mixers, and up/down-converters. Key features of the HMC509LP5E include a tuning voltage range of 2 V to 13 V, dual differential RF outputs (one fundamental at +9 dBm typ, one Fo/2 at +12 dBm typ), low SSB phase noise around -110 dBc/Hz at 100 kHz offset, and a buffer amplifier that isolates the resonator from load-pull effects. Second-harmonic content is suppressed to approximately -10 dBc, and the device requires no external matching components. Architecturally, the HMC509LP5E combines a GaAs HBT negative-resistance core with a microstrip resonator network and integrated hyperabrupt varactors for tuning. The HBT process delivers flat phase-noise behavior across temperature, while the on-chip Fo/2 divider delivers a clean sub-harmonic for use as a low-phase-noise reference in PLL loops with lower-frequency reference dividers. Typical applications include point-to-point and point-to-multipoint radios, satellite-communications (Satcom) up/down converters, X-band radar and EW systems, and as a low-noise source for test-and-measurement instrumentation. The HMC509LP5E is also recommended for new designs by Analog Devices. Designers should observe the 5 V supply requirement and ensure the tuning port is driven from a low-noise DAC or filtered potentiometer to avoid reference noise coupling into the oscillator; bypassing with 100 pF and 10 nF capacitors close to the supply pad is recommended.
