Microcontroladores

STM32F767ZIT6

STM32F767ZIT6 - 216MHz Cortex-M7 2MB Flash MCU | ST

The STMicroelectronics STM32F767ZIT6 is a high-performance 32-bit ARM Cortex-M7 microcontroller running at up to 216 MHz (462 DMIPS / 1082 CoreMark) with 2 MB of Flash memory, 512 KB of SRAM, and a 144-pin LQFP (20x20 mm, 0.5 mm pitch) surface-mount package. A microcontroller (MCU) is a compact integrated circuit that combines a processor core, memory, and programmable peripherals on a single die to govern a dedicated operation in an embedded system. The STM32F767ZIT6 belongs to the STM32F7 series within the broader STM32 family of Arm Cortex-M MCUs, positioning it in the high-performance tier of the embedded processing hierarchy, above mainstream Cortex-M4 devices such as the STM32F4 series. Key features include a double-precision FPU and DSP instructions on the Cortex-M7 core, an ART Accelerator and 8 KB instruction/data caches for zero-wait-state execution from Flash, a Chrom-ART Accelerator for 2D graphics, and a TFT LCD controller. Rich connectivity covers USART/UART, SPI, I2C, CAN, USB OTG HS/FS, Ethernet MAC, and camera interfaces, alongside multiple 12-bit ADCs and 16-bit DACs. Technically, the device integrates a hardware cryptographic accelerator (AES, DES/TDES, SHA-1, SHA-256) and a true random number generator (TRNG), with a flexible memory controller (FMC) supporting external SDRAM, NOR, and NAND. The 90 nm process balances high clock speed with low power, and dynamic clock gating supports low-power modes for battery-sensitive designs. Typical applications include industrial control and motor drives, human-machine interfaces with TFT displays, IoT gateways, audio processing, and test instrumentation, where 216 MHz performance and Ethernet/USB connectivity justify a high-performance Cortex-M7 platform. Design consideration: the MCU requires a 3.3V supply with 100 nF plus 4.7 uF decoupling capacitors at each VDD pair, and the two VCAP capacitors are mandatory for core regulation stability; it operates from -40C to +85C. This page synthesizes distributor pricing, drop-in alternatives, and practical design notes not found in the ST datasheet, providing a complete selection and implementation resource.

USD $17,60 En stock

STM32F769BGT6

STM32F769BGT6 - 2MB Flash, 216MHz Cortex-M7 MCU | STMicroelectronics

The STMicroelectronics STM32F769BGT6 is a high-performance ARM Cortex-M7 microcontroller with a double-precision FPU, operating at up to 216 MHz. It integrates 2 MB of Flash and 512 KB of SRAM, and is housed in a 208-pin LQFP package (TFBGA/LQFP208 family) supporting TFT-LCD, Ethernet, USB, and hardware cryptography for graphics-rich secure embedded designs. What is a microcontroller? A microcontroller (MCU) is a compact integrated circuit that combines a processor core, volatile memory (SRAM), non-volatile memory (Flash), and programmable input/output peripherals on a single chip. Microcontrollers are the backbone of embedded systems, ranging from simple household appliances to complex industrial automation. The STM32F769BGT6 belongs to the STM32F7 series within the broader STM32 family of 32-bit ARM Cortex-M microcontrollers, placing it in the high-performance segment with advanced connectivity, hardware crypto, and TFT graphics. Key specifications include a Chrom-ART Accelerator that offloads 2D DMA transfers from the CPU, an integrated TFT-LCD controller supporting resolutions up to WXGA, an 8 KB instruction cache and 8 KB data cache for low-latency code execution, and a hardware cryptographic accelerator plus True Random Number Generator (TRNG) for secure-boot and TLS applications. Operating voltage spans 1.7 V to 3.6 V across the industrial -40 °C to +85 °C range. Technically, the device is fabricated on a low-power 40 nm CMOS process and includes the M7 instruction cache, DTCM and AXI/AHB bus matrix, DSP extensions, and the STM32 standard library ecosystem (HAL/LL drivers, STM32CubeMX). External memory interfaces include FMC for SDRAM, NOR/NAND Flash, and SRAM expansion. This architecture cleanly separates code, data, and peripheral DMA traffic. Typical applications include human-machine interface (HMI) panels with TFT displays, industrial PLCs, secure IoT gateways, point-of-sale terminals, motor-control drives, and medical imaging controllers. The combination of high clock speed, hardware crypto, and Ethernet MAC makes it ideal for connected, secure, graphics-rich products. When designing with this LQFP-208 device, follow ST's recommended land pattern and use a 4-layer PCB with a solid ground plane for the high-speed SDMMC, USB, and Ethernet signals. Provide dedicated 100 nF + 4.7 µF decoupling on each VDD pin, keep the NRST reset trace short, and ensure the BYPASS_REG pin uses a 1 nF + 1 µF network for internal LDO stability. This page synthesizes distributor pricing, drop-in alternatives, application companions, and practical design notes beyond the manufacturer datasheet to accelerate your BOM and firmware decisions.

USD $17,92 En stock

STM32F769BIT6

STM32F769BIT6 - Cortex-M7 MCU 2MB Flash 216MHz LQFP-208 | ST

The STMicroelectronics STM32F769BIT6 is a high-performance ARM Cortex-M7 32-bit RISC microcontroller with FPU and DSP instructions, operating at up to 216 MHz and delivering 462 DMIPS / 1082 CoreMark performance, packaged in a 208-pin LQFP (28x28 mm). It integrates 2 MB of Flash and 512 KB of SRAM, with an additional 16 KB instruction cache plus 16 KB I-cache for tight-memory code acceleration, making it one of the most capable Cortex-M7 MCUs in the STM32F7 family. What is a Cortex-M7 microcontroller? A microcontroller (MCU) is a single-chip computer containing a CPU core, Flash program memory, SRAM data memory, and a wide set of on-chip peripherals such as ADCs, timers, communication controllers and GPIOs. The ARM Cortex-M7 is the highest-performance core in the Cortex-M family, featuring a 6-stage superscalar pipeline, branch prediction, single/double-precision FPU, and tightly-coupled memories. It targets DSP-rich applications, advanced HMI graphics, and high-speed data acquisition where a Cortex-M4/M33 would lack throughput. The STM32F769BIT6 sits in the high-end tier of the STM32 line (LDO → microcontroller → embedded processor → semiconductor). Key features include an integrated Chrom-ART Accelerator 2D graphics engine, a hardware JPEG codec, dual QSPI/OctoSPI interfaces for external Flash expansion, a TFT-LCD controller up to WXGA, three 12-bit ADCs (2.4 MSPS each), two 12-bit DACs, USB 2.0 OTG FS + HS with on-chip PHY, Ethernet MAC, SDMMC, CAN, I2C, SPI/I2S, UART/USART, and a cryptographic/hash accelerator. The LQFP-208 package exposes up to 168 GPIOs and offers ample headroom for parallel-display, camera (DCMI), and SDRAM-bus expansion designs. Typical applications include advanced HMI panels with TFT-LCD and touch, industrial control and PLC front-ends, smart-home gateways, barcode scanners and label printers, audio DSP front-ends with the SAI/DFSDM peripherals, motor-control FOC platforms, and point-of-sale terminals. The wide peripheral set makes the STM32F769BIT6 a frequent choice when engineers need both graphics and deterministic real-time behavior in a single MCU. When designing with this part, pay attention to the BYPASS_REG and VCAP pins: the integrated SMPS step-down regulator of the F7 series requires two external capacitors on each VCAP pin for the 1.1V core rail, and the BYPASS_REG pin must be tied correctly to select internal-regulator or external-supply mode. Decoupling should follow ST's AN4661 guidance (multiple 100 nF plus bulk 4.7 µF per supply rail). This page synthesizes distributor pricing, drop-in LQFP-208 alternatives from ST and cross-brand options, and engineering-grade selection notes that complement - but do not replace - the manufacturer datasheet.

USD $13,40 En stock

STM32F769IGT6

STM32F769IGT6 - 216MHz Cortex-M7 MCU, 1MB Flash | STMicroelectronics

The STMicroelectronics STM32F769IGT6 is a high-performance 32-bit ARM Cortex-M7 microcontroller with FPU and DSP instructions, integrating 1 MB of Flash and 340 + 256 KB SRAM in a 176-pin LQFP (24x24 mm) package. The Cortex-M7 core delivers up to 216 MHz clock speed with 462 DMIPS and supports single-precision floating-point, double-precision FPU, and full DSP/MPU instruction set for signal processing workloads. What is a Cortex-M7 microcontroller? The Cortex-M7 is Arm's highest-performance microcontroller core for embedded applications, designed for real-time control and DSP. It sits in the hierarchy as: Cortex-M7 -> ARM Cortex-M family -> 32-bit MCU -> microcontroller -> semiconductor. The STM32F7 series integrates this core with large SRAM, hardware graphics (Chrom-ART accelerator, JPEG codec), and rich connectivity, making it suitable for high-end HMI, audio, and motor control. Key features of the STM32F769IGT6 include: 1 MB Flash with dual-bank architecture for live firmware upgrades, up to 2 MB external memory expansion via FMC (Flexible Memory Controller), 16-bit ADCs (up to 3 MSPS), two CAN 2.0B interfaces, USB OTG full-speed + USB OTG high-speed with on-chip HS PHY, two SDMMC interfaces, TFT-LCD controller, and the Chrom-ART graphics accelerator. The 176-LQFP exposes the maximum peripheral set of the F7 series, including 8-bit/16-bit FSMC, SAI audio interfaces, and SPDIF-Rx. Architecturally, the STM32F769IGT6 uses an advanced 90 nm process with an adaptive real-time ART Accelerator that delivers zero-wait-state execution from Flash at full 216 MHz. Multi-layer AHB/APB bus matrix, 16 DMA streams with FIFOs, and a dedicated DMA2D engine for image data transfer accelerate data movement. The MCU operates at 1.7-3.6 V with selectable LDO/SMPS regulator (BYPASS_REG pin) and includes a real-time clock, watchdog, and SysTick. Primary applications are high-end human-machine interface (HMI) panels, smart-home gateways, motor drives, professional audio, point-of-sale terminals, and embedded graphics with TFT-LCD + touch. The integrated TFT-LCD controller and JPEG codec remove the need for an external graphics MCU in many designs. Design consideration: the LQFP-176 package is large (24x24 mm) and requires careful PCB layout for the high-speed USB HS, SDMMC, and external memory interfaces. Use impedance-controlled traces for USB and RMII, and isolate analog/digital grounds. This page synthesizes distributor pricing, drop-in same-package alternatives (STM32F767IIT6 with 2 MB Flash, STM32F765IGT6), and practical design notes not found in the manufacturer datasheet alone.

USD $14,10 En stock

STM32F769NIH6

STM32F769NIH6 - 2MB Flash 216MHz ARM Cortex-M7 MCU | STMicroelectronics

The STMicroelectronics STM32F769NIH6 is a high-performance ARM Cortex-M7 microcontroller operating at up to 216 MHz, delivering 462 DMIPS/2.14 DMIPS/MHz, with 2 MB of dual-bank Flash and 512 KB of SRAM in a 216-pin TFBGA (13x13 mm) package. It supports 1.7V to 3.6V supply and -40C to +85C industrial temperature range, integrating a TFT LCD controller, hardware JPEG codec, and Chrom-ART Accelerator for graphics-rich applications. What is a microcontroller? A microcontroller (MCU) is a compact integrated circuit that combines a processor core, Flash/SRAM memory, and programmable I/O peripherals on a single die, governing a defined operation in an embedded system. The STM32F769NIH6 belongs to the STM32F7 series within the broader STM32 family of 32-bit Flash microcontrollers. The hierarchy STM32F769 -> STM32F7 -> STM32 -> ARM Cortex-M7 places it in the high-performance tier with DSP extensions and a single-precision floating-point unit (FPU). Cortex-M7 MCUs are the preferred choice for real-time signal processing, motor control, advanced audio, and rich human-machine interface (HMI) systems that require both computational density and connectivity. Key features include the Chrom-ART Accelerator for offloading 2D DMA2D operations (up to 10x faster than software rendering), a TFT LCD controller supporting up to XGA resolution, a hardware JPEG codec, and a cryptographic acceleration unit. The device exposes 168 GPIO across multiple ports, four I2C, six SPI, four USART/UART, three CAN, two SAI audio interfaces, one SDMMC, two USB 2.0 OTG (HS+FS), and two Ethernet MAC controllers. External memory bus (FMC) supports SDRAM, SRAM, NOR, and NAND for large frame buffers and code overlays. The 40nm process technology provides a balanced performance-per-watt profile for industrial embedded designs. Technically, the STM32F769NIH6 includes the Cortex-M7 core with single-precision FPU, a memory protection unit (MPU), DSP instruction set, true random number generator (TRNG), real-time clock (RTC), and 12-bit ADCs/DACs. Two 12-bit DACs, three 12-bit ADCs, and seventeen timers (including 32-bit and 16-bit) enable precise motor control and audio synthesis. The external memory interface (FMC) supports PSRAM, NOR Flash, NAND Flash, and SDRAM, enabling up to 32-bit external buses with multiplexing. Typical applications include high-end consumer electronics, industrial HMI panels, point-of-sale terminals, medical devices, audio processing subsystems, motor drives, and IoT gateways. The STM32F769NIH6 is particularly well-suited for smart home control panels and industrial displays where its graphics acceleration, JPEG codec, and Ethernet/USB connectivity deliver a complete platform. When designing with this device, ensure proper decoupling with 100nF capacitors placed close to each VDD pin, and provide a 25 MHz HSE oscillator and a 32.768 kHz LSE crystal for RTC. For USB HS and Ethernet, route the differential pairs with 90-dpi impedance and use the internal PLL to derive 48 MHz. Hold NRST low during power-up and ensure VDD is applied before VDDA per datasheet sequencing guidelines. This page synthesizes distributor pricing, drop-in alternatives from the same STM32F7 family, and practical design notes not aggregated on manufacturer product pages.

USD $15,85 En stock

STM32F777BIT6

STM32F777BIT6 - 2MB Flash, 216MHz ARM Cortex-M7 MCU | STMicroelectronics

The STMicroelectronics STM32F777BIT6 is a high-performance ARM Cortex-M7 based microcontroller operating at up to 216 MHz, delivering 462 DMIPS and 1082 CoreMark. It features 2 MB of dual-bank Flash memory and 512 KB of SRAM, making it suitable for complex embedded applications requiring substantial code and data storage. The device is housed in a 208-pin LQFP (LQFP208) package with a 28x28 mm body and 0.5 mm pitch, providing ample I/O for system integration. What is a microcontroller? A microcontroller (MCU) is a compact integrated circuit designed to govern a specific operation in an embedded system. It integrates a processor core, memory (Flash and SRAM), and programmable input/output peripherals on a single chip. Microcontrollers are the foundation of modern embedded systems, ranging from automotive engine control units to consumer IoT devices. The STM32F7 series sits at the high-performance tier of the STM32 family, positioned above the mainstream STM32F4 series and below the higher-end STM32H7 series, offering a balance of performance, memory, and peripheral integration. Key features include a Chrom-ART Accelerator for 2D graphics, a hardware cryptographic processor supporting AES, DES, 3DES, and hash functions, and a true random number generator (TRNG). The device also integrates a TFT LCD controller, a JPEG codec, and a camera interface, enabling rich human-machine interfaces. With 168 MHz maximum ADC conversion rate and multiple communication interfaces including Ethernet MAC, USB OTG HS, and CAN, the STM32F777BIT6 is designed for connectivity-intensive applications. Technically, the STM32F777BIT6 is built on a 40 nm process technology, offering low power consumption with multiple low-power modes: Sleep, Stop, and Standby. The dual-bank Flash allows read-while-write operations, enabling firmware updates without halting the system. The device supports external memory interfaces for SDRAM, SRAM, and NOR/NAND Flash, expanding memory beyond the on-chip resources. The Chrom-ART accelerator offloads 2D graphics operations from the CPU, improving GUI performance while reducing power consumption. Typical applications include industrial control systems, medical devices, smart home hubs, and high-end consumer electronics. The combination of high CPU performance, rich connectivity, and advanced security features makes it ideal for applications requiring real-time processing, secure communication, and graphical user interfaces. For example, in an industrial HMI, the STM32F777BIT6 can drive a TFT display, handle Ethernet communication, and execute control algorithms simultaneously. When designing with this device, ensure adequate decoupling on all power supply pins and a proper ground plane for the LQFP208 package. The high-speed peripherals, such as Ethernet and USB, require careful PCB layout to maintain signal integrity. Also, consider the thermal dissipation of the 216 MHz core; a thermal pad or heatsink may be necessary for sustained high-load operation.

USD $11,60 En stock

STM32F777IIK6

STM32F777IIK6 - 216MHz Cortex-M7 MCU 2MB Flash UFBGA-176 | STMicroelectronics

The STMicroelectronics STM32F777IIK6 is a high-performance 32-bit ARM Cortex-M7 microcontroller with FPU and DSP extensions, operating at 216 MHz and delivering up to 462 DMIPS / 1084 CoreMark performance. The device integrates 2 MB of dual-bank Flash memory, 512 KB of SRAM (with 16 KB and 4 KB sub-banks for backup and CCM), advanced cryptographic accelerators (AES, Hash, true-RNG), and a TFT-LCD + DSI controller, all housed in a 176-pin UFBGA package (10x10 mm). A microcontroller (MCU) is a system-on-chip that integrates a CPU core, memory, peripherals, and dedicated hardware accelerators into a single die. The ARM Cortex-M class targets deterministic, energy-efficient embedded control; the Cortex-M7 specifically adds a double-precision FPU, branch prediction, and tightly-coupled instruction/data memories (ICACHE/DCACHE), enabling DSP workloads and high-throughput GUI rendering on a low-power platform. Within ST's families, the STM32F777 sits in the high-end F7 line, with the F777IIK6 suffix denoting 2 MB Flash, 176-pin UFBGA (industrial temperature range, tray packaging). Key features include 216 MHz CPU speed, 32-channel DMA, two 12-bit ADCs (up to 2.4 MSPS each), two 12-bit DACs, low-power RTC, two USB OTG interfaces (HS and FS), 10/100 Ethernet MAC, three CAN 2.0B controllers, USB Power Delivery support, HDMI-CEC hardware, SDMMC, dual-mode Quad-SPI, and an external memory bus for SDRAM/NAND/NOR. The TFT-LCD and MIPI-DSI controllers make this part well-suited for advanced graphical HMIs without an external display controller. Architecturally, the STM32F777 is built on a 90 nm CMOS process with an ART Accelerator allowing zero-wait-state execution from Flash, four I2S/SAI interfaces for audio, six SPIs, four I2Cs, five USARTs/UARTs, and two UARTs dedicated to low-power modes. Crypto/hash hardware (AES 128/192/256, SHA-1/SHA-2) and a unique 96-bit device ID support secure boot and signed firmware. The 176+25 UFBGA pinout exposes all peripherals simultaneously and provides strong power/ground integrity for the high-speed interfaces. Typical applications include industrial HMI panels, smart appliances with rich GUIs, point-of-sale terminals, machine-vision controllers, USB Type-C audio docks, and medical instruments with graphic displays. The external memory interface and dual-mode QSPI enable fast external NOR or PSRAM expansion for in-field firmware upgrades or large display buffers. When designing with this part, dedicate a solid ground pour on the top layer to manage the 216 MHz core current transients and keep the VDD/VDDA decoupling capacitors within 2 mm of their respective pins. The DSI lanes require length matching within 50 mils to maintain signal integrity. This page synthesizes distributor pricing, drop-in STM32F7 alternatives, and practical design notes from the STM32F777xx datasheet not consolidated on any single distributor page.

USD $16,12 En stock

STM32F777ZIT6

STM32F777ZIT6 - 2MB Flash, 216MHz ARM Cortex-M7 MCU | STMicroelectronics

The STMicroelectronics STM32F777ZIT6 is a high-performance ARM Cortex-M7 based microcontroller operating at up to 216 MHz, delivering 462 DMIPS and 1082 CoreMark. It features 2 MB of dual-bank Flash memory and 512 KB of SRAM, making it suitable for complex real-time applications. The device is housed in a 144-pin LQFP (ZIT) package with a 20x20 mm footprint, offering extensive I/O and connectivity options. What is a microcontroller? A microcontroller (MCU) is a compact integrated circuit designed to govern a specific operation in an embedded system. It integrates a processor core, memory (Flash and SRAM), and programmable input/output peripherals on a single chip. In the system hierarchy, an MCU sits above a bare microprocessor by including on-chip memory and peripherals, and below a full application processor (like those in smartphones) which typically runs a rich OS. The STM32F777ZIT6 belongs to the STM32F7 series, which is part of the broader STM32 family of 32-bit Flash microcontrollers based on ARM Cortex-M cores. This family is widely used in industrial, consumer, and IoT applications due to its balance of performance, power efficiency, and peripheral integration. Key features include a Chrom-ART Accelerator for 2D graphics, a hardware cryptographic accelerator (AES, DES, 3DES, SHA-1, SHA-256, MD5), a true random number generator, and a JPEG codec. The device supports a comprehensive set of communication interfaces: 4x I2C, 4x USART, 4x UART, 6x SPI, 3x CAN, 2x USB OTG (FS/HS), 2x SDMMC, 1x FMC (external memory interface), and 2x SAI (serial audio interfaces). It also includes a 12-bit ADC with 3.6 MSPS, a 12-bit DAC, and multiple timers including high-resolution timers. The STM32F777ZIT6 operates from a 1.7V to 3.6V supply and features a wide temperature range of -40°C to +85°C (industrial grade). It supports various low-power modes (Sleep, Stop, Standby) to optimize energy consumption. The device is RoHS compliant and available in tape and reel packaging. Typical applications include industrial control systems, motor drives, medical devices, audio processing, and high-end consumer electronics. The dual-bank Flash allows over-the-air firmware updates with minimal downtime, and the cryptographic accelerator enables secure communication protocols. When designing with this MCU, ensure adequate decoupling on all power pins and follow the recommended layout for the high-speed USB and external memory interfaces. The internal LDO can be bypassed for lower power consumption, but this requires careful power sequencing.

USD $22,59 En stock

STM32F779BIT6

STM32F779BIT6 - 32-bit ARM Cortex-M7 MCU, 2MB Flash, 216MHz | STMicroelectronics

The STM32F779BIT6 is a high-performance 32-bit microcontroller from STMicroelectronics, based on the ARM Cortex-M7 core running at up to 216 MHz. It features 2 MB of Flash memory and 512 KB of SRAM, making it suitable for complex applications requiring substantial code and data storage. The device is housed in a 208-pin LQFP package (LQFP208) with a 28x28 mm body, offering a rich set of peripherals and I/O capabilities. A microcontroller (MCU) is a compact integrated circuit designed to govern a specific operation in an embedded system. It contains a processor core, memory (Flash and SRAM), and programmable input/output peripherals. The STM32F779BIT6 belongs to the STM32F7 series, which is part of the broader STM32 family of 32-bit ARM Cortex-M microcontrollers. This family is widely used in industrial, consumer, and automotive applications due to its balance of performance, power efficiency, and peripheral integration. Key features include a 216 MHz Cortex-M7 core with double-precision FPU, 2 MB Flash, 512 KB SRAM, and a comprehensive set of peripherals: multiple 12-bit ADCs, DACs, timers, communication interfaces (USART, SPI, I2C, CAN, USB OTG, Ethernet MAC), and advanced security features like cryptographic acceleration and true random number generator. The device also supports external memory interfaces (FMC) for SDRAM, NOR, and NAND Flash expansion. The STM32F779BIT6 leverages the ARM Cortex-M7 architecture with a 6-stage pipeline and a branch prediction unit, delivering 2.14 CoreMark/MHz. It includes a hardware cryptographic accelerator (AES, DES, 3DES, SHA-1, SHA-256) and a true random number generator (TRNG), enhancing security for IoT and connectivity applications. The device operates from 1.7V to 3.6V supply, with multiple low-power modes (Sleep, Stop, Standby) for energy-sensitive designs. Typical applications include industrial control systems, motor drives, IoT gateways, audio processing, and high-end consumer electronics. The rich peripheral set and high clock speed make it ideal for real-time control and signal processing tasks. The FMC interface allows seamless connection to external memory, expanding storage for data logging or graphical user interfaces. When designing with this MCU, ensure proper decoupling of the power supply pins with 100 nF capacitors placed close to each VDD pin, and a 4.7 uF bulk capacitor. The VDDA analog supply should be filtered with a ferrite bead and 1 uF capacitor to reduce noise for ADC accuracy. The BOOT0 pin configuration must be set correctly for desired boot mode (Flash, System memory, or SRAM).

USD $11,75 En stock

STM32F779NIH6

STM32F779NIH6 - 216MHz Cortex-M7 MCU, 2MB Flash, 216-TFBGA | STMicroelectronics

The STMicroelectronics STM32F779NIH6 is a high-performance 32-bit ARM Cortex-M7 microcontroller running at up to 216 MHz with 2 MB of embedded Flash and 512 KB of SRAM, housed in a 216-ball TFBGA (13x13 mm) package. It integrates an Arm Cortex-M7 core with double-precision FPU, 16 KB I-cache / 16 KB D-cache, ART Accelerator for 0-wait-state execution, MPU, 462 DMIPS (2.14 DMIPS/MHz, Dhrystone 2.1), and DSP instructions. Peripherals include high-speed USB OTG, Ethernet MAC, SDMMC, FMC, Quad-SPI, and an on-chip crypto/hash block in select derivatives. An ARM Cortex-M7 microcontroller is a 32-bit RISC processor core from Arm's Cortex-M family that targets high-performance embedded applications requiring DSP and floating-point capabilities. Cortex-M7 sits at the top of the Cortex-M hierarchy (Cortex-M7 -> Cortex-M -> Arm architecture -> 32-bit MCU) and supersedes Cortex-M4 by adding a 6-stage superscalar pipeline, dual-issue load/store, branch prediction, and optional double-precision FPU. Compared to Cortex-M4 parts, Cortex-M7 MCUs typically deliver 2x DSP performance and 1.5-2x integer performance at similar clock rates. Key features of the STM32F779NIH6 include the ART Accelerator enabling 0-wait-state flash execution at 216 MHz, dedicated instruction and data caches, a Chrome-ART graphics accelerator for TFT-LCD and MIPI-DSI interfaces, hardware crypto acceleration (AES, SHA, DES, RNG), multiple 12-bit ADCs (2.4 MSPS), two 12-bit DACs, and up to 18 timers including 32-bit and motor-control variants. The device supports USB 2.0 high-speed OTG, two CAN 2.0B controllers, an Ethernet MAC with IEEE 1588, SDMMC, and Quad-SPI for external serial memory expansion. Typical applications for the STM32F779NIH6 span industrial HMI with TFT-LCD and touch, motor control (BLDC/PMSM), high-end audio processing with DSP, networked IoT gateways, point-of-sale terminals, and graphical embedded products. The wide peripheral set and 2 MB flash also make it suitable for secure connected devices using the on-chip hardware crypto engine. When designing with the STM32F779NIH6, ensure the 216-ball TFBGA is compatible with your PCB manufacturing capabilities. Use ST's STM32CubeMX and STM32CubeIDE for pin mux configuration, code generation, and debugging. Pay attention to decoupling (place 100 nF + 4.7 uF near each VDD pin pair), JTAG/SWD trace layout for debug, and boot-mode pin straps for flash programming.

USD $17,60 En stock

STM32F779ZIT6

STM32F779ZIT6 - 2MB Flash, 216MHz Cortex-M7 MCU | STMicroelectronics

The STMicroelectronics STM32F779ZIT6 is a high-performance ARM Cortex-M7 based microcontroller with a 32-bit core running at up to 216 MHz. It features 2 MB of Flash memory and 512 KB of SRAM, making it suitable for complex applications requiring substantial code and data storage. The device is housed in a 144-pin LQFP package (LQFP144) with a 20x20 mm body and 0.5 mm pitch, offering a compact yet high-density solution for advanced embedded systems. What is a microcontroller? A microcontroller (MCU) is a compact integrated circuit designed to govern a specific operation in an embedded system. It integrates a processor core, memory (Flash and SRAM), and programmable input/output peripherals on a single chip. Microcontrollers are the backbone of modern electronics, found in automotive engine control units, industrial automation, consumer appliances, and IoT devices. They sit within the broader hierarchy of embedded systems, which include sensors, actuators, and communication interfaces, all coordinated by the MCU's processing capabilities. Key features of the STM32F779ZIT6 include a rich set of peripherals: multiple 12-bit ADCs, DACs, timers, USARTs, SPIs, I2Cs, USB OTG, Ethernet MAC, camera interface, and a Chrom-ART Accelerator for graphics. It also integrates a hardware cryptographic processor supporting AES, DES, and 3DES, along with a true random number generator (TRNG). The device supports a wide supply voltage range of 1.7V to 3.6V and operates over a temperature range of -40°C to +85°C (industrial grade). The STM32F779ZIT6 is built on ST's advanced 90nm process technology, enabling high clock speeds with low power consumption. The Cortex-M7 core features a 6-stage pipeline, branch prediction, and a single-precision floating-point unit (FPU), delivering 1082 CoreMark score at 216 MHz. The memory architecture includes an 8-Kbyte instruction cache and an 8-Kbyte data cache, reducing access latency and improving real-time performance. Typical applications include high-end consumer electronics, industrial control systems, medical devices, and IoT gateways. The combination of high performance, extensive connectivity, and security features makes it ideal for applications requiring advanced user interfaces, connectivity, and data processing. When designing with this device, ensure proper decoupling of the power supply pins with 100nF capacitors placed close to each VDD pin, and a bulk capacitor (e.g., 4.7uF) on the main supply. The VDDA pin must be connected to a clean analog supply to minimize ADC noise. Also, consider the thermal dissipation: the LQFP144 package has a thermal resistance of 40°C/W (theta_JA), so adequate PCB copper area is recommended for high-current applications.

USD $11,75 En stock

STM32G030C6T6

STM32G030C6T6 - Cortex-M0+ MCU, 64MHz, 32KB Flash, LQFP-48

The STMicroelectronics STM32G030C6T6 is a 32-bit Arm Cortex-M0+ mainstream microcontroller operating at up to 64 MHz, offering 32 KB of Flash and 8 KB of SRAM in a 48-pin LQFP (7x7 mm) package. It is part of the STM32G0 value-line series designed for cost-sensitive embedded applications requiring modern peripherals and low power consumption. An Arm Cortex-M0+ microcontroller is a low-power 32-bit processor core based on the Armv6-M architecture, optimized for energy-efficient embedded designs. It belongs to the broader category of microcontrollers (MCUs), which integrate CPU, memory, and peripherals on a single die. The Cortex-M0+ sits below Cortex-M3/M4 in performance but excels at deterministic interrupt response and minimal energy per instruction, making it ideal for sensor nodes, human-machine interfaces (HMI), and battery-powered consumer devices. The STM32G0 family represents ST's entry-level mainstream line, balancing 8-bit MCU cost with 32-bit performance. Key features include the Cortex-M0+ core with single-cycle I/O access, hardware CRC, real-time clock, low-power Run/Stop/Standby/Shutdown modes, and an operating temperature range of -40C to +85C. The device integrates an 11-channel 12-bit ADC (2.5 Msps), multiple timers, and serial interfaces including USART, SPI, and I2C (with Fast-mode Plus support up to 1 Mbit/s). The integrated voltage regulator and brown-out reset simplify power-supply design across 2.0V to 3.6V supplies. Technical depth: the STM32G030C6T6 uses ST's 90 nm process with on-chip voltage scaling, achieving typical Run-mode current under 1 mA/MHz and Stop-mode current in the microamp range. The single-wire debug (SWD) interface and integrated bootloader shorten firmware bring-up. Hardware parity on SRAM catches single-bit faults in safety-relevant code. Typical applications include small appliance controls, USB Type-C cable marker ICs, simple HMI panels (buttons, LEDs), and sensor hubs. The wide operating voltage allows direct battery connection in 2xAA or coin-cell systems. Design consideration: leverage the LQFP-48 (7x7 mm) package's exposed pad for thermal relief; if unused, leave it floating or stitch to ground per ST's design recommendations. This page combines authoritative ST datasheet data, drop-in alternates, and practical design notes to support engineer selection and second-sourcing decisions.

USD $0,98 En stock

STM32G030C8T6

STM32G030C8T6 - 64KB Flash ARM Cortex-M0+ MCU | STMicroelectronics

The STM32G030C8T6 is a 32-bit ARM Cortex-M0+ based microcontroller from STMicroelectronics, featuring 64KB of Flash memory and 8KB of SRAM. It operates at a maximum clock frequency of 64 MHz and is housed in a 48-pin LQFP package (7x7 mm). This device is part of the STM32G0 series, designed for cost-sensitive and power-efficient applications. What is a microcontroller? A microcontroller (MCU) is a compact integrated circuit containing a processor core, memory, and programmable input/output peripherals on a single chip. It is the brain of embedded systems, executing instructions to control devices such as sensors, motors, and displays. In the system hierarchy, a microcontroller falls under embedded processors, which are part of the broader category of integrated circuits. The STM32G030C8T6 is a mainstream MCU, balancing performance, power consumption, and cost for a wide range of applications. Key features include a 12-bit ADC with up to 19 channels, multiple timers (including advanced-control timers), and a rich set of communication interfaces: I2C, SPI, USART, and low-power UART. The device supports a supply voltage range of 2.0V to 3.6V and offers multiple low-power modes (Sleep, Stop, Standby) to optimize energy consumption. It also includes a DMA controller, CRC calculation unit, and a real-time clock (RTC). The STM32G030C8T6 is built on a high-performance ARM Cortex-M0+ core with a single-cycle multiplier and a nested vectored interrupt controller (NVIC). It features a memory protection unit (MPU) for enhanced security and reliability. The device is supported by ST's comprehensive ecosystem, including the STM32CubeMX configuration tool and the STM32CubeG0 firmware library, which accelerate development. Typical applications include industrial control systems, consumer electronics, IoT devices, home automation, and battery-powered equipment. Its low power consumption and rich peripheral set make it suitable for sensor hubs, motor control, and human-machine interfaces (HMI). When designing with this MCU, ensure proper decoupling of the power supply pins with 100nF capacitors placed close to the VDD pins. For low-power applications, utilize the Stop and Standby modes to reduce current consumption to microamp levels. The device is RoHS compliant and available in tape and reel packaging for automated assembly.

USD $1,47 En stock

STM32G030F6P6

STM32G030F6P6 - 64MHz Cortex-M0+ MCU, 32KB Flash | STMicroelectronics

The STM32G030F6P6 is a mainstream 32-bit microcontroller from STMicroelectronics, built on the high-performance Arm® Cortex®-M0+ RISC core operating at up to 64 MHz. It features 32 KB of Flash memory and 8 KB of SRAM with hardware parity, housed in a compact 20-pin TSSOP package. This device is designed for cost-sensitive, mass-production applications, offering a balanced combination of performance, memory, and peripheral integration. What is a microcontroller (MCU)? A microcontroller is a compact integrated circuit designed to govern a specific operation in an embedded system. It integrates a processor core, memory (Flash and SRAM), and programmable input/output peripherals on a single chip. The STM32G030F6P6 belongs to the STM32G0 series, which is part of the broader STM32 family of 32-bit Arm Cortex-M microcontrollers. This hierarchy positions it as a mainstream, entry-level MCU within the STM32 ecosystem, ideal for applications ranging from simple control loops to more complex sensor and communication tasks. Key features of the STM32G030F6P6 include a 64 MHz Arm Cortex-M0+ core, 32 KB Flash, 8 KB SRAM, and a 2.0V to 3.6V supply range. It integrates a rich set of peripherals: I2C (with Fast-mode Plus up to 1 Mbit/s), USART, SPI, a 12-bit ADC, timers, and GPIOs. The device also supports a wide operating temperature range and is available in a 20-pin TSSOP package, making it suitable for space-constrained designs. Technically, the STM32G030F6P6 leverages the energy-efficient Cortex-M0+ architecture, which balances processing capability with low power consumption. The inclusion of hardware parity on SRAM enhances data integrity, a critical feature for safety-conscious applications. The I2C interface supports Standard-mode (100 kbit/s), Fast-mode (400 kbit/s), and Fast-mode Plus (1 Mbit/s), providing flexible communication options. The 12-bit ADC enables precise analog signal acquisition, essential for sensor-based applications. Typical applications include industrial control, consumer electronics, IoT devices, and simple automation systems. Its low cost and small footprint make it an excellent choice for high-volume products such as smart sensors, motor control, and portable devices. The wide supply voltage range and robust peripheral set ensure versatility across diverse use cases. When designing with this MCU, consider the 2.0V to 3.6V supply range and ensure proper decoupling with a 100nF capacitor close to each power pin. The 20-pin TSSOP package requires careful PCB layout to minimize noise, especially for the ADC and high-speed I2C lines. Refer to the STM32G030F6 datasheet for detailed electrical characteristics and recommended layout guidelines.

USD $0,75 En stock

STM32G030K8T6

STM32G030K8T6 - 64MHz Cortex-M0+ MCU, 64KB Flash | ST

The STMicroelectronics STM32G030K8T6 is a mainstream 32-bit microcontroller based on an Arm Cortex-M0+ core running at up to 64 MHz, with 64 KB Flash memory and 8 KB SRAM, housed in a 32-pin LQFP (7x7 mm) package. An MCU (microcontroller unit) is a single-chip computer that integrates a processor core, program memory, data memory, and peripheral interfaces into one IC. Within the microcontroller hierarchy, the STM32G030K8T6 belongs to the STM32 mainstream value-line family, positioned as a cost-optimized entry point into the broader STM32 ecosystem and general-purpose embedded processor market. Key features include the high-performance Cortex-M0+ 32-bit RISC core at 64 MHz, 64 KB of embedded Flash with ECC option, 8 KB of SRAM, and flexible connectivity peripherals. The device integrates USART, I2C (Standard-mode 100 kbit/s, Fast-mode 400 kbit/s, and Fast-mode Plus 1 Mbit/s per the I2C-bus specification rev. 5 compatibility noted in the ST datasheet), and SPI interfaces, plus a 12-bit ADC, timers, and a real-time clock calendar. Operating from a 2.0V to 3.6V supply, it suits battery-powered and industrial designs. Technically, the STM32G0 Series leverages ST's 90 nm embedded-Flash process and an ART-accelerated memory interface, achieving efficient zero-wait-state execution for most code paths. The low-power modes (Sleep, Stop, Standby) reduce consumption for always-on applications, and the core keeps legacy 8/16-bit MCU workloads simple while offering 32-bit performance. Typical applications include industrial automation, consumer appliances, IoT sensor nodes, power tools, and simple motor-control tasks where cost and low power matter more than maximum processing throughput. When designing, budget the 8 KB SRAM carefully, as it is the most common constraint when scaling firmware; enable the hardware ECC and brown-out reset options to harden safety-critical code. This page synthesizes distributor pricing, pin-to-pin family alternatives, and practical design notes not found on a single manufacturer or distributor page.

USD $1,02 En stock

STM32G031C8T6

STM32G031C8T6 - 64KB Flash ARM Cortex-M0+ MCU | STMicroelectronics

The STMicroelectronics STM32G031C8T6 is a 32-bit ARM Cortex-M0+ based microcontroller from the STM32G0 series, offering a balanced combination of performance, power efficiency, and rich analog peripherals. It operates at a maximum frequency of 64 MHz and provides 64 KB of flash memory and 8 KB of SRAM, making it suitable for a wide range of cost-sensitive and space-constrained embedded applications. The device is housed in a 48-pin LQFP package (7x7 mm) with a 0.5 mm pitch, enabling compact PCB designs. What is a microcontroller? A microcontroller (MCU) is a compact integrated circuit designed to govern a specific operation in an embedded system. It integrates a processor core, memory (flash and SRAM), and programmable input/output peripherals on a single chip. Microcontrollers are the backbone of modern embedded systems, from simple household appliances to complex industrial automation. The STM32G031C8T6 belongs to the STM32G0 family, which is positioned as an entry-level, high-efficiency series within the broader STM32 portfolio, targeting applications that require low power consumption, robust analog capabilities, and a rich set of communication interfaces. Key features of the STM32G031C8T6 include a 12-bit ADC with hardware oversampling (up to 16-bit resolution), a 12-bit DAC, two comparators, and an operational amplifier. It also integrates multiple communication interfaces: I2C, SPI, USART, and a low-power UART. The device supports a wide supply voltage range from 2.0V to 3.6V and offers several low-power modes, including Sleep, Stop, and Standby, with a typical standby current of only 0.27 µA. The MCU is designed with a high level of integration, reducing the need for external components and simplifying system design. From a technical depth perspective, the STM32G031C8T6 is built on a 90 nm process technology, which contributes to its low power consumption and high performance. The Cortex-M0+ core includes a single-cycle multiplier and a nested vectored interrupt controller (NVIC), enabling efficient interrupt handling. The device also features a memory protection unit (MPU) for enhanced security and a cyclic redundancy check (CRC) unit for data integrity. The clock system is flexible, with an internal 16 MHz RC oscillator, an internal 32 kHz RC oscillator, and support for external crystals, allowing designers to optimize for cost or accuracy. Typical applications for the STM32G031C8T6 include consumer electronics, industrial control, home automation, and portable devices. Its rich analog peripherals make it ideal for sensor interfacing, motor control, and power management. The low-power modes and wide voltage range enable battery-powered applications such as wearables and IoT nodes. The device is also well-suited for simple human-machine interfaces (HMI) with its capacitive touch sensing capability. When designing with this MCU, it is essential to provide proper decoupling capacitors on the power supply pins and to follow the recommended layout guidelines in the datasheet to minimize noise and ensure reliable operation. The internal RC oscillators are sufficient for many applications, but for precise timing, an external crystal should be used. Additionally, the device's boot pins must be configured correctly to select the desired boot mode (flash, system memory, or SRAM).

USD $1,82 En stock

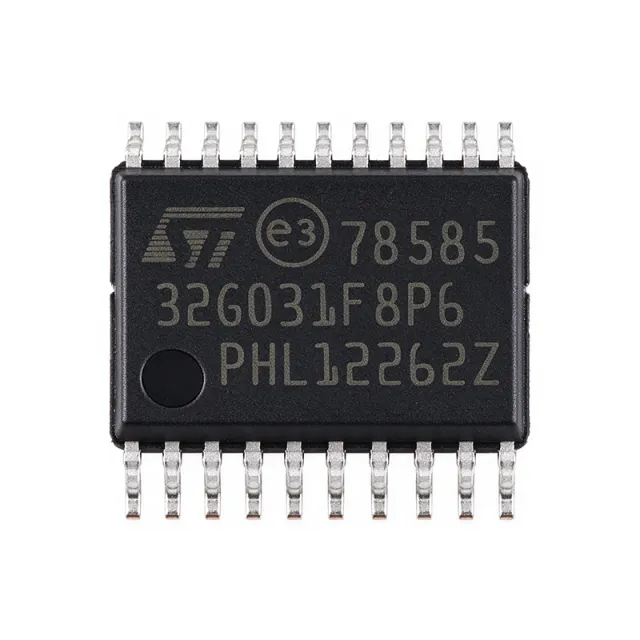

STM32G031F8P6

STM32G031F8P6 - 64MHz Cortex-M0+ MCU, 64KB Flash | STMicroelectronics

The STMicroelectronics STM32G031F8P6 is a mainstream Arm Cortex-M0+ 32-bit microcontroller operating at up to 64 MHz with 64 KB Flash and 8 KB SRAM in a 20-pin TSSOP package. It belongs to the STM32G0 family, ST's cost-optimized successor to the STM32F0 line, targeting LIN-connected control nodes, low-end motor control, and compact sensor-hub designs. An MCU (microcontroller) is a single-chip computer that integrates a CPU core, program memory (Flash), data memory (SRAM), and programmable peripherals into one package. The Cortex-M0+ is Arm's smallest and most energy-efficient 32-bit core, sitting in the hierarchy: Cortex-M0+ -> Arm Cortex-M -> 32-bit RISC processor -> MCU -> semiconductor. The STM32G0 family further integrates a 5V-tolerant I/O architecture and a 12-bit ADC, simplifying designs that must interface with 5V legacy sensors. Key features of the STM32G031F8P6 include 64 MHz maximum CPU frequency, 64 KB of embedded Flash with ECC, 8 KB SRAM, a 12-bit 2.5 MSPS ADC, two USART interfaces supporting LIN and IrDA, a 16-bit advanced-control timer, multiple general-purpose 16-bit timers, an I2C, an SPI, and a USB 2.0 Full-speed device controller (Type-C power-delivery capable on related parts). The 20-pin TSSOP package exposes 18 GPIO with 5V tolerance, making it suitable for mixed-voltage designs. The architecture uses a single AHB/APB bus matrix with a Cortex-M0+ core featuring single-cycle I/O access, an MPU for memory protection, and a built-in vectored interrupt controller (NVIC). The on-chip 12-bit ADC achieves 2.5 MSPS with hardware oversampling, and the comparators and op-amps available in larger variants are omitted here to fit the 20-pin footprint. Typical applications include LIN slave nodes in automotive body electronics, low-end motor-control loops (BLDC and stepper), consumer appliances (washing machines, induction cooktops), small home appliances, smart sensors, USB Type-C cable markers, and low-cost IoT end nodes. The USB FS device controller enables low-cost cable-mark and HID designs. When designing with this MCU, ensure the VDDA pin is properly decoupled (100 nF + 1 uF) and that NRST has a 10 kohm pull-up and 100 nF cap if not driven externally. The 20-pin TSSOP package has limited GPIO (18) - plan pin allocation carefully for multi-peripheral designs and consider the LQFP-32 variant if more I/O is required.

USD $1,07 En stock

STM32G031G8U6

STM32G031G8U6 - 64KB Flash ARM Cortex-M0+ MCU | STMicroelectronics

The STM32G031G8U6 is a 32-bit ARM Cortex-M0+ microcontroller from STMicroelectronics, featuring 64KB of Flash memory and 8KB of SRAM in a compact 28-pin UFQFPN-28 package. Operating at a core frequency of up to 64 MHz, this device is designed for cost-sensitive and power-efficient embedded applications, offering a rich set of peripherals including multiple timers, communication interfaces (I2C, SPI, USART), and a 12-bit ADC with hardware oversampling. What is an ARM Cortex-M0+ microcontroller? It is a 32-bit processor core designed for low-power and high-efficiency embedded control. The Cortex-M0+ is the smallest and most energy-efficient ARM processor, making it ideal for IoT devices, consumer electronics, and industrial sensors. In the hierarchy of microcontrollers, the Cortex-M0+ sits below the Cortex-M3 and Cortex-M4, offering lower performance but significantly reduced power consumption and cost. This makes it a popular choice for battery-powered and space-constrained applications. Key features of the STM32G031G8U6 include a 12-bit ADC with up to 2.5 MSPS, a 12-bit DAC, an operational amplifier, and a low-power RTC. It supports a wide supply voltage range of 1.7V to 3.6V, making it suitable for single-cell battery operation. The device also includes a flexible clock control, with an internal 16 MHz RC oscillator and an external crystal oscillator option. The UFQFPN-28 package measures 4x4 mm, offering a compact footprint for space-limited designs. From a technical depth perspective, the STM32G031G8U6 is built on a 90nm process technology, enabling low dynamic and static power consumption. It features multiple low-power modes, including Sleep, Stop, and Standby, with typical current consumption as low as 0.4 uA in Standby mode. The device also includes a memory protection unit (MPU) and a single-cycle hardware multiplier, enhancing both safety and performance for real-time control tasks. Typical applications include sensor hubs, smart home devices, portable medical monitors, and industrial automation controllers. Its rich analog peripherals make it particularly well-suited for signal conditioning and data acquisition systems. The device's low power consumption and wide operating temperature range (-40C to +85C) ensure reliable operation in harsh environments. When designing with this MCU, ensure proper decoupling of the VDD pins with 100nF capacitors placed close to the device. The VDDA pin should be connected to a clean analog supply, and the VREF+ pin can be tied to VDDA for full-scale ADC reference. For low-power applications, utilize the Stop mode with wake-up from external interrupts to minimize average current consumption.

USD $1,38 En stock

STM32G041F8P6

STM32G041F8P6 - 64MHz ARM Cortex-M0+ MCU | STMicroelectronics

The STM32G041F8P6 is a 32-bit ARM Cortex-M0+ microcontroller from STMicroelectronics, operating at up to 64 MHz with 32 KB of flash memory and 8 KB of SRAM. It is housed in a 20-pin TSSOP package, offering a compact solution for cost-sensitive and space-constrained applications. The device integrates a rich set of peripherals including a 12-bit ADC, multiple timers, I2C, SPI, USART, and a low-power RTC, making it suitable for a wide range of embedded control tasks. What is a microcontroller? A microcontroller (MCU) is a compact integrated circuit designed to govern a specific operation in an embedded system. It contains a processor core, memory (flash and SRAM), and programmable input/output peripherals on a single chip. Microcontrollers are the backbone of modern electronics, found in everything from automotive engine control units to consumer appliances and IoT devices. The STM32G0 series sits within the broader STM32 family, which is a leading ARM Cortex-M based MCU portfolio, and is positioned as an entry-level, high-efficiency option for applications requiring low power and high integration. Key features of the STM32G041F8P6 include a 64 MHz ARM Cortex-M0+ core with memory protection unit (MPU), 32 KB flash, 8 KB SRAM, and a comprehensive set of peripherals. It supports a supply voltage range of 1.7V to 3.6V, with an operating temperature range of -40°C to +85°C. The device includes a 12-bit ADC with up to 19 channels, a 12-bit DAC, multiple 16-bit timers, and a low-power UART. It also features a hardware random number generator (RNG) and a cyclic redundancy check (CRC) unit, enhancing security and data integrity for industrial and IoT applications. Technically, the STM32G041F8P6 is built on a 90nm process technology, offering a balance between performance and power consumption. It supports multiple low-power modes, including Sleep, Stop, and Standby, with a typical standby current of 0.3 µA, making it ideal for battery-powered devices. The device also includes a high-speed internal oscillator (HSI) that can be calibrated to achieve ±1% accuracy, reducing the need for external crystals in many applications. Typical applications include industrial sensors, smart home devices, portable medical monitors, and motor control systems. Its rich analog peripherals and low-power capabilities make it particularly well-suited for sensor interfacing and data acquisition. The compact TSSOP-20 package allows for minimal PCB footprint, enabling high-density designs. When designing with this MCU, ensure proper decoupling of the VDD pins with 100nF capacitors placed close to the device. For applications requiring precise timing, use the external crystal oscillator (HSE) or calibrate the internal HSI. The device supports in-circuit programming and debugging via SWD, simplifying firmware development.

USD $1,20 En stock

STM32G061C8T6

STM32G061C8T6 - 64MHz Cortex-M0+ MCU 64KB Flash LQFP-48 | STMicroelectronics

The STMicroelectronics STM32G061C8T6 is a mainstream 32-bit Arm Cortex-M0+ microcontroller (MCU) operating at up to 64 MHz with 64 KB of embedded Flash and 18 KB of SRAM, housed in a 48-pin LQFP (7x7 mm) package. It operates from a 1.7 V to 3.6 V supply, includes an integrated AES hardware block and a True Random Number Generator (TRNG), and targets cost-sensitive consumer and industrial embedded designs. What is an Arm Cortex-M0+ MCU? It is a 32-bit microcontroller built on the Arm Cortex-M0+ core - the smallest, most energy-efficient member of the Cortex-M family. MCUs in this class combine a RISC CPU, on-chip Flash memory, SRAM, and a rich peripheral set into a single chip, forming the foundation of modern embedded systems from IoT sensors to motor controllers. Within ST's portfolio, the Cortex-M0+ STM32G0 series sits at the entry of the mainstream 32-bit segment, balancing low power, low cost, and adequate compute for control loops, user interfaces, and connectivity bridging. Key features of the STM32G061C8T6 include 64 KB Flash, 18 KB SRAM, two USART interfaces, two I2C, two SPI, a 12-bit ADC, a 12-bit DAC, multiple general-purpose timers, an integrated hardware AES-128 block, and a hardware random number generator. A 1.7 V to 3.6 V supply range supports battery-powered operation, and the part is offered in commercial (C8T6 suffix, -40C to +85C ambient) and industrial/extended-temperature variants. Independent watchdog and system window watchdog, RTC, and a low-power RTC domain are all integrated. Architecture-wise, the STM32G061C8T6 uses the Cortex-M0+ core with single-cycle I/O access to GPIO, an internal voltage regulator for VCORE generation, and ST's standard peripheral library / STM32CubeMX toolchain support. The integrated AES-128 and TRNG make it well-suited to connected nodes that need on-chip crypto agility without an external secure element. Typical applications include consumer appliances, industrial sensor nodes, smart-metering peripherals, USB-C device controllers (using the USB Type-C/PD-friendly GPIOs), LED lighting controllers, and small home-automation bridges. When designing with this MCU, ensure the VDDA/VREF+ pins are properly decoupled - on the LQFP-48 package without an external VREF+ pin, VREF+ is internally tied to VDD and the internal VREF buffer must remain disabled. A 100 nF + 1 uF decoupling network close to each supply pin is recommended, and unused GPIOs must be configured as analog inputs or with internal pull-downs to minimize leakage. This page synthesizes manufacturer datasheet parameters, current distributor pricing, drop-in alternatives, and practical design notes into a single reference for engineers evaluating the STM32G061C8T6 for new designs and second-source qualification.

USD $2,95 En stock

STM32G070CBT6

STM32G070CBT6 - 128KB Flash ARM Cortex-M0+ MCU | STMicroelectronics

The STMicroelectronics STM32G070CBT6 is a 32-bit ARM Cortex-M0+ microcontroller with 128KB of flash memory and 36KB of SRAM, packaged in a 48-pin LQFP (LQFP48) package. It operates from 2.0V to 3.6V and supports a CPU frequency up to 64MHz. Data verified as of 2026-08-05. A microcontroller (MCU) is a compact integrated circuit designed to govern a specific operation in an embedded system. It contains a processor core, memory, and programmable input/output peripherals on a single chip. The STM32G070CBT6 belongs to the STM32G0 series, which is part of the broader STM32 family of 32-bit ARM Cortex-M microcontrollers. This hierarchy places it within the embedded processing domain, where it serves as the central control unit for a wide range of applications. Key features include a 12-bit ADC with up to 19 channels, multiple timers (including advanced-control timers), and a variety of communication interfaces such as I2C, SPI, USART, and a low-power UART. The device also includes a DMA controller, a CRC calculation unit, and a random number generator. Its low-power modes (Sleep, Stop, Standby) make it suitable for battery-powered applications. The STM32G070CBT6 is built on a high-performance ARM Cortex-M0+ core with a single-cycle multiplier and a nested vectored interrupt controller (NVIC). It supports a wide range of clock sources, including an internal 16MHz RC oscillator, an external crystal oscillator, and a PLL for higher frequencies. The device is designed for robust operation with brown-out reset, power-on reset, and a programmable voltage detector. Typical applications include industrial control, consumer electronics, IoT devices, and home automation. Its rich peripheral set and low power consumption make it ideal for sensor hubs, motor control, and smart home gateways. The 48-pin LQFP package provides a good balance between pin count and board space, enabling compact designs. When designing with this MCU, ensure proper decoupling of the power supply pins and a clean ground plane. The internal RC oscillator is sufficient for many applications, but an external crystal is recommended for precise timing requirements. The device supports in-circuit programming and debugging via SWD, simplifying firmware development.

USD $1,17 En stock

STM32G070RBT6

STM32G070RBT6 - 128KB Flash ARM Cortex-M0+ MCU | STMicroelectronics

The STM32G070RBT6 is a 32-bit ARM Cortex-M0+ based microcontroller from STMicroelectronics, featuring 128KB of Flash memory and 36KB of SRAM in a 64-pin LQFP package. It operates at a maximum frequency of 64 MHz and supports a supply voltage range of 2.0V to 3.6V. Data verified as of 2026-08-05. A microcontroller (MCU) is a compact integrated circuit designed to govern a specific operation in an embedded system. It contains a processor core, memory, and programmable input/output peripherals on a single chip. The STM32G070RBT6 belongs to the STM32G0 series, which is part of the broader STM32 family of 32-bit ARM Cortex-M microcontrollers. This hierarchy places it within the embedded processing domain, where it serves as the central control unit for a wide range of applications. Key features include a 12-bit ADC with up to 19 channels, multiple timers (including advanced-control timers), and a rich set of communication interfaces such as I2C, SPI, USART, and CAN. The device also integrates a DMA controller, a real-time clock (RTC), and a variety of low-power modes, making it suitable for power-sensitive applications. The LQFP64 package provides a compact footprint with 51 GPIOs, enabling flexible system design. The STM32G070RBT6 is built on a high-performance ARM Cortex-M0+ core with a single-cycle multiplier and a nested vectored interrupt controller (NVIC). It includes a memory protection unit (MPU) for enhanced security and reliability. The device supports a wide operating temperature range of -40°C to +85°C, making it suitable for industrial environments. Its low-power design includes sleep, stop, and standby modes, with typical current consumption in the microampere range. Typical applications include industrial control systems, home automation, consumer electronics, and IoT devices. The rich peripheral set and low power consumption make it ideal for sensor hubs, motor control, and communication gateways. The CAN interface is particularly useful for automotive and industrial networking applications. When designing with this MCU, ensure proper decoupling of the power supply pins and consider the use of an external crystal for accurate timing. The device supports in-circuit programming and debugging via SWD, facilitating development and production programming. This page synthesizes distributor pricing, drop-in alternatives, and practical design notes not found in the STMicroelectronics datasheet, providing a comprehensive resource for engineers evaluating the STM32G070RBT6.

USD $2,10 En stock

STM32G071C8T6

STM32G071C8T6 - 64MHz Cortex-M0+ MCU, 64KB Flash | STMicroelectronics

The STM32G071C8T6 is a mainstream Arm Cortex-M0+ 32-bit RISC microcontroller from STMicroelectronics, operating at up to 64 MHz. It features 64 Kbytes of Flash memory and 36 Kbytes of RAM, packaged in a 48-pin LQFP (7x7 mm) with a tray delivery option. This MCU is designed for a wide range of embedded applications requiring efficient processing, rich analog peripherals, and robust communication interfaces. A microcontroller (MCU) is a compact integrated circuit designed to govern a specific operation in an embedded system. It contains a processor core, memory (Flash and RAM), and programmable input/output peripherals on a single chip. The STM32G0 series sits within the broader STM32 family, which is a leading 32-bit ARM Cortex-M microcontroller platform. As a Cortex-M0+ device, it offers a balance of low power consumption, cost-effectiveness, and sufficient performance for many control and sensing applications, making it a popular choice in industrial, consumer, and IoT designs. Key features of the STM32G071C8T6 include a 64 MHz Arm Cortex-M0+ core, 64 KB Flash, 36 KB SRAM, and a rich set of peripherals: multiple USARTs, I2C, SPI, a 12-bit ADC with hardware oversampling, a 12-bit DAC, comparators, op-amps, and a touch sensing controller. It also integrates a high-resolution timer, general-purpose timers, and a low-power RTC. The device supports a supply voltage range of 2.0V to 3.6V, with an operating temperature range of -40°C to +85°C, making it suitable for industrial environments. Technically, the STM32G071C8T6 is built on a high-performance Arm Cortex-M0+ core with a single-cycle multiplier and a nested vectored interrupt controller (NVIC). It includes a memory protection unit (MPU) for enhanced safety, and a DMA controller for efficient data transfer. The MCU also features a 12-bit ADC with up to 16 external channels, a 12-bit DAC, and two operational amplifiers, enabling analog signal conditioning without external components. The device supports various low-power modes, including Sleep, Stop, and Standby, with a typical power consumption in Stop mode of around 2.5 µA, which is critical for battery-powered applications. Typical applications include industrial control systems, home automation, sensor hubs, motor control, and portable medical devices. The rich analog peripherals and multiple communication interfaces make it ideal for building compact, cost-effective embedded systems. For example, in a smart sensor node, the STM32G071C8T6 can read analog sensors via its ADC, process data with its Cortex-M0+ core, and transmit results over UART or I2C to a gateway. When designing with this MCU, ensure proper decoupling of the VDD pins with 100 nF capacitors placed close to the device, and a bulk capacitor (e.g., 4.7 µF) on the main supply. For ADC accuracy, a clean analog supply (VDDA) and a stable reference voltage (VREF+) are essential. The device supports in-application programming (IAP) via its bootloader, allowing firmware updates over UART or USB, which is valuable for field maintenance.

USD $2,80 En stock

STM32G071G8U6

STM32G071G8U6 - 64MHz Cortex-M0+ MCU, 64KB Flash | STMicroelectronics

The STMicroelectronics STM32G071G8U6 is a mainstream 32-bit ARM Cortex-M0+ microcontroller in the STM32G0 family, integrating 64KB of Flash and 36KB of SRAM, operating at up to 64MHz from a 2.0V to 3.6V supply, and packaged in a compact 28-pin UFQFPN (4x4 mm) for space-constrained designs. According to STMicroelectronics product documentation, this part extends the STM32G0 series with USB Type-C Power Delivery (UCPD), 4 USART, and a 12-bit ADC with up to 19 channels. What is a Cortex-M0+ MCU? An ARM Cortex-M0+ microcontroller is a 32-bit RISC processor core designed by ARM for energy-efficient embedded applications. It sits at the entry level of the Cortex-M family, above 8-bit legacy MCUs in performance but below Cortex-M3/M4 in features. Within the broader taxonomy, it belongs to: microcontroller -> 32-bit MCU -> ARM Cortex-M -> Cortex-M0+ -> STM32G0 series -> STMicroelectronics. Key features include the M0+ core with single-cycle I/O access, an integrated USB Type-C and Power Delivery (UCPD) physical layer, multiple low-power modes (Sleep, Stop, Standby, Shutdown) with typical Stop current around 2 uA, a 12-bit 2.5 MSPS ADC, a 12-bit DAC, comparators, op-amps, and a real-time clock. The 28-pin UFQFPN exposes 4 USART/UART, 2 I2C, 2 SPI/I2S, USB 2.0 FS, and up to 23 GPIO, balancing cost and connectivity. Technically, the STM32G071G8U6 implements an ART Accelerator zero-wait-state Flash interface, hardware division, and a 4-channel DMA. The integrated UCPD PHY supports USB Type-C connector attach/detach and Power Delivery messaging up to 100W sink/source roles without an external TCPC. Its internal 64MHz HSI can supply the system clock, removing the need for an external crystal in many USB and consumer designs. Typical applications include USB Type-C power delivery sinks/sources, USB human-interface devices (HID), small appliances with capacitive touch, smart sensors, lighting controllers, and low-cost IoT edge nodes. The combination of USB, ADC, and small footprint suits replacement of USB bridge ICs with a programmable MCU. Design consideration: USB-C and UCPD applications require careful attention to the CC1/CC2 pin routing and the VBUS sensing divider. When migrating from UFQFPN28 STM32F0 designs, verify pin remapping because some peripherals have moved to alternate functions on the STM32G0. This page synthesizes distributor pricing, parametric alternatives in the same UFQFPN-28 footprint, and practical design notes not aggregated on a single manufacturer or distributor page.

USD $2,05 En stock

Productos (17668)
