Produits (1697)
TL431AIDBVR - 2.495V-36V Adjustable Shunt Reference, 1% | Texas Instruments
The Texas Instruments TL431AIDBVR is a precision adjustable shunt voltage reference that delivers a programmable output from 2.495V to 36V with a 1% initial tolerance (A grade) in a 5-pin SOT-23 (DBV) package. It provides up to 100 mA of cathode current with low dynamic impedance of 0.2 ohm typical, making it functionally equivalent to a non-isolated Zener diode but with tighter tolerance and adjustable setpoint. A shunt voltage reference is a two-terminal (plus reference pin) device that maintains a constant voltage across its terminals by shunting excess current to ground, analogous to a Zener diode but with programmable breakdown voltage. Shunt references form a sub-category of voltage references within the broader voltage regulator hierarchy (voltage reference -> shunt regulator -> analog reference circuit -> signal chain IC), and they are foundational building blocks for power supply feedback, ADC reference rails, comparator thresholds, and error amplifiers in isolated and non-isolated converter topologies. Key features of the TL431AIDBVR include a 2.495V reference voltage (Vref) with 1% initial accuracy at 25C, an operating cathode current range of 1 mA to 100 mA, typical dynamic impedance of 0.2 ohm at 1 kHz, and an operating temperature range of -40C to +85C. The SOT-23-5 surface-mount package offers a compact footprint while exposing the reference, anode, and cathode pins in a standardized layout used industry-wide across second-source vendors. The TL431 architecture uses a buried-Zener bandgap reference cell feeding an on-chip op-amp that drives a pass transistor, producing a sharp knee in the I-V curve and excellent thermal stability. According to the manufacturer datasheet, the device exhibits typical output impedance of 0.2 ohm over 1 kHz and a wideband noise figure suitable for switch-mode power supply feedback loops and audio threshold detection. Typical applications include SMPS secondary-side regulation, isolated flyback error amplifier reference, adjustable Zener replacement, voltage monitoring and reset circuits, and precision current limiting. The SOT-23-5 form factor is well suited for high-density DC-DC converter boards and compact adapter designs. When designing with the TL431AIDBVR, ensure the cathode current stays between 1 mA and 100 mA across all load and line conditions, including start-up transients. Place the device close to the opto-coupler or error-amplifier input to minimize loop-area noise pickup, and use a bypass capacitor on the reference pin if the application requires low AC noise. This page synthesizes distributor pricing, drop-in alternatives, and practical design notes not found in the manufacturer datasheet alone.
TL431AIDBVRG4 - 2.495V Adjustable Shunt Reference | Texas Instruments
The Texas Instruments TL431AIDBVRG4 is a precision programmable shunt voltage reference IC with an adjustable output of 2.495 V to 36 V, ±1% initial accuracy, and 100 mA cathode current capability, housed in a 5-pin SOT-23 (DBV) package. It belongs to the TL431 family of three-terminal adjustable shunt regulators specified for operation from -40°C to 85°C, with the G4 suffix marking the lead-free, RoHS-compliant, tape-and-reel packaging option. A shunt voltage reference is a two-terminal (or three-terminal with adjustment) device that maintains a constant voltage across its terminals by sinking varying amounts of current through a parallel load. Shunt references sit at the same hierarchy level as series (bandgap) references, but are wired in parallel with the load rather than in series — making them functionally closer to a Zener diode than to a LDO regulator. The TL431 family implements an adjustable bandgap core with an on-chip op-amp and reference network, allowing the user to set the output via an external resistor divider. Key features include a typical output impedance of 0.2 Ω at low frequencies, a low output noise of approximately 0.2 µV_RMS across the audio band, and a temperature coefficient of 109 ppm/°C (max). The device sinks from 1 mA (minimum cathode current for regulation) up to 100 mA continuously, with absolute-maximum cathode voltage of 37 V. The SOT-23-5 footprint offers a compact land pattern of approximately 2.9 mm × 1.6 mm, suiting it to high-density switching supply and isolated feedback designs. The TL431 architecture pairs a precision bandgap reference with a transconductance error amplifier driving an open-collector pass transistor. When the divided output drops below the internal 2.495 V bandgap, the amplifier reduces cathode conduction, raising V_OUT; when it rises above, conduction increases, clamping V_OUT. This feedback loop yields tight line and load regulation in closed-loop SMPS optocoupler and primary-side feedback circuits. Typical applications include isolated DC-DC converter secondary-side regulation, switch-mode power supply (SMPS) feedback loops, adjustable Zener replacement, voltage monitoring, and precision comparator thresholds. Its wide cathode voltage range makes it ideal for 3.3 V, 5 V, 12 V, and 24 V rails. The combination of small SOT-23 footprint and high accuracy is particularly valuable in industrial PSU designs with tight PCB constraints. When designing with this part, ensure the cathode current stays between 1 mA and 100 mA under all load and line conditions. Add a 0.1 µF bypass capacitor close to the cathode pin when the device operates in fast-loop SMPS feedback paths to suppress transient oscillation. Choose resistors in the divider for low standby current, and ensure the divider current is at least 100× the TL431 reference bias current for accuracy. This page synthesizes distributor pricing, drop-in alternatives, and practical design notes not found in the manufacturer datasheet.
TL431ASA-7 - Adjustable Shunt Regulator 36V 1% SOT-23-3 | Diodes Inc.
The Diodes Incorporated TL431ASA-7 is an adjustable precision shunt voltage reference regulator with a 2.495V bandgap reference, ±1% initial tolerance, adjustable output range up to 36V, and 100mA cathode current capability in a 3-pin SOT-23 (SOT-23-3) surface-mount package. An adjustable shunt regulator is a three-terminal voltage reference device that maintains a precise voltage across its cathode and anode terminals by shunting excess current, controlled by an external resistor divider connected to the reference pin. In the power-management hierarchy, it sits below switching regulators and linear regulators as the precision building block used to set feedback thresholds, and it is one of the most widely used reference ICs in the industry, with the TL431 function being a de-facto industry standard footprint. Key features of the TL431ASA-7 include the ±1% initial reference accuracy of the A-grade die, a temperature-compensated bandgap reference, and a low dynamic output impedance. According to the Diodes Incorporated datasheet, the TL431 series has the same electrical specifications as the industry-standard '431 and is offered in A (1%) and B (0.5%) accuracy grades. The device operates as either a shunt regulator or an open-collector comparator with a 2.495V threshold, giving engineers two functions in one package. Technically, the part uses an internal bandgap reference and an output amplifier driving a shunt transistor. When the reference pin voltage exceeds 2.495V, the device sinks current from cathode to anode, holding the reference pin at 2.495V. With two external resistors the output is programmable from 2.495V up to 36V. The primary use case is as the error amplifier and reference in the feedback loop of flyback and buck switching power supplies, optocoupler-coupled feedback networks, and precision comparators. Typical applications include SMPS feedback regulation, battery chargers, adjustable zener replacement, voltage monitoring thresholds, and constant-current source circuits. Its low cost and small SOT-23-3 footprint make it suitable for both industrial and consumer designs. A key design consideration is ensuring the cathode current stays above the minimum regulation level (typically ~1mA region) across load and temperature for guaranteed regulation, and choosing divider resistor values that balance accuracy against quiescent loading. This page adds information gain beyond the datasheet by combining distributor pricing tiers, cross-brand drop-in alternatives, comparison tables, and practical design notes in one place.
TL431BFDT - Adjustable Shunt Regulator 2.495-36V SOT-23 | Nexperia
The Nexperia TL431BFDT is a three-terminal adjustable precision shunt voltage regulator with a reference voltage of 2.495 V, an adjustable output range from 2.495 V to 36 V set by two external resistors, and a cathode current capability up to 100 mA, housed in a 3-pin SOT-23 (TO-236AB) surface-mount package. A shunt regulator (also called a shunt voltage reference) is a type of voltage regulator that maintains a set voltage across its terminals by sinking or sourcing current in parallel with the load. Unlike a series regulator, the shunt topology sits across the supply path and absorbs surplus current, making it the workhorse of the voltage reference family within power management and discrete semiconductor hierarchies. The TL431 is the industry-standard part of this class, widely used in isolated and non-isolated power supplies. The TL431BFDT offers a tight B-grade reference tolerance of +/-0.5% at 25 C, an operating temperature range of -40 C to +125 C (Q-grade qualification per Nexperia automotive designation), and enhanced stability with a very low minimum load capacitance requirement in the FDT variant family. According to the Nexperia product page, the family covers reference tolerances from 2.0% down to 0.5% and temperature ranges up to 125 C, with AEC-Q100 qualification noted for automotive use. Architecturally, the device integrates a 2.495 V bandgap reference, an error amplifier, and an open-collector output transistor. When the voltage at the REF pin exceeds the internal reference, the output transistor conducts cathode current, regulating the cathode voltage in closed-loop configurations such as optocoupler feedback in flyback converters. Typical applications include secondary-side feedback regulation in AC-DC adapters and flyback SMPS, adjustable voltage references in battery chargers, overvoltage protection crowbars, and setpoint generation in LED drivers. Design-wise, provide a minimum cathode bias current (about 1 mA) for regulation and add a small compensation capacitor at REF for loop stability in optocoupler feedback paths. This page synthesizes verified distributor data, drop-in alternatives, pricing, and practical design notes not found in the manufacturer datasheet.
TL431CDBZR - Adjustable 2.495V Shunt Reference 100mA SOT-23-3 | TI
The Texas Instruments TL431CDBZR is a three-terminal adjustable precision shunt voltage reference IC with a programmable output range of 2.495 V to 36 V, up to 100 mA sink current capability, and ±2.2% initial reference tolerance, housed in a 3-pin SOT-23 (DBZ) surface-mount package. An adjustable shunt regulator (also called a programmable shunt reference) is a type of voltage reference IC that regulates voltage by sinking current from a supply rail through its cathode when the reference pin senses a voltage above an internal bandgap threshold. In the power-management hierarchy, it sits between a fixed zener diode and a full linear regulator: more precise and temperature-stable than a zener, yet far cheaper and simpler than an LDO. Because the output is set by just two external resistors, the shunt reference family is a fundamental building block in analog circuit design. Key features include a wide adjustable output range set by two external resistors, approximately 2.495 V internal reference with 2.2% (standard C grade) initial tolerance, 0.2 ohm to 0.5 ohm order typical dynamic output impedance, and a maximum cathode current of 100 mA. The C-grade device is specified over the 0 C to 70 C commercial temperature range, and its low minimum cathode current of roughly 1 mA allows operation in low-power systems. Technically, the TL431 combines an internal 2.495 V bandgap reference with an operational amplifier and an open-collector output transistor. When the REF pin exceeds the internal threshold, the output transistor conducts and sinks current from cathode to anode, forming the basis of error-amplifier action in isolated flyback and forward power supplies, where the TL431 is frequently paired with an optocoupler such as the PC817 for secondary-side feedback. Typical applications include secondary-side voltage regulation and feedback in AC-DC and DC-DC switch-mode power supplies, adjustable zener replacement and overvoltage crowbar sensing, battery charger voltage monitoring, and precision threshold comparators in industrial instrumentation. A critical design consideration is temperature drift: the C grade (2.2% at 25 C) drifts more than the A or B grades over temperature, so precision systems should select TL431ACDBZR or TL431BDBZR instead. Always provide at least the minimum cathode current for regulation. This page adds distributor pricing, drop-in alternatives, and practical design notes not found in the manufacturer datasheet.
TL431ILPR - Adjustable 2.495V Shunt Reference | TI
The Texas Instruments TL431ILPR is a three-terminal adjustable precision shunt regulator with a 2.495V reference voltage, up to 100mA sink-current capability, and cathode voltage operation to 36V, housed in a 3-pin TO-92 (LP) through-hole package supplied on tape and reel. According to TI, the standard grade TL431I offers an initial reference tolerance of 2% at 25C. An adjustable shunt regulator is a type of voltage reference IC that maintains a programmed voltage across its cathode-anode terminals by sinking current when the sense voltage at its reference pin exceeds an internal bandgap threshold. Within the power-management hierarchy it sits below linear regulators as a precision reference element, and it is widely used as the feedback error amplifier inside isolated and non-isolated switching power supplies. Key features of the TL431ILPR include a programmable output voltage set anywhere from Vref (approximately 2.5V) to 36V using just two external resistors, a sharp low-dynamic-output-impedance characteristic, low output noise, and a typical temperature coefficient in the low ppm/C range across the specified -40C to +85C industrial operating range. Its 1mA to 100mA sink-current range gives designers wide loop-gain control in optocoupler feedback networks. Technically, the TL431 combines an internal 2.495V bandgap reference with an open-collector-style error amplifier driving the cathode output. Because the reference input draws only about 2uA typical, high-impedance divider networks are practical. The device is stable with appropriate capacitive loading per the stability boundary in the manufacturer datasheet, and it is specified for thermal stability over automotive, commercial, and military temperature grades across the family. Typical applications include secondary-side voltage regulation in flyback and forward AC-DC power supplies, adjustable zener replacement in overvoltage protection Crowbar circuits, precision current-source and current-limiter biasing, and set-point generation in battery chargers. Its three-pin simplicity and low cost make it the industry default feedback element driving optocoupler LEDs in isolated converters. Design-wise, keep the cathode current above the 1mA minimum for regulation and respect the datasheet stability criteria when adding decoupling capacitance at the cathode node; the compensation capacitor interacts with the equivalent series resistance in ways that can destabilize the loop. This page synthesizes distributor pricing, drop-in cross-brand alternatives, pinout detail, and practical design notes not consolidated in the manufacturer datasheet.
TLP183(GB-TPL,E - 3750Vrms Phototransistor Optocoupler SO6
The Toshiba TLP183(GB-TPL,E is a 4-pin SO6 phototransistor optocoupler providing 3750 Vrms isolation voltage, DC input, and a current transfer ratio (CTR) rank of GB (100% to 300% at IF=5 mA). It is housed in a miniature 6-SOP surface-mount package (Toshiba designation 4-pin SO6) that combines a high-emission infrared LED with a phototransistor detector optically coupled in a plastic DIP-style body. A phototransistor optocoupler is a galvanic isolation device that transfers an electrical signal between two circuits using light, blocking high voltages and transient surges while transmitting the analog or digital signal at the speed of the photodetector. Within the broader component taxonomy, the TLP183 belongs to optoisolators > optocouplers > solid-state relays > isolators > discrete semiconductors, with the phototransistor output placing it in the same family as the Toshiba TLP181, TLP185 and TLP184 series. Key features include 3750 Vrms minimum isolation voltage, 50 mA maximum forward current, 80 V collector-emitter breakdown voltage, 50 mA collector current, and an operating temperature range of -55C to +110C. The GB CTR rank provides 100% to 300% typical transfer ratio at IF=5 mA and VCE=5 V, which is well suited to digital signal isolation in PLCs and communication interfaces. A GaAs infrared LED emitter delivers fast switching with rise/fall times measured in microseconds. The TLP183 employs a high-isolation optically-coupled architecture: the input-side GaAs LED converts the input current into modulated infrared light that crosses an internal transparent isolation barrier, after which a silicon phototransistor converts the light back into a current at the output side. The result is complete electrical isolation between input and output while preserving the timing and amplitude characteristics of the original signal. Typical applications include PLC digital input/output isolation, communication interface isolation (RS-232, RS-485 line-side isolation), power supply feedback loops, and AC mains detection circuits where 3750 Vrms isolation is required by safety standards. The wide -55C to +110C temperature range also supports industrial and consumer-grade equipment. When designing with the TLP183, ensure that the bias resistor on the LED side limits the forward current to within 50 mA DC, and that the collector pull-up resistor is sized according to the desired switching speed and the chosen CTR rank. Proper creepage and clearance around the SO6 body must be maintained to preserve the 3750 Vrms isolation rating in end-equipment safety certification. This page synthesizes distributor pricing, drop-in same-brand alternatives, parametric comparison and practical design notes not found in the standalone Toshiba datasheet.
TLV431IDBVR - 1.5% 6V Adj Shunt Reference | Texas Instruments
The Texas Instruments TLV431IDBVR is a low-voltage three-terminal adjustable precision shunt regulator providing a 1.24 V reference with ±1.5% initial accuracy and 15 mA maximum cathode current, housed in a 5-pin SOT-23 (DBV) package. Output voltage is programmable from VREF (1.24 V) to 6 V through two external resistors, enabling flexible rail design from sub-1.5 V point-of-load references up to small analog and digital supplies. The low minimum cathode current of 80 µA (typical) makes the part well suited to low-power and always-on circuits. A shunt voltage reference such as the TLV431 is functionally a two-terminal analog building block - when biased with a resistor from a higher supply, it conducts current through its cathode-to-anode path to hold its reference pin at the programmed voltage. As a category, voltage references sit alongside linear regulators, supervisors, and ADC/DAC references inside the power management IC hierarchy, and behave as programmable Zener diodes with much tighter tolerance and lower dynamic impedance than discrete components. They are the building blocks of closed-loop SMPS feedback, precision comparators, and adjustable linear regulators. Key features of the TLV431 family include 1.24 V typical reference with ±1.5% tolerance (the tighter TLV431A grade specifies ±1%), a wide programmable output range of VREF to 6 V, 80 µA typical minimum cathode current, low output impedance of 0.25 Ω typical, and operation across -40 °C to +85 °C industrial/commercial temperatures. The 5-pin SOT-23 (DBV) footprint enables drop-in replacement among TLV431 grades and competitor parts in the same pin-out. Architecturally, the TLV431 uses a bandgap-derived 1.24 V reference buffer, an internal error amplifier that compares the reference pin to VREF, and a pass transistor that sinks current to regulate the output. The wide cathode operating range and low dynamic impedance allow the regulator to maintain tight output regulation across load and supply variations typical of switching-supply feedback loops. Typical applications include switching-supply secondary-side feedback, adjustable linear regulator references, isolated point-of-load rails, precision comparator thresholds, and ADC/DAC reference circuits. Engineers may also use the TLV431 as a low-cost, low-power replacement for a TL431 where lower minimum cathode current and a smaller SOT-23-5 package are required. When designing with the TLV431, size the cathode bias resistor to keep the device above its minimum operating current (80 µA typical) under worst-case load, and add a capacitor on the reference pin if the application demands transient stability. Because the part ships in the small SOT-23-5 outline, expect to follow standard SMD PCB layout practices - minimize reference-pin leakage and route the cathode trace away from switching nodes. This page synthesizes distributor pricing, drop-in alternatives, and practical design notes not found on the manufacturer datasheet, giving engineers a single reference for sourcing, second-sourcing, and properly biasing the TLV431IDBVR in low-voltage reference designs.
TPD1E10B06DPYR - Single-Channel ESD TVS Diode, ±30kV | TI
The Texas Instruments TPD1E10B06DPYR is a single-channel ESD protection TVS diode rated for ±30kV contact and ±30kV IEC air-gap ESD discharge in a compact 2-pin X1SON (DPY) package measuring approximately 1.0 x 0.6 mm. It provides a 14V working voltage rating with 5A peak pulse current (8/20 µs waveform) and integrated back-to-back TVS diodes for bipolar or bidirectional signal support, making it suitable for both positive- and negative-going transients on a single line. What is a TVS diode? A TVS (transient voltage suppressor) diode is a clamping semiconductor that diverts ESD and surge energy away from sensitive downstream ICs. Within the protection hierarchy (TVS -> protection diode -> discrete semiconductor -> electronic component), TVS arrays sit closest to external connectors, where they shunt fast transients (ns-scale ESD, µs-scale surge) before they reach ASICs, MCUs, or analog front-ends. The TPD1E10B06 family uses a back-to-back configuration to handle bipolar signals. Key specifications include 12pF (typical, per DigiKey listing; datasheet lists 10pF IO capacitance typical and 12pF line capacitance) line capacitance, 0.37 Ω dynamic resistance (R_DYNAMIC), and ±6V minimum DC breakdown voltage. The 0402-class footprint frees PCB real estate for high-density mobile and wearable designs where every square millimeter matters. The device is rated for ultra-low leakage current, minimizing quiescent loss on protected lines. Architecturally, the TPD1E10B06 uses a silicon TVS structure with back-to-back Zener diodes, achieving system-level IEC 61000-4-2 ESD immunity. Its low capacitance suits data lines like USB VBUS/ID, audio (microphone, headphone, speakerphone), SD card interfaces, keypads, and GPIO. The bidirectional capability removes the need for two unidirectional TVS in many use cases, halving the BOM on differential or AC-coupled lines. Typical applications include protection for audio lines (microphone, earphone, speakerphone), SD card interfaces, keypad buttons, USB port VBUS/ID pins, and general-purpose GPIO. End-equipment targets are portable devices, wearables, set-top boxes, electronic point-of-sale terminals, and appliances. The low 12pF capacitance preserves signal integrity on high-speed interfaces. Design tip: place the TPD1E10B06DPYR as close as possible to the external connector with a short, low-inductance ground return. Use a dedicated TVS ground via directly to the chassis/ground plane to maximize the IEC 61000-4-2 discharge current path and avoid coupling noise into adjacent signal traces. This component is also available in a larger SOD-523 (DPYT) variant on the same datasheet for layouts needing a different footprint.
TPD2E001DRLR - 2Ch ESD Protection Array SOT-5 | Texas Instruments
The Texas Instruments TPD2E001DRLR is a 2-channel Transient Voltage Suppressor (TVS) based Electrostatic Discharge (ESD) protection diode array rated to handle ESD strikes up to ±15 kV (HBM) and ±8 kV (IEC 61000-4-2 contact) with a typical channel capacitance of 1.5 pF, housed in a 5-pin SOT (DRL) package for space-constrained high-speed data lines. An ESD protection diode array is a circuit-protection component that shunts transient voltage events to ground, protecting sensitive downstream ICs from electrostatic discharge. In the electronics taxonomy, TVS diode arrays sit under discrete semiconductors > diodes > TVS protection devices, where they form the lowest-level shield in a layered PCB protection strategy (typically used alongside common-mode chokes, PTC fuses, and bulk TVS). Because high-speed interfaces carry multi-Gbps signals, the protection device must add minimal parasitic capacitance so the signal eye diagram remains compliant with USB, HDMI, or LVDS masks. Key features include a working range up to 5.5 V, a typical clamping voltage of 16 V, and a dynamic resistance of 1.2 Ω. Two TVS channels are integrated into one 5-pin SOT package, allowing protection of a differential pair (D+, D-) or two single-ended lines from a single component. The low 1.5 pF line capacitance minimizes insertion loss on USB 2.0, LVDS, HDMI, and Ethernet signal paths, and the device is qualified to IEC 61000-4-2 Level 4 for air and contact discharge. Technically, the TPD2E001DRLR uses a steering-diode + Zener-clamp TVS architecture that biases through an optional VCC pin. When VCC is tied to the protected supply rail, the clamping voltage is tightened; when left floating, the device still clamps but with slightly higher residual voltage. The 1.2 Ω dynamic resistance ensures that even at 8 kV contact discharge the protected IC sees a transient below its absolute-maximum rating. Typical applications include USB 2.0 port protection on laptops and tablets, HDMI and DisplayPort link protection, LVDS line protection in LCD panels, Ethernet PHY protection, and general-purpose ESD protection for any 5 V high-speed data interface. The small SOT-5 footprint lets designers place the diode array immediately adjacent to the connector, minimizing trace inductance between the ESD event and the protection clamp. When designing with this part, place the device within 2 mm of the connector body, keep ground-return loops short (less than 5 mm), and add a 1 μF bypass capacitor near VCC if it is biased; otherwise leave VCC floating. This page synthesizes distributor pricing, pin-compatible TI drop-in alternatives (TPD2E001DRLRG4, TPD2E001DRSR, TPD2E001IDRLRQ1, TPD2E2U06DRLR), and layout guidance not compiled in the manufacturer datasheet alone.
TPD2EUSB30 - 2-Ch 0.7pF USB 3.0 ESD Protector | Texas Instruments
The Texas Instruments TPD2EUSB30 is a dual-channel 0.7-pF, 5.5-V TVS-based ESD protection diode array designed for SuperSpeed USB 3.0 (6 Gbps) interfaces. It provides ±8 kV IEC 61000-4-2 contact discharge protection, ±15 kV air-gap discharge protection, and a 5 A (8/20 µs) surge rating in a 3-pin SOT-3 (DRT) footprint. A Transient Voltage Suppressor (TVS) diode array is a passive protection device that clamps transient over-voltages (such as ESD strikes, cable discharge events, and lightning-induced surges) to a safe level, protecting downstream ICs. TVS arrays sit at the boundary of the ESD-sensitive analog/digital subsystem hierarchy: TVS diode -> ESD protector -> interface protection IC -> power management IC -> semiconductor. Their capacitance and leakage directly affect signal integrity on high-speed lines, making ultra-low capacitance (sub-1 pF) critical for USB 3.0, HDMI, and DisplayPort links. The TPD2EUSB30's key features include 0.7 pF typical line capacitance (compatible with 6 Gbps SuperSpeed signaling), 0.05 µA maximum leakage current, and an 8 V working voltage. Each channel integrates a TVS steering diode plus a TVS clamp, allowing a single 3-pin SOT-23 package to protect two data lines (D+/D-) without requiring an external bias supply. The TPD2EUSB30A variant (pin-compatible) adds integrated VBUS protection. Typical applications include USB 3.0 host and device port protection, USB Type-A and Type-B connectors, USB 3.0 hubs, docking stations, smartphones, tablets, and laptops. Designers select this part when signal-integrity preservation at 5 Gbps and beyond is mandatory and board area is constrained. When designing with this device, place the TPD2EUSB30 within 3 mm of the USB connector and route protected traces directly to the protected IC. Avoid routing protected and unprotected traces in parallel to prevent ESD coupling. This page synthesizes distributor stock data, drop-in alternatives (TPD2EUSB30A, TPD4EUSB30, etc.), and practical PCB layout guidance not consolidated in the manufacturer datasheet.
TPD4S012DRYR - 4-Ch USB ESD Protection, 15V VBUS | TI
The Texas Instruments TPD4S012DRYR is a 4-channel transient voltage suppressor (TVS) ESD protection diode array purpose-built for USB High-Speed (HS), USB On-The-Go (OTG), and USB charger interfaces. It integrates four 0.8-pF low-capacitance protection channels plus a power-rail clamp with 15-V tolerance on the VBUS line, in an ultra-small flow-through 6-SON (1.45 mm x 1 mm) package rated for IEC 61000-4-2 system-level ESD strikes of ±10 kV (contact/air). An ESD protection diode array is a type of transient voltage suppressor (TVS) within the broader circuit-protection hierarchy: surge protector -> TVS diode -> ESD protection array. Its role is to clamp fast electrostatic-discharge transients before they reach sensitive transceiver silicon, diverting charge to ground or to the supply rail while remaining invisible to the high-speed signal during normal operation. Key differentiating features include: (1) 0.8 pF typical line capacitance, which preserves USB 2.0 high-speed eye diagrams at 480 Mbps with minimal insertion loss; (2) 15-V VBUS tolerance, allowing the power clamp to survive charger voltages and OTG VBUS events that would destroy ordinary 5.5-V clamps on data lines; (3) 3-A (8/20 us) Ipp clamp capability on the power path; and (4) a flow-through package that enables clean differential D+/D- routing without stubs. The device uses snapback-free directional TVS cells on D+/D- and a dedicated zener-based clamp for VBUS, achieving sub-nanosecond response to ESD events per IEC 61000-4-2 testing. Typical applications are smartphone and tablet USB ports, portable charger power paths, USB OTG connectors, and any downstream USB transceiver exposed to user-handled connectors. Design consideration: keep the TPD4S012 within a few millimeters of the connector and place the ground connection to a low-impedance plane; ESD protection effectiveness degrades rapidly with trace inductance. Prices as of 2026-08-29.
TPD4S012DRYR - 4-Ch USB ESD Protection, 15V VBUS | TI
The Texas Instruments TPD4S012DRYR is a 4-channel transient voltage suppressor (TVS) based ESD protection diode array with 0.8-pF line capacitance, ±10-kV IEC 61000-4-2 system-level ESD protection, and 15-V VBUS tolerance, housed in a 6-SON (1.45 mm x 1 mm) surface-mount package. An ESD protection diode array is a specialized category of transient voltage suppressor within the broader circuit-protection hierarchy: surge protector -> TVS diode -> ESD protection array. Its function is to clamp nanosecond-scale electrostatic discharge transients at a connector before they reach sensitive transceiver silicon, diverting charge to ground or the supply rail while remaining electrically invisible to the high-speed signal during normal operation. Key differentiating features include 0.8 pF typical channel capacitance, which preserves USB 2.0 high-speed (480 Mbps) eye diagrams with minimal insertion loss; a dedicated power clamp with 15-V tolerance on the VBUS line, allowing it to survive charger overvoltages and OTG VBUS events that would destroy ordinary 5.5-V data-line clamps; and a 3-A (8/20 us) Ipp clamp capability on the power path. Architecturally, the device combines snapback-free directional TVS cells on D+/D- and ID lines with a zener-based clamp for VBUS, achieving sub-nanosecond response to ESD events per IEC 61000-4-2 testing. The flow-through pinout enables clean differential D+/D- routing without stubs, protecting 3 high-speed I/O lines plus VBUS simultaneously - a combination specifically targeted at USB OTG designs. Typical applications include smartphone and tablet USB ports, portable charger power paths, USB OTG connectors on media players and cameras, and any downstream USB transceiver exposed to user-handled connectors. Design consideration: place the TPD4S012 within a few millimeters of the connector and return its ground pin to a low-impedance plane; protection effectiveness degrades rapidly with added trace inductance. This page synthesizes distributor availability, drop-in alternative analysis, and practical layout guidance not found in the manufacturer datasheet. Pricing shown is estimated as of 2026-09-01.
TVS4201MR6T1G - 5V TVS Array, 12V Clamp, 6-TSOP | onsemi
The onsemi TVS4201MR6T1G is a low-capacitance transient voltage suppressor (TVS) diode array designed to protect high-speed data lines from ESD, EFT, and lightning-induced surges. Housed in a compact 6-pin TSOP-6 (TSOT-23-6) surface-mount package, it integrates a unidirectional 5 V working-voltage TVS array that clamps at 12 V and absorbs up to 25 A of peak pulse current (8/20 µs waveform), making it a drop-in protection block for USB, HDMI, and other consumer interface ports. A TVS (transient voltage suppressor) diode is a specialized clamping device that maintains a near-open circuit under normal operating conditions but rapidly conducts (clamps) when the line voltage exceeds its breakdown threshold, shunting dangerous transients to ground before downstream ICs can be harmed. The TVS4201MR6 family is part of onsemi's low-capacitance portfolio, optimized for high-speed lines where excessive loading capacitance would otherwise degrade signal integrity. Key features include 12 V maximum clamping voltage at 25 A (8/20 µs), 5 V reverse working voltage (Vrwm), an integrated unidirectional TVS array, low line-to-line capacitance suited to high-speed data rates, and an operating temperature range of -40 °C to +125 °C. The 6-TSOP package also meets AEC-Q101 automotive qualification criteria, enabling deployment in body-electronics and infotainment designs alongside consumer applications. The TVS4201MR6T1G uses onsemi's TVS array process that integrates steering diodes in a compact form factor, achieving tight clamping behavior with minimal series inductance. This architecture is purpose-built for transient suppression on differential or single-ended lines where a small PCB footprint and high surge-handling are simultaneously required, reducing the BOM count compared to discrete TVS solutions. Typical applications include USB 2.0/3.0 data-line clamping, HDMI/MHL/MIPI video-interface protection, smartphone charging-port ESD protection, automotive infotainment and body-control ports, and general-purpose I/O protection on microcontroller or SoC pins. Designers favor this part because it provides datasheet-verified surge and ESD immunity in a footprint compatible with industry-standard TSOT-23-6 TVS arrays. For best results, place the TVS as close as possible to the connector and use a low-inductance ground return via multiple vias. Ensure that the trace between the protected IC and the connector is short and direct, with the TVS ground stitch tied to the chassis or system ground rather than the digital ground, to maximize surge dissipation and minimize residual clamping voltage seen by the protected IC. This page synthesizes distributor pricing, AEC-Q101 automotive-grade drop-in alternatives in the same 6-TSOP footprint, and practical PCB-layout design notes not found in the onsemi datasheet, providing engineering value beyond raw specification repetition.
UF3007 - 3A 800V Ultra-Fast Rectifier Diode | Diodes Inc
The Diodes Incorporated UF3007 is a 3.0 A ultra-fast rectifier diode with an 800 V repetitive peak reverse voltage, a 1.7 V maximum forward voltage drop, and a 75 ns reverse recovery time, housed in a DO-201AD (DO-27 style) axial-lead through-hole package. An ultra-fast rectifier is a power semiconductor diode engineered for very short reverse recovery time (trr), which is the interval during which the diode continues to conduct after the applied voltage reverses. Within the power-conversion component hierarchy, the ultra-fast rectifier is a member of the rectifier diode family, which in turn belongs to discrete semiconductors and power management building blocks. Fast recovery matters because slow diodes dissipate significant switching losses in high-frequency converters. Key features of the UF3007 include a diffused-junction construction optimized for high switching efficiency, a surge overload rating of up to 150 A peak (non-repetitive), low reverse leakage current, and a plastic body carrying a UL flammability classification of 94V-0. High current capability combined with low forward voltage drop reduces conduction losses in the output stage. Technical analysis: the 75 ns trr class places the UF3007 well below standard-recovery diodes (microseconds) and suits switching frequencies commonly found in flyback and forward converters. According to the manufacturer datasheet, for capacitive loads the output current should be derated by 20% relative to the resistive-load rating. Storage temperature spans -65C to +175C per typical DO-201AD ratings, enabling rugged industrial designs. Typical applications include secondary-side output rectification in AC-DC switch-mode power supplies, free-wheeling and snubber circuits in motor drives, DC-DC converter output stages, and reverse-polarity protection in industrial equipment. Design consideration: keep lead length short and verify average forward current derating at elevated ambient temperatures, since DO-201AD axial packages rely on lead conduction for heat extraction. This page synthesizes distributor cross-reference data, drop-in alternatives, and practical design notes not found in the manufacturer datasheet alone.
ULC0502P3 - 5V 2-Line Ultra-Low Capacitance TVS | Leiditech
The Shanghai Leiditech Electronic Technology ULC0502P3 is a 2-line ultra-low capacitance transient voltage suppressor (TVS) diode array rated for 5V operating voltage, housed in a 3-pin leadless DFN1006-3 (1.0mm x 0.6mm x 0.5mm) package. It is engineered to protect two high-speed data lines or signal lines from electrostatic discharge (ESD), electrical fast transients (EFT), and lightning-induced surges, while adding minimal parasitic loading to the protected lines. A TVS (Transient Voltage Suppressor) diode is a solid-state semiconductor device designed to clamp voltage spikes and divert transient currents away from sensitive downstream ICs. Within the protection hierarchy (TVS diode -> ESD suppressor -> surge protector -> circuit protection component), TVS diodes sit at the IC-port level and are routinely placed next to USB, HDMI, MIPI, and antenna connectors. Ultra-low capacitance variants like the ULC0502P3 specifically target high-speed signal lines where conventional TVS diodes would degrade signal integrity. Key features of the ULC0502P3 include ultra-low leakage at the nA level, a low 5V operating (working) voltage, low clamping voltage during transient events, and a miniature 3-pin leadless DFN1006-3 footprint. The device is compliant with IEC 61000-4-2 ESD immunity testing at +/-30kV air discharge and +/-25kV contact discharge, with IEC 61000-4-4 EFT immunity at 40A (5/50ns) and IEC 61000-4-5 surge immunity at 5A (8/20us). Lead finish is NiPdAu (nickel-palladium-gold) for reliable soldering and corrosion resistance, and the device is RoHS compliant. The ULC0502P3 is best understood as a two-channel unidirectional low-capacitance ESD diode in a sub-millimeter package, optimized for high-speed signal routing. Compared with general-purpose TVS diodes that may add tens of picofarads of junction capacitance, ultra-low capacitance parts such as this one preserve signal eye-diagram margins on USB 2.0, USB 3.0, HDMI, MIPI DSI/CSI, and other GHz-class interfaces. Typical applications include USB 2.0/3.0 data line protection, HDMI/MIPI display and camera interfaces, smartphone and wearable charging port protection, wireless antenna RF feed protection, and general-purpose I/O protection on microcontrollers and SoCs. Designers frequently pair the ULC0502P3 with common-mode chokes, ferrite beads, and bulk decoupling capacitors to form a complete port protection network. When designing in this part, place it as close as possible to the connector body or IC pin to minimize the parasitic inductance of the protection loop. Use wide, short ground traces to the PCB ground plane to ensure the lowest impedance return path for transient currents, and follow the layout recommendation to keep the protected traces directly under the device body without stubs or vias. This page synthesizes distributor pricing, drop-in alternatives, and practical design notes not found on the Leiditech product page or datasheet, helping engineers shorten the selection cycle and avoid common port-protection pitfalls.
ULC0524P - 4-Channel Ultra-Low Capacitance TVS Array, 5V, DFN2510-10 | Leiditech
The Leiditech ULC0524P is a 4-channel ultra-low-capacitance TVS (Transient Voltage Suppressor) diode array designed to protect voltage-sensitive components from ESD and transient voltage events. Housed in a compact 10-pin DFN2510-10 (2.5 mm x 1.0 mm) surface-mount package, it integrates four independent TVS channels with a working voltage of 5V, a typical line-to-line capacitance of 0.3 pF, and a peak pulse power rating of 75 W (8/20 us waveform). The device meets IEC 61000-4-2 (ESD) and IEC 61000-4-5 (surge) immunity standards, making it suitable for safeguarding high-speed data lines and USB interfaces. A TVS diode array is a semiconductor protection device that clamps transient overvoltages to a safe level by shunting surge current away from protected ICs. Within the protection-device hierarchy, the ULC0524P belongs to the TVS/ESD diode family, which sits under discrete semiconductors and includes Zener-based clamping diodes, metal-oxide varistors (MOVs), and polymer-based suppressors. Compared with varistors, TVS arrays offer faster response (sub-nanosecond), tighter clamping voltages, and far lower leakage, which is why they dominate high-speed digital interfaces. Key features include ultra-low line capacitance of 0.3 pF typical (preserves signal integrity on USB 2.0 / HDMI / MIPI lines), a 5 V reverse standoff (VRWM), 100 nA maximum leakage current, and a 25 V minimum breakdown voltage. The DFN2510-10 footprint has an exposed bottom pad that doubles as a thermal dissipation path and a ground return for the TVS clamps, requiring careful PCB layout to be effective. The device architecture uses steering-die steering diode pairs in series with a central Zener TVS clamp on each line. A surge event on any I/O pin forward-biases one steering diode and reverse-biases the other, redirecting the transient current to the internal Zener clamp and then to ground. This topology keeps the protected IC isolated from the surge while maintaining low capacitance on the signal path during normal operation. Typical applications include USB 2.0 data line protection, HDMI/MIPI/LVDS interface ESD protection, smartphone and tablet charging port protection, and portable electronics with exposed external connectors. The 0.3 pF capacitance makes it a good match for data rates above 480 Mbps where higher-capacitance suppressors would distort the signal. Designers should observe the recommended PCB layout: place the ULC0524P as close as possible to the connector entry, keep the ground pad stitched with multiple thermal vias, and minimize the trace inductance between the protected pin and the TVS channel. Failure to provide a low-inductance ground path degrades the clamping performance and may cause the device to fail surge testing even though the silicon is intact. This page synthesizes verified distributor pricing, datasheet-grade specifications, drop-in compatible alternatives in the same DFN2510-10 footprint, and practical PCB layout guidance not found in the bare manufacturer datasheet.
ULN2003AD - 7-Channel Darlington Driver | Texas Instruments
The Texas Instruments ULN2003AD is a 7-channel high-voltage, high-current Darlington transistor array designed for driving inductive loads such as relays, solenoids, stepper motors, and lamps. It features seven open-collector Darlington pairs with common-cathode clamp diodes for inductive transient suppression, and is available in a 16-pin SOIC (D) package. Each channel can sink up to 500 mA continuously and 600 mA peak, with a collector-emitter voltage rating of 50 V. The device operates over a temperature range of -40°C to +105°C and is RoHS compliant. A Darlington transistor array is a semiconductor device that integrates multiple Darlington pairs, each consisting of two bipolar transistors in a configuration that provides high current gain. This category falls under the hierarchy: Darlington array -> transistor array -> discrete semiconductor -> semiconductor. The ULN2003A is a specific variant of the ULN2003 family, which is widely used in industrial and consumer applications for interfacing low-level logic signals to high-current loads. Key features include seven Darlington pairs with a total current capability of 500 mA per channel, a collector-emitter voltage rating of 50 V, and integrated clamp diodes for inductive load protection. The input is compatible with TTL and 5V CMOS logic, and the device includes a common emitter for all channels. The SOIC-16 package provides a compact footprint for space-constrained designs. The ULN2003AD uses a bipolar process technology with a high-current NPN Darlington configuration. Each channel has a base resistor (2.7 kΩ) and an emitter resistor (3.6 kΩ) to ensure proper biasing and thermal stability. The integrated clamp diodes are connected to a common cathode pin (pin 9) for easy connection to the supply rail. The device exhibits a low saturation voltage (typically 1.6 V at 350 mA) to minimize power dissipation. Typical applications include relay drivers, stepper motor drivers, solenoid drivers, and lamp drivers in industrial control, automotive, and consumer electronics. The high current gain allows direct interfacing with microcontrollers without additional driver stages, simplifying circuit design. When designing with this device, ensure that the total power dissipation does not exceed the package thermal limits. For high-current applications, consider using multiple channels in parallel or adding external heatsinking. The clamp diodes must be connected to the positive supply rail to protect against inductive kickback. This page synthesizes distributor pricing, drop-in alternatives, and practical design notes not found in the TI datasheet, providing a comprehensive resource for engineers selecting the ULN2003AD.
ULN2003ADR - 50V 500mA 7-ch Darlington Array SOIC-16 | TI
The Texas Instruments ULN2003ADR is a high-voltage, high-current Darlington transistor array containing seven NPN Darlington pairs in a 16-pin SOIC (D) surface-mount package. Each channel is rated for 500 mA collector current and 50 V collector-emitter voltage, with integrated common-cathode clamp diodes for inductive load driving. The device includes 2.7 kOhm series base resistors on every input, allowing direct interface with TTL or CMOS logic at 3.3 V or 5 V without external components. A Darlington transistor array is a monolithic IC that integrates multiple high-gain Darlington-pair switches, each formed by two cascaded bipolar transistors whose collectors tie together and whose emitters drive the load. Within the broader taxonomy, the ULN2003ADR sits under: transistor array -> bipolar transistor array -> Darlington array -> driver IC -> semiconductor. Each pair typically delivers beta > 1000, so a few milliamps of input current can switch hundreds of milliamps at the output. This integration simplifies board design by replacing seven discrete NPN transistors plus seven base resistors with a single 16-pin IC. Key features include 500 mA continuous collector current per channel, 50 V minimum output breakdown, integrated flyback diodes, and logic-level inputs compatible with 3.3 V and 5 V microcontrollers. The open-collector outputs allow flexible pull-up voltage selection independent of the logic supply. The SOIC-16 (D) package offers a small footprint suitable for reflow soldering, with all seven channels and the common-cathode clamp brought out for easy PCB routing. The architecture is bipolar; the seven Darlington pairs share a common emitter (substrate) tied to the GND pins. Total power dissipation for the package is approximately 0.95 W at 25 C, derating linearly with temperature. Channel-to-channel matching is tight because all pairs share the same silicon die, which is critical for stepper motors and multi-coil relay banks requiring matched drive strength. Typical applications include unipolar stepper motor drivers, relay and solenoid drivers, lamp and LED matrix drivers, and logic-level buffers for higher-current loads. In each case the ULN2003ADR replaces discrete driver circuits with a single IC, reducing PCB area and BOM count. When designing with this device, ensure that the total package dissipation stays below the derated limit by calculating the worst-case voltage drop across each conducting Darlington and summing across active channels. The clamp diodes handle inductive kickback, but the user must still size the supply decoupling appropriately for the load.
ULN2003AN - 50V 500mA 7-Ch Darlington Array | TI | DIP-16
The Texas Instruments ULN2003AN is a high-voltage, high-current Darlington transistor array consisting of seven open-collector NPN Darlington pairs rated at 50V and 500 mA per channel, housed in a 16-pin PDIP (N) through-hole package. Each pair integrates two bipolar transistors in a Darlington configuration, yielding typical current gain of approximately 1000 (beta min 1000 per the manufacturer datasheet) at low input currents, allowing direct drive from CMOS, TTL, and 5V microcontrollers. Integral common-cathode clamp diodes tied to a dedicated COM pin permit direct switching of inductive loads such as relay coils, unipolar stepper motors, and solenoids without external freewheeling circuitry. A Darlington transistor array is a class of bipolar (BJT) integrated circuit that bundles multiple high-gain Darlington pairs on a single die, acting as a low-side driver. Within the broader taxonomy, it belongs to the discrete transistor category, sits below generic BJT arrays, and is widely classified as an interface/driver IC for relay, lamp, and motor loads. The ULN2003 family is the de-facto industry standard for 7-channel low-side switching from logic-level inputs, making it one of the longest-lived and most cloned ICs in the market. Key features include seven identical Darlington output stages, 50V minimum collector-emitter sustaining voltage, 500 mA continuous collector current per channel (peak to 600 mA), built-in output clamp diodes for inductive load protection, inputs compatible with TTL/CMOS/PMOS/DTL logic, and an operating junction temperature range up to 150 C. The input pins present a series base resistor suitable for 3.3V and 5V logic; no external resistor network is required. Architecturally, each channel pairs a driver transistor (Q1) and an output transistor (Q2) to multiply beta, with integrated 2.7 kohm base resistors on every input. This monolithic bipolar process yields predictable saturation behavior (Vce(sat) ~0.9-1.0V at low currents, ~1.1V at 350 mA) but introduces a measurable Vce drop that dissipates substantial power in high-current applications. Typical applications include 5V relay driver cards, unipolar stepper motor driver boards (commonly paired with 28BYJ-48 motors), LED matrix row/column drivers, solenoid valves, DC brushed motor direction switches, and lamp/display drivers. Hobby and educational platforms (Arduino shields, Raspberry Pi HATs) frequently adopt the ULN2003AN because of its robust 500 mA rating and zero-firmware footprint. Designers should budget headroom for the ~1V collector-emitter saturation drop and derate output current as duty cycle rises. The thermal resistance of PDIP-16 (theta_JA ~70 C/W typical) limits total package dissipation to roughly 1.5W without airflow, so high-current loads should be distributed across multiple channels rather than concentrated on a single pair. This page synthesizes distributor pricing for the original TI part plus cloned second-source options, a drop-in alternative table for sourcing resilience, and practical PCB/application guidance beyond what the manufacturer datasheet covers in isolation.
ULN2003ANE4 - 7-Ch NPN Darlington 500mA 16-PDIP | TI
The Texas Instruments ULN2003ANE4 is a high-voltage, high-current Darlington transistor array containing seven NPN Darlington pairs in a 16-pin PDIP through-hole package. Each channel is rated for 50V collector-emitter breakdown and 500mA continuous collector current, with built-in common-cathode clamp diodes for inductive load switching. The input pins are designed for direct CMOS, TTL, and 3.3V MCU logic interfacing through integrated base resistors. A Darlington transistor array is a monolithic IC that integrates multiple Darlington-pair drivers in a single package, allowing microcontrollers and low-power logic to switch high-current loads such as relays, solenoids, lamps, and stepper motor windings. Each Darlington pair multiplies the input current by the product of the two transistor betas, producing very high current gain (typically 10,000+) and enabling a logic-level signal to drive loads drawing hundreds of milliamps. The ULN2003 family sits at the low-side (open-collector) side of an H-bridge or relay driver topology, and is widely recognized as the de-facto standard driver for Arduino relay boards, 28BYJ-48 stepper motors, and unipolar stepper motor control. Key features include 7 matched channels with 500mA per-channel continuous rating, integrated 2.7kOhm base resistors for direct 5V/3.3V logic interface, built-in freewheeling diodes for inductive loads, 50V minimum VCEO breakdown, and a logic-0 input current of approximately 0.93mA at 3.85V. The 16-pin PDIP package is well-suited for breadboarding and through-hole prototyping, and the array can be paralleled (channels in parallel) for higher current applications. Typical applications include relay drivers, stepper motor drivers (especially unipolar and 28BYJ-48 gear motors), solenoid and valve drivers, LED matrix row/column drivers, logic-level shifters for power devices, and lamp/display drivers. The wide 50V breakdown supports driving 24V industrial relays and 12V automotive lamps directly from 3.3V microcontroller GPIO pins. When designing with this part, ensure PCB trace widths and copper pours can handle 500mA continuous per channel; derate to 350mA if all seven channels conduct simultaneously. The integrated clamp diodes share a common cathode tied to a dedicated pin (pin 9, COM) which must either be tied to V+ for freewheeling or left open if the load has its own flyback path.

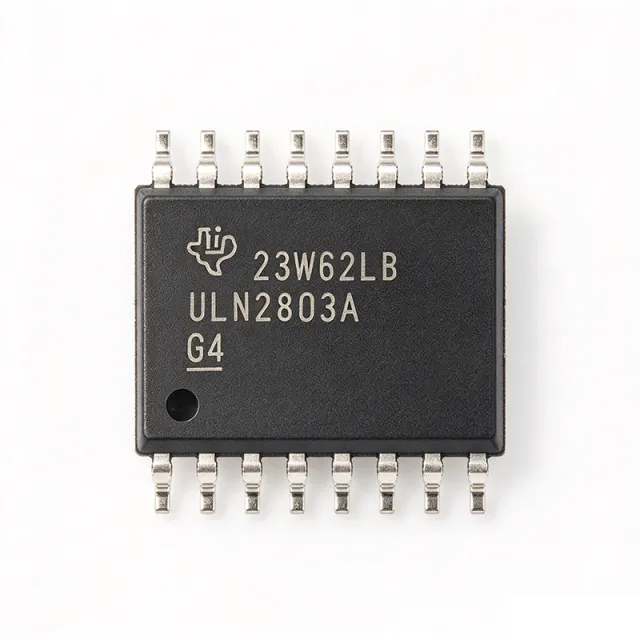

ULN2803ADWR - 8-Channel 50V 500mA Darlington Array | TI
The Texas Instruments ULN2803ADWR is a high-voltage, high-current Darlington transistor array integrating eight NPN Darlington pairs into a single 18-pin SOIC (DW) surface-mount package, each rated 50 V collector-emitter and 500 mA collector current. The device features integrated common-cathode clamp diodes tied to a dedicated COM pin (pin 10) for switching inductive loads such as relays and solenoids. Logic inputs are TTL/5 V CMOS compatible via on-chip 2.7 kOhm base resistors, and channels may be paralleled for higher currents. A Darlington transistor array is an integrated circuit that combines multiple Darlington pairs - two bipolar transistors cascaded for very high current gain (hFE typically >1000) - into a single die. This category belongs to the power switch / load driver family within power-management semiconductors, sitting under the broader umbrella of discrete-array ICs. By integrating eight drivers, the part allows low-current logic outputs from microcontrollers, TTL, or CMOS gates to switch high-current loads with a minimum of external components. Key features include 50 V continuous collector-emitter rating, 500 mA continuous collector current per channel (with peak inrush capability higher due to Darlington dynamics), 2.7 kOhm input base resistors allowing direct interface to 3.3 V and 5 V logic, and built-in flyback clamp diodes tied to COM. The -40 C to +85 C operating temperature range covers industrial environments. The 18-SOIC (DW) footprint is JEDEC-standard and footprint-compatible with several legacy through-hole-to-SMD migration designs. Internally, each Darlington pair includes base and emitter resistors that set predictable turn-on thresholds and stabilize off-state leakage, while the integrated clamp diodes provide a defined current path for inductive kickback. Total package dissipation is bounded by thermal resistance; at 25 C ambient with adequate PCB copper, approximately 1.4 W is achievable. Output saturation voltage of about 1 V at rated current is the typical Darlington trade-off for high gain. Typical applications include 5 V relay driver arrays, stepper motor winding drivers (commonly with bipolar stepper motors in 3D printers, CNC machines, and robotics), solenoid and valve drivers, LED and lamp matrix drivers, and logic-level buffers. The part directly interfaces MCU GPIO to high-current loads in a single SOIC-18 footprint, eliminating discrete transistor driver stages. Always connect the COM pin (pin 10) to the positive supply of the inductive load so the clamp diodes can absorb back-EMF. Budget total package dissipation across all active channels and use adequate copper pour. This device is in Last Time Buy - consider drop-in alternatives below for new designs. This page synthesizes distributor stock, drop-in alternatives, and practical design notes not consolidated in the manufacturer datasheet, helping engineers migrate from this LTB part with minimal PCB rework.
ULN2803APG - 8ch Darlington Sink Driver, 50V, 500mA DIP-18
The Toshiba ULN2803APG is an 8-channel high-voltage, high-current Darlington sink driver housed in a 18-pin DIP (through-hole) package. It integrates eight NPN Darlington pairs with integral clamp diodes for switching inductive loads, delivering up to 500 mA per channel and 50 V collector-emitter breakdown voltage. Each Darlington pair features a base-emitter input resistor of 2.7 kOhm, allowing direct CMOS/TTL logic interface at 5 V inputs. A Darlington transistor array is a monolithic bipolar IC that pairs two NPN transistors so the emitter of the first drives the base of the second, multiplying current gain (hFE typically > 1000). Eight such pairs share a common-emitter ground pin, forming an 8-channel low-side switch well suited to driving relays, solenoids, stepper motor windings, lamp filaments, and LED displays from low-power digital logic. The ULN2803 family sits within the broader hierarchy of bipolar transistor arrays → interface ICs → driver ICs → power management. Key specifications of the ULN2803APG include 500 mA continuous collector current per channel, 50 V VCEO sustain voltage, integrated free-wheeling clamp diodes on each output for inductive load protection, and an input structure compatible with 5 V CMOS logic levels. The DIP-18 footprint matches industry-standard pinouts used by competing parts from TI, STMicroelectronics, and Allegro, simplifying PCB migration. Typical applications span relay drivers in industrial control, hammer/lamp drivers in point-of-sale and copier equipment, LED/display matrix drivers, and stepper or DC motor bridge half-drivers. The integrated clamp diodes eliminate external snubbers on solenoids and relay coils, reducing BOM count and improving long-term reliability against back-EMF transients. When designing with this device, observe the package power dissipation limit of 760 mW for the DIP-18 variant and derate per channel when multiple outputs switch simultaneously at high duty cycle. The common-emitter architecture makes the ULN2803APG strictly a low-side (sink) driver — for high-side (source) driving use the complementary ULN2803 family high-side counterpart or a PNP/PMOS array.
ULN2803APG5M - 8ch 50V/500mA Darlington Sink Driver | Toshiba
The Toshiba ULN2803APG5M is a monolithic high-voltage, high-current Darlington transistor array comprising eight NPN Darlington pairs with integral clamp diodes for inductive-load switching. Each Darlington channel is rated to 50 V collector-emitter and 500 mA continuous collector current (760 mW total package dissipation), making it a true 8-channel open-collector sink driver in a 18-DIP through-hole package. The (5,M) suffix indicates 5-piece minimum order pack shipped from the Toshiba tube / tray manufacturing flow. A Darlington transistor array is a class of bipolar driver in which two transistors are cascaded (collector of the input transistor tied to the base of the output transistor) so that the input sees only the very small base current of the first device, while the output stage delivers the load current. The resulting current gain (hFE) of several thousand allows logic-level signals (5 V CMOS, 3.3 V TTL, or even microcontroller GPIO) to directly switch much higher currents and voltages. Within the broader taxonomy, the ULN2803APG5M belongs to the Bipolar Transistor Array (BJT array) family, sits inside the Power Management / Interface & Driver category, and ultimately functions as a low-side (sink) driver. The integral freewheeling clamp diodes across each output protect the IC when driving relays, solenoids, and motors from the inductive kick that would otherwise destroy the output transistors. Key differentiating features include eight parallel channels in one package (saving PCB area versus discrete transistors), 50 V rating that comfortably covers 24 V industrial and automotive relays, 500 mA continuous per channel (higher peaks possible within SOA limits), built-in input resistors for direct 5 V logic compatibility, and the 18-DIP through-hole footprint that remains the industry standard for breadboarding, legacy designs, and pin-compatible cross-brand substitutions. Compared with discrete MOSFETs, the Darlington array offers simpler drive and lower BOM cost but trades away switching speed, so it is best suited for slow on/off actuation rather than high-frequency PWM. The architecture uses eight common-emitter Darlington switches whose emitters are tied to a common ground pin, while each open collector is brought out separately to a DIP pin. The clamp diode anode connects to Vsup and cathode to each collector, suppressing flyback voltage transients. Total power dissipation of 760 mW for the package (about 95 mW per channel continuous) defines the safe envelope. Typical applications include 5 V logic-to-24 V relay driver boards, stepper motor phase drivers for small unipolar motors, solenoid and valve drivers, LED matrix row/column drivers, thermal printer head drivers, and lamp/indicator banks. When designing with this device, always verify package dissipation against the worst-case simultaneous-channel conduction: eight 100 mA outputs will exceed the 760 mW package rating unless derated.
