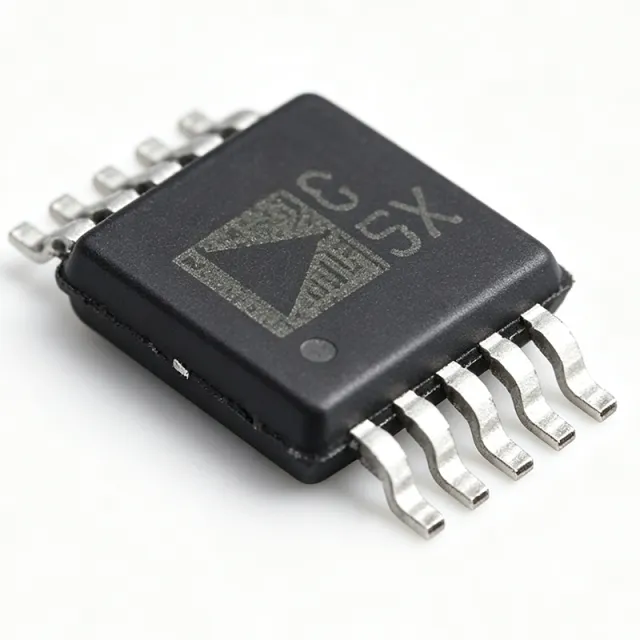

AD7980ARMZRL7 - 16-Bit 1 MSPS PulSAR ADC | Analog Devices

Name: AD7980ARMZRL7
Brand: Analog Devices
Price: 10 USD
Availability: InStock

MPN: AD7980ARMZRL7 ✓ Active

In Stock Ships in 1-3 business days

2.5 V Vdss 10-MSOP Package

From $10 USD / Unit

MOQ: 1 |

Price updated: 2026-08-21

Volume Pricing

Qty	Unit Price	Extended
1	$13.65	$13.65
10	$12.5	$125.00
100	$11.2	$1,120.00
500	$10.61	$5,305.00
1,000	$10	$10,000.00

ℹ️ All prices are in USD

View Datasheet (PDF) View Alternatives

Quantity

Drop-in alternatives for AD7980ARMZRL7 — same package, pin-to-pin compatible. Different-package parts requiring PCB rework are excluded.

Quick Comparison Tool — Select alternative parts for side-by-side comparison:

AD7980BRMZ

✅ Drop-In

Analog Devices

📦 10-MSOP

16 Bit · Successive Approximation Register (SAR) · 1 · Pseudo-Differential · 1 MSPS · ±0.6 LSB typical, ±1.25 LSB maximum · 0 V to VREF · External VREF, [DATA_NEEDED: reference voltage range]

✓ In Stock

$13.1 / Unit

View Datasheet →

AD7982BRMZ

✅ Drop-In

📦 10-MSOP

18-bit resolution, pin-compatible, higher resolution but similar power

📋 Reference alternative (not in catalog)

AD7983BRMZ

✅ Drop-In

📦 10-MSOP

16-bit, 500 kSPS, lower speed, pin-compatible

📋 Reference alternative (not in catalog)

AD7680ARMZ

✅ Drop-In

📦 10-MSOP

16-bit, 100 kSPS, lower speed, pin-compatible

📋 Reference alternative (not in catalog)

MAX11166

✅ Drop-In

📦 10-MSOP

16-bit, 500 kSPS, pin-compatible, different manufacturer

📋 Reference alternative (not in catalog)

AD7980ARMZRL7 Maximum Ratings & Electrical Characteristics

Resolution	16 bit
Sampling Rate	1 MSPS
Number of Inputs	1
Input Type	Pseudo-Differential
Data Interface	SPI
Architecture	SAR
Reference Type	External
Supply Voltage	2.5 V
Power Consumption	7 mW at 1 MSPS
SNR	91.5 dB at 1 kHz
INL	±2.5 LSB
Operating Temperature	-40°C to +125°C
Package	10-MSOP
Mounting Type	Surface Mount
RoHS Status	Compliant

AD7980ARMZRL7 Pin Configuration

Pin 1	VDD — Power supply, 2.5V
Pin 2	GND — Ground
Pin 3	REF — External reference voltage input
Pin 4	IN+ — Positive analog input
Pin 5	IN- — Negative analog input (pseudo-differential)
Pin 6	SCK — Serial clock input
Pin 7	SDI — Serial data input (for daisy-chain)
Pin 8	SDO — Serial data output
Pin 9	CNV — Convert input (start conversion)
Pin 10	GND — Ground (exposed pad)

Safe Operating Area (SOA) & Thermal Characteristics

No official SOA curve available for this component. Always operate within absolute maximum ratings specified in the datasheet. Ensure adequate cooling and derate as needed.

Typical Applications

AD7980ARMZRL7 is suitable for 6 applications: Battery-Powered Instrumentation, Portable Medical Devices, Data Acquisition Systems, Industrial Process Control, Precision Measurement Equipment, Audio Test and Measurement.

🔧

Battery-Powered Instrumentation

The AD7980ARMZRL7's low power consumption (7 mW at 1 MSPS) and power scaling with throughput make it ideal for battery-powered instruments. Its 16-bit resolution ensures accurate measurements, while the small MSOP package saves board space. The SPI interface allows easy integration with low-power microcontrollers, and the pseudo-differential input rejects noise from the power supply.

Recommended

STM32L431RCT6 · STMicroelectronics ADP150 (Low-noise LDO for ADC power supply)

💊

Portable Medical Devices

In portable medical devices like glucose monitors and pulse oximeters, the AD7980ARMZRL7 provides high-accuracy analog-to-digital conversion with minimal power drain. Its 16-bit resolution captures fine physiological signals, and the 1 MSPS sampling rate supports real-time monitoring. The external reference allows optimization for specific sensor ranges, and the small package fits compact designs.

Recommended

STM32L476VGT6 · STMicroelectronics AD8605 (Precision op-amp for sensor conditioning)

🏭

Data Acquisition Systems

The AD7980ARMZRL7 is well-suited for multi-channel data acquisition systems due to its 1 MSPS throughput and SPI daisy-chain capability. Multiple ADCs can be connected on a single 3-wire bus, simplifying layout and reducing pin count. The 16-bit resolution and 91.5 dB SNR ensure high-fidelity capture of analog signals, making it ideal for industrial monitoring and test equipment.

Recommended

STM32F446VCT6 · STMicroelectronics ADG1206 (Multiplexer for channel expansion)

🏭

Industrial Process Control

In industrial process control, the AD7980ARMZRL7 offers precise conversion of sensor signals (temperature, pressure, flow) with 16-bit resolution. Its wide operating temperature range (-40°C to +125°C) ensures reliability in harsh environments. The pseudo-differential input rejects common-mode noise from long sensor leads, and the SPI interface allows easy isolation with digital isolators.

Recommended

STM32F205VET6 · STMicroelectronics ADuM1401 (Digital isolator for SPI isolation)

🔧

Precision Measurement Equipment

The AD7980ARMZRL7 is used in precision measurement equipment such as digital multimeters and spectrum analyzers. Its 16-bit resolution and low INL (±2.5 LSB) provide accurate readings, while the 1 MSPS sampling rate enables fast measurements. The external reference allows calibration to a known standard, and the small package fits portable test instruments.

Recommended

STM32F746BET6 · STMicroelectronics ADR4550 (Precision voltage reference)

🎧

Audio Test and Measurement

The AD7980ARMZRL7 can be used in audio test equipment for capturing high-resolution audio signals. Its 16-bit resolution and 91.5 dB SNR ensure low distortion measurements, and the 1 MSPS sampling rate supports high-frequency analysis. The pseudo-differential input reduces ground noise, and the SPI interface allows direct connection to DSPs or FPGAs for real-time processing.

Recommended

STM32F767BGT6 · STMicroelectronics ADA4610-2 (Low-noise op-amp for signal conditioning)

Recommended Products Summary

STM32L431RCT6 STMicroelectronics Used in: Battery-Powered Instrumentation ADP150 Low-noise LDO for ADC power supply Used in: Battery-Powered Instrumentation STM32L476VGT6 STMicroelectronics Used in: Portable Medical Devices AD8605 Precision op-amp for sensor conditioning Used in: Portable Medical Devices STM32F446VCT6 STMicroelectronics Used in: Data Acquisition Systems ADG1206 Multiplexer for channel expansion Used in: Data Acquisition Systems STM32F205VET6 STMicroelectronics Used in: Industrial Process Control ADuM1401 Digital isolator for SPI isolation Used in: Industrial Process Control STM32F746BET6 STMicroelectronics Used in: Precision Measurement Equipment ADR4550 Precision voltage reference Used in: Precision Measurement Equipment STM32F767BGT6 STMicroelectronics Used in: Audio Test and Measurement ADA4610-2 Low-noise op-amp for signal conditioning Used in: Audio Test and Measurement

What is the resolution and sampling rate of AD7980ARMZRL7?

The AD7980ARMZRL7 is a 16-bit ADC with a maximum sampling rate of 1 MSPS. According to the Analog Devices AD7980 datasheet (Rev. G), it uses a SAR architecture and operates from a 2.5 V supply. This combination of resolution and speed makes it suitable for high-precision data acquisition systems.

What is the power consumption of AD7980ARMZRL7?

The AD7980ARMZRL7 consumes 7 mW at 1 MSPS from a 2.5 V supply. Its power scales linearly with throughput, so at lower sampling rates, power consumption decreases proportionally. This feature is beneficial for battery-powered applications where power efficiency is critical.

What is the input type of AD7980ARMZRL7?

The AD7980ARMZRL7 has a pseudo-differential input, which means it has a single-ended input with a separate ground sense pin. This configuration helps reject common-mode noise and is suitable for applications where the signal source is referenced to a different ground potential.

What is the interface of AD7980ARMZRL7?

The AD7980ARMZRL7 features an SPI-compatible serial interface. It supports daisy-chaining multiple ADCs on a single 3-wire bus using the SDI input, and provides an optional busy indicator. The interface is compatible with 1.8 V to 5 V digital logic, allowing easy connection to various microcontrollers.

What is the reference voltage requirement for AD7980ARMZRL7?

The AD7980ARMZRL7 requires an external reference voltage, which can be set independently of the supply voltage. The reference voltage determines the full-scale input range. For example, with a 5 V reference, the input range is 0 V to 5 V. The reference should be stable and well-decoupled for accurate conversions.

Is AD7980ARMZRL7 pin-compatible with AD7982?

Yes, the AD7980ARMZRL7 is pin-for-pin compatible with the 18-bit AD7982, as stated in the AD7980 datasheet. This allows designers to upgrade from 16-bit to 18-bit resolution without changing the PCB layout, providing a convenient path for higher precision.

What are the typical applications of AD7980ARMZRL7?

The AD7980ARMZRL7 is suitable for battery-powered instrumentation, portable medical devices, data acquisition systems, and industrial process control. Its low power consumption, small MSOP package, and high accuracy make it ideal for these applications.

What is the operating temperature range of AD7980ARMZRL7?

The AD7980ARMZRL7 operates over a temperature range of -40°C to +125°C. This wide range makes it suitable for industrial and automotive environments where temperature extremes are common.

Where can I buy AD7980ARMZRL7?

AD7980ARMZRL7 is available from authorized distributors such as DigiKey, Mouser, and LCSC. As of 2026-08-21, the 1ku list price is $13.65 from Analog Devices. Check distributor websites for current stock and pricing.

What is the price of AD7980ARMZRL7?

As of 2026-08-21, the 1ku list price for AD7980ARMZRL7 is $13.65 from Analog Devices. Distributor pricing may vary; for example, LCSC lists it at $10.6091. For volume pricing, contact distributors directly.

What is the lead time for AD7980ARMZRL7?

The lead time for AD7980ARMZRL7 depends on distributor stock and order quantity. DigiKey typically shows 'ships today' for in-stock items. For larger quantities, lead times may vary; check with your preferred distributor for current lead time information.

Is AD7980ARMZRL7 in stock?

As of 2026-08-21, AD7980ARMZRL7 is in stock at major distributors like DigiKey and Mouser. LCSC also lists it as in-stock. Availability can change, so verify current stock on the distributor's website.

AD7980ARMZRL7 vs AD7982BRMZ - which is better for high-resolution applications?

The AD7982BRMZ is an 18-bit ADC, while the AD7980ARMZRL7 is 16-bit. For applications requiring higher resolution, the AD7982BRMZ is better. However, the AD7980ARMZRL7 offers lower power consumption and is pin-compatible, so you can choose based on resolution needs versus power budget.

What is the difference between AD7980ARMZRL7 and AD7983BRMZ?

The AD7983BRMZ is a lower-speed version of the AD7980, with a maximum sampling rate of 500 kSPS compared to 1 MSPS for the AD7980ARMZRL7. Both are 16-bit SAR ADCs in MSOP packages, but the AD7980 offers higher throughput.

When should I choose AD7980ARMZRL7 over AD7982BRMZ?

Choose AD7980ARMZRL7 when 16-bit resolution is sufficient and you need lower power consumption or higher sampling rate. The AD7980 consumes 7 mW at 1 MSPS, while the AD7982 consumes more due to higher resolution. If 18-bit resolution is required, choose AD7982BRMZ.

What is the best drop-in replacement for AD7980ARMZRL7?

The AD7980BRMZ is a direct drop-in replacement for AD7980ARMZRL7, as it is the same 16-bit ADC in the same MSOP package with identical pinout. The AD7982BRMZ is also pin-compatible but offers 18-bit resolution, making it a functional alternative.

Can AD7982BRMZ replace AD7980ARMZRL7?

Yes, the AD7982BRMZ can replace AD7980ARMZRL7 because it is pin-for-pin compatible. However, the AD7982 is an 18-bit ADC, so it will provide higher resolution but may have slightly different performance characteristics. Ensure the system can handle the increased data width.

Where can I download the AD7980ARMZRL7 datasheet PDF?

The AD7980ARMZRL7 datasheet PDF can be downloaded from the Analog Devices website at https://www.analog.com/media/en/technical-documentation/data-sheets/AD7980.pdf. It is also available on distributor sites like DigiKey and Mouser.

Where can I find the AD7980ARMZRL7 pinout?

The AD7980ARMZRL7 pinout is detailed in the datasheet, which is available from Analog Devices. The 10-lead MSOP pinout includes pins for VDD, GND, REF, IN+, IN-, and SPI interface pins (SCK, SDI, SDO, CNV). Refer to the datasheet for the exact pin assignments.

Hey Google, what can replace AD7980ARMZRL7?

Is AD7980ARMZRL7 the same as AD7982BRMZ?

No, AD7980ARMZRL7 is a 16-bit ADC, while AD7982BRMZ is an 18-bit ADC. They are pin-compatible, but the AD7982 offers higher resolution. The AD7980 has a sampling rate of 1 MSPS, while the AD7982 also supports 1 MSPS. They are not identical but can be used interchangeably in many designs.

What are the key specifications of AD7980ARMZRL7 that engineers should know?

The AD7980ARMZRL7 is a 16-bit SAR ADC with 1 MSPS sampling rate, 7 mW power consumption at 1 MSPS, 91.5 dB SNR, ±2.5 LSB INL, and operates from a 2.5 V supply. It has a pseudo-differential input, SPI interface, and is housed in a 10-MSOP package. These specs make it suitable for high-precision, low-power applications.

What is the best Analog Devices equivalent for AD7980ARMZRL7?

The best Analog Devices equivalent for AD7980ARMZRL7 is the AD7980BRMZ, which is the same 16-bit ADC in the same MSOP package with identical specifications. The AD7982BRMZ is also an equivalent but offers 18-bit resolution, making it a higher-resolution alternative.

Engineering reference data for AD7980ARMZRL7 — comparison, design guidance, and compliance information.

Selection Guide

Choose the AD7980ARMZRL7 when you need a 16-bit ADC with 1 MSPS sampling rate and low power consumption (7 mW). It is ideal for battery-powered instrumentation and portable medical devices. If you require higher resolution, the AD7982BRMZ offers 18-bit performance in the same package. If lower sampling rate is acceptable, the AD7983BRMZ consumes less power (3.6 mW at 500 kSPS). For cost-sensitive designs, consider the AD7680ARMZ, which offers 16-bit at 100 kSPS. All alternatives are pin-compatible, simplifying PCB design.

Comparison with Alternatives

Parameter	This Product	AD7980BRMZ	AD7982BRMZ	AD7983BRMZ
Package	10-MSOP	10-MSOP	10-MSOP	10-MSOP
Brand	Analog Devices	Analog Devices	Analog Devices	Analog Devices
Resolution	16 bit	16 bit	18 bit	16 bit
Sampling Rate	1 MSPS	1 MSPS	1 MSPS	500 kSPS
Power Consumption	7 mW at 1 MSPS	7 mW at 1 MSPS	7.5 mW at 1 MSPS	3.6 mW at 500 kSPS
SNR	91.5 dB	91.5 dB	98 dB	91.5 dB
INL	±2.5 LSB	±2.5 LSB	±2 LSB	±2.5 LSB
Supply Voltage	2.5 V	2.5 V	2.5 V	2.5 V

Key Differentiators

Higher sampling rate than AD7983 (vs AD7983BRMZ)
Lower power than AD7982 (vs AD7982BRMZ)
Pin-compatible with 18-bit AD7982 (vs AD7982BRMZ)

Design Notes

The AD7980ARMZRL7 operates from a 2.5 V supply and consumes 7 mW at 1 MSPS. Power scales linearly with throughput, so reduce the sampling rate to save power in battery-powered designs. Use a low-noise LDO to supply VDD and decouple with 0.1 µF and 10 µF capacitors close to the pin.

Place the ADC close to the signal source to minimize trace length and noise pickup. Use a solid ground plane and separate analog and digital grounds, connecting them at a single point. Keep the SPI bus traces short and avoid routing them near high-speed digital signals.

Ensure the reference voltage is stable and well-decoupled, as it directly affects conversion accuracy. The analog input should be driven by a low-impedance source to avoid sampling errors. Do not exceed the absolute maximum ratings for VDD and input pins, and ensure proper power-up sequencing.
