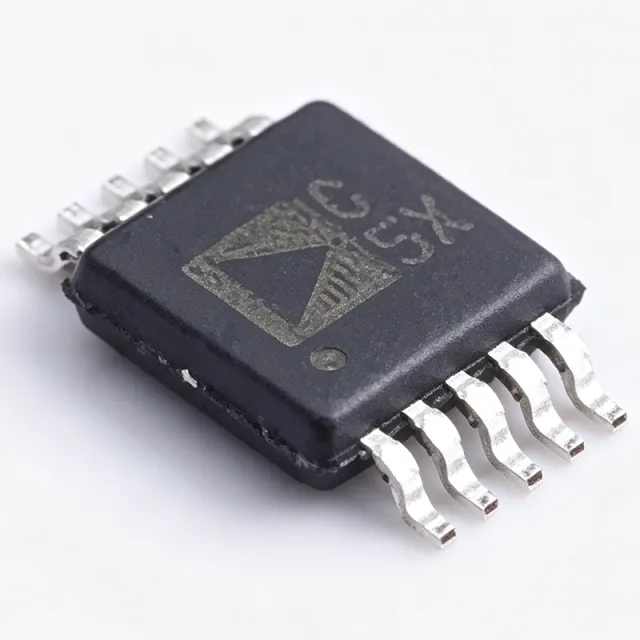

AD7980ARMZ - 16-Bit 1 MSPS PulSAR ADC | Analog Devices

Name: AD7980ARMZ
Brand: Analog Devices
Price: 8.5 USD
Availability: InStock

MPN: AD7980ARMZ ✓ Active

In Stock Ships in 1-3 business days

2.4 V to 5.1 V Vdss 10-MSOP Package

From $8.5 USD / Unit

MOQ: 1 |

Price updated: 2026-08-21

Volume Pricing

Qty	Unit Price	Extended
1	$13.65	$13.65
10	$12.5	$125.00
100	$10.8	$1,080.00
500	$9.2	$4,600.00
1,000	$8.5	$8,500.00

ℹ️ All prices are in USD

View Datasheet (PDF) View Alternatives

Quantity

Drop-in alternatives for AD7980ARMZ — same package, pin-to-pin compatible. Different-package parts requiring PCB rework are excluded.

Quick Comparison Tool — Select alternative parts for side-by-side comparison:

AD7980BRMZ

✅ Drop-In

Analog Devices

📦 10-MSOP

16 Bit · Successive Approximation Register (SAR) · 1 · Pseudo-Differential · 1 MSPS · ±0.6 LSB typical, ±1.25 LSB maximum · 0 V to VREF · External VREF, [DATA_NEEDED: reference voltage range]

✓ In Stock

$13.1 / Unit

View Datasheet →

AD7982BRMZ

✅ Drop-In

📦 10-MSOP

18-bit resolution, pin-compatible

📋 Reference alternative (not in catalog)

AD7980SRMZ-EP

✅ Drop-In

📦 10-MSOP

Enhanced product (EP) version for extended temperature range

📋 Reference alternative (not in catalog)

ADS8330

✅ Drop-In

📦 10-MSOP

16-bit, 1 MSPS SAR ADC, similar pinout

📋 Reference alternative (not in catalog)

MAX11166

✅ Drop-In

📦 10-MSOP

16-bit, 1 MSPS SAR ADC, pin-compatible

📋 Reference alternative (not in catalog)

AD7980ARMZ Maximum Ratings & Electrical Characteristics

Resolution	16 bits
Sampling Rate	1 MSPS
Number of Inputs	1
Input Type	Pseudo-differential
Data Interface	SPI
Architecture	SAR
Reference Type	External
Reference Voltage	2.4 V to 5.1 V
Supply Voltage	2.5 V
SNR (typical)	91.5 dB
Power Dissipation	7 mW at 1 MSPS
Operating Temperature	-40°C to +125°C
Package	10-MSOP
Mounting Type	Surface Mount
RoHS Status	Compliant

AD7980ARMZ Pin Configuration

Pin 1	IN+ — Positive analog input
Pin 2	IN- — Negative analog input
Pin 3	GND — Ground
Pin 4	VDD — Power supply (2.5V)
Pin 5	REF — Reference voltage input
Pin 6	SDO — Serial data output
Pin 7	SDI — Serial data input (for daisy-chain)
Pin 8	SCK — Serial clock input
Pin 9	CNV — Convert input (start conversion)
Pin 10	GND — Ground

Safe Operating Area (SOA) & Thermal Characteristics

No official SOA curve available for this component. Always operate within absolute maximum ratings specified in the datasheet. Ensure adequate cooling and derate as needed.

Typical Applications

AD7980ARMZ is suitable for 6 applications: Medical Instrumentation, High-Speed Data Acquisition, Industrial Process Control, Battery-Powered Systems, Precision Measurement, Audio and Vibration Analysis.

💊

Medical Instrumentation

The AD7980ARMZ's 16-bit resolution and 1 MSPS sampling rate enable high-precision data acquisition in medical devices such as patient monitors and diagnostic equipment. Its low power dissipation of 7 mW at 1 MSPS is ideal for battery-powered portable medical devices, extending operational life. The SPI interface simplifies integration with microcontrollers, and the small MSOP package saves board space in compact designs.

Recommended

🔧

High-Speed Data Acquisition

With a 1 MSPS sampling rate and 16-bit resolution, the AD7980ARMZ is well-suited for high-speed data acquisition systems in test and measurement equipment. Its SAR architecture provides low latency and high accuracy, essential for capturing fast transients. The device's SPI interface supports daisy-chaining multiple ADCs, enabling multi-channel synchronized acquisition. The external reference allows optimization for specific input ranges.

Recommended

STM32F446VCT6 · STMicroelectronics AD7980BRMZ · Analog Devices

🏭

Industrial Process Control

The AD7980ARMZ provides accurate, high-speed conversion for industrial process control systems, such as motor control and monitoring. Its 16-bit resolution ensures precise measurement of analog signals, while the 1 MSPS throughput allows real-time control loops. The device operates over a wide temperature range (-40°C to +125°C), making it suitable for harsh industrial environments. The SPI interface simplifies connection to industrial microcontrollers.

Recommended

STM32F446VCT6 · STMicroelectronics AD7980BRMZ · Analog Devices

⚡

Battery-Powered Systems

The AD7980ARMZ's low power consumption (7 mW at 1 MSPS) and power scaling with throughput make it ideal for battery-powered systems like portable instruments and wireless sensors. Its small MSOP package minimizes board space, and the SPI interface reduces pin count. The device can be powered down between conversions to save energy, extending battery life in duty-cycled applications.

Recommended

STM32L431RCT6 · STMicroelectronics AD7980BRMZ · Analog Devices

🔧

Precision Measurement

With a typical SNR of 91.5 dB and 16-bit no missing codes, the AD7980ARMZ delivers high precision for measurement applications such as weigh scales and pressure sensors. Its pseudo-differential input rejects common-mode noise, improving accuracy. The external reference allows calibration to a known standard, enhancing measurement reliability. The device's low power and small size make it suitable for portable measurement tools.

Recommended

STM32F446VCT6 · STMicroelectronics AD7980BRMZ · Analog Devices

🎧

Audio and Vibration Analysis

The AD7980ARMZ's high SNR and 1 MSPS sampling rate make it suitable for audio and vibration analysis applications, where capturing high-frequency signals with low noise is critical. Its SAR architecture provides low latency, essential for real-time analysis. The device's SPI interface supports high-speed data transfer to DSPs or FPGAs. The small package allows integration into compact analyzers.

Recommended

STM32F446VCT6 · STMicroelectronics AD7980BRMZ · Analog Devices

Recommended Products Summary

STM32F446VCT6 STMicroelectronics Used in: Medical Instrumentation, High-Speed Data Acquisition, Industrial Process Control, Precision Measurement, Audio and Vibration Analysis AD7980BRMZ Analog Devices Used in: Medical Instrumentation, High-Speed Data Acquisition, Industrial Process Control, Battery-Powered Systems, Precision Measurement, Audio and Vibration Analysis STM32L431RCT6 STMicroelectronics Used in: Battery-Powered Systems

What is the resolution and sampling rate of AD7980ARMZ?

The AD7980ARMZ is a 16-bit ADC with a maximum sampling rate of 1 MSPS. According to the AD7980 datasheet (Rev. G), it uses a successive approximation register (SAR) architecture and operates from a 2.5 V supply. This combination makes it suitable for high-speed, high-resolution data acquisition.

What is the price of AD7980ARMZ?

As of 2026-08-21, the 1ku list price for AD7980ARMZ is $13.65, according to Analog Devices. Distributor pricing may vary; for example, DigiKey and Mouser offer quantity-based discounts. Check current stock and pricing on their websites for the most accurate quotes.

Where can I buy AD7980ARMZ online?

AD7980ARMZ is available from major distributors including DigiKey, Mouser, and Win Source. You can purchase it directly from their websites. For example, DigiKey lists it as 'Buy now, ships today' with datasheets and pricing available. Octopart also aggregates availability from multiple distributors.

What is the lead time for AD7980ARMZ?

The lead time for AD7980ARMZ varies by distributor and stock levels. As of 2026-08-21, DigiKey indicates it ships today, suggesting immediate availability. For larger quantities, lead times may extend to several weeks. Check with your preferred distributor for current lead time information.

Is AD7980ARMZ in stock?

As of 2026-08-21, AD7980ARMZ is in stock at major distributors like DigiKey and Mouser. DigiKey's product page states 'Buy now, ships today,' indicating immediate availability. For real-time stock levels, visit the distributor's website or contact them directly.

AD7980ARMZ vs AD7982 - which is better for high-resolution applications?

The AD7980ARMZ is a 16-bit ADC, while the AD7982 is an 18-bit ADC. Both are pin-for-pin compatible and share the same MSOP package. For applications requiring higher resolution, the AD7982 is better. However, the AD7980 offers lower power consumption and is suitable for 16-bit systems. According to the datasheet, the AD7980 is pin-compatible with the AD7982, allowing easy upgrades.

What is the difference between AD7980ARMZ and AD7980BRMZ?

The AD7980ARMZ and AD7980BRMZ are both 16-bit, 1 MSPS PulSAR ADCs in MSOP packages. The 'A' and 'B' suffixes typically indicate different grade or temperature ranges. According to Analog Devices, the AD7980ARMZ operates from -40°C to +125°C, while the BRMZ may have a different specification. Check the datasheet for exact differences.

When should I choose AD7980ARMZ over AD7982?

Choose the AD7980ARMZ when you need 16-bit resolution with lower power consumption and cost. The AD7980 dissipates only 7 mW at 1 MSPS, while the AD7982 (18-bit) may consume more power. If your application requires 18-bit resolution, select the AD7982. Both are pin-compatible, so you can design for either and populate accordingly.

What is the best drop-in replacement for AD7980ARMZ?

The AD7980BRMZ is a direct drop-in replacement for the AD7980ARMZ, as it shares the same package and pinout. Additionally, the AD7982 (18-bit) is pin-for-pin compatible, offering higher resolution. For cross-brand alternatives, consider the TI ADS8330 or Maxim MAX11166, but verify pin compatibility before use.

Can AD7982 replace AD7980ARMZ?

Yes, the AD7982 can replace the AD7980ARMZ because it is pin-for-pin compatible, according to the AD7980 datasheet. The AD7982 offers 18-bit resolution, so it provides higher performance. However, ensure your system can handle the increased data width and potential power differences.

Where can I download the AD7980ARMZ datasheet PDF?

You can download the AD7980ARMZ datasheet PDF from the Analog Devices website at https://www.analog.com/media/en/technical-documentation/data-sheets/AD7980.pdf. It is also available on distributor sites like DigiKey and Mouser, as well as datasheet aggregators like Alldatasheet.

Where can I find the AD7980ARMZ pinout?

The AD7980ARMZ pinout is detailed in the datasheet (Rev. G) on page 5. It is a 10-lead MSOP package with pins for VDD, GND, REF, IN+, IN-, and SPI interface pins (SCK, SDI, SDO, CNV). The datasheet is available from Analog Devices and distributor websites.

Hey Google, what can replace AD7980ARMZ?

The AD7980BRMZ is a direct replacement for the AD7980ARMZ, offering identical specifications. The AD7982 (18-bit) is also pin-compatible and can replace it with higher resolution. For cross-brand options, consider the TI ADS8330 or Maxim MAX11166, but verify pin compatibility and electrical specifications before substitution.

Is AD7980ARMZ the same as AD7980BRMZ?

No, the AD7980ARMZ and AD7980BRMZ are not the same. Both are 16-bit, 1 MSPS PulSAR ADCs in MSOP packages, but the suffix 'A' and 'B' may indicate different temperature grades or specifications. According to Analog Devices, the ARMZ operates from -40°C to +125°C, while the BRMZ may have a different range. Check the datasheet for exact differences.

What are the key specifications of AD7980ARMZ that engineers should know?

The AD7980ARMZ is a 16-bit, 1 MSPS SAR ADC with a pseudo-differential input, SPI interface, and external reference. It operates from a 2.5 V supply, dissipates 7 mW at 1 MSPS, and achieves a typical SNR of 91.5 dB. It is available in a 10-lead MSOP package and is pin-compatible with the 18-bit AD7982.

What is the best Analog Devices equivalent for AD7980ARMZ?

The best Analog Devices equivalent for the AD7980ARMZ is the AD7980BRMZ, which is a direct drop-in replacement with identical specifications. For higher resolution, the AD7982 (18-bit) is also pin-compatible. Both are from the same PulSAR family and offer similar performance.

Engineering reference data for AD7980ARMZ — comparison, design guidance, and compliance information.

Selection Guide

Choose the AD7980ARMZ when you need a 16-bit, 1 MSPS SAR ADC with low power and a small footprint. It is ideal for battery-powered and portable applications where power efficiency is critical. If you require higher resolution, consider the AD7982BRMZ, which is pin-compatible and offers 18-bit performance. For a cross-brand alternative, the ADS8330 from Texas Instruments is a viable option, but verify pin compatibility and power specifications. The AD7980BRMZ is a direct drop-in replacement with identical specs, suitable for designs needing a second source.

Comparison with Alternatives

Parameter	This Product	AD7980BRMZ	AD7982BRMZ	ADS8330
Package	10-MSOP	10-MSOP	10-MSOP	10-MSOP
Brand	Analog Devices	Analog Devices	Analog Devices	Texas Instruments
Resolution	16 bits	16 bits	18 bits	16 bits
Sampling Rate	1 MSPS	1 MSPS	1 MSPS	1 MSPS
Supply Voltage	2.5 V	2.5 V	2.5 V	2.7 V to 5.5 V
Power Dissipation	7 mW at 1 MSPS	7 mW at 1 MSPS	7 mW at 1 MSPS	10 mW at 1 MSPS
SNR (typical)	91.5 dB	91.5 dB	98 dB	90 dB
Interface	SPI	SPI	SPI	SPI

Key Differentiators

Pin-compatible with 18-bit AD7982 (vs ADS8330)
Lower power dissipation (vs ADS8330)
Higher SNR (vs ADS8330)

Design Notes

The AD7980ARMZ operates from a 2.5 V supply. Use a low-noise LDO to provide a clean supply voltage, and place a 0.1 µF and 10 µF decoupling capacitor close to the VDD pin. The reference voltage (REF) should be driven by a low-impedance source, such as a precision reference buffer, to maintain accuracy.

For optimal performance, keep the analog input traces short and shielded from digital signals. Use a solid ground plane and separate analog and digital ground areas, connecting them at a single point. Place the ADC close to the signal source to minimize noise pickup. Follow the layout guidelines in the datasheet (Rev. G) for best results.

Ensure the reference voltage is stable and within the specified range (2.4 V to 5.1 V). Avoid driving the analog inputs beyond the supply rails, as this can cause latch-up. The SPI interface should be operated within the specified timing; use short traces and proper termination to avoid signal integrity issues.
