CXDB4ABAM: Complete Guide to CXMT's 2GB LPDDR4X SDRAM at 3733 Mbps

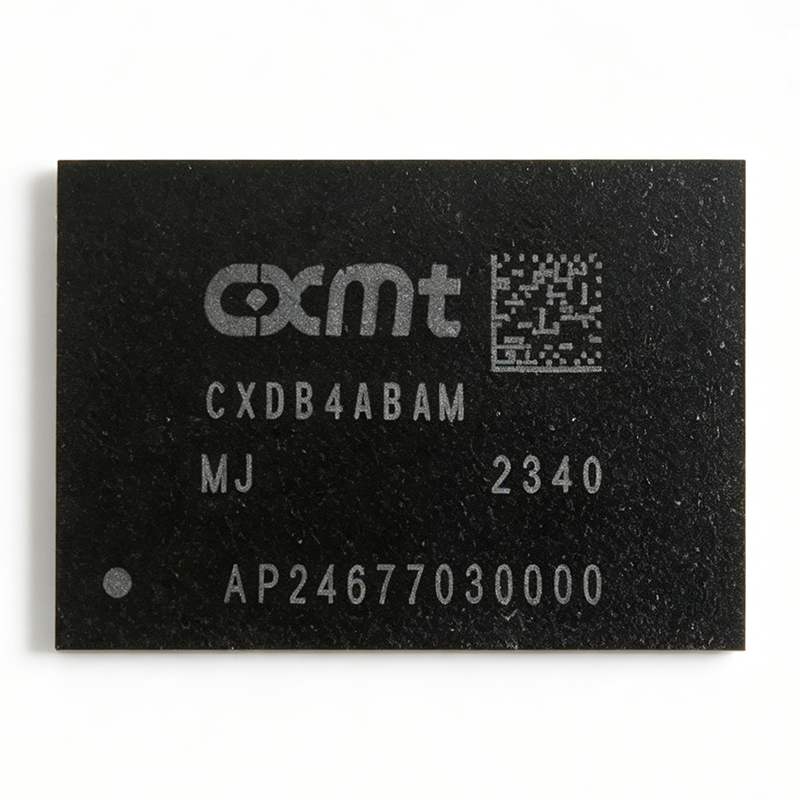

The CXDB4ABAM is a 2GB LPDDR4X SDRAM memory chip manufactured by ChangXin Memory Technologies (CXMT). It delivers a data rate of 3733 Mbps, operates with a 0.6 V I/O voltage for reduced power consumption, and is housed in a compact 200-ball FBGA package measuring 15x10x0.8mm with a 0.8mm ball pitch. The part is RoHS compliant, lead-free, and surface-mount. As of 2026-08-30, the CXDB4ABAM is in active lifecycle status and available on XAIPART with 99,999 units in stock, an MOQ of 1, and pricing starting at $32.7273 for single units, dropping to $19.0909 at 1,000 units. This guide covers selection criteria, design-in practices, drop-in alternatives, and what buyers should watch in the LPDDR4X supply market.

Quick Answers: What Is the CXDB4ABAM and Why Does It Matter?

The CXDB4ABAM belongs to the LPDDR4X (Low Power Double Data Rate 4X) family of synchronous DRAM. LPDDR4X reduces I/O voltage from LPDDR4's 1.1V to 0.6V, lowering power consumption while maintaining performance — a key advantage for battery-powered designs such as smartphones, tablets, and AI edge devices.

Key verified specifications include:

Availability is strong: XAIPART lists 99,999 units in stock with MOQ 1, and volume pricing of $23.6364 at 10 units, $20.9091 at 100 units, $20.00 at 500 units, and $19.0909 at 1,000 units as of 2026-08-30. The lifecycle status is active.

Technical Guide: How Do You Select and Design In the CXDB4ABAM?

Selecting the Right Variant

CXMT uses suffixes to denote configurations. The CXDB4ABAM is the base part number, while CXDB4ABAM-MK is the specific variant documented in the available datasheet — the standard LPDDR4X 3733Mbps version. The two are the same device and pin-compatible; always confirm the exact suffix (-MK vs -MJ) against your speed grade requirements before ordering, as the -MJ variant may have a different speed grade [VERIFY_NEEDED: -MJ speed grade specifications].

Power Architecture Considerations

LPDDR4X devices use split power domains. The verified I/O voltage is 0.6 V; the core supply rails (VDD1/VDD2) are [DATA_NEEDED: VDD1/VDD2 voltage]. Design your power tree so the 0.6V rail is tightly regulated — at 3733 Mbps, even small rail noise degrades eye margins on the data bus. Use a dedicated DC-DC converter or LDO with fast transient response for the VDDQ rail.

PCB Layout and Signal Integrity

The 200-ball FBGA package with 0.8mm ball pitch supports compact layouts, but high-speed routing discipline is essential:

• Keep length matching within the controller's specified skew budget at 3733 Mbps [DATA_NEEDED: trace length matching tolerance from CXMT layout guide].
• Use solid reference planes beneath all data, strobe, and clock traces to control impedance [DATA_NEEDED: target single-ended and differential impedance values].
• Place decoupling capacitors close to each power ball; the datasheet's decoupling network recommendation is [DATA_NEEDED: decoupling capacitor values and placement guidance].
• Follow the fly-by or point-to-point topology your SoC's LPDDR4X controller requires; the CXDB4ABAM's memory interface is compatible with standard LPDDR4X controllers, which simplifies integration into SoC designs.

Power-Saving Modes for Battery Designs

The CXDB4ABAM supports idle, self-refresh, and deep power-down modes. Configure your memory controller to enter self-refresh during idle periods and deep power-down during extended sleep states. In smartphones, tablets, and AI edge devices, aggressive use of these modes is the primary lever for extending battery life while keeping the 2GB array warm for instant wake.

Controller and Firmware Bring-Up

Because the device is compatible with standard LPDDR4X controllers, bring-up typically follows these steps: configure the controller for 3733 Mbps operation, program the correct DRAM timing registers [DATA_NEEDED: timing parameter table (tRCD, tRP, tRAS, CAS latency)], then run read/write margining to validate eye diagrams across the operating temperature range [DATA_NEEDED: operating temperature range].

Where the CXDB4ABAM Fits Best

The device targets smartphones, tablets, embedded computing, AI edge devices, automotive infotainment, and consumer electronics. For entry-level and mid-range products needing 2GB of DRAM at high bandwidth with low power, it is a strong fit. For designs requiring AEC-Q100 qualification in automotive applications, verify qualification status first [VERIFY_NEEDED: AEC-Q100 qualification status of CXDB4ABAM].

Alternatives & Comparison: What Can Replace the CXDB4ABAM?

When second sources are required, the following alternatives are recognized. Cross-brand candidates must have their pinout and timing verified before substitution — the comparison table below lists only specifications verified for the CXDB4ABAM; full spec data for alternatives requires [DATA_NEEDED: verified specifications for K4U6E3S4AM-MGCL, H9HCNNNBKMMLXR-NEM, and CXDB4ABAM-MJ].

The safest drop-in replacement is CXDB4ABAM-MK: it is the same device with a specific suffix, pin-compatible, and interchangeable in most designs. For cross-brand substitution, Samsung's K4U6E3S4AM-MGCL or Micron-class parts such as MT53B256M32D1NP-062 may be pin-compatible, but you must verify ball map, timing, and electrical specifications against the CXDB4ABAM datasheet before committing a layout.

Industry Insight: What Is the Supply and Lifecycle Position of the CXDB4ABAM?

The CXDB4ABAM carries an active lifecycle status, meaning CXMT continues to manufacture and support the part with no end-of-life announcement in the provided data. Supply availability is deep: 99,999 units are in stock on XAIPART as of 2026-08-30, with MOQ of 1, which removes lead-time risk for prototypes and mid-volume production runs. Distributor data from 2026-08-22 also showed stock at JLCPCB (part C5752788) and Ariat-Tech, while some distributors quote 4–8 week lead times for non-stocked quantities. For CXMT's overall market position and long-term roadmap, [DATA_NEEDED: market share and roadmap data].

Trends & Outlook: What Should Buyers Watch?

Buyers evaluating the CXDB4ABAM should track three items anchored to verified specs:

1. LPDDR4X demand persistence. The 0.6V I/O voltage and 3733 Mbps data rate keep LPDDR4X relevant for entry-level and mid-range smartphones, AI edge devices, and consumer electronics, even as LPDDR5-class parts emerge. The 2GB density at $19.0909 per unit at 1,000-piece volumes (as of 2026-08-30) offers a cost-optimized memory point.
2. Second-source strategy. Deep stock today (99,999 units) does not guarantee tomorrow's supply. Qualifying the Samsung K4U6E3S4AM-MGCL or another cross-brand LPDDR4X 2GB part now protects production. Run the pinout and timing verification on your controller before the need becomes urgent.
3. Bandwidth requirements in edge AI. As on-device inference grows, memory bandwidth is often the bottleneck. The CXDB4ABAM's 3733 Mbps rate and 2GB capacity support moderate-sized models; projects trending toward larger models should plan a migration path to higher-density or faster parts [DATA_NEEDED: higher-density CXMT LPDDR4X/LPDDR5 part verified specifications].

For current inventory and live quotes, visit the CXDB4ABAM product page on XAIPART, browse the Memory ICs category, or read more in our LPDDR4X selection resources.
