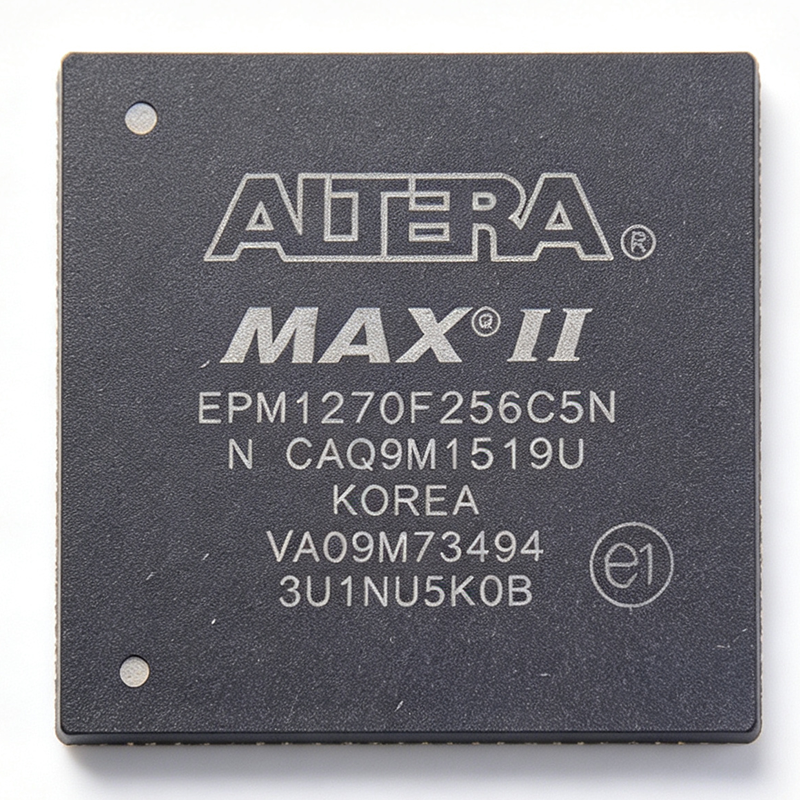

EPM240F100C5N vs EPM1270F256C5N Comparison
Detailed side-by-side comparison of EPM240F100C5N by Intel and EPM1270F256C5N by Altera. Compare key specifications, electrical parameters, packaging, lifecycle status, pricing, and availability to determine the best component for your design requirements.
Intel
EPM240F100C5N
EPM240F100C5N - 240-LE CPLD, 4.7ns, MAX II Family | Intel
EPM240F100C5N β Active
Specification Comparison
| Parameter | EPM240F100C5N | EPM1270F256C5N |
|---|---|---|
| Brand | Intel | Altera |
| Category | FPGA & CPLD | FPGA & CPLD |
| Lifecycle Status | Active | Active |
| Stock Status | In Stock | In Stock |
| Unit Price (USD) | $5.20 | $16.20 |
| Device Family | MAX II | β |
| Logic Elements (LEs) | 240 | β |
| Macrocells | 192 | β |
| User I/O Pins (maximum) | 80 | β |
| Pin-to-Pin Logic Delay (tPD) | 4.7 ns | β |
| Maximum Operating Frequency | [DATA_NEEDED: fmax per datasheet] | β |
| Global Clock Networks | [DATA_NEEDED: count] | β |
| Package | 100-ball FineLine BGA (FBGA-100) | β |
| Operating Temperature Range | 0C to +85C (commercial) | β |
| Supply Voltage Core (VCCINT) | 3.3 V | β |
| I/O Bank Voltage (VCCIO) | 1.5V / 1.8V / 2.5V / 3.3V (MultiVolt) | β |
| Configuration Memory | Non-volatile flash (instant-on) | β |
| JTAG Support | IEEE 1149.1 boundary-scan | β |
| Programming Interface | JTAG / ByteBlasterMV | JTAG (IEEE 1149.1) / ISP |
| Mounting Type | Surface Mount (BGA) | Surface Mount |
| RoHS Status | Compliant | Details (per distributor product page) |
| Series | β | MAX II |
| Family | β | EPM1270 |
| Device Type | β | CPLD (Complex Programmable Logic Device) |
| Number of Macrocells | β | 980 |
| Number of Logic Elements | β | 1270 |
| Number of User I/O | β | 212 |
| Propagation Delay (tPD) | β | 6.2 ns |
| Maximum Frequency (fMAX) | β | 201.1 MHz |
| Supply Voltage - Internal | β | 2.5 V / 3.3 V |
| Operating Temperature | β | 0Β°C to 85Β°C (TJ) |
| Package / Case | β | 256-FBGA (256-BGA) |
| Supplier Device Package | β | 256-FBGA |
| Process Technology | β | 0.18 Β΅m |
| Programmable Type | β | Non-volatile flash, in-system programmable |
