IRF3007STRLPBF vs IRF1018EPBF Comparison
Detailed side-by-side comparison of IRF3007STRLPBF by Infineon and IRF1018EPBF by Infineon. Compare key specifications, electrical parameters, packaging, lifecycle status, pricing, and availability to determine the best component for your design requirements.
Specification Comparison
| Parameter | IRF3007STRLPBF | IRF1018EPBF |
|---|---|---|
| Brand | Infineon | Infineon |
| Category | MOSFETs | MOSFETs |
| Lifecycle Status | Active | Active |
| Stock Status | In Stock | In Stock |
| Unit Price (USD) | $0.92 | $0.38 |
| Polarity | N-Channel | β |
| MOSFET Operating Mode | Enhancement | β |
| Drain-to-Source Breakdown Voltage (V(BR)DSS) | 75 V | β |
| Continuous Drain Current (Id) at Tc=25Β°C | 62 A | β |
| Pulsed Drain Current (Idm) | 250 A | β |
| Static Drain-to-Source On-Resistance (RDS(on)) | 12.6 mΞ© typical at VGS=10V | β |
| Gate-to-Source Threshold Voltage (VGS(th)) | 2.0 V to 4.0 V | β |
| Total Gate Charge (Qg) | 110 nC typical | 46 nC |
| Maximum Power Dissipation (Pd) | 120 W at Tc=25Β°C | β |
| Operating Junction Temperature | -55Β°C to +175Β°C | β |
| Thermal Resistance Junction-to-Case (RΞΈJC) | 1.0 Β°C/W | β |
| Thermal Resistance Junction-to-Ambient (RΞΈJA) | 40 Β°C/W | β |
| Package Type | D2PAK (TO-263), 3-pin (2+Tab), Surface Mount | β |
| Mounting Type | Surface Mount | Through Hole |
| RoHS Status | Compliant (Lead-Free, PBF suffix) | Compliant |
| Avalanche Rated | Yes (Repetitive Avalanche Allowed up to Tjmax) | β |
| FET Type | β | N-Channel |
| Technology | β | HEXFET (Power MOSFET) |
| Drain-Source Voltage (Vdss) | β | 60 V |
| Continuous Drain Current (Id) at Tc=25C | β | 79 A |
| Rds(on) max at Vgs=10V | β | 8.4 mOhm |
| Gate Drive Voltage (Vgs) | β | 10 V (optimized; +/-20 V max) |
| Power Dissipation (Pd) at Tc=25C | β | 110 W |
| Operating Temperature Range | β | -55 C to +175 C (Tj) |

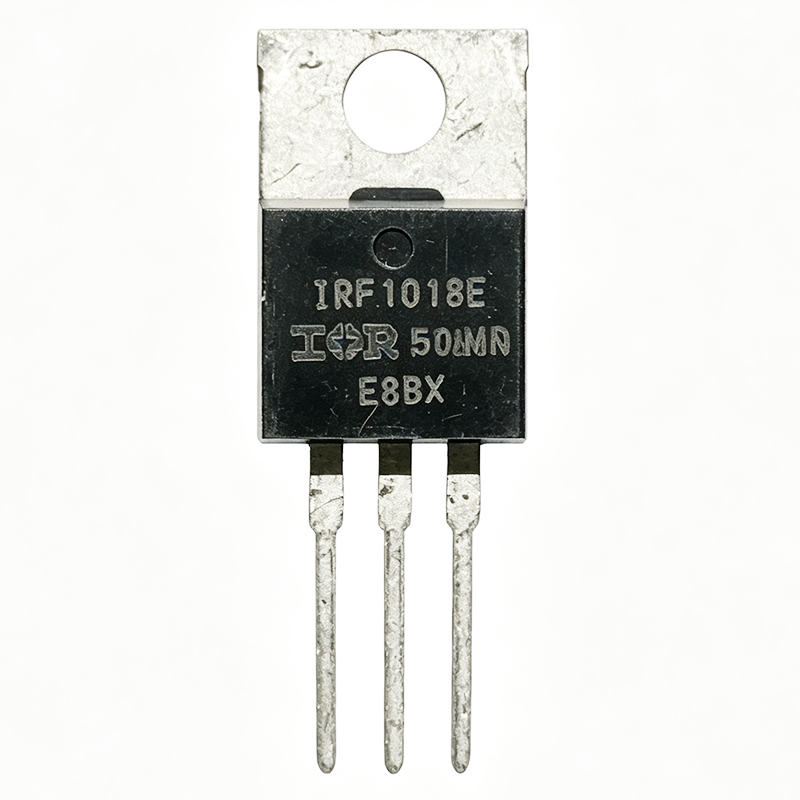

| Package | β | TO-220AB (through-hole, 3-lead) |
| Qualification | β | JEDEC (Industrial market) |
| Lead-Free (PBF suffix) | β | Yes |
| Pin Count | β | 3 (Gate, Drain, Source) |
