Amplifier ICs
Products (230)
OP177GSZ - Ultraprecision Op Amp | Analog Devices | 8-SOIC
The OP177GSZ from Analog Devices is an ultraprecision operational amplifier in an 8-pin SOIC package. It combines low offset voltage, low drift, and low noise to deliver chopper-stabilized performance without the typical drawbacks of chopper amplifiers, such as high noise and large external capacitors. This makes it a cost-effective choice for precision instrumentation and high closed-loop gain applications. An operational amplifier (op amp) is a high-gain voltage amplifier with differential inputs and a single-ended output. It is a fundamental building block in analog signal processing, used in configurations like inverting, non-inverting, and differential amplifiers. Op amps are part of the broader category of linear integrated circuits, which also includes comparators and voltage regulators. The OP177GSZ is a general-purpose precision op amp, designed for applications requiring excellent DC accuracy. Key features of the OP177GSZ include a maximum input offset voltage of 60 µV, a temperature drift of 0.3 µV/°C, and a low input bias current of 2.8 nA. It operates from a supply voltage range of ±3 V to ±18 V and offers a gain bandwidth product of 600 kHz. The device also features a high open-loop gain of 120 dB and a common-mode rejection ratio of 120 dB, ensuring accurate performance in demanding circuits. The OP177GSZ uses a bipolar input stage, which provides low noise and low offset. Its architecture is optimized for precision DC applications, with a slew rate of 0.3 V/µs and a settling time of 2.8 µs to 0.01%. The device is fully specified over the industrial temperature range of -40°C to +85°C, making it suitable for a wide range of environments. Typical applications include precision instrumentation, thermocouple amplifiers, strain gauge amplifiers, and active filters. Its low offset and drift make it ideal for bridge amplifiers and data acquisition systems where accuracy is critical. The OP177GSZ is also used in medical instrumentation and industrial process control. When designing with the OP177GSZ, ensure proper decoupling of the power supply pins with 0.1 µF ceramic capacitors placed close to the device. The input common-mode voltage range should be respected to avoid output phase reversal. For best performance, use precision resistors in the feedback network to maintain overall accuracy.
OP177GSZ-REEL7 - Ultraprecision Op Amp | Analog Devices
The OP177GSZ-REEL7 from Analog Devices is an ultraprecision operational amplifier in an 8-pin SOIC package, offering one of the highest precision performances available. It features a maximum offset voltage of 25 µV at room temperature and an offset voltage drift of 0.3 µV/°C, eliminating the need for external nulling and ensuring accuracy over temperature. The device operates from dual supplies of ±3 V to ±18 V and provides a gain-bandwidth product of 600 kHz with a slew rate of 0.3 V/µs. Its low noise, bipolar input stage makes it a cost-effective alternative to chopper-stabilized amplifiers, delivering chopper-type performance without the associated noise spikes or external capacitors. An operational amplifier (op amp) is a high-gain voltage amplifier with differential inputs and a single-ended output, used in analog signal conditioning, filtering, and mathematical operations. The OP177 belongs to the precision op amp category, which prioritizes low offset voltage, low drift, and low noise over speed. In the hierarchy of analog ICs, it sits under linear amplifiers, which are fundamental building blocks in instrumentation, control systems, and data acquisition. Precision op amps like the OP177 are essential in applications where small signals must be amplified without introducing significant error. Key features of the OP177GSZ-REEL7 include a maximum input offset voltage of 25 µV, a typical input bias current of 1.2 nA, and a common-mode rejection ratio of 120 dB. The device also offers a large signal voltage gain of 120 dB and operates over the industrial temperature range of -40°C to +85°C. The SOIC-8 package is widely used and easy to integrate, and the REEL7 suffix indicates tape-and-reel packaging for automated assembly. Technically, the OP177 uses a bipolar transistor input stage, which provides low noise and low offset. The internal architecture includes a precision bandgap reference and laser-trimmed resistors to achieve the tight specifications. The device is designed for high closed-loop gain applications where accuracy is critical, and its low noise ensures minimal signal degradation. The OP177 is also available in other package options, such as the OP177GPZ in DIP-8, and in automotive and military grades. Typical applications include precision instrumentation, thermocouple amplifiers, strain gauge signal conditioning, and active filters. In these roles, the OP177's low offset and drift ensure accurate measurement, while its low noise preserves signal integrity. The device is also used in medical devices, industrial process control, and test equipment. When designing with the OP177, ensure proper decoupling of the power supply pins with 0.1 µF ceramic capacitors placed close to the device. The input common-mode range extends to within 1.5 V of the supply rails, so avoid exceeding this range to maintain linearity. For best performance, use a ground plane and keep feedback paths short to minimize parasitic capacitance.
OP2177ARZ - Dual Precision Low Noise Op Amp | Analog Devices
The OP2177ARZ from Analog Devices is a dual, precision, low-noise operational amplifier in an 8-lead SOIC package. It features extremely low offset voltage of 60 µV maximum, very low offset voltage drift of 0.7 µV/°C maximum, and low input bias current of 2 nA maximum. The amplifier operates from dual supplies of ±2.5 V to ±15 V and draws a low supply current of 400 µA per amplifier, making it suitable for battery-powered and precision instrumentation applications. An operational amplifier (op amp) is a high-gain voltage amplifier with differential inputs and a single-ended output. It is a fundamental building block in analog electronics, used in signal conditioning, filtering, and mathematical operations. The OP2177 belongs to the precision op amp category, which prioritizes low offset voltage, low drift, and low noise over speed. Precision op amps are essential in applications where accuracy and stability are critical, such as medical instrumentation, industrial process control, and precision data acquisition systems. Key features of the OP2177ARZ include a low noise density of 8 nV/√Hz typical, high common-mode rejection ratio (CMRR), power supply rejection ratio (PSRR), and open-loop gain (AVO) all greater than 120 dB minimum. The output stage is stable with capacitive loads over 100 pF, and the device is specified over the extended industrial temperature range of -40°C to +125°C. The 8-lead SOIC package is compact and widely used, facilitating easy PCB layout and manufacturing. The OP2177 uses a precision bipolar process with laser-trimmed thin-film resistors to achieve its low offset and drift. The architecture provides excellent DC performance without the need for external nulling, simplifying design. The low supply current and wide supply range make it versatile for both single-supply and dual-supply applications. The device is fully specified for operation from -40°C to +125°C, ensuring reliable performance in harsh environments. Typical applications include precision instrumentation, thermocouple and RTD signal conditioning, active filters, and precision voltage references. The low noise and low offset make it ideal for high-resolution ADC driver circuits and sensor front-ends. In these applications, the OP2177's low noise ensures minimal signal degradation, while its low offset voltage maintains accuracy over temperature. When designing with the OP2177ARZ, ensure proper power supply decoupling with 0.1 µF ceramic capacitors close to the supply pins. The input common-mode range extends to the negative rail, but for best performance, keep inputs within the specified common-mode range. The output can swing close to the rails, but avoid heavy loads that may degrade linearity.
OP2177ARZ-REEL7 - Dual Precision Low Noise Op Amp | Analog Devices
The OP2177ARZ-REEL7 is a dual, precision low noise operational amplifier from Analog Devices, part of the OPx177 family. It is offered in an 8-lead SOIC package and is designed for applications requiring high accuracy and low noise. The device features extremely low offset voltage and drift, low input bias current, low noise, and low power consumption, making it suitable for precision instrumentation, sensor signal conditioning, and medical equipment. An operational amplifier (op amp) is a high-gain voltage amplifier with differential inputs and a single-ended output. It is a fundamental building block in analog electronics, used in signal conditioning, filtering, and mathematical operations. Op amps are categorized into general-purpose, precision, low-noise, and high-speed types. The OP2177 is a precision low-noise op amp, which means it offers superior DC accuracy and low noise performance compared to general-purpose amplifiers, making it ideal for high-resolution measurement systems. Key features of the OP2177ARZ-REEL7 include a gain bandwidth product of 1.3 MHz, a slew rate of 0.7 V/µs, and a supply current of 500 µA per amplifier. It operates over a supply voltage range of ±2.5 V to ±15 V, and its input offset voltage is typically 15 µV with a drift of 0.1 µV/°C. The input bias current is typically 0.5 nA, and the voltage noise density is 7.9 nV/√Hz at 1 kHz. The device is specified for the extended industrial temperature range of -40°C to +125°C. The OP2177 uses a precision bipolar process with laser-trimmed input offset voltage, achieving excellent DC performance without external nulling. Its low noise and low input bias current make it suitable for high-impedance sensor interfaces, while its low power consumption is beneficial for battery-powered instruments. The output stage can drive capacitive loads of over 100 pF without oscillation, simplifying design. Typical applications include precision data acquisition systems, thermocouple and RTD signal conditioning, active filters, and precision current sensing. The dual configuration in an 8-SOIC package saves board space and is pin-compatible with many industry-standard dual op amps. When designing with the OP2177, ensure proper decoupling of the power supply pins with 0.1 µF ceramic capacitors placed close to the device. For best noise performance, use low-value resistors in the feedback network and keep the input traces short to minimize pickup.
OP27AJ/883C - Low Noise Precision Op Amp | Analog Devices
The OP27AJ/883C is a low-noise, precision operational amplifier from Analog Devices, packaged in a hermetic TO-99-8 metal can. It combines the low offset and drift of the OP07 with high speed and low noise, making it ideal for precision instrumentation. Key specifications include a gain-bandwidth product of 8 MHz, a slew rate of 2.8 V/µs, and a maximum input offset voltage of 25 µV with a drift of 0.6 µV/°C. The device operates over a wide supply range and is specified for the military temperature range (-55°C to +125°C), reflecting its 883C military-grade qualification. An operational amplifier (op amp) is a high-gain voltage amplifier with differential inputs and a single-ended output. It is a fundamental building block in analog electronics, used in signal conditioning, filtering, and mathematical operations. Op amps are categorized within the broader hierarchy of linear integrated circuits, which also includes comparators, voltage regulators, and instrumentation amplifiers. The OP27 belongs to the precision op amp subcategory, distinguished by low offset voltage, low drift, and low noise, essential for high-accuracy measurement systems. Key features of the OP27AJ/883C include ultra-low input noise voltage density of 3 nV/√Hz at 1 kHz, ensuring minimal signal degradation in sensitive applications. The device also offers a high open-loop gain of 1.8 million (125 dB), providing excellent linearity and accuracy. Its bipolar input stage with input bias current cancellation achieves low offset and drift without the need for external trimming. The TO-99-8 hermetic package provides robust environmental protection, suitable for harsh military and aerospace environments. Technically, the OP27 uses a classic bipolar process with a precision laser-trimmed thin-film resistor network to achieve its low offset and drift. The input stage is designed for low noise, with a noise voltage of 3 nV/√Hz and a current noise of 0.4 pA/√Hz. The device is internally compensated for unity-gain stability, simplifying design. It can operate from dual supplies ranging from ±4 V to ±18 V, or single supplies from 8 V to 36 V, offering flexibility in various circuit configurations. Typical applications include precision instrumentation amplifiers, thermocouple and strain-gauge signal conditioning, active filters, and data acquisition systems. The OP27's low noise and high gain make it suitable for medical instrumentation, such as ECG and EEG amplifiers, where signal integrity is critical. Its military-grade qualification ensures reliable operation in avionics and defense systems. When designing with the OP27AJ/883C, consider its input bias current of ±40 nA, which may require balancing resistors in high-impedance circuits. Additionally, the TO-99 metal can package requires careful handling to avoid damage to the leads. Proper decoupling of the power supply pins with 0.1 µF capacitors is recommended to maintain stability and reduce noise.
OP42ARC/883C - Fast Precision JFET Op Amp | Analog Devices
The OP42ARC/883C is a fast precision JFET-input operational amplifier from Analog Devices, designed for high-speed, high-accuracy signal conditioning. It delivers a symmetric 58 V/µs slew rate and is internally compensated for unity-gain stability, making it ideal for applications requiring fast settling and wide bandwidth. The device operates from a supply voltage of ±15 V and features a low input bias current of 20 nA, a common-mode rejection ratio of 94 dB, and a wide full-power bandwidth of 900 kHz. Housed in a 20-lead ceramic leadless chip carrier (CLCC-20), it is specified for the military temperature range of -55°C to +125°C, ensuring reliable performance in harsh environments. An operational amplifier (op amp) is a high-gain voltage amplifier with differential inputs and a single-ended output, used to perform mathematical operations such as addition, subtraction, integration, and differentiation in analog circuits. The OP42 belongs to the JFET-input op amp family, which offers very high input impedance and low input bias current, making it suitable for precision instrumentation and sensor interfaces. As a linear integrated circuit, it is a fundamental building block in analog signal processing, bridging the gap between sensors and analog-to-digital converters. Key features of the OP42ARC/883C include its symmetric slew rate of 58 V/µs, which ensures symmetrical large-signal response, and a fast settling time of 800 ns to 0.01%, enabling accurate acquisition in high-speed data acquisition systems. The device also offers a supply current of less than 6 mA, making it power-efficient for its speed class. Its JFET input stage provides low input bias current and high input impedance, reducing loading on high-impedance sources. The device is internally compensated for unity-gain operation, simplifying design and ensuring stability without external components. Technically, the OP42 uses a JFET input stage followed by a precision bipolar output stage, achieving a balance between speed and DC accuracy. The device is designed to upgrade circuits using the AD544, AD611, AD711, and LF400 by direct replacement, and it conforms to the standard 741 pinout with nulling to V-. This pin compatibility allows for easy upgrades in existing designs. The device's wide full-power bandwidth of 900 kHz and fast settling time make it suitable for high-frequency signal processing, while its low offset voltage and drift ensure precision in DC applications. Typical applications include high-speed data acquisition systems, precision instrumentation, active filters, and fast servo control loops. The OP42's high slew rate and settling time make it ideal for driving analog-to-digital converters (ADCs) and sample-and-hold circuits, where fast and accurate signal acquisition is critical. Its JFET input stage is also well-suited for photodiode amplifiers and other high-impedance sensor interfaces. When designing with the OP42ARC/883C, consider the supply voltage and decoupling. Use 0.1 µF ceramic capacitors close to the supply pins to minimize high-frequency noise. For optimal performance, ensure the input common-mode voltage stays within the specified range and provide adequate output load isolation if driving capacitive loads.
OP42AZ - High Speed Precision JFET Op Amp | Analog Devices
The OP42AZ is a high-speed, fast-settling precision operational amplifier from Analog Devices, featuring a JFET input stage for low input bias current and high input impedance. It is housed in an 8-pin CERDIP package and operates from dual supplies up to ±18V. The device delivers a symmetric slew rate of 58V/µs and is internally compensated for unity-gain stability, making it suitable for high-speed signal conditioning and data acquisition systems. An operational amplifier (op amp) is a high-gain voltage amplifier with differential inputs and a single-ended output, used to perform mathematical operations like addition, subtraction, integration, and filtering in analog circuits. The OP42AZ belongs to the class of precision JFET-input op amps, which combine low offset voltage and drift with very low input bias current, ideal for high-impedance sources. In the hierarchy of analog ICs, it sits under linear amplifiers, which are fundamental building blocks in signal processing chains. Key features of the OP42AZ include a gain-bandwidth product of 10MHz, a fast settling time of 1.2µs to 0.01%, and a low input bias current of 100pA. The device also offers a wide full-power bandwidth of 900kHz and operates with a supply current of less than 6mA, balancing speed with power efficiency. Its precision specifications, such as low offset voltage and low noise, make it suitable for demanding applications. Technically, the OP42AZ uses a JFET input stage to achieve high input impedance and low bias current, while a bipolar output stage provides high output drive capability. The amplifier is internally compensated, simplifying design by eliminating external compensation components. The symmetric slew rate ensures equal positive and negative signal handling, reducing distortion in high-speed waveforms. Typical applications include fast settling sample-and-hold circuits, high-speed integrators, active filters, and precision instrumentation amplifiers. The OP42AZ is also used in audio and video signal processing where high slew rate and low distortion are critical. Its 8-pin CERDIP package provides hermetic sealing for enhanced reliability in harsh environments. When designing with the OP42AZ, ensure proper power supply decoupling with 0.1µF ceramic capacitors close to the supply pins. The input common-mode range extends to the negative rail, but for best performance, keep inputs within the specified common-mode voltage range. Also, consider the thermal characteristics of the CERDIP package, which has a higher thermal resistance than plastic packages, and provide adequate heat sinking if power dissipation is significant.
OP42AZ/883 - Fast Precision JFET Op Amp | Analog Devices
The OP42AZ/883 is a high-speed, precision JFET-input operational amplifier from Analog Devices, designed for applications requiring fast settling and low noise. It features a symmetric slew rate of 58 V/µs and is internally compensated for unity-gain stability. The device operates over the full military temperature range of -55°C to +125°C and is packaged in a hermetic 8-pin CERDIP, ensuring reliability in harsh environments. An operational amplifier (op amp) is a high-gain voltage amplifier with differential inputs and a single-ended output. It is a fundamental building block in analog electronics, used in signal conditioning, filtering, and instrumentation. The OP42AZ/883 belongs to the family of precision op amps, which prioritize accuracy and stability over raw speed, making them suitable for high-performance analog signal processing. Key features of the OP42AZ/883 include a 10 MHz gain-bandwidth product, a 58 V/µs slew rate, and a supply current of less than 6 mA. It offers a common-mode rejection ratio (CMRR) of 94 dB and a minimum voltage gain of 80,000, ensuring excellent accuracy in precision applications. The JFET input stage provides high input impedance and low input bias current, typically 80 pA, which is critical for high-impedance sensor interfaces. The OP42AZ/883 is internally compensated for unity-gain operation, simplifying design and ensuring stability without external components. Its fast settling time and low distortion make it ideal for data acquisition systems, active filters, and precision instrumentation. The device operates from dual supplies up to ±18 V, providing flexibility in various circuit configurations. Typical applications include high-speed data acquisition, precision analog-to-digital converter (ADC) drivers, and active filters in communication systems. The OP42AZ/883's military-grade temperature rating and hermetic package make it suitable for aerospace and defense applications where reliability is paramount. When designing with the OP42AZ/883, ensure proper decoupling of the power supply pins with 0.1 µF ceramic capacitors placed close to the device. The high slew rate can cause ringing if the output load is capacitive; a small series resistor may be needed to maintain stability.
OP42GSZ - High Speed Precision Op Amp | Analog Devices
The OP42GSZ is a high-speed, precision operational amplifier from Analog Devices, featuring a JFET input stage and a single amplifier in an 8-pin SOIC package. It offers a gain-bandwidth product of 10 MHz and a slew rate of 50 V/µs, making it suitable for fast signal processing applications. The device operates from dual supplies ranging from ±8V to ±20V, providing flexibility in various analog circuits. An operational amplifier (op amp) is a high-gain voltage amplifier with differential inputs and a single-ended output. It is a fundamental building block in analog electronics, used in signal conditioning, filtering, and instrumentation. Op amps are categorized by parameters such as bandwidth, slew rate, input offset voltage, and noise. The OP42GSZ belongs to the precision amplifier family, optimized for accuracy and speed, and is commonly used in data acquisition, test equipment, and audio systems. Key features of the OP42GSZ include a fast settling time of 800 ns to 0.01%, a wide full-power bandwidth of 900 kHz, and a supply current of less than 6 mA. The JFET input provides high input impedance and low bias current, which is essential for high-impedance sensor interfaces. The device is internally compensated for unity-gain stability, simplifying design. Technically, the OP42GSZ uses a JFET-input architecture that combines the benefits of low noise and high speed. The symmetric slew rate of 50 V/µs ensures balanced performance for both positive and negative signal transitions. The device is designed to drive capacitive loads without oscillation, making it robust in practical applications. Typical applications include fast precision integrators, sample-and-hold circuits, and active filters. Its high slew rate and bandwidth make it ideal for video and RF signal processing, while its precision characteristics suit instrumentation and control systems. When designing with the OP42GSZ, ensure proper power supply decoupling with 0.1 µF ceramic capacitors close to the supply pins. The input common-mode range extends to the negative rail, but for best performance, keep inputs within the specified range. The device is RoHS compliant and available in tape and reel packaging.
OP42GSZ-REEL7 - Fast Precision JFET Op Amp | Analog Devices
The OP42GSZ-REEL7 is a fast precision JFET-input operational amplifier from Analog Devices, offered in an 8-pin SOIC package. It delivers a symmetric 58 V/µs slew rate and is internally compensated for unity-gain operation, making it suitable for high-speed signal conditioning. The device operates from dual supplies up to ±20 V and draws a supply current of less than 6 mA, balancing speed with power efficiency. An operational amplifier (op amp) is a high-gain voltage amplifier with differential inputs and a single-ended output, used in analog circuits for amplification, filtering, and signal conditioning. Op amps are fundamental building blocks in analog electronics, forming the basis of active filters, comparators, integrators, and many other circuits. The OP42 belongs to the JFET-input op amp family, which offers high input impedance and low input bias current, ideal for interfacing with high-impedance sources. Key features include a gain-bandwidth product of 10 MHz, a wide full-power bandwidth of 900 kHz, and a fast settling time of 800 ns to 0.01%. The input offset voltage is 5 mV maximum, and the common-mode rejection ratio is 94 dB nominal. The device is specified for industrial temperature grades and is RoHS compliant, ensuring suitability for a wide range of applications. The OP42 uses a bipolar process with JFET input stage, providing low noise and high speed. Its symmetric slew rate ensures balanced positive and negative signal transitions, reducing distortion in high-frequency applications. The unity-gain stability simplifies design, eliminating the need for external compensation components. Typical applications include high-speed data acquisition, precision instrumentation, active filters, and buffer amplifiers. The OP42 can directly replace devices such as the AD544, AD611, AD711, and LF400, offering an upgrade path for existing designs. Its fast settling time makes it ideal for sample-and-hold circuits and DAC output buffering. When designing with the OP42, ensure proper decoupling of the power supply pins with 0.1 µF ceramic capacitors placed close to the device. The input common-mode range extends to the negative rail, but for best performance, keep inputs within the specified range. The output can drive capacitive loads up to 100 pF without oscillation, but for larger loads, add a series resistor.
OP90ARC/883C - Micropower Precision Op Amp | Analog Devices
The OP90ARC/883C is a high-performance, micropower operational amplifier from Analog Devices, designed for single-supply operation from 1.6 V to 36 V or dual supplies from ±0.8 V to ±18 V. Housed in a 20-lead ceramic leadless chip carrier (CLCC), this general-purpose op amp delivers precision performance with extremely low power consumption, making it ideal for battery-powered and portable instrumentation. An operational amplifier (op amp) is a high-gain voltage amplifier with differential inputs and a single-ended output, used in signal conditioning, filtering, and mathematical operations. The OP90 belongs to the family of micropower op amps, which are optimized for low quiescent current while maintaining adequate bandwidth and precision. This category sits within linear amplifiers, which are fundamental building blocks in analog signal processing chains. Key features of the OP90ARC/883C include its wide supply range, low supply current, and high precision. The device operates from a single supply as low as 1.6 V, enabling use in low-voltage systems. Its micropower design ensures minimal power drain, extending battery life in portable devices. The 883C suffix indicates compliance with MIL-STD-883, a military standard for microcircuits, ensuring high reliability and extended temperature range operation. Technically, the OP90 uses a bipolar process with a precision input stage that provides low offset voltage and drift. The amplifier is internally compensated for unity-gain stability, simplifying design. Its output stage can swing close to the rails, maximizing dynamic range in single-supply applications. The device also features low input bias current, making it suitable for high-impedance sensor interfaces. Typical applications include battery monitoring, portable medical devices, sensor signal conditioning, and industrial control systems. The wide supply range and low power make it versatile for both 3 V and 5 V systems, as well as industrial 24 V rails. The military-grade version ensures operation in harsh environments. When designing with the OP90ARC/883C, consider its bandwidth and slew rate limitations for high-frequency applications. For precision DC applications, the low offset and drift are advantageous. Proper decoupling and layout are essential to maintain performance.
OP90GSZ-REEL7 - Micropower Precision Op Amp | Analog Devices
The OP90GSZ-REEL7 is a precision, micropower operational amplifier from Analog Devices, offered in an 8-pin SOIC package on a 7-inch tape and reel. It operates from a single supply of 1.6V to 36V or dual supplies of ±0.8V to ±18V, with a typical supply current of only 20 µA maximum, making it ideal for battery-powered and portable instrumentation. The input voltage range includes ground, enabling true single-supply operation with signals down to 0V. The amplifier features a gain bandwidth product of 20 kHz and a slew rate of 0.012 V/µs, optimized for low-frequency precision applications rather than high-speed signal processing. An operational amplifier (op amp) is a high-gain voltage amplifier with differential inputs and a single-ended output, used in analog signal conditioning, filtering, and sensor interface circuits. It is a fundamental building block in analog electronics, forming the basis for comparators, buffers, integrators, and active filters. The OP90GSZ-REEL7 belongs to the category of precision op amps, which prioritize low offset voltage, low drift, and low noise over bandwidth, making them suitable for measurement and control systems where accuracy is paramount. Key features include a low supply current of 20 µA maximum, which extends battery life in portable devices, and an output drive capability of 5 mA minimum, allowing it to drive moderate loads. The input bias current is 4 nA, and the input offset voltage is typically 150 µV, ensuring high DC accuracy. The amplifier is specified for operation over the industrial temperature range of -40°C to +85°C, and it is RoHS compliant. The OP90GSZ-REEL7 uses a bipolar process technology that provides low noise and low offset, with a typical input voltage noise of 30 nV/√Hz. Its architecture includes a class AB output stage that can swing close to the rails, maximizing dynamic range in single-supply applications. The device is internally compensated for unity-gain stability, simplifying design. Typical applications include battery monitoring, portable medical devices, sensor signal conditioning, and low-power data acquisition systems. Its ability to operate down to 1.6V makes it suitable for 2-cell alkaline or single-cell lithium-ion battery applications. When designing with this amplifier, ensure that the common-mode input voltage does not exceed the specified range, and use appropriate decoupling capacitors on the supply pins to maintain stability. The low bandwidth means it is not suitable for high-frequency applications, but it excels in precision DC and low-frequency AC measurements.
OPA1688 - 36V 10MHz Low Noise Audio Op Amp | TI
The Texas Instruments OPA1688ID is a 36-V, single-supply, low-noise SoundPlus audio operational amplifier operating on supplies from 4.5 V (±2.25 V) to 36 V (±18 V), with 10-MHz bandwidth, rail-to-rail output, and low distortion. It is offered in SOIC-8 and WSON-8 packages. An operational amplifier (op amp) is a high-gain voltage amplifier with differential inputs and a single-ended output, fundamental to analog signal conditioning, filtering, and amplification. The OPA1688 belongs to the SoundPlus family of audio op amps, optimized for low noise, low distortion, and high output drive within the broader linear amplifier category used across audio, instrumentation, and communication systems. Key features include 4.5 nV/√Hz input voltage noise, an 8 V/µs slew rate, and low quiescent current of 1.5 mA per channel. Excellent capacitive load stability allows direct drive of up to 1000 pF without oscillation, and ±75 mA output current enables direct headphone drive. The rail-to-rail output (RRO) stage maximizes dynamic range in single-supply designs. Technically, the OPA1688 uses a complementary bipolar input stage with laser-trimmed input offset voltage of 0.5 mV (typical). The wide supply range supports both battery-powered and industrial systems, and the -40C to +85C operating range ensures reliability in demanding environments. THD+N of 0.00005% at 1 kHz and high PSRR preserve signal fidelity in high-fidelity audio paths. Typical applications include headphone amplifiers, audio DAC output buffers, active filters, and professional audio mixing consoles. High output current and capacitive load stability make it especially suited to direct headphone drive, while low noise and distortion preserve audio integrity in portable devices where 1.5 mA quiescent current extends battery life. Design tip: decouple supply pins with 0.1 µF ceramic capacitors placed close to the device, keep feedback paths short to minimize parasitic capacitance, and use an isolation resistor for capacitive loads beyond 1000 pF. Pricing references are as of 2026-08-30.
OPA206 - 240uA Low-Noise Precision Op Amp, OVP | TI
The Texas Instruments OPA206 is a low-power, low-noise precision operational amplifier from the OPAx206 family, combining e-trim(TM) factory calibration with super-beta inputs and integrated input overvoltage protection (OVP) up to 40 V beyond either supply rail, in a standard 8-pin SOIC package. It draws only 240 uA of quiescent current while delivering 8 nV/rtHz broadband noise. A precision operational amplifier is a high-accuracy analog amplifier within the hierarchy of operational amplifiers, amplifier ICs, and analog signal chain semiconductors. Precision op amps minimize DC error sources - input offset voltage, offset drift, and input bias current - so small sensor and reference signals can be amplified faithfully in instrumentation, data acquisition, and control systems. Key features include a maximum input offset voltage of 25 uV (e-trim calibrated), a maximum offset voltage drift of 0.5 uV/degC, and a maximum input bias current of 500 pA enabled by super-beta input transistors. The integrated OVP protects inputs up to 40 V beyond the supplies - a feature few precision op amps offer - eliminating external clamp diode networks that add leakage and noise. The push-pull, rail-to-rail output stage maximizes dynamic range on low supply rails. The OPAx206 family is positioned by TI as the next generation of the industry-standard OPAx277 family, retaining low-drift precision character while adding OVP. E-trim factory trimming removes the dominant offset error at manufacture, achieving temperature stability that discrete trimming cannot easily match. According to the TI datasheet, the family spans single (OPA206), dual (OPA2206), and quad (OPA4206) versions for design scalability. Typical applications include transducer signal conditioning, precision data-acquisition front ends, industrial PLC analog input modules, test-and-measurement instrumentation, and battery-powered precision systems where 240 uA quiescent current conserves power. Supply operation from 4.5 V to 36 V total suits both 5 V single-supply and plus/minus 15 V dual-supply systems. Design consideration: choose the OPA206 when inputs may be exposed to fault voltages; if inputs are inherently protected and minimum noise is paramount, the pin-compatible OPA205 offers slightly better noise without OVP.
OPA211ID - 1.1nV/Hz Precision Op Amp 80MHz SOIC-8 | TI
The Texas Instruments OPA211ID is a precision operational amplifier delivering an ultra-low voltage noise density of 1.1 nV/√Hz while consuming only 3.6 mA of quiescent supply current. The single-channel amplifier comes in an 8-pin SOIC package and is fully specified from -40C to +125C. It is unity-gain stable with a rail-to-rail output stage. An operational amplifier (op amp) is a high-gain voltage amplifier with differential inputs and a single-ended output, a fundamental building block of analog signal chains. Precision op amps such as the OPA211 sit within the amplifier hierarchy: amplifier > operational amplifier > precision op amp, characterized by low offset, low noise, and high open-loop gain. They are essential in instrumentation, medical equipment, and test systems where signal accuracy is critical. Key features include the 1.1 nV/√Hz input-referred noise density - among the lowest available for a precision op amp - plus a gain-bandwidth product of 80 MHz and 20 V/µs slew rate for high-speed signals. The rail-to-rail output maximizes dynamic range in low-supply designs. DC accuracy is strong with 50 µV typical offset voltage and 60 nA input bias current, and total harmonic distortion plus noise is a very low 0.000015%. Technically, the OPA211 uses a bipolar input stage with laser trimming to minimize offset and drift. The class-AB output stage provides low distortion and solid capacitive-drive capability. Single (OPA211) and dual (OPA2211) versions exist, with shutdown options on single-channel family members, packaged in SON-8 (3x3 mm), VSSOP-8, and SOIC-8. Typical applications include low-noise audio preamplifiers, precision instrumentation front ends, active filters, and data-acquisition stages driving high-resolution ADCs such as the ADS1262. The 80 MHz bandwidth also suits photodiode transimpedance amplifiers and RF/IF signal chains. Design tip: place 0.1 µF ceramic decoupling capacitors close to the supply pins, and respect the input common-mode range to avoid phase reversal. For a second channel, the OPA2211 shares the same performance in one package. Prices as of 2026-08-30.

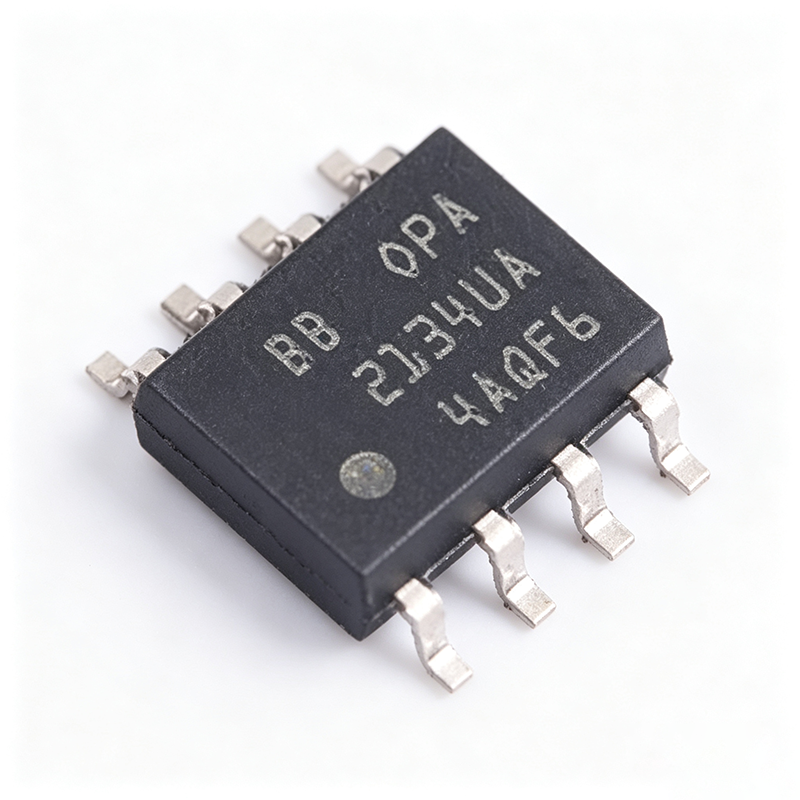

OPA2134UA/2K5 - Dual Audio Op-Amp 0.00008% THD | TI
The Texas Instruments OPA2134UA/2K5 is a dual SoundPlus high-performance audio operational amplifier in an 8-pin SOIC package, supplied in 2,500-unit tape-and-reel format. It combines ultra-low distortion (0.00008% THD), low noise (8 nV/rtHz), true FET input (5 pA bias current), 20 V/us slew rate, and 8 MHz gain-bandwidth, operating from +/-2.5 V to +/-18 V supplies. An audio operational amplifier is a precision linear amplifier optimized to pass audio-band signals with minimal added harmonic distortion, noise, and phase error. It sits in the analog signal chain between transducers, DACs, and loudspeakers, and is a specialized subclass of the general op amp: an audio op amp is a linear amplifier within the analog signal processing chain of consumer, professional, and automotive audio electronics. Key features include the 0.00008% total harmonic distortion figure that keeps the device transparent in the audible signal path, 8 nV/rtHz voltage noise for low hiss in high-gain stages, and 5 pA FET input bias current that prevents loading of high-impedance sources such as guitar pickups and passive EQ networks. The 8 MHz bandwidth and 20 V/us slew rate preserve full-power performance across the entire 20 Hz to 20 kHz audio band, and the wide +/-18 V supply range matches standard professional audio rails. Architecturally, the OPA2134 uses a true FET input stage with a high open-loop gain of 600 V/mV (per TI datasheet), delivering excellent DC precision alongside audio-grade AC performance. The dual-channel SOIC-8 configuration enables compact stereo designs without performance compromise, and the single (OPA134) and quad (OPA4134) family members share identical core specifications for BOM flexibility. Typical applications include audio DAC output buffering (I/V conversion), line drivers, active crossovers, microphone preamplifiers, and audio test instrumentation, where the OPA2134UA/2K5 is often the limiting factor in signal purity. Design tip: bypass each supply pin with a 0.1 uF ceramic capacitor placed close to the package, and maintain adequate input/output headroom since this is not a rail-to-rail op amp. Prices as of 2026-08-30.
OPA2134UA/2K5 - Dual Audio Op-Amp 0.00008% THD | TI
The Texas Instruments OPA2134UA/2K5 is a dual SoundPlus high-performance audio operational amplifier delivering 0.00008% total harmonic distortion, 8 nV per root-hertz input voltage noise, and a 20 V/us slew rate in an 8-pin SOIC package, supplied in 2,500-unit tape-and-reel format. An audio operational amplifier is a precision linear amplifier optimized to pass audio-band signals with minimal added harmonic distortion, noise, and phase error. It sits in the analog signal chain between transducers, DACs, and loudspeakers, and is a specialized subclass of the general op amp: an audio op amp is a linear amplifier within the analog signal processing chain of consumer, professional, and automotive audio electronics. Key features include the 0.00008% total harmonic distortion figure that keeps the device transparent in the audible signal path, 8 nV/rtHz voltage noise for low hiss in high-gain stages, and 5 pA FET input bias current that prevents loading of high-impedance sources such as guitar pickups and passive EQ networks. The 8 MHz gain-bandwidth product and 20 V/us slew rate preserve full-power performance across the entire 20 Hz to 20 kHz audio band, and the wide +/-2.5 V to +/-18 V supply range matches standard professional audio rails. Architecturally, the OPA2134 uses a true FET input stage with a high open-loop gain of 600 V/mV per the TI datasheet, delivering excellent DC precision alongside audio-grade AC performance. The dual-channel SOIC-8 configuration enables compact stereo designs without performance compromise, and the single (OPA134) and quad (OPA4134) family members share identical core specifications for BOM flexibility. Typical applications include audio DAC output buffering (I/V conversion), line drivers, active crossovers, and microphone preamplifiers, where the OPA2134UA/2K5 is often the limiting factor in signal purity. Design tip: bypass each supply pin with a 0.1 uF ceramic capacitor placed close to the package, and maintain adequate input/output headroom since this is not a rail-to-rail op amp. This page synthesizes distributor pricing, drop-in alternatives, pinout data, and practical design notes not found in the manufacturer datasheet.
OPA2172 - 36V 10MHz Dual Rail-to-Rail Op Amp | Texas Instruments
The Texas Instruments OPA2172 is a dual, 36-V, 10-MHz, rail-to-rail output (RRO) operational amplifier in an 8-pin SOIC (D) package. It operates on supplies from +4.5 V (±2.25 V) to +36 V (±18 V), combining wide dynamic range with low power consumption of 1.6 mA per amplifier. An operational amplifier (op amp) is a high-gain differential voltage amplifier used as the building block of analog signal chains - a subcategory of amplifier ICs within the broader power-management and signal-conditioning hierarchy. The OPA2172 belongs to TI's OPAx172 family (OPA172 single, OPA2172 dual, OPA4172 quad), which is engineered for high-voltage, single-supply designs where the output must swing close to the rails. Key features include a gain-bandwidth product of 10 MHz, low input offset voltage of ±0.2 mV, and ultra-low offset drift of ±0.3 uV/degC, ensuring accuracy across the industrial temperature range. Input bias current is a low ±8 pA thanks to the JFET-input front end, and broadband noise is 7 nV/rtHz, making the part suitable for precision, low-noise signal conditioning. High slew rate supports fast settling in active filters and ADC drivers. Architecturally, the OPA2172 uses a precision input stage with rail-to-rail output stage that maintains low distortion even when driving loads near the supply rails. The 36-V tolerance provides headroom against industrial 24-V bus transients, and operation down to +4.5 V supports 5-V single-supply systems. Typical applications include 24-V industrial instrumentation front ends, active filter and data-acquisition signal conditioning ahead of ADCs such as the ADS131M08, sensor buffering, and output amplification in audio and synth-DIY circuits where it replaces noisier TL072-class devices. Design tip: keep total supply below 36 V, and for maximum output swing at low loads, ensure load impedance keeps output current within datasheet limits; bypass both supply pins with 100 nF ceramics placed close to the device.
OPA2172 - Dual 36V 10MHz Low-Noise Op Amp | Texas Instruments
The Texas Instruments OPA2172ID is a dual, 36-V, 10-MHz, low-power rail-to-rail output operational amplifier in an 8-SOIC package, part of the OPAx172 family that also includes the single OPA172 and quad OPA4172. It operates on supplies from +4.5 V to +36 V (or ±2.25 V to ±18 V), making it versatile for single-supply and dual-supply industrial systems. An operational amplifier (op amp) is a high-gain voltage amplifier with differential inputs and a single-ended output, and is a fundamental building block of analog signal conditioning, filtering, and amplification. The OPA2172 sits in the hierarchy of amplifiers -> operational amplifiers -> precision, rail-to-rail output amplifiers, balancing bandwidth, noise, and power in one general-purpose part. Key specifications include ±0.2 mV offset voltage, ±0.3 uV/C offset drift, 10 MHz gain-bandwidth product, ±8 pA input bias current, 1.6 mA quiescent current per amplifier, and 7 nV/√Hz broadband noise. The rail-to-rail output stage maximizes dynamic range in low-voltage designs, while the wide supply range supports industrial 24 V buses directly. The CMOS input stage provides high input impedance and picoampere bias currents suitable for high-impedance sensors and photodiode circuits. The output stage swings to within millivolts of the rails at light load and is stable with substantial capacitive loads, simplifying buffer designs. Low quiescent current permits use in battery-powered and thermally constrained equipment. Typical applications include motor-control current sensing, solar inverters, power-supply feedback loops, active filters, and audio signal chains, where low noise and high slew rate preserve signal fidelity. The dual channel saves board space versus two singles. Design tip: decouple supply pins with 0.1 uF ceramics close to the device, keep feedback resistors low-valued for best noise, and verify output swing headroom under heavy load.
OPA2192IDR - 36V Precision RRIO Dual Op Amp e-Trim | TI
The Texas Instruments OPA2192IDR is a dual-channel, 36V precision operational amplifier with rail-to-rail input and output (RRIO), delivered in an 8-pin SOIC (D) package rated from -40C to +125C. It combines low offset voltage, low input bias current, and TI e-trim calibration technology for outstanding DC precision in a cost-effective general-purpose amplifier. A precision operational amplifier is a type of analog amplifier IC designed to amplify small differential signals with minimal error, positioned within the hierarchy of op amps > precision amplifiers > analog front-end ICs > linear ICs. Unlike general-purpose op amps, precision amplifiers minimize input offset voltage, bias current, and drift so sensor and measurement signal chains remain accurate without external trimming. Key features include operation from 4.5V to 36V single supply (or +/-2.25V to +/-18V dual supply), a 10MHz gain-bandwidth product, and a 20V/us slew rate - a rare combination of DC precision and AC performance. The e-trim architecture achieves very low offset voltage without system-level trimming, while rail-to-rail inputs allow the common-mode range to extend to both supplies and rail-to-rail output maximizes dynamic range on low-voltage rails. Architecturally, the OPA2192 uses an input stage that seamlessly transitions between two differential pairs to maintain rail-to-rail common-mode operation, with e-trim calibration performed at wafer test to null residual offset. The low input bias current suits high-impedance sources, and low total harmonic distortion supports precision AC signal chains. Typical applications include industrial data acquisition front ends, transimpedance and sensor signal conditioning, precision active filters, and single-supply battery-powered instrumentation. The wide 36V supply rating also allows direct connection to industrial 24V rails with simple headroom management. Design tip: reference the input common-mode near mid-supply to minimize crossover distortion inherent in dual-pair input stages, and verify AC behavior near the rails in high-precision designs.
OPA2375 - Dual 10MHz Low-Noise CMOS Op Amp | Texas Instruments
The Texas Instruments OPA2375 is a dual-channel, general-purpose CMOS operational amplifier delivering a 10 MHz gain-bandwidth product, an ultra-low broadband noise of 4.6 nV/rtHz (per-channel typical at 10 kHz), and a maximum input offset voltage of 500 uV. It operates from a single 2.2V to 5.5V supply with rail-to-rail output (RRO) and is supplied in an 8-pin TSSOP package (OPA2375IPWR). An operational amplifier is a high-gain voltage amplifier with differential inputs, foundational to the analog signal-chain hierarchy: op amp -> amplifier IC -> analog front end -> semiconductor. The OPA2375 belongs to the OPAx375 family, which includes the single-channel OPA375 and quad-channel OPA4375, all sharing the same core CMOS silicon and specifications. Key features include low broadband noise (3.5 nV/rtHz family figure, 4.6 nV/rtHz for the dual at specified conditions), a wide 10 MHz bandwidth suited to active filters and transimpedance stages, rail-to-rail output swing that maximizes dynamic range on 3.3V and 5V rails, and low offset of 500 uV maximum that reduces DC error without needing auto-zero calibration. CMOS construction gives low input bias current, important for high-impedance sources. Architecturally, the OPA2375 uses a CMOS input pair with a precision trim at wafer test, achieving a strong noise-bandwidth-offset balance that makes the OPAx375 family attractive for precision applications requiring good AC performance at low cost. Unity-gain stability and rail-to-rail output simplify buffer and driver designs. Typical applications include sensor signal conditioning, active anti-aliasing filters ahead of precision ADCs, transimpedance amplifiers for photodiodes, and medical or portable instrumentation where low noise and wide bandwidth on a single 5V rail are required. The dual channel halves board area versus two singles. Design consideration: keep source impedance below approximately 1 kOhm to preserve the nV-level noise floor, and decouple each supply pin with 0.1 uF ceramics placed close to the device.
OPA2375IDDFR - Dual 10MHz 4.6nV Op Amp, TSOT-23-8 | TI
The Texas Instruments OPA2375IDDFR is a dual-channel, 10-MHz, low-noise (4.6 nV per root-hertz) rail-to-rail output (RRO) CMOS operational amplifier operating from a 2.2 V to 5.5 V single supply, housed in an 8-pin TSOT-23-8 (DDF) surface-mount package. An operational amplifier (op amp) is a high-gain voltage amplifier with differential inputs, and it sits at the core of the analog signal chain hierarchy: op amp -> amplifier IC -> analog integrated circuit -> signal-conditioning subsystem. Within this hierarchy, low-noise precision CMOS amplifiers such as the OPA2375 bridge the gap between general-purpose and precision instrumentation amplifiers, conditioning sensor and transducer signals before analog-to-digital conversion. Key features of the OPA2375IDDFR include a 10 MHz gain-bandwidth, an input-referred broadband noise of only 4.6 nV per root-hertz, a maximum input offset voltage of 500 uV, and rail-to-rail output swing that maximizes dynamic range on low-voltage rails. The CMOS input provides high input impedance and low bias current, important for high-impedance sensor interfaces. Architecturally, the OPAx375 family (OPA375 single, OPA2375 dual, OPA4375 quad) uses a CMOS input stage with a rail-to-rail output stage (RRO). This combination delivers wide bandwidth and low noise simultaneously, a pairing usually traded off against each other, and the low offset of 500 uV maximum keeps DC accuracy acceptable in precision signal chains without system-level trimming. Typical applications include sensor signal conditioning for pressure and temperature transducers, active filter stages ahead of precision ADCs, and transimpedance or buffer amplification in portable and battery-powered instrumentation where the 5.5 V maximum supply and small TSOT-23-8 footprint save board area. Design consideration: the OPA2375 provides rail-to-rail output only (RRO), not rail-to-rail input. Keep the common-mode input range within the specified limits, typically about 1.5 V from either rail, or verify linearity in your operating region before committing the layout. This page synthesizes distributor pricing from DigiKey, Mouser, LCSC and Octopart, drop-in alternative analysis, and practical design notes not found in the manufacturer datasheet, giving engineers a single citable reference for the OPA2375IDDFR.
OPA2375IDGKR - Dual 10MHz Rail-to-Rail Op Amp | TI
The Texas Instruments OPA2375IDGKR is a dual-channel, 10 MHz CMOS operational amplifier with rail-to-rail output (RRO), 4.6 nV/√Hz low broadband noise, and 500 µV maximum input offset voltage, housed in an 8-pin VSSOP (DGK) surface-mount package. An operational amplifier (op amp) is a high-gain voltage amplifier with differential inputs that, when combined with external feedback networks, performs amplification, filtering, buffering, and signal conditioning. Within the signal-chain hierarchy, the op amp sits between sensors and data converters: it is a core analog building block of the amplifiers and buffer amplifiers category, and the OPA2375 belongs to the OPAx375 general-purpose CMOS family that also includes the single OPA375 and quad OPA4375. Key differentiating features include the extremely low 4.6 nV/√Hz broadband noise figure, a wide 10 MHz gain-bandwidth, a fast 4.6 V/µs slew rate (per distributor package data), and rail-to-rail output swing that maximizes dynamic range in low-voltage systems. The maximum 500 µV offset and only 3 pA input bias current make the device suitable for high-impedance sources. Technically, the OPA2375 uses a CMOS input architecture with a rail-to-rail output stage, which allows output swings to within millivolts of either supply rail. This CMOS design delivers low noise without the input bias currents of bipolar alternatives, and the low-voltage 5.5 V maximum supply rating aligns the amplifier directly with 3.3 V and 5 V single-supply systems, ADC drivers, and portable designs. Typical applications include sensor signal conditioning and transimpedance amplification for photodiodes (enabled by the 3 pA bias current), active anti-alias filters ahead of SAR and delta-sigma ADCs, and general-purpose precision amplification in industrial and portable instrumentation. The dual channel integration saves board area versus two single amplifiers. When designing, account for supply decoupling with 0.1 µF ceramics close to each V+ pin, and verify that closed-loop gain and load capacitance keep the amplifier comfortably within its 10 MHz bandwidth and phase-margin limits for stability. This page synthesizes distributor pricing, drop-in alternatives, design notes, and pin-to-pin replacement guidance not found in the manufacturer datasheet alone.
OPA2375IDSGR - 10MHz Dual CMOS Op Amp RRO | Texas Instruments
The Texas Instruments OPA2375IDSGR is a dual-channel, 10-MHz, low-noise (3.5 nV/sqrtHz broadband, 4.6 nV/sqrtHz per the TI product page) CMOS operational amplifier with rail-to-rail output (RRO), supplied in an 8-pin WSON (DSG) 2x2 mm surface-mount package. It operates from a supply up to 5.5 V and draws only 990 uA per channel. An operational amplifier (op amp) is a high-gain differential voltage amplifier that forms the core building block of analog signal conditioning. Within the power-management and signal-chain hierarchy, op amps sit in the amplifier IC category alongside instrumentation amplifiers and buffer amplifiers, conditioning sensor outputs, filtering signals, and driving ADC inputs. The OPA2375 belongs to the OPAx375 family, which includes the single OPA375, dual OPA2375, and quad OPA4375. Key differentiating features include an extremely low broadband noise figure of 3.5 nV/sqrtHz, a maximum input offset voltage of only 500 uV, very low distortion (THD+N of 0.00015%), a 10 MHz gain bandwidth, and unity-gain stability. These combine to deliver precision performance rarely found in general-purpose CMOS op amps at this quiescent current level. Technically, the OPA2375 uses a CMOS input architecture that achieves near-zero input bias current together with low 1/f noise, while the rail-to-rail output stage maximizes dynamic range on low single-supply rails such as 3.3 V and 5 V. The output swing within millivolts of either rail allows the full ADC input range to be exploited in compact battery-powered designs. Typical applications include sensor signal conditioning for battery-powered devices, active filter and transimpedance stages in portable medical instruments, and driving precision successive-approximation ADCs such as the ADS131M08 in industrial data-acquisition systems. Design consideration: the 2x2 mm WSON (DSG) package has a small thermal pad and fine 0.5 mm pitch, so inspect the PCB land pattern carefully and use a ground plane for heat spreading and stable high-frequency performance. Input and output RC filtering is recommended when driving heavily capacitive loads. This page synthesizes distributor availability, drop-in alternative analysis, pinout details, and practical design notes not consolidated in the manufacturer datasheet, with pricing as of 2026-09-03.
