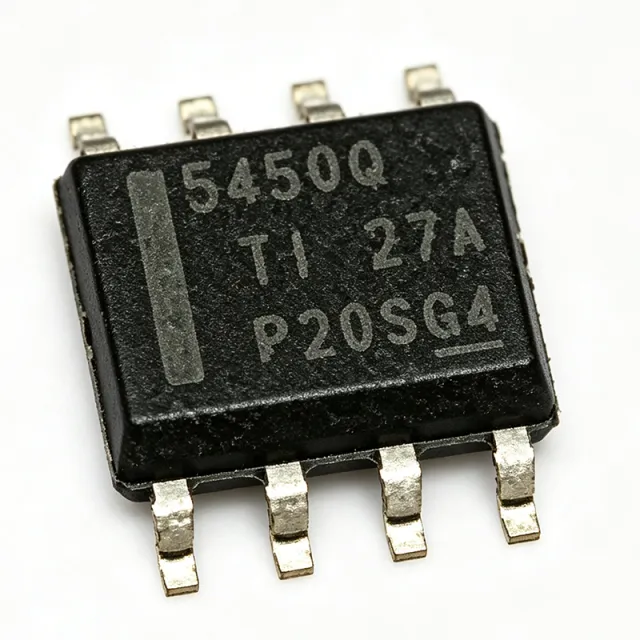

TPS5450QDDARQ1 - 5A 36V Automotive Buck Converter | TI
부품 번호: TPS5450QDDARQ1 ✓ 활성| 수량 | 단가 | 합계 |
|---|---|---|
| 1 | $2.63 | $2.63 |
| 10 | $2.4 | $24.00 |
| 100 | $2.15 | $215.00 |
| 500 | $1.95 | $975.00 |
| 1,000 | $1.8 | $1,800.00 |
TPS5450QDDARQ1 개요
A DC-DC buck converter is a switching voltage regulator that steps a higher input voltage down to a lower regulated output using PWM switching, achieving far higher efficiency than linear regulators. Within the power management IC hierarchy, the TPS5450-Q1 is a non-synchronous, internally compensated voltage-mode SWIFT converter IC.
Key features include a 500 kHz fixed switching frequency, voltage-mode PWM control, an active-high enable (ENA) pin that reduces shutdown supply current to 18 uA, and full protection: cycle-by-cycle overcurrent limiting, overvoltage protection, and thermal shutdown. Internal feedback-loop compensation dramatically reduces external component count and design complexity.
Technically, the integrated high-side N-channel MOSFET and internal compensation allow a minimal external BOM - only an inductor, catch diode, feedback divider, and small input/output capacitors. The PowerPAD (DDA) package provides a low thermal impedance path to the PCB, and the 500 kHz switching frequency permits a compact inductor while keeping switching losses manageable across the 36V automotive input range, including load-dump-tolerant designs.
Typical applications include automotive infotainment and cluster 5V rails, ADAS and body-control module 12V-to-5V point-of-load conversion, and industrial 24V-bus step-down supplies where wide input headroom and 5A capability are required.
Design consideration: because the converter is non-synchronous, select a Schottky catch diode rated for the full output current with low forward drop, placed close to the PH pin; the exposed PowerPAD must be soldered to a solid ground copper pour for thermal performance.
This page synthesizes distributor pricing, same-brand drop-in alternatives, and practical design notes not found in the manufacturer datasheet, with prices as of 2026-09-01.
드롭인 대체품: TPS5450QDDARQ1 — 동일 패키지, 핀 호환. PCB 재작업이 필요한 다른 패키지 부품은 제외됩니다.
이 시리즈의 변형
다음과 드롭인 호환되는 동일 시리즈 모델: TPS5450QDDARQ1 (동일 폼 팩터 및 풋프린트) — 차이점: Maximum Output Current, Output Voltage Range, Package, Input Voltage Range, Operating Temperature.
빠른 비교 도구 — 나란히 비교할 대체 부품을 선택하십시오:
TPS5450DDAR
✅ 드롭인✓ 재고 있음
$2.55 / 개
데이터시트 보기 →TPS5450DDARG4
✅ 드롭인📋 참조 대체품 (카탈로그에 없음)
TPS5450MDDAREP
✅ 드롭인📋 참조 대체품 (카탈로그에 없음)
TPS54360QDDARQ1
✅ 드롭인✓ 재고 있음
$2.45 / 개
데이터시트 보기 →TPS54560BDDA
✅ 드롭인📋 참조 대체품 (카탈로그에 없음)
TPS5450QDDARQ1 최대 정격 & 전기적 특성
| 토폴로지 | Step-Down (Buck), Non-Synchronous |
| 입력 전압 범위 | 5.5 V to 36 V |
| 출력 전압 범위 | 1.221 V to 31 V |
| 최대 출력 전류 | 5 A continuous (6 A peak) |
| 출력 수 | 1 |
| 스위칭 주파수 | 500 kHz |
| Control Method | Voltage Mode PWM, Internally Compensated |
| 동기 정류기 | No |
| Shutdown Supply Current | 18 uA (typ, via ENA pin) |
| 인에이블 핀 | Yes (active-high ENA) |
| Protections | Overcurrent limiting, OVP, thermal shutdown |
| 동작 온도 | -40 C to +125 C |
| 패키지 | HSOIC (DDA) 8-PowerSOIC, 3.90 mm width, PowerPAD |
| 실장 유형 | Surface Mount |
| Automotive Qualification | AEC-Q100 Qualified, PPAP supported |
| ECCN (US) | EAR99 |
| HTS | 8542.39.00.90 |
| RoHS 상태 | Compliant |
TPS5450QDDARQ1 hsoic (dda) 8-powersoic, 3.90 mm width, powerpad 핀 구성 가이드
TPS5450QDDARQ1(hsoic (dda) 8-powersoic, 3.90 mm width, powerpad 패키지)의 핀 구성입니다. 이 전력 소자는 게이트, 드레인, 소스 단자를 갖추고 있습니다. 비편향 패키지의 경우 정확한 핀 1 방향과 풋프린트 세부 정보는 제조사 데이터시트를 참조하십시오. 일반적인 응용 분야로는 전원 공급 장치 설계, 모터 구동, 부하 스위칭이 있습니다.
다음에 대한 상세 핀아웃 데이터 없음: TPS5450QDDARQ1.
다음을 참조하십시오: 데이터시트 전체 핀 구성은 다음을 참조하십시오.
일반적인 애플리케이션
TPS5450QDDARQ1 적합 용도: 6 애플리케이션s: Automotive Infotainment 5V Rails, ADAS and Body Control Module Point-of-Load, Industrial 24V Bus Step-Down, USB Charging and Display Bias Rails, Battery-Powered Test and Measurement Instruments, Communications and Networking Equipment.
Automotive Infotainment 5V Rails
The TPS5450QDDARQ1 fits automotive infotainment and instrument-cluster 5V rails because its 5.5V to 36V input range covers cold-crank and load-dump-protected battery conditions, while the 5A continuous output powers SoCs, displays, and audio amplifiers from a single IC. The AEC-Q100 qualification and -40C to +125C operation satisfy automotive environment requirements. Placed as the first stage after the battery-protection block at a 500 kHz switching frequency, it allows a compact inductor; the PowerPAD DDA package solders to a ground copper pour that dissipates conduction and switching losses without a heatsink, keeping the module profile low.
추천
ADAS and Body Control Module Point-of-Load
ADAS sensors, radar supplies, and body-control modules need dense 12V-to-5V or 12V-to-3.3V conversion with wide input tolerance. The TPS5450QDDARQ1's internally compensated voltage-mode control minimizes external parts, and its 1.221V reference supports low-voltage logic rails via a resistor divider. Cycle-by-cycle overcurrent limiting, overvoltage protection, and thermal shutdown provide the fault robustness that ASIL-oriented architectures expect. The 18 uA ENA-pin shutdown current permits always-connected modules to meet key-off quiescent budgets, and the 500 kHz fixed frequency keeps switching noise out of sensitive analog and RF sensor bands when the layout follows TI's PowerPAD reference design.
추천
Industrial 24V Bus Step-Down
Factory automation and PLC systems run from 24V buses with significant tolerance, and the TPS5450QDDARQ1's 36V maximum input absorbs common transients while delivering 5A to motors' logic stages, IO modules, and embedded controllers. Although this part carries automotive qualification, its wide input, robust protection set, and DDA PowerPAD thermal design make it equally effective in industrial power trees. A Schottky catch diode rated above 5A peak placed at the PH pin, plus a shielded compact inductor selected for 500 kHz ripple current, yields a high-efficiency point-of-load stage; the exposed pad soldered to a ground plane manages the dissipation in enclosed DIN-rail housings.
추천
USB Charging and Display Bias Rails
USB charging ports and display backplane bias rails require regulated 5V to 12V outputs at several amps, and the TPS5450QDDARQ1 covers both directions of this range with its adjustable 1.221V to 31V output. Its 5A continuous rating supports dual-port USB charging, and the active-high ENA pin allows a host controller to gate the rail for power sequencing or load management, dropping to 18 uA when off. The 500 kHz switching frequency places ripple above audio and AM radio bands with modest filtering, and the internal compensation removes loop-tuning effort, shortening design time for cost-sensitive consumer and industrial display platforms.
추천
Battery-Powered Test and Measurement Instruments
Portable bench instruments, battery analyzers, and handheld measurement tools benefit from the TPS5450QDDARQ1's wide 5.5V to 36V input, which accepts both battery stacks and adapter inputs without changing the power stage. The 5A capability supports motorized stages, heater elements, and high-power processors, while the 18 uA shutdown current extends standby shelf life on battery packs. The internal compensation yields a stable loop across the wide output range from 1.221V up to 31V without external network redesign. The DDA PowerPAD package tolerates the elevated ambient temperatures inside sealed instrument enclosures when soldered to a multi-layer ground pour per the TI layout guidelines.
추천
Communications and Networking Equipment
Routers, industrial Ethernet switches, and baseband cards frequently derive high-current 5V or 3.3V rails from -48V-derived or 24V intermediate buses; the TPS5450QDDARQ1's 36V input and 5A output cover this conversion window efficiently. The fixed 500 kHz clock simplifies EMI filter design for compliance testing, and predictable voltage-mode PWM with internal compensation avoids loop instabilities across line and load transients common in telecom environments. The PowerPAD package supports forced-air-cooled boards where the copper pour doubles as a heat spreader, and the overcurrent/overvoltage/thermal protection set provides the fault containment required in always-on network infrastructure.
추천
추천 제품 요약
엔지니어링 참조 데이터: TPS5450QDDARQ1 — 비교, 설계 지침 및 규정 준수 정보.
선택 가이드
대체품과의 비교
| 파라미터 | 이 제품 | TPS5450DDAR | TPS5450DDARG4 | TPS5450MDDAREP | TPS54360QDDARQ1 | TPS54560BDDA |
|---|---|---|---|---|---|---|
| Package | DDA (HSOIC-8 PowerPAD) | DDA (HSOIC-8 PowerPAD) - same | DDA (HSOIC-8 PowerPAD) - same | DDA (HSOIC-8 PowerPAD) - same | DDA (HSOIC-8 PowerPAD) - same | DDA (HSOIC-8 PowerPAD) - same |
| Brand | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Input Voltage Range | 5.5 V to 36 V | 5.5 V to 36 V | 5.5 V to 36 V | 5.5 V to 36 V | 3.8 V to 60 V | 4.5 V to 60 V |
| Output Current | 5 A continuous (6 A peak) | 5 A continuous (6 A peak) | 5 A continuous (6 A peak) | 5 A | 3.5 A | 5 A |
| Output Voltage Range | 1.221 V to 31 V | 1.221 V to 31 V | 1.221 V to 31 V | 1.22 V to 31 V | 0.8 V adjustable | 0.8 V adjustable |
| Switching Frequency | 500 kHz | 500 kHz | 500 kHz | 500 kHz | Adaptive on-time (variable) | Adaptive on-time (variable) |
| Automotive Qualification | Yes (AEC-Q100, PPAP) | No | No | Enhanced product (evaluation-grade) | Yes (AEC-Q100) | No |
| Synchronous Rectification | No (external Schottky diode) | No | No | No | Yes (integrated FETs) | Yes (integrated FETs) |
주요 차별점
- Automotive AEC-Q100 qualification with PPAP support (vs TPS5450DDAR)
- Higher continuous output current at 36V input (vs TPS54360QDDARQ1)
- Externally simple non-synchronous design with fixed 500 kHz clock (vs TPS54560BDDA)
설계 노트
Solder the exposed PowerPAD to a solid, uninterrupted ground copper pour on the top layer, stitched with thermal vias to inner and bottom ground planes. The PowerPAD is the primary thermal and electrical ground path for the TPS5450-Q1; an unsoldered or under-sized pad is the most common cause of overheating at high load. Follow the TI TPS5450-Q1 datasheet layout example, keeping the PH, BOOT, and catch-diode loop as small as possible.
Because the converter is non-synchronous, choose a Schottky catch diode rated for at least 6A peak with low forward voltage and reverse breakdown above the maximum input voltage, placed directly at the PH pin. Diode loss dominates efficiency at high VIN/low VOUT ratios; Estimated: for VIN=24V, VOUT=5V, IOUT=5A, diode conduction loss at 80% duty-consistent timing contributes several watts - verify with TI's efficiency curves and your diode's Vf at operating current.
Use the active-high ENA pin for power sequencing and to meet key-off quiescent budgets, since it reduces shutdown supply current to 18 uA typically. Do not leave the ENA pin floating in noise-prone environments - tie it through a divider from VIN if automatic start-up is intended. Ensure the feedback divider uses 1% tolerance resistors, as the 1.221V reference directly sets the output accuracy.
The fixed 500 kHz switching frequency places fundamental harmonics well below the standard conducted-emissions band start, easing filter design for automotive CISPR-style testing. Keep the input ceramic capacitor within a few millimeters of VIN and GND, and route the PH node as a short, tight copper island - it carries a full square wave at 500 kHz and is the primary radiating element. Shielded inductors further reduce near-field coupling into sensitive circuits.
규정 준수 정보
EU RoHS compliant per Arrow product listing; AEC-Q100 qualified and PPAP supported per TI product page; SVHC flagged as applicable in Arrow data - confirm current REACH SVHC declaration via TI.
