TPS5430DDAR - 3A, 36V Step-Down Converter | Texas Instruments
MPN: TPS5430DDAR ✓ Active| Qty | Unit Price | Extended |
|---|---|---|
| 1 | $2.15 | $2.15 |
| 10 | $1.93 | $19.30 |
| 100 | $1.62 | $162.00 |
| 500 | $1.38 | $690.00 |
| 1,000 | $1.19 | $1,190.00 |

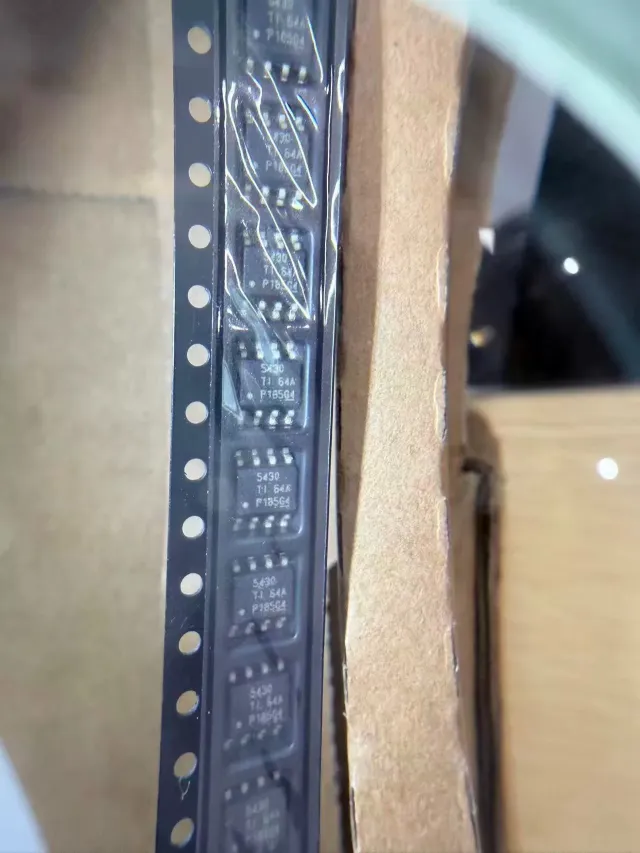

TPS5430DDAR Overview
A buck converter is a type of switching voltage regulator that efficiently steps a higher DC voltage down to a lower one using a switching MOSFET, an inductor, and output capacitors. Unlike linear regulators, switching converters routinely exceed 90% efficiency, making them the foundation of modern power management IC hierarchies (DC-DC converter -> switching regulator -> point-of-load converter). The TPS5430 belongs to TI's SWIFT family of DC-DC converters.
Key features include the 5.5V to 36V input range that directly accepts 12V and 24V industrial and automotive buses, 3A continuous output current, fixed 500kHz operation that permits small inductors, an integrated high-side N-channel MOSFET, internal loop compensation, soft-start, cycle-by-cycle current limit, and thermal shutdown. The thermally enhanced SO-8 PowerPAD package provides low thermal resistance for full-load operation without an external heatsink.
The device uses PWM voltage-mode control with an internal 1.221V bandgap reference; output voltage is set by an external resistor divider on the VSENSE pin. A bootstrap capacitor between BOOT and PH drives the high-side MOSFET gate above VIN. Fixed-frequency operation simplifies EMI filter design compared with variable-frequency converters.
Typical applications include point-of-load supplies for FPGAs, DSPs, and microcontrollers, 24V industrial bus power, telecom intermediate rails, 12V automotive accessory power, and 5V/3.3V distributed power systems.
Design tip: place input/output capacitors and the bootstrap capacitor close to the IC, solder the PowerPAD to a copper pour with thermal vias, and keep the PH switching node and power loops short to minimize ringing and EMI.
Drop-in alternatives for TPS5430DDAR — same package, pin-to-pin compatible. Different-package parts requiring PCB rework are excluded.
Variants in this series
Same-series models that are drop-in compatible with TPS5430DDAR (same form factor and footprint) — differing in Topology, Package, Output Voltage Range, Control Method, Input Voltage Range.
Quick Comparison Tool — Select alternative parts for side-by-side comparison:
TPS5430DDA
✅ Drop-In📋 Reference alternative (not in catalog)
TPS5430DDAG4
✅ Drop-In📋 Reference alternative (not in catalog)
TPS5430QDDARQ1
✅ Drop-In✓ In Stock
$1.95 / Unit
View Datasheet →TPS5450DDAR
✅ Drop-In✓ In Stock
$2.55 / Unit
View Datasheet →TPS54331DR
⚡ Same Package✓ In Stock
$0.85 / Unit
View Datasheet →MP1584EN
⚡ Same Package📋 Reference alternative (not in catalog)
RT8279GSP
⚡ Same Package📋 Reference alternative (not in catalog)
TPS5430DDAR Maximum Ratings & Electrical Characteristics
| Topology | Step-Down (Buck) |
| Input Voltage Range | 5.5 V to 36 V |
| Output Voltage | Adjustable, 1.221 V to near VIN |
| Maximum Output Current | 3 A |
| Switching Frequency | 500 kHz (fixed) |
| Reference Voltage | 1.221 V |
| Control Topology | Voltage-mode PWM |
| MOSFET | Integrated high-side N-channel |
| Protection Features | Cycle-by-cycle current limit, thermal shutdown, soft-start |
| Number of Outputs | 1 |
| Package | 8-PowerSOIC (DDA), PowerPAD, 0.154 in / 3.90 mm width |
| Mounting Type | Surface Mount |
| Packaging | Tape & Reel (R suffix) |
| RoHS Status | Compliant |
| Family | TI SWIFT DC-DC converters |
TPS5430DDAR Pin Configuration
| Pin 1 | BOOT — Bootstrap capacitor connection to PH for high-side gate drive |
| Pin 2 | NC/GND — No connect / ground per datasheet layout |
| Pin 3 | VSENSE — Feedback input from output voltage divider (1.221V reference) |
| Pin 4 | ENA — Enable input, active high |
| Pin 5 | SS/TR — Soft-start / tracking programming pin |
| Pin 6 | GND — Ground reference (PowerPAD also ground) |
| Pin 7 | VIN — Input supply, 5.5V to 36V |
| Pin 8 | PH — Phase / switch node to inductor |
Typical Applications
TPS5430DDAR is suitable for 6 applications: 24V Industrial Bus Point-of-Load, 12V Automotive Accessory Power, FPGA/DSP Point-of-Load Supply, Telecom Intermediate Rail Conversion, Distributed 5V/3.3V Power Systems, Battery-Powered and Portable Instrumentation.
24V Industrial Bus Point-of-Load
The TPS5430DDAR's 5.5V to 36V input range directly accepts 24V industrial control buses with transient headroom, eliminating a pre-regulator stage. Delivering 3A at a fixed 500kHz, it powers PLC I/O modules, sensors, and motor-drive logic rails. Internal compensation and fixed-frequency PWM simplify EMI filter design, while cycle-by-cycle current limit protects against shorted loads on long factory wiring. Its 1.221V reference allows any intermediate rail from 1.22V upward.
Recommended
12V Automotive Accessory Power
For 12V automotive accessory rails, the 36V maximum input covers load-dump-adjacent conditions in protected front ends, and the automotive-qualified TPS5430QDDARQ1 variant (same footprint) supports AEC-Q100 programs. The 3A output supplies infotainment sub-rails, telematics, and body-electronics processors at 5V or 3.3V with efficiency above 90%, reducing thermal load in sealed enclosures. Fixed 500kHz switching keeps inductors small for space-constrained modules.
Recommended
FPGA/DSP Point-of-Load Supply
The TPS5430DDAR provides 3A core and I/O rails for FPGAs, DSPs, and microcontrollers from 5V or 12V intermediates. Its soft-start pin enables controlled inrush for high ceramic capacitance, and the 500kHz fixed frequency allows inductors in the 10-15uH class with fast transient response for logic load steps. The 1.221V reference supports modern low-voltage cores, and the PowerPAD package dissipates conversion losses without a heatsink at typical 2-3A loads.
Recommended
Telecom Intermediate Rail Conversion
In telecom and networking equipment, the TPS5430DDAR converts intermediate distribution voltages down to point-of-load rails with 90%+ efficiency. The 36V input tolerates -48V-derived rails after a step-down front end, and the wide input range allows one BOM across 12V, 15V, and 24V shelves. The thermal shutdown and hiccup-style current limit protect against fan-failure thermal events common in telecom cabinets, while the SO-8 PowerPAD suits high-density line-card layouts.
Recommended
Distributed 5V/3.3V Power Systems
For distributed power architectures, the TPS5430DDAR generates 5V or 3.3V logic rails from upstream intermediates at a fixed 500kHz, so ripple falls in a predictable band that standard LC filters attenuate easily. Voltage-mode PWM with internal compensation reduces external component count to an inductor, two divider resistors, and input/output capacitors, cutting BOM cost. The adjustable output and 3A capacity cover backplane-fed subsystems, industrial gateways, and test-instrument auxiliaries.
Recommended
Battery-Powered and Portable Instrumentation
Portable instruments powered by 12V lead-acid or multi-cell Li-ion packs benefit from the TPS5430DDAR's wide 5.5V-36V input that spans battery discharge curves. Fixed-frequency 500kHz operation keeps the converter out of audible bands and enables magnetics small enough for handheld enclosures, while better than 90% efficiency extends runtime. Thermal shutdown protects against blocked ventilation, and the SS pin can sequence the analog front end after the digital core.
Recommended
Recommended Products Summary
Engineering reference data for TPS5430DDAR — comparison, design guidance, and compliance information.
Selection Guide
Comparison with Alternatives
| Parameter | This Product | TPS5430DDA | TPS5430QDDARQ1 | TPS5450DDAR | TPS54331DR |
|---|---|---|---|---|---|
| Package | 8-PowerSOIC (DDA) | 8-PowerSOIC (DDA) - same | 8-PowerSOIC (DDA) - same | 8-PowerSOIC (DDA) - same | SOIC-8 - different pinout |
| Brand | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | MPS |
| Input Voltage Range | 5.5V to 36V | 5.5V to 36V | 5.5V to 36V | 5.5V to 36V | 4.5V to 28V |
| Output Current | 3 A | 3 A | 3 A | 5 A | 1.5 A |
| Switching Frequency | 500 kHz | 500 kHz | 500 kHz | 500 kHz | 1.5 MHz (adjustable) |
| Automotive Grade | No | No | Yes (AEC-Q100) | No (Q1 version available) | No |
| Reference Voltage | 1.221 V | 1.221 V | 1.221 V | 1.221 V | 0.8 V |
| Approx. Price (1 pc, as of 2026-08-29) | $2.15 | $2.15 | $2.50 | $3.10 | $0.60 |
Key Differentiators
- Widest input range in classic SWIFT SO-8 family (vs TPS54331DR)
- Pin-compatible 5A upgrade path (vs TPS5450DDAR)
- Higher output current than cross-brand equivalents (vs MP1584EN)
- Automotive qualified variant available (vs TPS5430DDA)
Design Notes
The SO-8 PowerPAD is essential to thermal performance: solder the pad to a ground pour with an array of thermal vias (typically 3x3 on 1.0mm pitch) to the internal plane. At 12Vin to 3.3V/3A out, dissipation is roughly 2W; without a solid PowerPAD connection, junction temperature can exceed limits. Follow the TI datasheet EVM thermal layout.
Keep the input capacitor, PH pin, and freewheeling diode ground loop as short and wide as possible - this is the high-di/dt hot loop. Place the BOOT capacitor (0.01uF) directly between BOOT and PH pins. Route the VSENSE feedback trace away from PH and the inductor to avoid switching noise corrupting regulation.
The PH pin switches between VIN and below ground during dead time - use an adequate external Schottky diode and do not exceed the 36V absolute maximum on VIN. Set soft-start capacitance per load capacitance to prevent current-limit foldback during startup with large ceramic output banks. Verify the resistor divider tolerance (1%) to keep output within spec.
Fixed 500kHz operation produces predictable harmonics - add a small RC snubber across PH to ground if ringing exceeds component ratings. A pi input filter may be required to meet conducted emissions on 24V industrial buses; the fixed frequency (versus variable-frequency parts like MP1584EN) makes filter design straightforward.
Compliance Information
RoHS compliant per DigiKey product listing (non-G4 suffix indicates standard RoHS-compliant TI ordering). AEC-Q100 not applicable to standard part - use TPS5430QDDARQ1 for automotive qualification.
