TMS320F28027FPTT - 60MHz C2000 Piccolo MCU 64KB Flash | TI
The Texas Instruments TMS320F28027FPTT is a 32-bit C2000 Piccolo real-time control microcontroller with a C28x core running at 60 MHz, 64KB (32K x 16) of embedded flash memory, and a 48-pin LQFP (7x7 mm) surface-mount package. The F variant integrates the InstaSPIN-FOC motor control ROM, enabling sensorless field-oriented control of three-phase motors out of the box. A microcontroller of this class combines a CPU core, memory, and control peripherals on a single chip. The C2000 Piccolo family sits within TI's real-time control MCU hierarchy, purpose-built for closed-loop digital power and motor control where deterministic interrupt latency matters more than general-purpose throughput. It is code-compatible with previous C28x-based devices. Key features include the 60 MHz 32-bit C28x core, 64KB flash, 12KB RAM, an internal voltage regulator allowing single-rail 3.3V operation, high-resolution PWM (HRPWM), a 12-bit ADC, ePWM/eCAP/eQEP timer modules, and on-chip comparators. The integrated InstaSPIN-FOC ROM removes the need for external motor-identification tooling in many designs, shortening development cycles. Architecturally, the F2802x couples the pipelined C28x CPU with tightly coupled control peripherals that can trigger the ADC and update PWM within a single cycle, delivering sub-microsecond control-loop latency. The internal VREG simplifies power-tree design by accepting a single supply rail, and the low pin count keeps BOM cost and board area down. Typical applications include brushless DC and PMSM sensorless motor drives, solar micro-inverters, digital power supplies, and appliance control boards. The 48-LQFP footprint suits cost-sensitive, space-constrained designs, and the TI LaunchPad and controlCARD ecosystem (for example the TMDSCNCD28027F InstaSPIN-FOC controlCARD) provides ready-made development paths. Design tip: use the internal voltage regulator output only with its specified external capacitor; provide adequate VDDIO decoupling and observe power-ramp sequencing per the TI datasheet. This page synthesizes distributor pricing, drop-in alternatives, and practical design notes not found in the manufacturer datasheet.
TMS320F28027PTT - 60MHz 32-bit C2000 Piccolo MCU 64KB Flash | TI
The Texas Instruments TMS320F28027PTT is a C2000 Piccolo 32-bit microcontroller based on the C28x DSP core, running at 60 MHz with 64KB (32K x 16) of embedded flash memory and 12KB of SRAM, housed in a 48-pin LQFP (7x7 mm) surface-mount package. A microcontroller (MCU) is a single-chip computer integrating a processor core, memory, and peripherals for embedded control. The C2000 Piccolo family sits within TI's digital signal controller hierarchy: C28x DSP core -> Piccolo MCU -> C2000 real-time control MCU -> digital signal processor (DSP) -> semiconductor integrated circuit. These devices are purpose-built for real-time closed-loop control such as digital power conversion and motor drive. Key features include the high-performance static CMOS C28x core with 32x32-bit multiply-accumulate (MAC) capability, an internal voltage regulator enabling single-rail 3.3V operation, highly integrated control peripherals including ePWM modules, a 12-bit ADC, and eCAP/eQEP units, plus on-chip flash with code security. Per TI, the F2802x family is code-compatible with previous C28x-based code while providing a high level of analog integration in low pin-count devices. Architecturally, the device combines Harvard-bus C28x CPU performance with fast interrupt latency, making it suitable for control loops executing at tens to hundreds of kHz. The integrated voltage regulator reduces external power-supply complexity, and the 48-pin LQFP keeps PCB footprint compact while retaining sufficient GPIO and peripheral pinout for typical control designs. Typical applications include digital motor control (BLDC, PMSM, ACIM), solar inverters and power factor correction, digital LED lighting power supplies, and industrial automation control nodes. The 60 MHz core and dedicated PWM peripherals make it a cost-effective entry point into the C2000 ecosystem. Design consideration: the F2802x is a 3.3V device; ensure all GPIO are level-compatible with external logic, and use TI C2000ware with the LaunchPad LAUNCHXL-F28027 for rapid prototyping before committing to PCB layout. This page synthesizes distributor pricing, drop-in alternatives, and practical design notes not found in the manufacturer datasheet.
TMS320F28030-Q1 - 60MHz 32KB Flash Automotive C2000 MCU | TI
The Texas Instruments TMS320F28030-Q1 is an automotive-qualified C2000 Piccolo 32-bit real-time microcontroller that combines a 60 MHz C28x fixed-point DSP core with 32 KB (16K x 16) of on-chip flash memory in an 80-pin LQFP (12 x 12 mm) surface-mount package. According to the TI product page, this automotive C2000 MCU is optimized for processing, sensing, and actuation to improve closed-loop performance in real-time control systems. A C2000 microcontroller is a real-time control MCU (a member of the microcontroller-to-DSP hierarchy) whose C28x architecture is purpose-built for control loops rather than general-purpose computing. Where generic MCUs balance many workloads, C2000 Piccolo devices dedicate their pipeline, interrupt latency, and PWM-oriented peripherals to single-loop determinism, which is why the family dominates digital motor control, solar inverter, and digital power conversion designs. Key features include the 60 MHz C28x core for time-critical control mathematics, 32 KB of flash sized for compact single-purpose firmware, and the Q1 automotive designation indicating AEC-Q100 qualification for -40C to +125C environments. Published parametric data lists a 1.71 V to 2 V core supply range with 8 mA I/O drive capability. The 80-LQFP package with 0.5 mm pitch supports standard surface-mount assembly and a 12 x 12 mm footprint that simplifies PCB planning. Technically, the device belongs to the TMS320F2803x Piccolo family of real-time microcontrollers. TI datasheet documentation states the C2000 line spans entry and premium performance MCUs, and the F28030 occupies the entry tier, letting designers cost-reduce control systems that do not require the larger 128 KB flash of the F28034/F28035. Family members share the same 80-LQFP pinout, so firmware and layout scale across flash densities. Typical applications include industrial motor drives and FOC motor control, solar inverters and digital power conversion, electric vehicle and transportation subsystems such as onboard chargers and DC-DC converters, PFC power stages, and sensing and signal processing nodes. The automotive qualification specifically targets traction, charging, and power-conversion boards in vehicles. Design consideration: since F2803x devices use separate core and I/O supply rails, follow the TI datasheet power-supply sequencing guidance and verify flash wait states at the full 60 MHz clock rate before production code freeze.
TMS320F28031-Q1 - 60MHz C2000 MCU, 64KB Flash | Texas Instruments
The Texas Instruments TMS320F28031-Q1 is an automotive-qualified C2000 Piccolo 32-bit real-time microcontroller with a 60 MHz C28x CPU, 64 KB of embedded flash memory, and a 2 MSPS 12-bit ADC, housed in an 80-pin LQFP (PN) package and AEC-Q100 qualified for harsh automotive environments. A C2000 MCU is a digital signal controller optimized for real-time control rather than general-purpose computing. Within the power-management hierarchy, C2000 devices form the digital control loop between power-conversion hardware and system software, sitting alongside families such as the TMS320F2803x Piccolo line and the larger F2837x Delfino parts. Their defining trait is deterministic, tightly closed control loops. Key features include the 60 MHz C28x core, 64 KB flash with 10 KB SRAM, a 2 MSPS 12-bit ADC synchronized to the ePWM modules, and communication interfaces including CAN, SCI (UART), SPI, and I2C. Per the TMS320F2803x datasheet, the family couples the C28x core with the Control Law Accelerator (CLA) for parallel control mathematics in low pin-count packages. Architecturally, the device uses a Harvard bus structure optimized for deterministic loop execution. The ADC, triggered by ePWM, enables the sample-to-output latency that current-loop control in motor drives and power inverters demands, while the CLA offloads control computations from the main CPU for lower loop jitter. Typical applications include automotive motor control, PFC stages, LED headlights, battery management, body control modules, and HEV/EV auxiliary systems. The 60 MHz clock and 64 KB flash cover field-oriented control and LLC resonant-control code without over-provisioning. Designers should ensure controlled supply sequencing, low-impedance grounding for ADC accuracy, and decoupling per TI layout guidelines; development uses Code Composer Studio with standard JTAG debug probes. This page adds verified pricing tiers, drop-in family alternatives, and practical design notes beyond the manufacturer datasheet.
TMS320F28032 - 60MHz C2000 Piccolo MCU 64KB Flash | TI
The Texas Instruments TMS320F28032 is a C2000 Piccolo 32-bit real-time microcontroller (digital signal controller) built on the TMS320C28x fixed-point CPU, running at 60 MHz (16.67 ns cycle time) with 64 KB (32K x 16) of embedded flash and an integrated 4.6 MSPS ADC, housed in a 64-pin TQFP (10x10 mm) package such as the TMS320F28032PAGT. A digital signal controller (DSC) combines the flash memory, timers and communication peripherals of a microcontroller with the multiply-accumulate (MAC) throughput of a digital signal processor. Within the hierarchy of embedded processors, the TMS320F28032 sits in TI's C2000 real-time MCU family, Piccolo generation, a product line purpose-built for deterministic closed-loop control of power and motion systems. Key features include the Harvard bus architecture with unified memory, 16x16 and 32x32 MAC operations plus 16x16 dual MAC, atomic read-modify-write operations, and fast interrupt response and processing - all essential for cycle-accurate, low-jitter control loops. The on-chip 4.6 MSPS ADC supports fast current sensing in power converters, and the F2803x family's high-resolution PWM peripherals serve PFC and motor commutation stages. Real-time JTAG debugging is compatible with Code Composer Studio. Architecturally, the 32-bit C28x core executes single-cycle 32-bit multiplies, and interrupt latency is minimized so ADC end-of-conversion events can enter control-loop ISRs with very low jitter - the decisive metric in digitally controlled power supplies where loop bandwidth matters more than raw MIPS. Typical applications include AC/DC and DC/DC power conversion (PFC, LLC, phase-shifted full bridge), brushless DC and PMSM motor drives using FOC or trapezoidal control, and renewable-energy inverters including micro-inverter and MPPT stages. Design consideration: budget flash carefully. 64 KB is generous versus the smaller F2802x parts but modest for complex FOC stacks, so verify code size with the free C2000 compiler and consider pin-compatible family members with larger memory if headroom is tight. This page synthesizes distributor pricing, drop-in alternatives, and practical design notes not found in the manufacturer datasheet.
TMS320F28032PAGQ - 32-Bit 60MHz C2000 MCU 64KB Flash | TI
The Texas Instruments TMS320F28032PAGQ is a C2000 C28x Piccolo 32-bit microcontroller running at 60 MHz with 64 KB (32K x 16) of embedded Flash memory, integrated 4.6 MSPS 12-bit ADC, and a 64-pin TQFP (PAG, 10x10 mm) package. The Q-suffixed ordering code denotes an automotive-qualified AEC-Q100 device. A microcontroller (MCU) is a single-chip embedded processor that integrates a CPU core, memory, and peripherals on one die. Within the MCU hierarchy, the C2000 Piccolo family sits in the real-time control segment: a 32-bit fixed-point C28x CPU paired with a Control Law Accelerator (CLA) for offloading control loops, positioned between general-purpose MCUs and DSPs for digital power, motor drive, and closed-loop control systems. Key features include the 60 MHz C28x core with code compatibility across previous C28x generations, the CLA coprocessor for parallel math-intensive loop execution, and a high level of analog integration including the fast 4.6 MSPS ADC, comparators, and PWM peripherals suited for power-conversion topologies. On-chip Flash of 64 KB eliminates external memory, and the low pin count (64-TQFP) reduces board area for compact control cards. Architecturally, the device combines the C28x CPU with dedicated control peripherals in a low-pin-count Piccolo package. The integrated ADC and ePWM modules enable single-chip measurement-and-actuation loops, which is the defining advantage of the C2000 family versus general-purpose MCUs for real-time control. Typical applications include digital power supplies (PFC, LLC, solar inverters), brushless DC and PMSM motor drives, automotive auxiliary systems leveraging its AEC-Q100 qualification, and industrial automation requiring deterministic interrupt latency. Design consideration: the PAGQ variant is automotive grade; verify Flash size (64 KB) and peripheral count against the F2803x family datasheet before migration between family members, since RAM and peripheral allocations differ across the family. This page synthesizes distributor pricing, drop-in family alternatives, and practical design notes not found in the manufacturer datasheet.

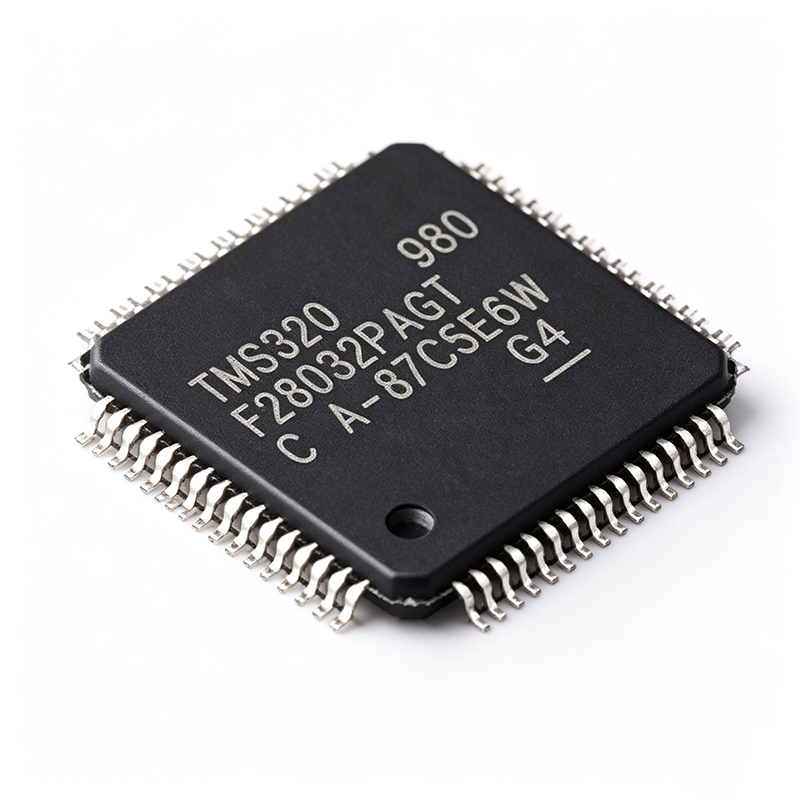

TMS320F28032PAGT - C2000 32-bit 60MHz 64KB Flash MCU | TI
The Texas Instruments TMS320F28032PAGT is a 32-bit C2000 C28x Piccolo microcontroller running at 60 MHz with 64 KB (32K x 16) of on-chip flash memory, housed in a 64-pin TQFP (PAG, 10x10 mm) surface-mount package. A microcontroller unit (MCU) integrates a processor core, memory, and peripherals on a single chip, forming the lowest layer of the embedded processing hierarchy that spans MCUs, digital signal processors (DSPs), and application processors. The C2000 Piccolo family sits at the intersection of MCU integration and DSP performance: it is code-compatible with previous C28x-based code while packing real-time control peripherals into low pin-count devices. Key features of the TMS320F28032 include the C28x fixed-point CPU with Control Law Accelerator (CLA), a high-speed 4.6 MSPS on-chip ADC, and highly integrated control peripherals such as ePWM modules that make it well suited to closed-loop power conversion. The 60 MHz core delivers deterministic single-cycle 32-bit multiply performance that general-purpose MCUs cannot match in control loops. Architecturally, the device is built on high-performance static CMOS technology and executes from 64 KB of embedded flash with JTAG-based flash programming, supporting in-field firmware updates. The peripheral set, real-time interrupt (RTI) structure, and rapid interrupt response of the C28x pipeline allow control-loop cycle times measured in single-digit microseconds. Typical applications include digital power supplies, solar micro-inverters, LED lighting drivers, motor control (BLDC, PMSM, stepper), and industrial power-tool battery chargers, where the integrated ePWM, ADC, and comparator resources replace external analog control circuitry. When designing with this device, budget flash headroom for the CLA control routines and verify that the -40C to +85C operating range matches the end-product environment; the 10x10 TQFP also requires careful decoupling of the VDDIO rail for clean ADC performance. This page synthesizes distributor pricing (LCSC from $2.8828 as of 2026-09-03), same-family drop-in alternatives, and cross-reference guidance not consolidated in the manufacturer datasheet.
TMS320F28032PNQ - 32-Bit 60MHz C2000 MCU 64KB Flash | TI
The Texas Instruments TMS320F28032PNQ is a 32-bit C2000 C28x Piccolo real-time microcontroller with 60 MHz CPU clock, 64 KB (32K x 16) of embedded Flash, and an 80-pin LQFP (12x12 mm) package in a Tray packing option. The NQ suffix denotes the automotive-qualified variant of the C2000 Piccolo family, offered per the AEC-Q100 Automotive, C2000 C28x Piccolo series classification reported in distributor comparison data. A microcontroller (MCU) is a single integrated circuit that combines a processor core, program memory, data memory, and peripheral set into one chip, forming the lowest level of the embedded-computing hierarchy: MCU -> embedded processor -> microcontroller -> semiconductor. The C2000 family from Texas Instruments specializes in real-time control, meaning the C28x core executes control-loop algorithms with deterministic interrupt latency, which general-purpose MCUs do not guarantee. Key features include the 32-bit C28x core delivering 60 MIPS at 60 MHz, static CMOS technology, 64 KB on-chip Flash program memory, and operation from dual 1.8V and 3.3V supply domains. The Piccolo architecture packs the peripherals needed for digital power conversion and motor control - ePWM modules, high-resolution analog comparators, and 12-bit ADC - into a compact, cost-optimized pin count. Architecturally, the TMS320F28032PNQ uses the T320C2xLP CPU core, object-compatible with the TMS320C2xx and upwardly compatible within the C28x Piccolo family, allowing code migration to larger-memory siblings such as the TMS320F28033, TMS320F28034, and TMS320F28035 without a pin-out change in the 80-LQFP package. Typical applications include automotive motor control (BLDC, PMSM, FOC drives), solar micro-inverters and digital power supplies, and industrial traction or servo systems where AEC-Q100-grade qualification and real-time PWM control are required. The 60 MHz core closes current loops at switching frequencies well above the audible band. Design consideration: choose the appropriate Flash-size family member early - the 80-LQFP footprint is shared, so migrating from 64 KB to 128 KB Flash is often a PCB-free swap, but watch supply sequencing across the 1.8V core and 3.3V I/O rails. This page synthesizes distributor pricing, drop-in same-footprint alternatives, and practical design notes not found in the manufacturer datasheet.
TMS320F28034PNT - 60MHz C2000 Piccolo MCU 128KB Flash | TI
The Texas Instruments TMS320F28034PNT is a 32-bit C2000 Piccolo real-time microcontroller with a 60 MHz C28x CPU, 128 KB (64K x 16) of flash memory, and an integrated Control Law Accelerator (CLA), housed in an 80-pin LQFP (12 x 12 mm) package rated from -40C to +105C. A microcontroller (MCU) is a single-chip computer combining a processor core, memory, and programmable peripherals. Within the semiconductor hierarchy, the TMS320F28034PNT belongs to the C2000 family of digital signal controllers: a real-time MCU built on a 32-bit fixed-point C28x DSP core optimized for deterministic, closed-loop control. Unlike general-purpose MCUs, C2000 devices pair the CPU with control-optimized peripherals designed for millisecond and microsecond loop deadlines in digital power and motor drive systems. Key features include the CLA co-processor, which offloads control-loop math from the main CPU to boost effective throughput; a 12-bit ADC with up to 16 input channels for precise current and voltage sensing; high-resolution enhanced PWM (ePWM) modules for power conversion; and eQEP and eCAP modules for encoder position capture and timing. Communication coverage spans SPI, SCI (UART), I2C, and CAN interfaces. Architecturally, the device runs from a 1.8V core (regulated internally from a 3.3V supply) and is code-compatible with previous C28x devices, so existing software can be reused across the family. The F2803x Piccolo generation packs C28x performance and analog integration into low pin-count devices, reducing board area and BOM cost versus larger Delfino-class parts. Typical applications include field-oriented control (FOC) of BLDC and AC induction motors, digital power supplies such as LLC and PFC stages, solar micro-inverters, and industrial automation. The 60 MHz core, 12-bit ADC, and ePWM peripherals enable fast, accurate current-loop execution. Design considerations: provide proper decoupling for the 3.3V I/O and 1.8V core supplies, and follow the datasheet guidance for the internal VREG external capacitors. Route the JTAG interface with attention to signal integrity for reliable debug and flash programming. This page synthesizes verified distributor pricing, drop-in alternatives, and practical design notes not found in the manufacturer datasheet.

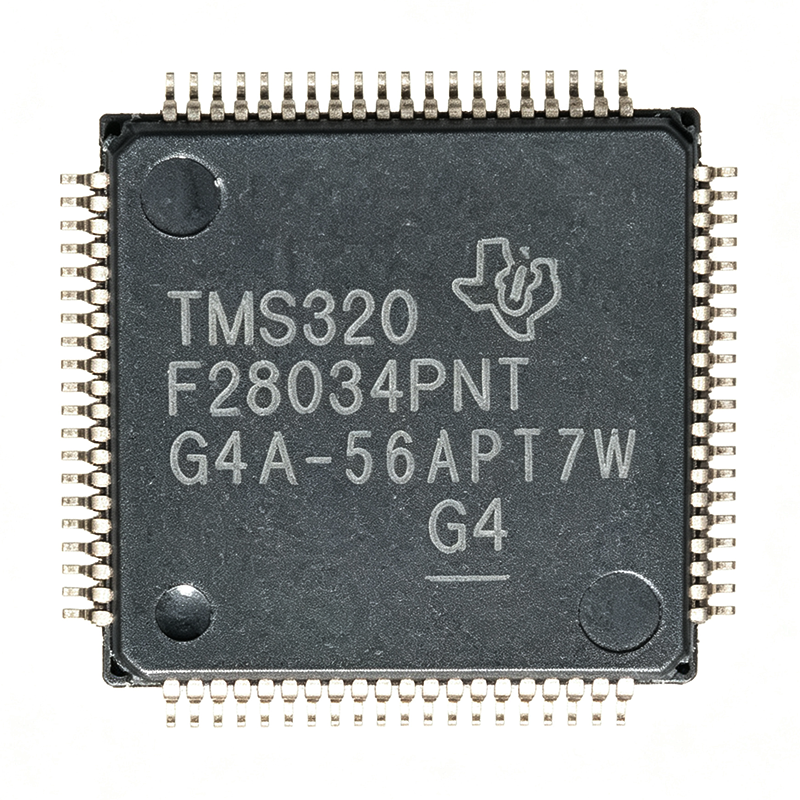

TMS320F28034PNT - 60MHz C2000 Piccolo MCU | Texas Instruments
The Texas Instruments TMS320F28034PNT is a 32-bit C28x microcontroller from the C2000 Piccolo family, operating at 60 MHz with 128 KB of flash memory. It is housed in an 80-pin LQFP (12x12 mm) package and is designed for real-time control applications such as motor control, digital power conversion, and industrial automation. The device integrates a Control Law Accelerator (CLA) for offloading control loops, along with a rich set of analog and digital peripherals. A microcontroller (MCU) is a compact integrated circuit that combines a processor core, memory, and programmable input/output peripherals on a single chip. The C28x core is a 32-bit fixed-point DSP optimized for real-time control, offering high-speed math capabilities essential for closed-loop systems. The TMS320F28034PNT belongs to the C2000 family, which is specifically designed for applications requiring precise, deterministic control. Key features include a 60 MHz C28x CPU, 128 KB flash, 20 KB RAM, a 12-bit ADC with up to 16 channels, and multiple communication interfaces such as SPI, SCI (UART), I2C, and CAN. The device also includes ePWM modules, eQEP, eCAP, and a watchdog timer. The Control Law Accelerator (CLA) is a co-processor that can execute control algorithms independently, freeing the main CPU for other tasks. The TMS320F28034PNT operates from a 3.3V I/O supply with an internal 1.8V core, and supports a temperature range of -40°C to 105°C. It is code-compatible with other C28x devices, allowing software reuse across the family. The device is available in a lead-free, RoHS-compliant LQFP-80 package. Typical applications include field-oriented control (FOC) of AC induction and BLDC motors, digital power supplies (e.g., LLC converters), solar inverters, and industrial drives. The high-performance ADC and PWM modules make it ideal for precise current and voltage sensing and control. When designing with this MCU, ensure proper decoupling of the 3.3V and 1.8V supplies, and consider using the internal voltage regulator with external capacitors as specified in the datasheet. The JTAG interface is essential for debugging and programming, and should be routed with appropriate signal integrity.
TMS320F28034PNTR - 32-bit C2000 MCU 60MHz 128KB Flash | TI
The Texas Instruments TMS320F28034PNTR is a C2000 real-time 32-bit microcontroller running at 60 MHz with 128 KB of embedded flash memory, housed in an 80-pin LQFP (PN) surface-mount package rated from -40C to +105C. It belongs to the TMS320F2803x Piccolo family of digital signal controllers. A microcontroller (MCU) is an integrated circuit that combines a processor core, memory, and peripherals on a single chip, forming the control brain of embedded systems. The C2000 family sits within TIs digital signal controller taxonomy: digital signal processor (DSP) heritage combined with flash microcontroller integration, purpose-built for real-time control loops where deterministic interrupt latency matters more than raw throughput. Within power electronics, motor drives, and digital power supplies, the C2000 hierarchy spans entry Piccolo (F2803x), mid-range F2807x, and high-performance F2838x devices. Key differentiating features of the TMS320F28034 include the C28x 32-bit CPU core with integrated FPU-less fixed-point math but an optional Control Law Accelerator (CLA) for parallel control-loop execution, high-resolution PWM (HRPWM) outputs with enhanced ePWM modules, and a 12-bit ADC. Real-time features include fast interrupt response and cycle-for-cycle deterministic execution suited to closed-loop control. Technically, the F2803x family executes up to 60 MIPS and integrates control peripherals optimized for three-phase inverter, PFC, and servo applications. On-chip flash of 128 KB eliminates external memory, while internal RAM and boot ROM support field programming via serial interfaces. Typical applications include digital power supplies (PFC, LLC), three-phase motor drives for appliances and industrial equipment, solar micro-inverters, and e-bike controllers. Design consideration: the device is a 3.3 V I/O part; ensure level compatibility with 5 V peripherals and observe flash wait-state settings versus the 60 MHz SYSCLKOUT. This page synthesizes distributor pricing, same-family drop-in alternatives, and practical design notes not found in the manufacturer datasheet.
TMS320F28034QPNTQ1 - 60MHz C2000 MCU 128KB Flash | TI
The Texas Instruments TMS320F28034QPNTQ1 is an automotive-qualified C2000 Piccolo 32-bit real-time microcontroller featuring the C28x CPU core running at 60 MHz, 128 KB (64K x 16) of embedded flash memory, and an 80-pin LQFP (PNT) package. The Q1 suffix denotes AEC-Q100 qualification and automotive-grade manufacturing, making it suitable for vehicular and industrial control systems requiring high reliability. A digital signal controller (DSC) combines the compute throughput of a DSP with the peripheral integration and ease of use of a microcontroller. Within the power-management hierarchy, the C2000 family sits at the level of real-time control MCUs: semiconductor -> microcontroller (MCU) -> digital signal controller -> C2000 real-time control MCU -> TMS320F28034-Q1. DSCs are the industry-standard choice for closed-loop control of power conversion and motor drive systems. Key features include the Control Law Accelerator (CLA), an independent 32-bit floating-point math coprocessor that offloads control-loop computations from the main C28x core; high-resolution PWM (HRPWM) peripherals for fine duty-cycle resolution in power converters; a 12-bit ADC with fast conversion times for current sensing; and code compatibility with all previous C28x devices, protecting software investments. Internal 1.8V/3.3V supply operation simplifies power-tree design. Architecturally, the F2803x Piccolo generation couples the C28x fixed-point core with the CLA, on-chip flash, SRAM, ePWM, eCAP, eQEP, SCI, SPI, I2C, and CAN modules in low pin-count packages, providing a high level of analog and control integration. Typical applications include automotive electric power steering, HEV/EV auxiliary inverters, on-board battery chargers, solar micro-inverters, and industrial motor drives such as FOC-controlled PMSM and BLDC systems, where 60 MHz real-time loop execution and precise PWM are essential. Design consideration: when migrating from the commercial TMS320F28034 to this Q1 variant, verify that the temperature rating and AEC-Q100 qualification requirements of your end application align, and confirm pin-level compatibility before PCB reuse.
TMS320F28035-Q1 - 60MHz 128KB Flash C2000 MCU | TI
The Texas Instruments TMS320F28035-Q1 is an automotive-grade C2000 32-bit microcontroller from Texas Instruments, featuring a C28x core running at 60 MHz with 128 KB of flash memory and a Control Law Accelerator (CLA). It is designed for real-time control applications in automotive systems, offering high-performance processing with integrated peripherals for motor control, power conversion, and sensing. A microcontroller (MCU) is a compact integrated circuit that combines a processor core, memory, and programmable input/output peripherals on a single chip. The C2000 family is a specialized line of MCUs optimized for real-time control, with a digital signal processor (DSP)-like architecture that excels in mathematical computations required for closed-loop control algorithms. The TMS320F28035-Q1 sits within the C2000 Piccolo series, which balances cost and performance for automotive and industrial applications. Key features include a 32-bit C28x CPU with a 60 MHz clock, 128 KB of flash memory, 20 KB of SRAM, and a Control Law Accelerator (CLA) that offloads math-intensive tasks from the main CPU. It also includes a 12-bit ADC with up to 16 channels, multiple PWM modules, and communication interfaces such as SPI, SCI (UART), and I2C. The device operates over a wide temperature range of -40C to +125C, making it suitable for harsh automotive environments. The architecture integrates a Harvard bus structure for efficient real-time signal processing. The CLA is a parallel processor that can execute control algorithms independently, reducing CPU load and enabling faster loop rates. The device also features a memory protection unit and a watchdog timer for enhanced reliability. Typical applications include automotive motor control (e.g., pumps, fans, and power steering), DC-DC converters, battery management systems, and industrial drives. Its automotive qualification (AEC-Q100) ensures compliance with stringent quality and reliability standards. When designing with this MCU, ensure proper decoupling of the power supply pins and a clean ground plane to minimize noise. The CLA can be used to offload time-critical control loops, but careful consideration of memory partitioning is required to avoid conflicts.
TMS320F28035PAGT - 60MHz C2000 Piccolo MCU 64-TQFP | TI
The Texas Instruments TMS320F28035PAGT is a 32-bit real-time microcontroller from the C2000 Piccolo family, featuring the C28x core and Control Law Accelerator (CLA) running at 60 MHz (120 MIPS). It integrates 128KB (64K x 16) of flash memory, a 12-bit ADC with up to 16 channels, 33 GPIO pins, and ePWM modules in a 64-pin TQFP (10x10 mm, PAG) package rated from -40C to +105C. A microcontroller (MCU) is a compact integrated circuit combining a processor core, memory, and programmable peripherals in one chip. Within the power-management hierarchy, the C2000 family is a specialized MCU class optimized for real-time control, pairing the C28x DSP core with control peripherals such as PWM, ADC, and quadrature encoder interfaces, making it ideal for closed-loop systems in motor drives, power conversion, and industrial automation. Key features include the 60 MHz C28x 32-bit CPU with an independent CLA floating-point coprocessor that executes control loops in parallel with the main CPU, effectively doubling throughput for time-critical tasks. Memory comprises 128KB flash and 20KB SRAM, protected by a 128-bit security key. Communication peripherals include CAN, LIN, I2C, SPI, and UART, while the internal voltage regulator enables single-rail 3.3V operation, simplifying power supply design. Architecturally, the C28x core uses a Harvard bus structure with hardware multiply-accumulate units optimized for math-intensive algorithms. High-resolution PWM (HRPWM) plus the fast 12-bit ADC support precise current and voltage regulation loops in digital power stages, enabling switching frequencies and control bandwidths unreachable by general-purpose MCUs. Typical applications include industrial motor drives, solar inverters, digital power supplies, and power line communications. The integrated analog and PWM peripherals reduce external component count and control-loop latency compared with discrete controller-plus-PWM solutions. Designers should ensure proper 3.3V decoupling on VDDIO/VDD rails and configure CLA shared-memory access carefully to avoid CPU contention. The T suffix denotes the tray packaging option for the same silicon. This page synthesizes distributor pricing, drop-in alternatives, and practical design notes not found in the manufacturer datasheet.
TMS320F28035PNT - 60MHz C2000 Piccolo MCU, 128KB Flash | TI
The Texas Instruments TMS320F28035PNT is a 32-bit C28x Piccolo real-time microcontroller from the C2000 family, operating at up to 60 MHz with 128KB (64K x 16) of flash memory and 20KB of SRAM, housed in an 80-pin LQFP (12x12 mm, PN) package rated from -40C to +105C. A microcontroller (MCU) is a compact integrated circuit combining a processor core, memory, and programmable peripherals on a single chip. The C2000 family is a specialized class of MCUs optimized for real-time control, pairing the C28x DSP-class core with high-resolution PWM, fast 12-bit ADCs, and on-chip comparators. Taxonomically: C2000 MCU -> real-time microcontroller -> digital signal controller -> embedded processor -> semiconductor. Key features include a 60 MHz C28x CPU with an independent Control Law Accelerator (CLA) also running at 60 MHz, effectively doubling throughput for time-critical control loops; 128KB flash with 20KB SRAM; up to 45 GPIO; a 12-bit ADC with up to 16 channels; on-chip comparators; and high-resolution ePWM with 150 ps resolution. Communication peripherals include SCI (UART), SPI, I2C, CAN, and LIN. Architecturally, the device uses a modified Harvard architecture with a unified memory map, operating from a single 3.3V supply with an internal voltage regulator. The CLA executes control algorithms concurrently with the main C28x CPU, cutting control-loop latency in digital power and motor drive systems where switching frequencies exceed 100 kHz. The device is code-compatible with previous C28x generations, easing migration from older F280x designs. Typical applications include field-oriented control (FOC) of PMSM and BLDC motors, solar inverters with MPPT, digital power supplies (LLC, active clamp, totem-pole PFC), HEV/EV onboard chargers and traction inverters, and battery management systems. The high analog integration reduces external component count in compact power stages. Design tip: decouple the 3.3V supply with 100 nF and 10 uF capacitors close to the VDD pins, and route the ADC reference away from PWM switching noise for best conversion accuracy. Use the ePWM trip-zone inputs for hardware overcurrent protection. This page synthesizes distributor availability data, same-package drop-in alternatives, comparison tables, and practical design notes not found in the manufacturer datasheet.
TMS320F28062PZT - 90MHz C2000 Piccolo MCU 128KB Flash | TI
The Texas Instruments TMS320F28062PZT is a C2000 Piccolo 32-bit real-time microcontroller operating at up to 90 MHz with an integrated floating-point unit (FPU), 128 KB (64K x 16) of flash memory and 52 KB of RAM, housed in a 100-pin LQFP (14x14 mm) package (PZT). A C2000 MCU is a microcontroller class optimized for real-time closed-loop control. Within the semiconductor hierarchy it sits as microcontroller -> digital signal controller (DSC) -> embedded processor, combining a high-performance C28x CPU with tightly coupled control peripherals such as PWM modules, fast ADCs, and quadrature encoder interfaces. The TMS320F28062 belongs to the TMS320F2806x Piccolo family, engineered for deterministic execution and precise interrupt timing in control loops. Key features include the 90-MHz C28x core with FPU, a 12-bit ADC with 16 input channels, multiple enhanced PWM (ePWM) generators, and SCI, SPI, I2C, and CAN communication interfaces. JTAG boundary scan support enables debugging and programming, and an internal voltage regulator allows single-rail 3.3-V operation, simplifying power-supply design. The device is built on high-performance static CMOS technology, and family documentation cites 1.8-V core, 3.3-V I/O, and 3.3-V flash supplies. The FPU accelerates control mathematics such as PID loops and Park/Clarke transforms, which are critical for sensorless motor control algorithms executed at high sampling rates with deterministic latency. Typical applications include motor control for appliances and industrial drives, digital power conversion such as switch-mode power supplies and solar inverters, and electric-vehicle auxiliary systems where fast, deterministic interrupt response is required. When designing with the F28062PZT, decouple the 1.8-V core and 3.3-V I/O supplies properly and follow TI-recommended PCB layout for the crystal oscillator and ADC reference to minimize noise. This page synthesizes distributor pricing, drop-in alternatives, comparison data, and practical design notes not found in the manufacturer datasheet, with pricing verified as of 2026-08-30.

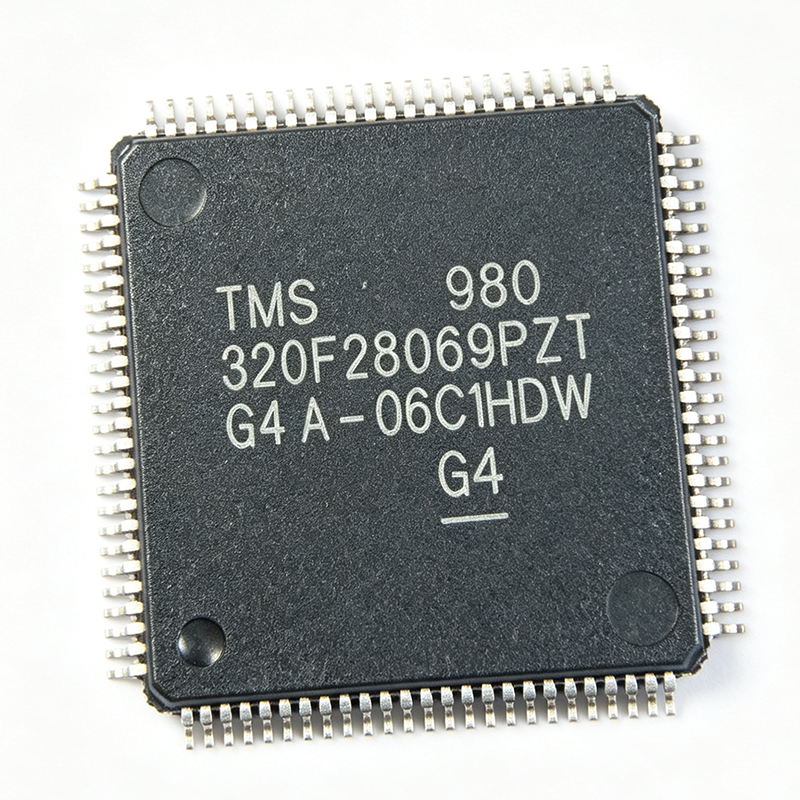

TMS320F28069PZT - 90MHz C2000 MCU 256KB Flash | TI
The Texas Instruments TMS320F28069PZT is a 32-bit C2000 Piccolo real-control microcontroller with a 90 MHz C28x CPU, FPU, CLA, and VCU coprocessors, 256 KB flash and 100 KB RAM, housed in a 100-pin LQFP (14x14 mm) package. A microcontroller (MCU) is a compact integrated circuit that combines a processor core, memory, and programmable peripherals to govern a specific embedded function. The TMS320F28069PZT belongs to the C2000 real-time control MCU family, positioned within TI's broader digital signal controller taxonomy: C28x core -> Piccolo DSP -> digital signal controller -> microcontroller -> semiconductor. C2000 devices are purpose-built for closed-loop control where deterministic interrupt latency and fast math matter more than general-purpose throughput. Key features include native single-precision floating-point operations (FPU32), a programmable Control Law Accelerator (CLA) that executes control loops in parallel with the main CPU, a Viterbi Complex Unit (VCU) for complex arithmetic, and a 6-channel DMA. An internal voltage regulator enables single-rail 3.3 V operation with no power-sequencing requirement, simplifying power supply design. Architecturally, the device uses a Harvard bus structure with separate program and data buses. The CLA is an independent 32-bit floating-point processor running at the same 90 MHz clock, offloading time-critical control loops from the C28x. Peripherals include a 12-bit ADC, ePWM modules, USB 2.0, CAN, SPI, I2C, and UART, supporting both sensing and actuation in one chip. Typical applications are field-oriented motor control for BLDC and AC induction machines, digital power conversion such as solar inverters and server power supplies, and industrial automation requiring fast deterministic control loops. Design consideration: decouple all VDD and VDDIO pins with 100 nF capacitors placed close to the pins; the on-chip oscillator supports a 10 MHz crystal, or an external clock source can be used. This page synthesizes distributor pricing, drop-in alternatives, and practical design notes not found in the manufacturer datasheet.
TMS320F28069PZT - 90MHz C2000 MCU with FPU, VCU, CLA | TI
The TMS320F28069PZT is a 32-bit C2000 Piccolo microcontroller from Texas Instruments, featuring a C28x CPU core running at 90 MHz with native single-precision floating-point operations, a Control Law Accelerator (CLA), and a Viterbi Complex Unit (VCU). It integrates 256 KB of flash memory (128K x 16) and 100 KB of RAM, along with a 12-bit ADC, USB, CAN, and I2C interfaces. Housed in a 100-pin LQFP (PZ) package measuring 14x14 mm, it operates over a temperature range of -40°C to 105°C. A microcontroller (MCU) is a compact integrated circuit designed to govern a specific operation in an embedded system. It contains a processor core, memory, and programmable input/output peripherals. The TMS320F28069PZT belongs to the C2000 family of real-time control MCUs, which are optimized for industrial and automotive applications requiring high-performance signal processing and control. The C28x core is a 32-bit fixed-point and floating-point architecture, and the CLA is a co-processor that enables parallel execution of control algorithms, offloading the main CPU. Key features include a 90 MHz C28x CPU with FPU, a 32-bit CLA, a VCU for Viterbi and complex math, 256 KB flash, 100 KB RAM, a 12-bit ADC with up to 16 channels, and multiple communication interfaces including USB 2.0, CAN, SPI, I2C, and UART. The device also features a 6-channel DMA controller, an internal voltage regulator for single-rail operation, and low-power modes. The high integration and peripheral set make it suitable for complex real-time control applications. Technically, the TMS320F28069PZT uses a Harvard architecture with separate program and data buses, enabling simultaneous instruction fetch and data access. The FPU accelerates floating-point math, while the CLA can execute control loops independently, reducing CPU load. The VCU accelerates Viterbi decoding and complex arithmetic, beneficial for communication and motor control. The device includes a programmable control law accelerator, which is a 32-bit floating-point unit that can run at the same clock speed as the CPU, providing additional processing power for time-critical tasks. Typical applications include motor control (e.g., field-oriented control of AC induction and BLDC motors), digital power conversion (e.g., solar inverters, server power supplies), industrial automation, and renewable energy systems. The device's high-speed ADC and PWM modules enable precise control loops, while the CAN and USB interfaces facilitate communication in industrial networks. When designing with this MCU, ensure proper decoupling of the VDD and VDDIO pins with 100 nF capacitors placed close to the pins. The internal voltage regulator allows single-rail operation, but an external 1.8V supply can be used for lower power dissipation. The device requires a 10 MHz crystal or an external clock source; the on-chip oscillator can also be used with a 10 MHz crystal.
TMS320F28069UPNT - 90MHz C2000 MCU, 256KB Flash | TI
The TMS320F28069UPNT is a 32-bit C2000™ Piccolo™ microcontroller from Texas Instruments, featuring a C28x core running at 90 MHz with a floating-point unit (FPU), a Viterbi Complex Unit (VCU), and a Control Law Accelerator (CLA). It integrates 256KB (128K x 16) of flash memory and is housed in an 80-pin LQFP (PN) package measuring 12x12 mm. This MCU is designed for real-time control applications, offering high-performance signal processing and advanced control peripherals. A microcontroller (MCU) is a compact integrated circuit that combines a processor core, memory, and programmable input/output peripherals on a single chip. The C2000 family is a specialized line of MCUs optimized for real-time control, bridging the gap between general-purpose processors and digital signal processors (DSPs). The TMS320F28069UPNT belongs to the C28x Piccolo series, which is part of the broader C2000 real-time control product line, known for its high-performance math capabilities and integrated control peripherals. Key features include a 90 MHz C28x CPU with FPU, a VCU for Viterbi and complex math, and a CLA that offloads control tasks from the main CPU. The device offers 256KB of flash, 100KB of SRAM, and a rich set of peripherals including multiple 12-bit ADCs, PWM modules, and communication interfaces such as SPI, SCI, I2C, and CAN. The internal voltage regulator enables single-rail operation, simplifying power supply design. The architecture integrates a Harvard bus structure with a unified memory map, allowing efficient execution of control algorithms. The CLA operates independently, enabling concurrent processing of time-critical tasks. The VCU accelerates communication decoding, making it suitable for applications like power line communication and motor control with encoder feedback. Typical applications include motor control for industrial drives, digital power conversion, renewable energy inverters, and automotive systems. The device's high-speed ADC and PWM modules make it ideal for closed-loop control systems requiring precise timing and fast response. When designing with this MCU, ensure proper decoupling of the VDD and VDDIO pins and consider the thermal performance of the LQFP package. The internal regulator requires external capacitors as specified in the datasheet to maintain stability.
TMS320F2808PZA - 100MHz C2000 MCU 128KB Flash | Texas Instruments
The TMS320F2808PZA is a 32-bit fixed-point digital signal controller (DSC) from Texas Instruments' C2000 family, designed for real-time control applications. It operates at 100 MHz (10-ns cycle time) and integrates 128KB (64K x 16) of flash memory, 35 I/O pins, and a rich set of control peripherals including 12 PWM channels, ECAN, I2C, SCI, and SPI. The device is housed in a 100-pin LQFP (PZ) package measuring 14x14 mm, suitable for space-constrained industrial and automotive designs. A digital signal controller (DSC) combines the processing power of a digital signal processor (DSP) with the peripheral integration and ease-of-use of a microcontroller (MCU). The C28x core is optimized for real-time control algorithms, featuring a Harvard architecture, single-cycle multiply-accumulate (MAC) operations, and a 32x32-bit multiplier. This makes it ideal for closed-loop control systems such as motor drives, power conversion, and renewable energy inverters, where fast and deterministic execution is critical. Key features include high-performance static CMOS technology, a 1.8-V core and 3.3-V I/O design, and a 3.3-V flash voltage. The device supports JTAG boundary scan for debugging and production testing. It also includes a 128-bit security key/lock to protect proprietary firmware, an on-chip oscillator, and a 2x8-channel input multiplexer for analog signal acquisition. The TMS320F2808PZA is part of the TMS320F280x family, which offers scalable memory and peripheral options for various control applications. From a technical depth perspective, the C28x core delivers 100 MIPS (million instructions per second) at 100 MHz, enabling complex control loops with high bandwidth. The integrated PWM modules support dead-band generation, trip zones, and synchronization, which are essential for motor control and power electronics. The 12-bit ADC with dual sample-and-hold circuits allows simultaneous sampling of two analog signals, improving control accuracy. The device also features a memory protection unit and a watchdog timer for enhanced reliability. Typical applications include industrial motor drives, servo control, digital power supplies, solar inverters, and electric vehicle (EV) charging systems. The TMS320F2808PZA's combination of processing power, integrated peripherals, and robust security makes it a preferred choice for engineers developing high-performance control systems. When designing with this device, ensure proper decoupling of the 1.8-V core and 3.3-V I/O supplies, and follow the recommended layout for the LQFP package to minimize noise and thermal issues. The JTAG interface should be brought out for debugging and firmware updates.
TMS320F2808PZS - 100MHz C2000 32-bit MCU 128KB Flash | TI
The Texas Instruments TMS320F2808PZS is a 32-bit fixed-point digital signal controller (DSC) from the C2000 C28x family, operating at up to 100 MHz. It integrates 128KB (64K x 16) of flash memory, 18KB of SRAM, 12 PWM channels, a 16-channel 12-bit ADC, and communication interfaces including SCI, SPI, I2C, and eCAN, all in a 100-pin LQFP (PZ) package measuring 14x14 mm, rated from -40C to +125C. A digital signal controller combines the processing power of a digital signal processor with the peripheral integration and ease of use of a microcontroller. The C28x core is optimized for real-time control, featuring a Harvard architecture, single-cycle 32x32-bit multiply-accumulate (MAC), and an instruction set tailored for control algorithms, making it ideal for closed-loop systems requiring deterministic, high-speed computation. Key features include the 100 MHz 32-bit fixed-point CPU, 128KB flash, 18KB on-chip SRAM, and a 12-bit ADC with up to 16 input channels. The device supports dynamic PLL ratio changes, an on-chip oscillator, a watchdog timer, 35 general-purpose I/O pins, a JTAG debug interface, and multiple low-power modes. It is built on high-performance static CMOS technology and is object-compatible with the TMS320C2xx family for straightforward code migration from legacy designs. The integrated enhanced control peripherals - 12 PWM channels paired with the high-speed ADC - were specifically architected for power electronics control loops, reducing external component count and loop latency compared to discrete controller-plus-converter solutions. Typical applications include motor control (AC induction, BLDC, PMSM), digital power supplies, solar inverters, and industrial automation, where fast control-loop execution and precise PWM resolution directly improve efficiency and transient response. Design tip: decouple all supply pins with low-ESR ceramics placed close to the LQFP, generate the clock from the internal oscillator or external crystal, and reserve JTAG pins for programming and debug access. Verify that 128KB flash capacity fits your application before selecting against smaller F2806-family variants.
TMS320F2812 - 150MHz C2000 DSP, 256KB Flash | TI | Motor Control
The Texas Instruments TMS320F2812 is a C2000 C28x 32-bit fixed-point digital signal controller (DSC) operating at 150 MHz (6.67-ns cycle time) with 256 KB (128K x 16) of embedded flash memory and an EMIF external memory interface, housed in a 176-pin LQFP (24 x 24 mm) package. A digital signal controller (DSC) combines the processing throughput of a digital signal processor (DSP) with the peripheral integration of a microcontroller (MCU). The TMS320F2812 sits within the C2000 family of real-time control MCUs, itself part of the embedded processor and power-management hierarchy, and is optimized for closed-loop control where sensing, computation, and actuation must complete within one switching period. Key features include the high-performance static CMOS C28x CPU at 150 MHz, 256 KB flash organized into four 8K x 16 sectors and six 16K x 16 sectors, 36 KB of SRAM, and low-power design with a 1.8-V core at 135 MHz, a 1.9-V core at 150 MHz, and 3.3-V I/O. The external memory interface (EMIF) allows expansion for data logging or oversized code images. On the technical side, the device integrates two event managers (EVA/EVB) that generate up to 16 PWM channels with dead-band control, a 12-bit ADC for current and voltage sensing, general-purpose timers, and SCI, SPI, and CAN serial interfaces. JTAG boundary-scan support per IEEE Standard 1149.1-1990 enables board-level test and on-chip debug via the standard C2000 toolchain (Code Composer Studio and XDS emulators). Typical applications include AC induction, BLDC, and stepper motor control, digital power supplies, solar and renewable-energy inverters, and industrial automation, where the fast ADC and event-manager PWM support tight real-time control loops at high switching frequencies. Design consideration: decouple the 1.8-V/1.9-V core and 3.3-V I/O rails independently and follow the datasheet power-up sequencing to avoid latch-up; include the 14-pin JTAG header for flash programming. This page synthesizes distributor data, drop-in alternatives, and practical design notes not found in the manufacturer datasheet, with pricing as of 2026-08-30.
TMS320F28332PTPS - 100MHz C2000 Delfino MCU 128KB Flash | TI
The Texas Instruments TMS320F28332PTPS is a 32-bit C2000 Delfino real-time microcontroller (DSC) delivering 100 MIPS at 100 MHz with a floating-point unit (FPU), 128 KB (64K x 16) of on-chip flash memory, and an EMIF external memory interface, housed in a 176-pin HLQFP (PTP) package measuring 24x24 mm with exposed thermal pad. A digital signal controller (DSC) combines the high-throughput arithmetic of a digital signal processor with the peripheral integration and interrupt responsiveness of a microcontroller. Within the power-management hierarchy, the C28x Delfino family sits at the high end of TI's real-time control MCU portfolio, optimized for fast closed-loop control algorithms in motor drives, power conversion, and industrial automation systems. Key differentiating features include the 32-bit C28x CPU with single-cycle multiply-accumulate, an FPU that offloads floating-point math and shortens control-loop software overhead, a 12-bit ADC with up to 16 channels for precise analog acquisition, high-resolution ePWM peripherals for power-stage control, and multiple communication interfaces (SCI, SPI, McBSP, CAN, I2C). Technically, the device runs from a 1.8 V core supply (1.71 V to 1.89 V) with 3.3 V I/O, over a -40C to +125C industrial temperature range. The EMIF enables external memory or FPGA expansion, and 52 KB of on-chip SRAM supports fast control variables and data buffers. Typical applications include industrial motor drives, solar inverters and renewable energy converters, digital power supplies (LLC, totem-pole PFC), and traction control systems. The high-speed ADC and ePWM modules enable precise, low-latency control, while the CAN interface supports robust communication in harsh environments. Design consideration: properly decouple the 1.8 V core and 3.3 V I/O rails, and solder the exposed thermal pad to the ground plane per the datasheet layout guidelines to optimize thermal and electrical performance. This page synthesizes distributor pricing, same-family drop-in alternatives, comparison tables, and practical design notes not found in the manufacturer datasheet.
TMS320F28335PTPQ - 150MHz C2000 DSC MCU, 512KB Flash | TI
The Texas Instruments TMS320F28335PTPQ is an automotive-qualified C2000 Delfino 32-bit digital signal controller (DSC) running at 150 MHz with a hardware floating-point unit, 512KB (256K x 16) of flash memory, and a 176-pin HLQFP (PTP) package rated from -40C to +125C. A digital signal controller combines the computational throughput of a digital signal processor with the peripheral integration of a microcontroller. In the embedded control hierarchy, the C2000 Delfino family sits at TI's high-performance real-time control tier, positioned above general-purpose MCUs and alongside dedicated DSPs. These devices are engineered specifically for closed-loop control systems where fast math and precise analog feedback are critical. Key features include 150 MIPS C28x CPU performance with a hardware FPU for executing complex control laws, 512KB of flash with 68KB of SRAM, and an external memory interface (EMIF) for memory expansion. A 12-bit, 16-channel ADC provides high-resolution conversion for motor current and voltage sensing, while up to 18 PWM outputs deliver precise power-stage switching timing. Architecturally, the C28x core uses a modified Harvard bus structure enabling simultaneous instruction and data fetches. Six-channel DMA offloads the CPU for data movement, and the ADC and PWM modules are synchronized for deterministic control-loop execution. A code security module, watchdog timer, and real-time interrupt support robust operation in safety-critical powertrain systems. Typical applications include automotive traction inverters, electric power steering, industrial servo drives, solar inverters, and digital power supplies. AEC-Q100 Grade 1 qualification makes the device suitable for under-hood environments where reliability is paramount. Designers should budget for dual-rail power (1.9V core, 3.3V I/O) with careful decoupling, provide a clean analog supply and reference for full 12-bit ADC accuracy, and configure flash wait states correctly at 150 MHz for optimal performance. This page synthesizes manufacturer datasheet data, distributor pricing, drop-in replacement information, and practical design notes in a single resource not available in the raw datasheet.
