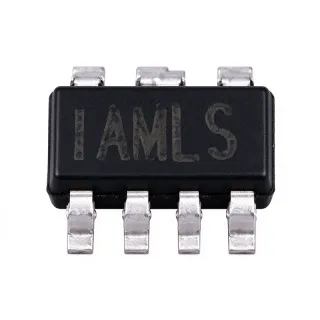

MP2451DJ-LF-Z - 36V, 2MHz, 0.6A Step-Down Converter | MPS
Teilenummer: MP2451DJ-LF-Z ✓ Aktiv| Menge | Stückpreis | Gesamt |
|---|---|---|
| 1 | $0.5062 | $0,51 |
| 10 | $0.3656 | $3,66 |
| 100 | $0.3234 | $32,34 |
| 500 | $0.3094 | $154,70 |
| 1.000 | $0.2953 | $295,30 |
MP2451DJ-LF-Z Übersicht
A step-down switching regulator (also called a buck converter) is a type of switched-mode power supply (SMPS) that efficiently converts a higher DC input voltage to a lower DC output voltage by rapidly switching an internal MOSFET and storing energy in an external inductor. Within the broader power-management hierarchy, the MP2451 sits between DC-DC converters (the family) and synchronous/non-synchronous buck regulators (the sub-family), making it well-suited for point-of-load (POL) rails in space-constrained designs. The 2 MHz switching frequency lets designers use a tiny 1 µH to 4.7 µH inductor, reducing total solution size dramatically versus 500 kHz alternatives.
Key specifications include a 0.6 A continuous output rating, 36 V absolute-maximum input, internal compensation that removes the need for an external compensation network, and built-in protections such as over-current protection (OCP), thermal shutdown, and under-voltage lockout (UVLO). The TSOT-23-6 footprint occupies roughly 2.9 mm × 1.6 mm of board area, making the part one of the smallest 36 V-tolerant synchronous-feel buck regulators on the market. The wide VIN range specifically targets automotive and industrial environments subject to load-dump and cold-crank transients on a 12 V or 24 V bus.
Typical applications include distributed 5 V or 3.3 V POL rails from a 12 V/24 V automotive battery, USB-powered devices, IoT sensors, DSL/cable modems, and portable industrial instrumentation. The combination of high switching frequency and small package also suits FPGA/CPLD auxiliary rails where board area is at a premium and low EMI from forced-CCM operation is desired.
When laying out the PCB, place the input capacitor, the inductor, and the BST bootstrap component as close to the IC as possible and keep the high-current loop minimal. The exposed ground pad under the TSOT-23-6 must be soldered to a sufficient ground copper pour; the part relies on PCB copper for thermal dissipation, so a thermal via array is strongly recommended when delivering close to the 0.6 A rating continuously.
Drop-in-Alternativen für MP2451DJ-LF-Z – gleiches Gehäuse, Pin-kompatibel. Bauteile mit anderem Gehäuse, die eine PCB-Überarbeitung erfordern, sind ausgeschlossen.
Varianten dieser Serie
Modelle derselben Serie, die drop-in-kompatibel sind mit MP2451DJ-LF-Z (gleiche Bauform und Footprint) – abweichend in Output Voltage Range, Package, Quiescent Current (Shutdown), RoHS Status, Soft Start.
Schnellvergleichstool – Wählen Sie Alternativbauteile für den Direktvergleich:
MP2451DJ-LF-P
✓ Auf Lager
$0.42 / Stück
Datenblatt ansehen →TPS62130RGTR
✓ Auf Lager
$1.72 / Stück
Datenblatt ansehen →MP2451DT-LF-Z
📋 Referenzalternative (nicht im Katalog)
MP2451DT-LF-P
📋 Referenzalternative (nicht im Katalog)
MP2451GJ-Z
📋 Referenzalternative (nicht im Katalog)
LMR16006XDDCR
📋 Referenzalternative (nicht im Katalog)
MP2451DJ-LF-Z Grenzwerte & elektrische Eigenschaften
| Topologie | Step-Down (Buck) Switching Regulator |
| Eingangsspannungsbereich | 3.3 V to 36 V |
| Ausgangsspannungsbereich | 0.8 V to (VIN - 1 V) adjustable |
| Output Current (Continuous) | 0.6 A (typical) |
| Schaltfrequenz | 2 MHz (fixed) |
| Switching Control | Current-mode PWM |
| Quiescent Current (Shutdown) | 3 µA (typical) |
| Internal MOSFET | Integrated high-side high-voltage MOSFET |
| Gehäuse | TSOT-23-6 (Thin SOT-23-6) |
| Montageart | Surface Mount |
| Sanftanlauf | Internal (programmed by BST cap) |
| RoHS-Status | Compliant (LF-Z suffix indicates lead-free) |
MP2451DJ-LF-Z Pin-Konfiguration
| Pin 1 | EN — Enable input (high to enable switching) |
| Pin 2 | GND — Ground / exposed thermal pad connection |
| Pin 3 | SW — Switch node - connect to external inductor |
| Pin 4 | IN — Input supply voltage (3.3 V to 36 V) |
| Pin 5 | BST — Bootstrap capacitor pin for high-side gate drive |
| Pin 6 | FB — Feedback input to internal error amplifier (set by external divider to 0.8 V internal reference) |
Typische Anwendungen
MP2451DJ-LF-Z ist geeignet für 6 Anwendungs: Automotive 12V/24V POL Rails, Industrial 24V Sensor and Instrumentation Rails, Portable / Battery-Powered IoT Devices, FPGA / CPLD Auxiliary Supply Rails, USB-Powered Devices and Charging Rails, E-Metering / Smart Energy Sub-Systems.
Automotive 12V/24V POL Rails
The MP2451DJ-LF-Z converts a noisy 12 V or 24 V automotive battery rail into a clean 5 V or 3.3 V supply for body electronics, sensors, and infotainment modules. Its 3.3 V to 36 V input range survives load-dump transients up to 36 V, while the 2 MHz switching frequency keeps the output LC filter footprint tiny enough to fit next to an ECU connector. At 0.6 A continuous output it comfortably drives small MCUs, CAN transceivers, and sensor arrays. The exposed thermal pad of the TSOT-23-6 should be tied to a generous copper pour with thermal vias to dissipate the 1.8 W typical dissipation at VIN=12 V, VOUT=3.3 V, IOUT=0.6 A.
Empfohlen
Industrial 24V Sensor and Instrumentation Rails
The MP2451DJ-LF-Z is ideal for industrial 24 V bus systems that need a tightly regulated 5 V, 3.3 V, or even 1.8 V rail for sensors, op-amps, and isolated data-acquisition front-ends. The wide 3.3 V to 36 V input tolerates 24 V nominal with up to 36 V transient headroom, while the 0.6 A output is more than enough for a strain-gauge bridge, a 4-20 mA loop driver, and a small MCU combined. With internal compensation the design uses only six external components, simplifying agency pre-compliance testing for IEC 61000-4-2/4 surge and burst immunity.
Empfohlen
Portable / Battery-Powered IoT Devices
In battery-powered IoT devices, the MP2451DJ-LF-Z draws only 3 µA in shutdown, allowing the host MCU to power-gate the regulator during sleep cycles and extend battery life from months to years. Stepping down a single-cell Li-ion (3.0 V to 4.2 V) or two AA cells (2.0 V to 3.2 V with boost) to 1.8 V or 3.3 V is well within its 0.8 V to VIN capability. The 0.6 A rating covers LoRa/BLE transmit bursts and the 2 MHz switching frequency lets a 1 µH inductor keep the total solution height under 1.2 mm for wearable form factors.
Empfohlen
FPGA / CPLD Auxiliary Supply Rails
Modern FPGAs and CPLDs require multiple low-voltage rails (1.0 V, 1.2 V, 1.8 V, 2.5 V, 3.3 V) at moderate currents under 0.5 A, which the MP2451DJ-LF-Z supplies easily with its 0.6 A output. The 2 MHz fixed-frequency operation synchronises cleanly with the FPGA's internal clock tree, avoiding low-frequency beat tones that would fail CISPR 22 EMI scans. The TSOT-23-6 footprint fits into the tight area under an FPGA BGA, even on a 4-layer board with 0402 passives. The internal soft-start limits inrush to protect the FPGA's internal clamp diodes at hot-plug events.
Empfohlen
USB-Powered Devices and Charging Rails
USB-powered gadgets typically require a 5 V input handling dropouts to 4.5 V during USB suspend and 5.25 V at full load - well inside the 3.3 V to 36 V window of the MP2451DJ-LF-Z when generating sub-5 V rails. The 0.6 A output covers most single-port USB Type-A applications including charging controllers, status LEDs, and MCU housekeeping. The fixed 2 MHz switching frequency permits a small 2.2 µH inductor that drops neatly into the USB-A connector footprint, while internal EN logic lets a host MCU perform USB-C PD role-swap without glitching downstream rails.
Empfohlen
E-Metering / Smart Energy Sub-Systems
Smart electricity, gas, and water meters need a low-noise, low-quiescent buck regulator that runs directly from the meter's rectified mains or battery-backed 24 V rail. The MP2451DJ-LF-Z's 0.6 A output comfortably powers the meter's MCU, an OLED display driver, and a wireless M-Bus or LoRaWAN modem, while its 36 V input rating tolerates rectified 24 V AC adapters and large capacitive holdup during mains glitches. The 3 µA shutdown current keeps the regulator idle during sleep, preserving battery life on battery-backed metering designs.
Empfohlen
Zusammenfassung der empfohlenen Produkte
Technische Referenzdaten für MP2451DJ-LF-Z – Vergleich, Designhinweise und Compliance-Informationen.
Auswahlhilfe
Vergleich mit Alternativen
| Parameter | Dieses Produkt | MP2451DT-LF-Z | MP2451DJ-LF-P | MP2451GJ-Z | TPS62130RGTR | LMR16006XDDCR |
|---|---|---|---|---|---|---|
| Brand | Monolithic Power Systems | Monolithic Power Systems | Monolithic Power Systems | Monolithic Power Systems | Texas Instruments | Texas Instruments |
| Package | TSOT-23-6 | TSOT-23-6 - same | TSOT-23-6 - same | TSOT-23-6 - same | TSOT-23-6 - same | TSOT-23-6 - same |
| Input Voltage Range | 3.3 V to 36 V | 3.3 V to 36 V | 3.3 V to 36 V | 3.3 V to 36 V | 3 V to 17 V (narrower) | 4 V to 60 V (wider) |
| Output Current | 0.6 A | 0.6 A | 0.6 A | 0.6 A | 3 A (5x higher) | 0.6 A |
| Switching Frequency | 2 MHz | 2 MHz | 2 MHz | 2 MHz | 2.5 MHz | 0.7-2.2 MHz adj |
| Compensation | Internal | Internal | Internal | Internal | Internal | Internal |
| Package Pin Order | EN/GND/SW/IN/BST/FB | EN/GND/SW/IN/BST/FB - identical | EN/GND/SW/IN/BST/FB - identical | EN/GND/SW/IN/BST/FB - identical | EN/PG/SW/IN/BST/FB (PG vs GND differs) | BST/IN/EN/SW/FB/GND (rotated pinout) |
Wichtigste Unterscheidungsmerkmale
- Widest VIN-to-package ratio: 36 V input in TSOT-23-6 (vs. LMR16006XDDCR)
- Smallest BOM with 0.6 A/36 V combination (vs. TPS62130RGTR)
- Multiple shipping-format options from the same die (vs. MP2451DT-LF-Z)
Designhinweise
Place the input bypass capacitor (typically 1 µF to 4.7 µF ceramic, X7R, 50 V or higher) as close to the IN and GND pins as possible, within 2 mm. Route the SW node away from sensitive analog feedback traces; the high dv/dt on SW couples easily into the FB divider and degrades load regulation. Use a 4-layer PCB with a dedicated ground plane and stitch the input capacitor, IC, and output capacitor grounds with short wide traces or vias directly under the exposed TSOT-23-6 thermal pad.
Estimated: at VIN=12 V, VOUT=3.3 V, IOUT=0.6 A, the regulator dissipates roughly (12 - 3.3) × 0.6 / efficiency = approximately 1.95 W assuming 85% efficiency. The TSOT-23-6 has a theta_JA near 80 °C/W on a 1 oz 2-layer board, so junction temperature rises about 156 °C above ambient - too high for 25 °C ambient. Use at least a 4-layer board with a >50 mm² exposed-pad copper pour and thermal via array (4-6 vias 0.3 mm) to drop theta_JA below 40 °C/W for reliable full-load operation at 85 °C ambient.
Do not omit the BST capacitor (typically 100 nF) between BST and SW - without it the high-side gate drive will lose its supply rail and the part will fail to start. Do not use an inductor saturation current rating lower than the peak current calculated at full load plus 30% margin; undersaturation causes the part to enter OCP prematurely. Avoid using electrolytic capacitors at SW/VOUT - their ESL degrades the high-frequency switching loop and may cause instability. Verify polarity of feedback resistors; reversed divider will produce the maximum output voltage potentially damaging downstream circuitry.
The 2 MHz fixed-frequency switching enables the use of small ceramic input and output capacitors (typically 4.7 µF minimum) and a 1 µH to 4.7 µH inductor, dramatically shrinking the high-current loop. A shielded inductor (Coilcraft XAL series, Würth WE-LHMI) reduces radiated EMI below CISPR 22 / EN 55022 class B limits; a pi-filter on the input further attenuates conducted emissions back to the source. Place the bootstrap capacitor return directly on the SW plane to minimise dV/dt-induced ringing.
Compliance-Informationen
LF-Z suffix confirms lead-free / RoHS compliant per MPS conventions. Not AEC-Q100 qualified - automotive AEC-Q100 compliance requires an explicitly automotive-graded variant. REACH compliance inferred from MPS standard reach declaration.
