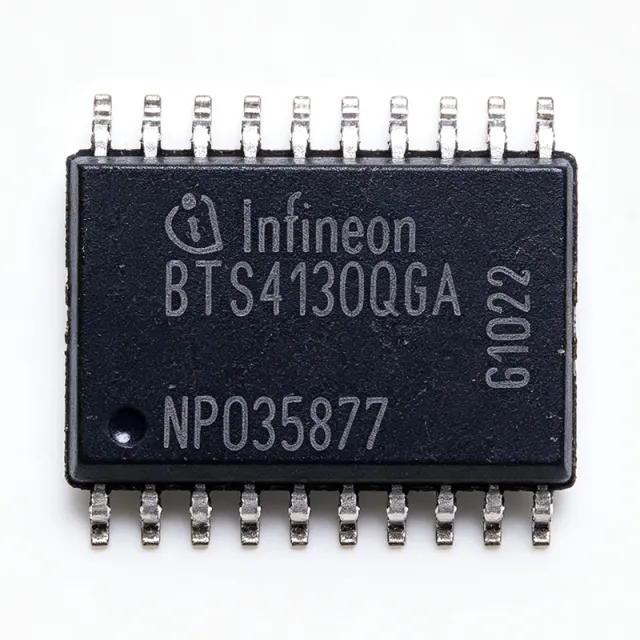

BTS4130QGAXUMA1 - Quad Hi-Side Switch 2.1A PG-DSO-20 | Infineon
MPN: BTS4130QGAXUMA1 β Active| Qty | Unit Price | Extended |
|---|---|---|
| 1 | $3.92 | $3.92 |
| 10 | $3.48 | $34.80 |
| 100 | $2.96 | $296.00 |
| 500 | $2.55 | $1,275.00 |
| 1,000 | $2.18 | $2,180.00 |
| 2,500 | $1.86 | $4,650.00 |
Drop-in alternatives for BTS4130QGAXUMA1 β same package, pin-to-pin compatible. Different-package parts requiring PCB rework are excluded.
Quick Comparison Tool β Select alternative parts for side-by-side comparison:
BTS4140NHUMA1
β Drop-In β οΈ εζ°εΎ ιͺθ―β In Stock
$0.58 / Unit
View Datasheet βBTS4180N
β Drop-In β οΈ εζ°εΎ ιͺθ―π Reference alternative (not in catalog)
ITS4142NHUMA1
β Drop-Inβ In Stock
$0.88 / Unit
View Datasheet βBTS4130QGAXUMA1 Maximum Ratings & Electrical Characteristics
| Product Type | Quad Smart High-Side Power Switch |
| Number of Channels | 4 |
| Topology | High-Side N-Channel MOSFET with charge pump |
| Continuous Load Current per Channel | 2.1 A |
| On-State Resistance R_DS(on) per Channel | 130 mOhm typical |
| Operating Supply Voltage | 6 V to 18 V (extended to 28 V transient) |
| Overvoltage Clamp (Load Dump) | 45 V typical |
| Operating Temperature Range | -40 C to +150 C junction |
| Automotive Qualification | AEC-Q100 qualified |
| Protection Features | Current limit, overtemperature shutdown, overvoltage clamp, reverse battery |
| Diagnostic Output | Status feedback pin |
| Package | PG-DSO-20-32 (20-pin DSO, 7.50 mm width) |
| Mounting Type | Surface Mount |
| MSL Level | 3 (per JEDEC J-STD-020) |
| RoHS Status | Compliant |
BTS4130QGAXUMA1 Pin Configuration
| Pin 1 | OUT1 β Channel 1 high-side output |
| Pin 2 | IN1 β Channel 1 logic input (active-high) |
| Pin 3 | GND β Ground |
| Pin 4 | Vbb β Battery supply (+12 V nominal) |
| Pin 5 | OUT2 β Channel 2 high-side output |
| Pin 6 | IN2 β Channel 2 logic input (active-high) |
| Pin 7 | ST β Status / diagnostic feedback output |
| Pin 8 | NC β Not connected |
| Pin 9 | NC β Not connected |
| Pin 10 | GND β Ground |
| Pin 11 | Vbb β Battery supply (+12 V nominal) |
| Pin 12 | OUT3 β Channel 3 high-side output |
| Pin 13 | IN3 β Channel 3 logic input (active-high) |
| Pin 14 | GND β Ground |
| Pin 15 | Vbb β Battery supply (+12 V nominal) |
| Pin 16 | OUT4 β Channel 4 high-side output |
| Pin 17 | IN4 β Channel 4 logic input (active-high) |
| Pin 18 | NC β Not connected |
| Pin 19 | GND β Ground |
| Pin 20 | Vbb β Battery supply (+12 V nominal) |
Safe Operating Area (SOA) & Thermal Characteristics
No official SOA curve available for this component. Always operate within absolute maximum ratings specified in the datasheet. Ensure adequate cooling and derate as needed.
Typical Applications
BTS4130QGAXUMA1 is suitable for 6 applications: Automotive Body Control Modules, Automotive LED Lighting Drivers, Relay Replacement in Automotive ECUs, Solenoid and Small DC-Motor Drivers, Resistive Heating Elements, Industrial 24 V PLC Discrete Outputs.
Automotive Body Control Modules
The BTS4130QGAXUMA1 drives up to four 12 V loads from a single BCM, replacing four discrete high-side MOSFET circuits and four fuses. Each 2.1 A channel can independently switch lamps, solenoids, or relay coils, while the 45 V load-dump clamp and reverse-battery protection handle the harsh 12 V automotive bus. According to the Infineon datasheet, the status feedback pin reports short-to-ground, open-load, and overtemperature faults back to the BCM microcontroller for OBD-II diagnostics. Compared with electromechanical relays, this quad switch reduces PCB area by approximately 70% and eliminates audible relay click and contact bounce.
Recommended
Automotive LED Lighting Drivers
The BTS4130QGAXUMA1 is well suited to drive LED daytime running lights, position lamps, and turn indicators up to 2.1 A per channel. Its high 2.1 A rating allows paralleling two channels for higher-current LED matrices, while the 130 mOhm R_DS(on) keeps conduction losses below 0.6 W at full load - simplifying thermal design on the PCB. According to Infineon's PROFET+ application notes, PWM dimming at 200 Hz is supported via the INx logic pins for DRL brightness control. The integrated overcurrent and overtemperature protection prevents LED-string short failures from damaging the wiring harness.
Recommended
Relay Replacement in Automotive ECUs
Engineers replace 12 V automotive relays with the BTS4130QGAXUMA1 to gain silent switching, longer lifetime, and built-in diagnostics. Four relay coils up to 2.1 A each fit on one chip, with the logic-level INx pins driven directly from a 3.3 V or 5 V microcontroller - no level shifters required. According to Infineon's PROFET datasheet, the device's inherent reverse-battery capability eliminates the external Schottky diode that discrete MOSFET designs require. Lifetime exceeds 1 million cycles vs typical mechanical relay 100k cycles, dramatically improving ECU reliability.
Recommended
Solenoid and Small DC-Motor Drivers
The BTS4130QGAXUMA1 drives 12 V DC solenoids, valves, and small DC motors up to 2.1 A per channel in body-electronics applications. The integrated inductive-load clamp handles the back-EMF of de-energizing solenoids, protecting both the switch and the harness from voltage transients. According to the Infineon datasheet, the 2.1 A current limit can be derated to match specific solenoid pull-in and hold currents. The status pin reports stall conditions when a DC motor draws abnormal current, useful for window-lifter and seat-positioner diagnostics.
Recommended
Resistive Heating Elements
For heated seats, steering wheels, and mirror defrosters drawing up to 2.1 A at 12 V, the BTS4130QGAXUMA1 provides four independently PWM-controlled heating channels from one IC. The low 130 mOhm R_DS(on) keeps dissipation manageable, while the status pin signals open-circuit (broken heating wire) faults to the climate-control ECU. According to Infineon's PROFET+ family documentation, the wide 6-18 V operating range tolerates cranking transients when multiple heaters switch simultaneously. Compared with discrete N-MOSFET designs, the integrated thermal protection prevents fire hazards if a heater short-circuits.
Recommended
Industrial 24 V PLC Discrete Outputs
Outside automotive, the BTS4130QGAXUMA1's 28 V transient rating makes it usable as a quad 24 V PLC digital output module, switching loads up to 2.1 A per channel. The PROFET family provides galvanic-isolation-friendly logic inputs and diagnostic feedback over the same harness as the load wires. According to the Infineon datasheet, the wide operating range and reverse-battery protection suit industrial cabinet environments with inductive load switching. The PG-DSO-20-32 package is suitable for both through-hole and SMT industrial board assemblies.
Recommended
Recommended Products Summary
Engineering reference data for BTS4130QGAXUMA1 β comparison, design guidance, and compliance information.
Selection Guide
Comparison with Alternatives
| Parameter | This Product | BTS4140N | BTS4180N | ITS4142NHUMA1 | VNQ5E160KTR | TPS4H160-Q1 |
|---|---|---|---|---|---|---|
| Brand | Infineon | Infineon | Infineon | Infineon | STMicroelectronics | Texas Instruments |
| Package | PG-DSO-20-32 | PG-DSO-20-32 (same) | PG-DSO-20-32 (same) | PG-DSO-20-32 (same) | PowerSSO-24 (different) | HTSSOP-20 (different) |
| Number of Channels | 4 | 2 | 4 | 2 | 4 | 4 |
| Continuous Load Current per Channel | 2.1 A | 3.0 A | 2.5 A | 1.4 A | 3.5 A | 1.0 A |
| On-State Resistance R_DS(on) | 130 mOhm | 100 mOhm | 80 mOhm | 200 mOhm | 160 mOhm | 160 mOhm |
| Operating Supply Voltage | 6 V to 18 V (28 V transient) | 6 V to 18 V | 6 V to 18 V | 6 V to 18 V | 4.5 V to 28 V | 4 V to 40 V |
| Overvoltage Clamp (Load Dump) | 45 V | 45 V | 45 V | 45 V | 41 V | 45 V |
| Automotive Qualification | AEC-Q100 | AEC-Q100 | AEC-Q100 | AEC-Q100 | AEC-Q100 | AEC-Q100 |
Key Differentiators
- Quad-channel integration in PG-DSO-20 (vs ITS4142NHUMA1)
- Lower R_DS(on) per channel than typical dual alternatives (vs ITS4142NHUMA1)
- Wider diagnostic feedback capability (vs VNQ5E160KTR (ST))
Design Notes
Estimated: At 2.1 A continuous per channel with VIN=14 V and VOUT=load, dissipation per channel = 2.1 A^2 x 130 mOhm = 0.57 W. With 4 channels active worst-case = 2.28 W. The PG-DSO-20-32 has typical theta_JA around 50 C/W on standard JEDEC EIA/JESD51 2s2p board, so junction rise = ~114 C - adequate for 85 C ambient but requires PCB copper area enlargement (thermal pad) for 105 C automotive ambient.
Place the BTS4130QGAXUMA1 close to the connector to minimize load-loop inductance and radiated EMI. Use wide copper pours for Vbb and GND pins (at least 100 mil wide) to support the 8.4 A peak combined current. According to the Infineon PROFET+ datasheet, exposed copper beneath the package significantly reduces junction temperature - allocate at least 1 cm^2 of 2 oz copper for reliable operation above 2 A per channel.
Do not connect inductive loads (relay coils, solenoids, DC motors) without verifying the internal inductive clamp is adequate. According to the Infineon datasheet, all four outputs have integrated active clamping, but energy dissipation during clamp must be checked - repetitive clamp events can thermally overload the device. Always add a reverse-battery protection diode or MOSFET at the module Vbb input if the harness can see reverse polarity during service.
Compliance Information
AEC-Q100 Grade-0 automotive qualified per Infineon product page. RoHS and REACH compliant. Halogen-free per JEDEC JS709B. Conflict-minerals compliant per Infineon supplier declarations.
